Высокоскоростной трафарет для билета A4 карт со складками и перфорацией

Высокоскоростной трафарет для билета A4 карт со складками и перфорацией

Категория: >>>
Поставщик: Hubei Zhuozhan Technology Co. Ltd.

Цена:1 195,00 $ - 1 295,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

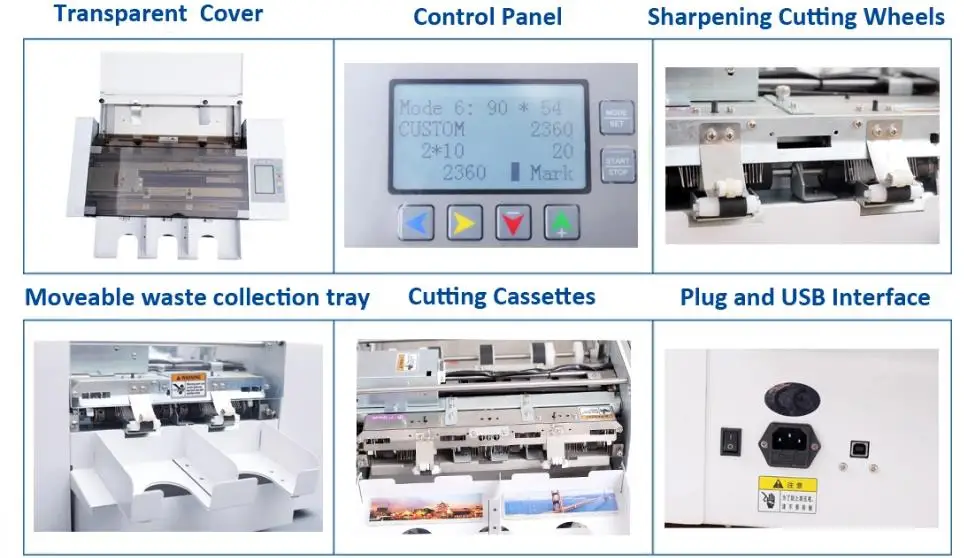

High speed invitation card cutter ZL1689

Features
1.Fast cutting speed. Cuts 250 x cards from SRA3 sheets in approximately 96 seconds!
2.Adjustable cut lengths and widths.
3.Cut mark registration compensates for image shift, to deliver incredible accuracy!
4. Sheet edge sensing to set cut position.
5.Fixed or custom card sizes with a selection of interchangeable cassettes. Different options for cutting width 85mm, 89mm, 90mm, 95mm.
6.Auto stack feeding or set number sheet feeding enables automation of process.
7.Suitable for A3+, SRA3,A3 and A4 paper sheet sizes, capable for cutting different business cards sizes all over the world.
8.Cuts up to 350gsm.

Mobile Phone /Wechat/0086 13795293655

Technical parameters

Model	ZL1689	ZL2689
Paper Size	A4, A4+, or (195~216)mm×(279~297)mm, with unlimited length	A3, A3+, SRA3,or (297~320)mm×(420~480)mm, with unlimited length
Weight	Net weight: 14.8 kgs Gross weight: 19 kgs	Net weight: 19.8 kgs Gross weight: 24 kgs
Machine dimension	Unpacked: 460×540×260mm With package:	Unpacked: 500×620×260mm With package:
Cutting Method	Longitudinal: cut by self sharpening slitting cassette
	Horizontal: cutting with a lateral cutter, cut by lateral guillotine cutte
Cutting Position Control	Front edge detection SmartMark (Cut Registration Mark) detection
Paper feeding method	Dual roller auto-paper feeding tray
Paper thickness	0.25mm (180g/m²) - 0.35mm (350g/m²)
Paper Capacity	Max.12 sheets (0.35mm thickness) or total thickness 3mm
Output tray card capacity	180g/m² 90×3 (pcs), 350g/m² 70×3 (pcs)
Cutting size	Longitudinal: (89/85/90/95)mm, or customized
	Horizontal: (45/50/54)mm, or (1~600)mm, fully adjustable
Cutting speed	8 seconds per SRA3 / 96 seconds for 250 business cards (85 x 55mm)
Cutting accuracy	±0.05mm
Humidity	35%~70%
Operating temperature	-15ºC~ +40ºC
Power supply	AC 110~220V, 50/60HZ, 0.5A
