Электромагнитный клапан для водопроводного крана, 3 В постоянного тока, 6 дюймов
405,03 ₽ - 513,03 ₽
Трансил dc3v 6v 12v латунный из нержавеющей стали импульсный бистабильный Электрический писсуар автоматический кран с датчиком туалетный электромагнитный клапан
- Категория: >>>
- Поставщик: Hubei Chuangsinuo Electrical Technology Corp.
Сохранить в закладки 1600155244875:
Описание и отзывы
Характеристики
Product Name | Intelligent Faucet Water solenoid valves |
Type | Custom Available |
Certification | CE ULROHSREACH SGS |
Temperature of Medium | 1-75℃ |
Medium | Water/Air |
Structure | Diaphragm |
Installation Method | G1/2thread or 1/4 quick connect |
Static Pressure | 0.05-0.8Mpa |
Voltage | DC 2.5V-28V |
Switch Type | DC pulse type(positive pulse on/negative pulse off)default red to +pole |
Response Time | ON≥0.2S, OFF≥0.5S |
Main Usage | Faucet Flush |
Material | Cuprum/Stainless iron +NBR |
Surface Technology | Electroplate |

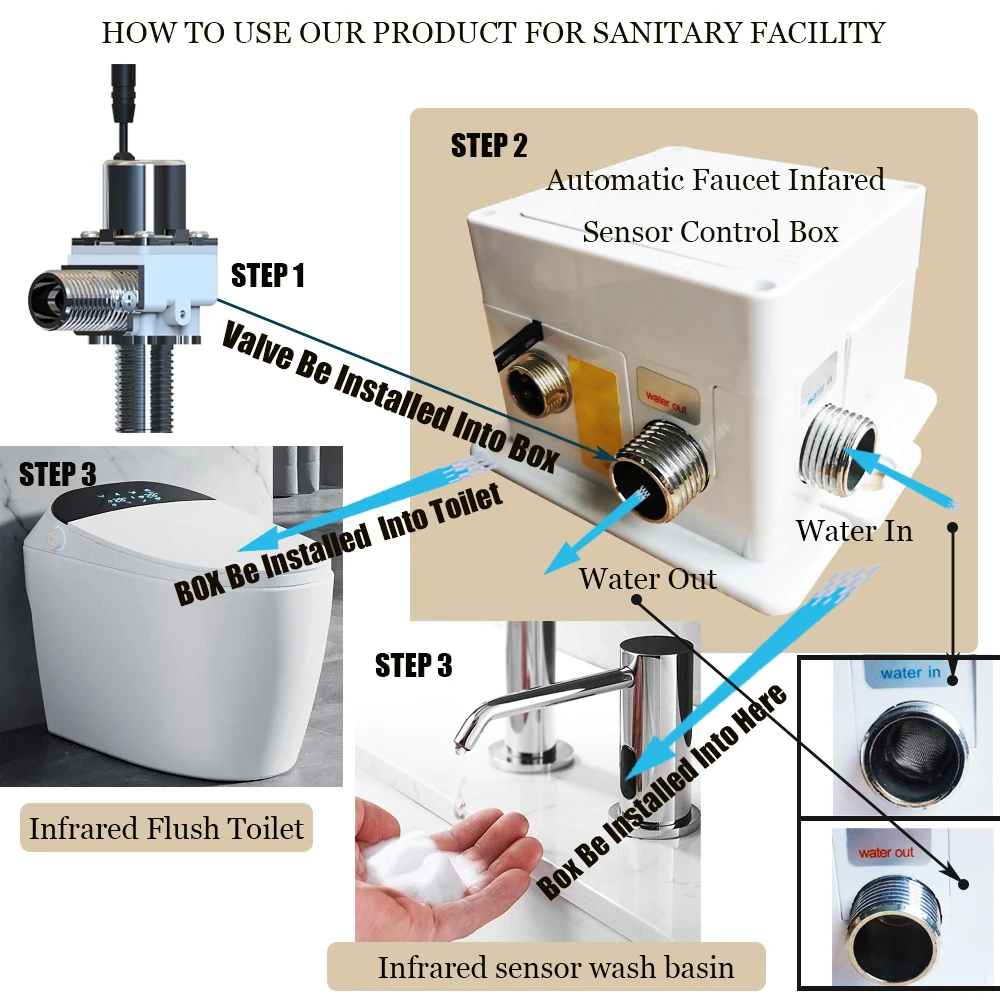

Product Application
Main Applications of solenoid valves
Widely used in area of Faucet Flush Toilet and Automatic Home Garden Watering , Outdoor Garden Automatic Irrigation Controller, Single Outlets Tap
Timer,2or4 Zone Outdoor Irrigation Sprinkler, Lawn Garden Watering , Pool Filling , Smart Water Meter, Smart Feeder , Drip
Irrigation System , Green Plant Spraying, Automatic Agricultural, Municipal Garden Irrigation System,garden spray landscaping ,
farmland, and other fields of daily irrigation control,intelligent irrigation drip irrigation , to reduce human costs, improve the
efficiency of automation, saving electricity wand water.
Timer,2or4 Zone Outdoor Irrigation Sprinkler, Lawn Garden Watering , Pool Filling , Smart Water Meter, Smart Feeder , Drip
Irrigation System , Green Plant Spraying, Automatic Agricultural, Municipal Garden Irrigation System,garden spray landscaping ,
farmland, and other fields of daily irrigation control,intelligent irrigation drip irrigation , to reduce human costs, improve the
efficiency of automation, saving electricity wand water.
Product Test
Strength Test | Water pressure resistance 1.2Mpa/5min | Work environment temperature | 1-60℃ |
Electrical Strength | The conductive part,mounting hole and non-conductive metal can withstand 500V/50Hz,leakage current 1mA,withstand voltage for 1min without breakdown | Working environment humidity | 35%-95%RH(no condensation) |
Insulation Resistance | Use a 500V megger to test the resistance between the conductive part and the non-conductive metal>=20MΩ | Storage Temperature | -5-80℃(no icing state) |
High Water Pressure Leakage | 1.0MPa,No leakage | Storage Humidity | 25%-95%(no condensation |
Low Water Pressure Leakage | 0.02MPa,Leakage<<=0.1mL/min | Installation Direction | Vertical or horizontal direction , inclination<=15degree |
Service Life Test | >=800000 times | Allowable Pressure limit(water pressure) | <=1.0Mpa |
Related Product
Company Profile
About Us
Transl is an Electronic and Mechanical Import and Export Enterprises, We committe to praviding global customers with Technical Support & Soluttions for Solenoid Coils and Solenoid Valves in the fields al Electromagnetic Applications. Transl has been recognized by professional Quality and self-improving Innovative Spirit.
Transl has passedIATF16949,ISO9001,IS014001,OHSAS 18001Management Systems Certifications. Our products have passedCE,UL,ROHS,REACH,SGS and other Certifications.We have been exported to
more than 80 countries and regions, Our products are widely used in Automation, Internet of Things, Water Treatment,Communications, New Energy Vehicles,Smart Bathroom,Military Aerospace,Oil,Gas Pipelines, Hydrogen Energy, Rail Transit,Ships,Medical Health,Intelligent Irrigation,Environmental Protection and other Fields. Since the inception,
we have been practicing“Delight the customers, Achievements for employees, and to give back to Society"the great Mission,adhere to the"Enterprise depends on the Markets to live,Enterprise depends on the Quality to stand on,Enterprise depends on the Science and Technology to be strong. Enterprise depends on the Talented Person to be brilliant”road of scientific development, We have been National high-tech Enterprises,Specialising in Ultra-new small giant Enterprise, Civil-military integration certification Enterprise, National Superior Enterprise of Intellectual Property,Invisible Champion Cultivation Enterprise,Integration of Industrialization and Informationization Enterprises, and Demonstration Enterprise of Popular Science, Growth Project Award,Technical Transformation Award, Trustworthy Enterprise" and other honorary titles.
Research And Development
The company is actively involved in the exploration and development of electromagnetic application technology, and has a number
of patented technologies to ensure the advanced technology of the product. The company developed 2.5VDC low voltage intelligent
watering solenoid valve, through the special design of the electromagnetic structure to solve the industry's low-voltage driving
difficulties, and is now in the industry's leading position; In addition, the company uses 0.02MM fine wire manufacturing
high-quality inductor coil,for many years has been designated by the international well-known sensor manufacturers to use.
of patented technologies to ensure the advanced technology of the product. The company developed 2.5VDC low voltage intelligent
watering solenoid valve, through the special design of the electromagnetic structure to solve the industry's low-voltage driving
difficulties, and is now in the industry's leading position; In addition, the company uses 0.02MM fine wire manufacturing
high-quality inductor coil,for many years has been designated by the international well-known sensor manufacturers to use.
Title goes here.
Our technical team is strong,with structural engineers, electrical engineers,injection molding engineers, mechanical
engineers,manufacturing engineers,etc.Their education is above the bachelor's degree, with sufficient practical work experience,in addition there are several professors and doctoral advisers, the company and Hubei University of Nationalities,Wuhan University,Beijing University of Science and Technology and other well-known institutions have project cooperationThe company's theoretical calculations and practical R&D capabilities in the field of electromagnetism are at the forefront of the industry.From the development stage to the integration of our products into the global supply chain, we serve our customers according to their individual needs.
engineers,manufacturing engineers,etc.Their education is above the bachelor's degree, with sufficient practical work experience,in addition there are several professors and doctoral advisers, the company and Hubei University of Nationalities,Wuhan University,Beijing University of Science and Technology and other well-known institutions have project cooperationThe company's theoretical calculations and practical R&D capabilities in the field of electromagnetism are at the forefront of the industry.From the development stage to the integration of our products into the global supply chain, we serve our customers according to their individual needs.
Production Equipments And Test Equipments
1.Wingding Machine 2.Laser Welding Machine 3.Water Testing Machine 4.Life Tester for Solenoid valves 5.2.5-dimensional Tester 5.Laser Welding Machine 6.Water Testing Machine
Certificates
Exhibitions And Customer Visits
