Modulating actuator 4-20mA Electric plastic 3 way ball valve

Advantages:

• Guangzhou Fols Valve Technology Co., Ltd. aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.

• Over 30 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.

• 3 production base, large stock, SHORT LEAD TIME, same day shipping.

• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.

• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS, BV, explosion & fire safe.

• OEM / ODM service available.

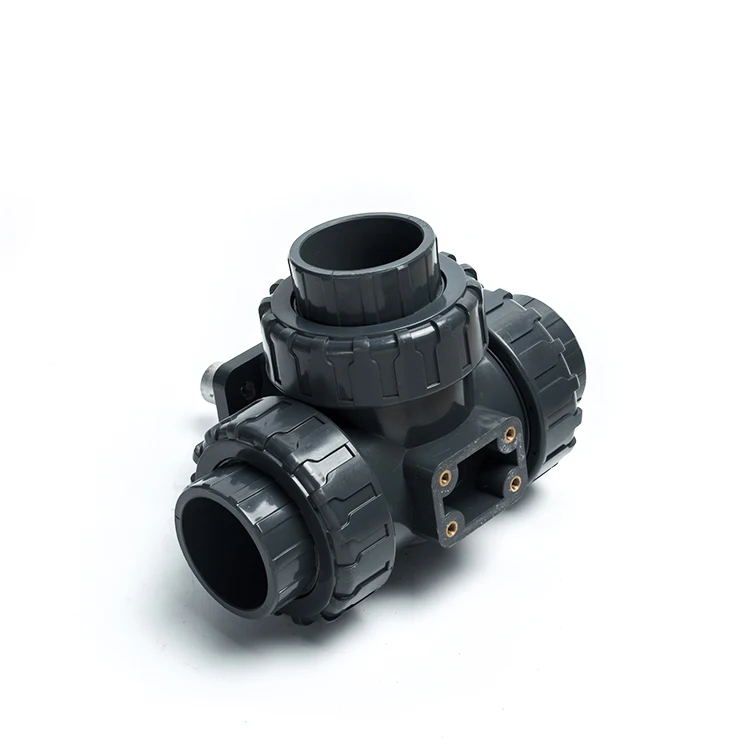

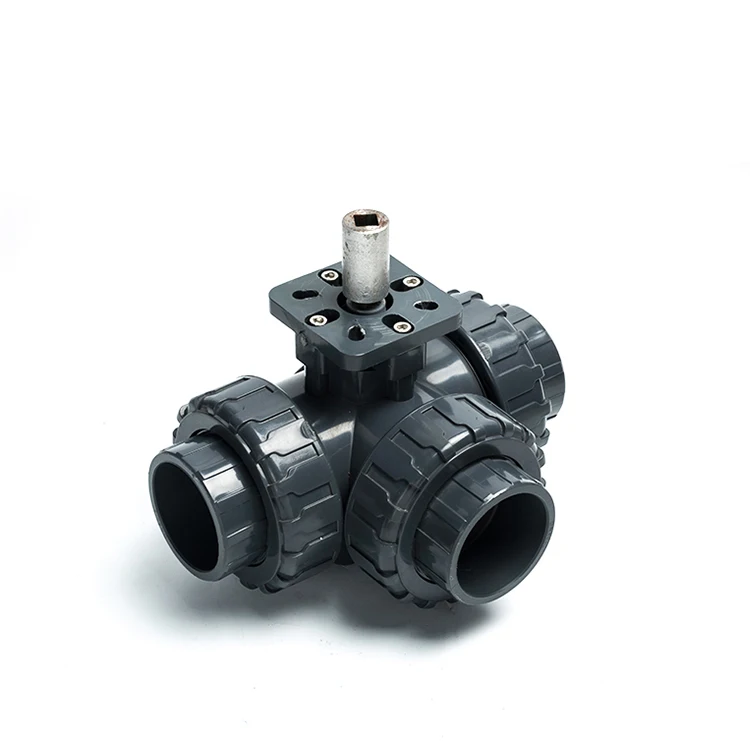

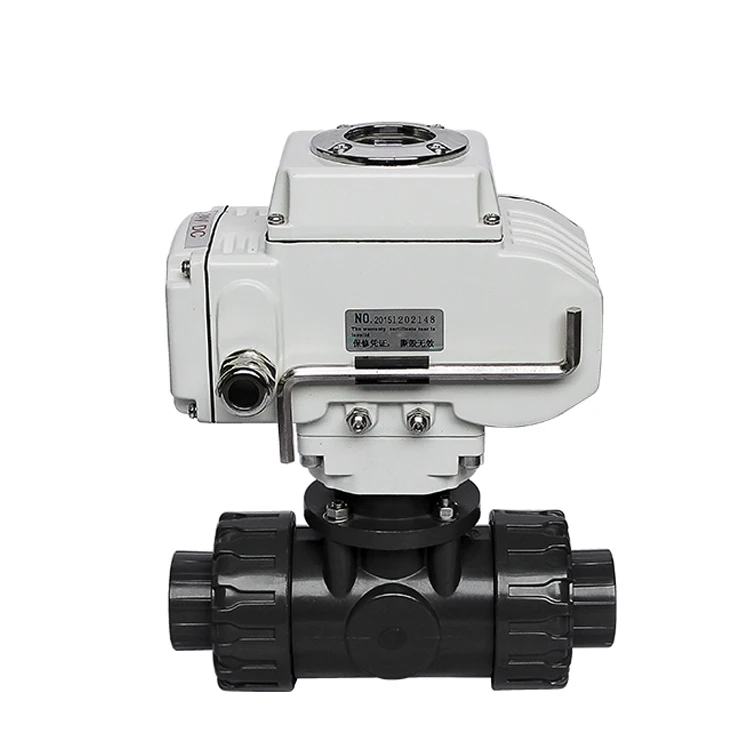

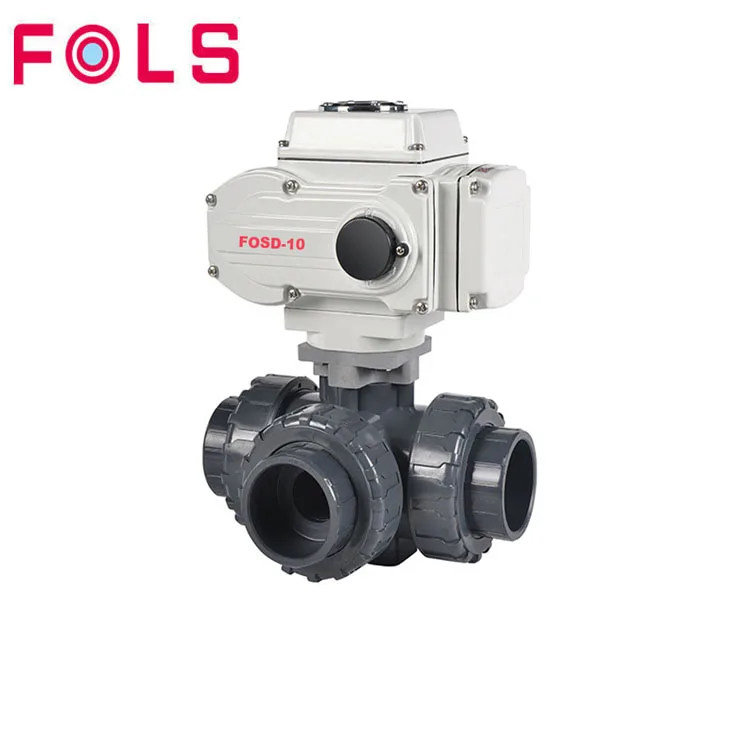

The electric 3 ways PVC ball valve is connected with pipe line by double unnion port. It can be quickly assembled without the use of special tools. It has the advantages of compact structure, wear resistance, easy disassembly, convenient maintenance, simple maintenance and so on. Body material is sanitary, non-toxic, corrosion resistant, light weight and wide application. The electric actuator is designed by integration. Input 220V power can directly adjust the switch quantity, and also can set up servo module. Input control signal (4 to 20mADC or 1 to 5VDC) and single-phase power supply can control operation. And the quality of the electric plastic ball valve is recognized by the majority of users. For example, pure water and raw water pipe system, drainage and sewage pipeline system, brine and seawater pipeline system, acid-base and chemical solution system and other industries can be widely applied.

Features

1,The connection method is double unnion ,double unnion can make GB standard,DIN standard and ANSI standard,BS standard,JIS standard and other standards.Easy to install ,easy to operate,the product is full compliance with export standards.

2, Suitable for regular operation,open and closed quickly,light weight.

3,Full bore design, large capacity, small flow resistance.

4,small size, low weight and small cost

5,Good seal,performance

6,No vibration, low noice

3 way ball valve flow diagram

Cooperate with 0-90 degrees rotating actuator, can realize the following flow:

Stainless steel 304 female thread 3 way automatic valve

Electric actuator ( Optional)

Explosion-proof                        With handwheel                              Multiturn                           Small

ISO 5211 Mounting
