Products Description

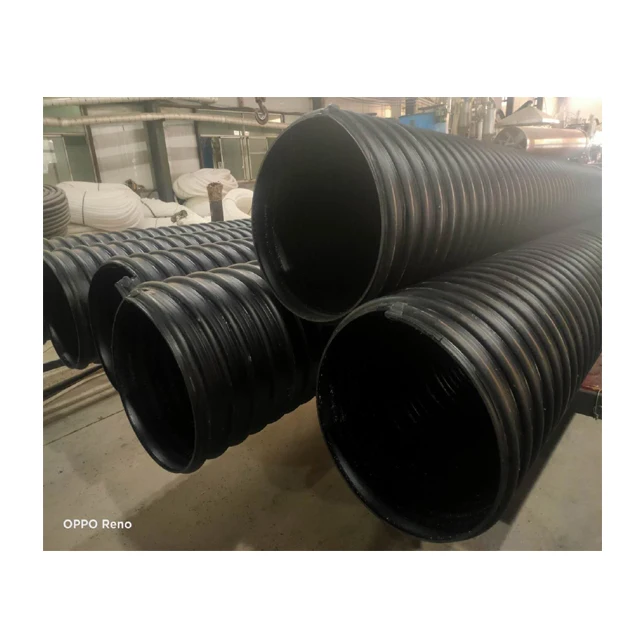

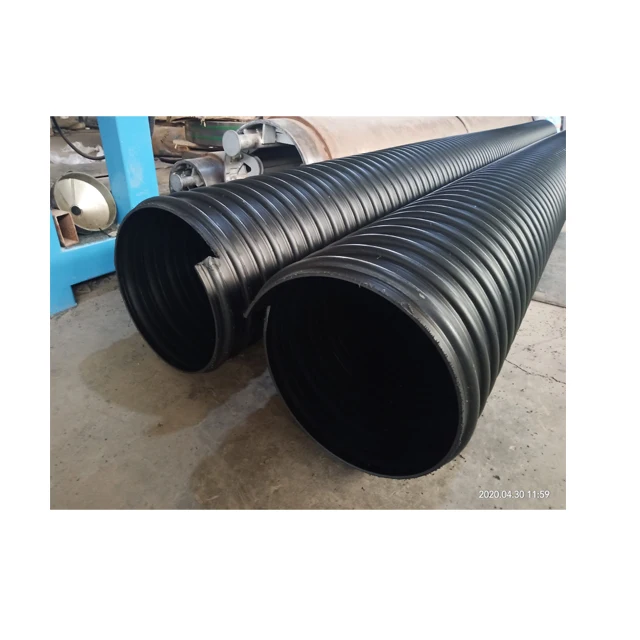

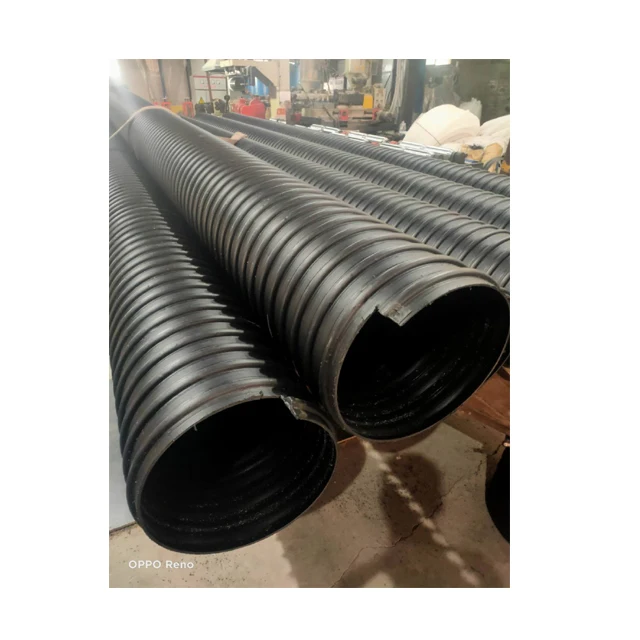

SN16 hdpe pe steel belt reinforced corrugated pipe for sewer

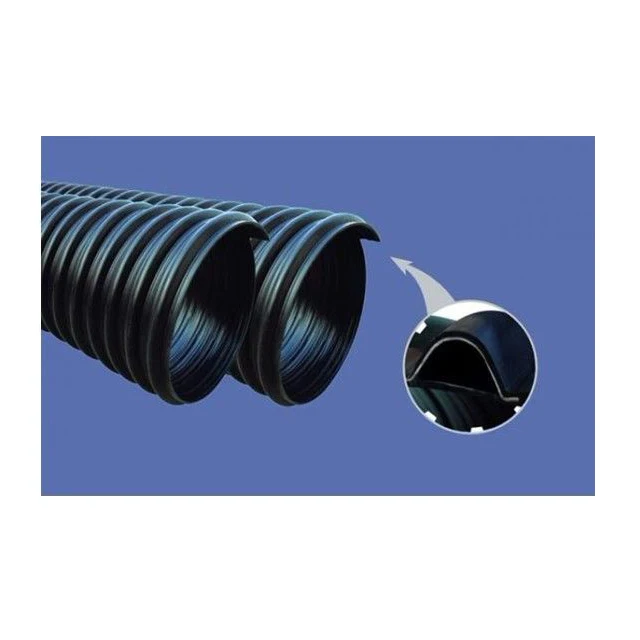

HDPE winding reinforcement tube (B type), also known as HDPE winding structure wall tube, carat tube, HDPE winding B-tube, high-density polyethylene Chan Raoguan, B-type structure of the wall tube,refers to a high-density polyethylene (PE) as a base body, and a steel strip coated with a surface-coated adhesive resin is used as a main support structure, and a U-shaped steel strip composite PE material is used to make the pipe material The ring stiffness is greatly improved without increasing the cost, and the strength of the wound pipe and the carat tube is greatly improved under the same weight. It can solve a series of problems such as heavy load, and the advantages of large diameter pipe are more obvious.
Specification:
DN MM | Internal Diameter MM | SN8 | SN10 | SN12.5 |
>=8KN/m2 | >=10KN/m2 | >=12.5KN/m2 | ||
External Diameter MM | External Diameter MM | External Diameter MM | ||
200 | 200 | 224 | 224 | |
300 | 300 | 325 | 325 | |
400 | 400 | 438 | 438 | |
500 | 500 | 539 | 539 | |
600 | 600 | 644 | 644 | 644 |
700 | 700 | 745 | 745 | 745 |
800 | 800 | 852 | 852 | 852 |
900 | 900 | 963 | 963 | 963 |
1000 | 1000 | 1063 | 1063 | 1063 |
1100 | 1100 | 1173 | 1173 | 1173 |
1200 | 1200 | 1273 | 1273 | 1273 |
1300 | 1300 | 1385 | 1385 | 1385 |
1400 | 1400 | 1485 | 1485 | 1485 |
1500 | 1500 | 1585 | 1585 | 1585 |
1600 | 1600 | 1693 | 1693 | 1693 |
1700 | 1700 | 1793 | 1793 | 1793 |
1800 | 1800 | 1893 | 1893 | 1903 |
2000 | 2000 | 2105 | 2105 | 2121 |
2200 | 2200 | 2307 | 2307 | 2323 |
2400 | 2400 | 2527 | 2527 | 2533 |
2500 | 2500 | 2629 | 2629 | 2635 |
2600 | 2600 | 2729 | 2729 | 2743 |
2700 | 2700 | 2848 | 2848 | 2858 |
2800 | 2800 | 2958 | 2958 | 2973 |
Feature:
(1) Using PE as anti-corrosion material, will not be corrupted by acid and oil in sewage and wastewater.
(2) The product is flexible, external impact, restoring performance is superior when external impact occur, the foundation settlement case is not easy to break.
(3) The pipe base material can effectively use more than 50 years in 20 °C , strong aging resistance.
(4) Even in the environment of 60 °C below zero, the pipe will not freeze to broken or leaking.
(5) Pipe weight is only 1/8 of the concrete pipe and two-thirds of traditional winding plastic tube structure, easy to transport, construction is convenient, do not need to use large construction equipment.
(6) Pipe is light, convenient connection, the excavation engineering requirement is not high, in the city drainage engineering construction, save the project time and cost a lot.
(7) Connection mode is diversity and simple, simple and rapid construction at the scene.
(8) Pipe friction coefficient is low, strong medium conveying ability.
(9) Rubber inside is smooth, small friction resistance, fast drainage.
(10) Polyethylene itself is non-toxic renewable material, no pollution to the environment.
(2) The product is flexible, external impact, restoring performance is superior when external impact occur, the foundation settlement case is not easy to break.
(3) The pipe base material can effectively use more than 50 years in 20 °C , strong aging resistance.
(4) Even in the environment of 60 °C below zero, the pipe will not freeze to broken or leaking.
(5) Pipe weight is only 1/8 of the concrete pipe and two-thirds of traditional winding plastic tube structure, easy to transport, construction is convenient, do not need to use large construction equipment.
(6) Pipe is light, convenient connection, the excavation engineering requirement is not high, in the city drainage engineering construction, save the project time and cost a lot.
(7) Connection mode is diversity and simple, simple and rapid construction at the scene.
(8) Pipe friction coefficient is low, strong medium conveying ability.
(9) Rubber inside is smooth, small friction resistance, fast drainage.
(10) Polyethylene itself is non-toxic renewable material, no pollution to the environment.
Application:
1. Municipal engineering: buried drainage and sewage pipe;
2.Road works: seepage and drainage pipes of railways and highways;
3.Industry: Sewage pipes widely used in industrial fields;
3.Industry: Sewage pipes widely used in industrial fields;
4.Construction works: building rainwater pipes, underground drainage pipes, sewage pipes, ventilation pipes, etc., landfill sewage collection pipes;
5. Large port and dock projects: drainage pipes and sewage pipes for seawater pipelines, large airports, ports and docks;
6.Sports venues: seepage pipes for sports venues such as golf courses and football fields;
7.Water conservancy projects: the use of water source pipes, irrigation pipes and water and drainage of hydro power stations;
8. Mine: mine ventilation, air supply, drainage, mud pipe;
9.Communication tube: railway, highway communication, communication cable, cable protection tube;
10. Water storage system: a water storage system that traps slow water flow;
11.Agricultural engineering: farmland, orchard, tea garden and forest belt drainage;
