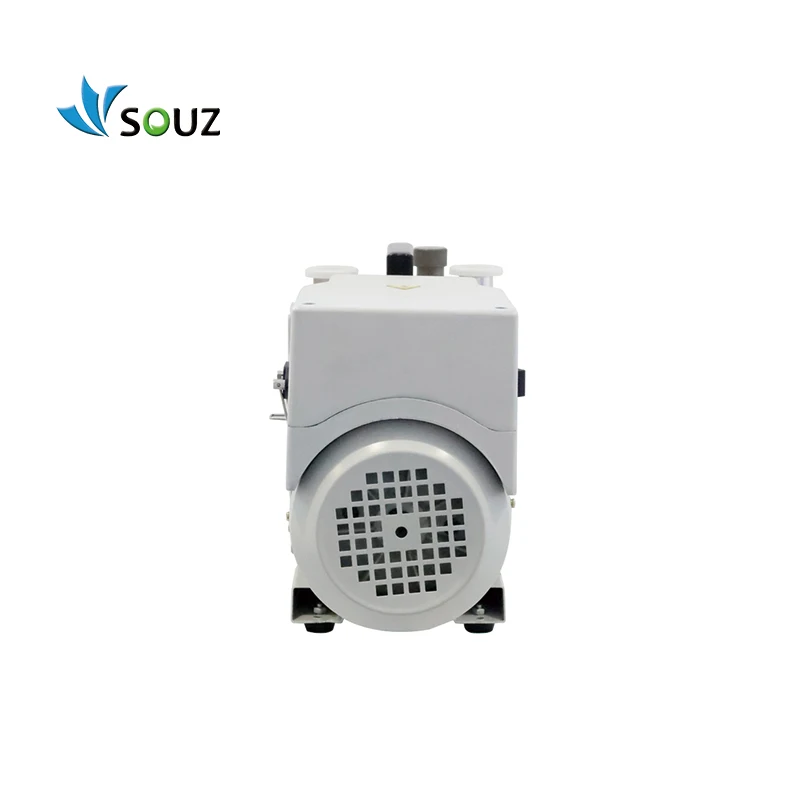

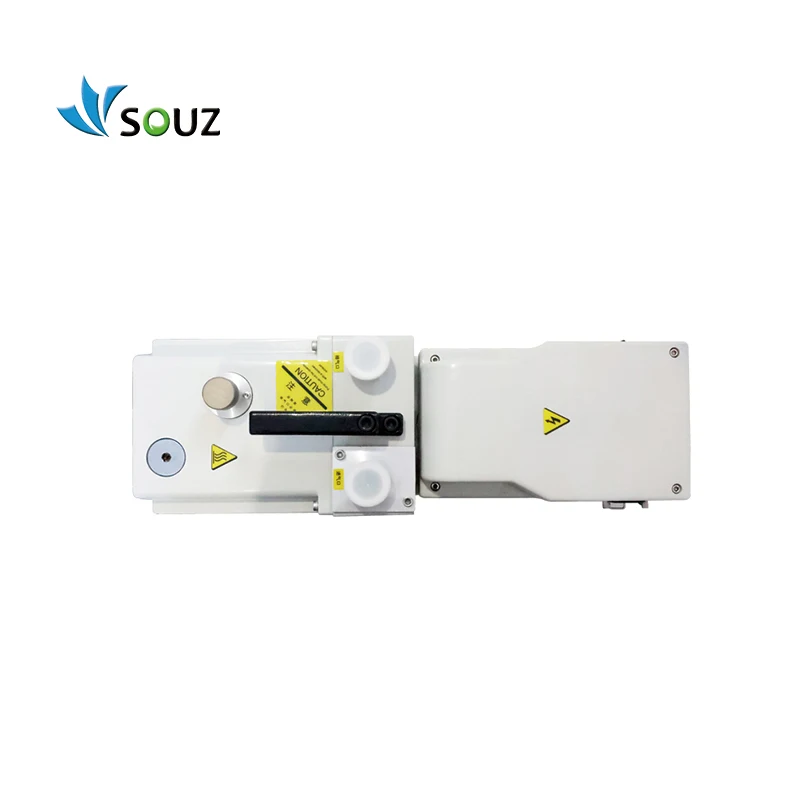

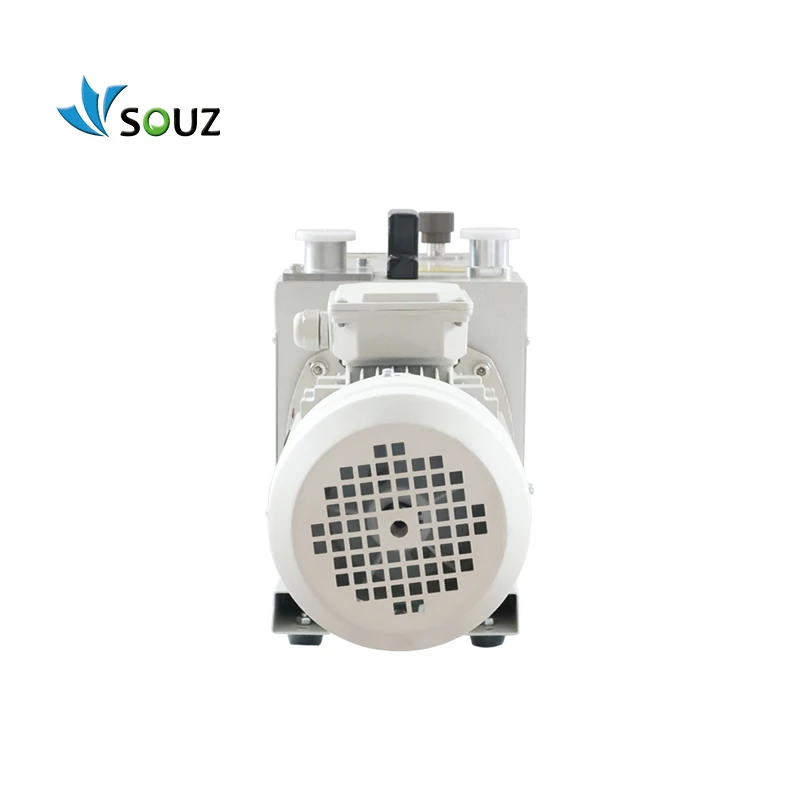

Портативный 2 этап пластинчато-роторный 1400 об/мин вакуумный насос 2xz-4B
33 987,81 ₽
Двухступенчатый вакуумный насос с масляной смазкой 2 ЛПС скорость 2XZ 2C T8
- Категория: >>>
- Поставщик: Taizhou Shouzhen Machinery Co. Ltd.
Сохранить в закладки 1600156965924:
Описание и отзывы
Характеристики
ABOUT SOUZ PUMP
SOUZ VACUUM is a comprehensive high-tech enterprises integrating R&D, production, sales and service of vacuum pumps.
With professional technical team to help every customer to get the most suitable and cost-effective vacuum solutions and vacuum pumps.
We always perseveres in innovative work to develop better products.
SOUZ VACUUM,covering an area of 100000 square meters production plant ,has hundreds of employees and 50 sets modern processing equipments.In order to provide high quality products,SOUZ VACUUM imported Japan Tsugami processing center for processing pump rotor and Japan Okuma vertical processing center for processing pump body,Hexagon coordinate measuring instrument and so on.
Moreover, on the basis of digestion of imported Germany technology and substitution with SOUZ VACUUM improved technology. The key components of vacuum pump were choosen from international well-known brands to make the overall performance to achieve the international level. We can provide alternative basically spare parts to some well-known brands of vacuum pumps.
The acceptance rate of product will be raised by improvement of process's quality control.
With professional technical team to help every customer to get the most suitable and cost-effective vacuum solutions and vacuum pumps.
We always perseveres in innovative work to develop better products.
SOUZ VACUUM,covering an area of 100000 square meters production plant ,has hundreds of employees and 50 sets modern processing equipments.In order to provide high quality products,SOUZ VACUUM imported Japan Tsugami processing center for processing pump rotor and Japan Okuma vertical processing center for processing pump body,Hexagon coordinate measuring instrument and so on.
Moreover, on the basis of digestion of imported Germany technology and substitution with SOUZ VACUUM improved technology. The key components of vacuum pump were choosen from international well-known brands to make the overall performance to achieve the international level. We can provide alternative basically spare parts to some well-known brands of vacuum pumps.
The acceptance rate of product will be raised by improvement of process's quality control.
High Efficiency Motor
Adopts 100% copper coil.
Reliable performance and Stable running.
High Quality Vanes
Vanes are a key part of Rotary vane vacuum pump.
Vanes quality is important. Glass fiber / carbon fiber.
SOUZ Vacuum Pump T Series Updated Two-stage Oil Lubricated Rotary Vane vacuum pumps
SOUZ VACUUM Rotary vane vacuum pumps are available in single- and two-stage versions and can be operated with different types of lubrication or dry-running.
With its two-stage rotary vane pumps, SOUZ Vacuum has offered two very successful ranges for many years now. Their long life and pumping speed are the outstanding properties of these pumps.
Two-stage rotary vane pumps can be used in the pressure range between 100 hPa and a pressure roughly a decade above the final pressure.
2XZ series vacuum pump cover a pumping speed range of 1.3 to 275 m3/h.
2XZ series vacuum pump cover a pumping speed range of 1.3 to 275 m3/h.
T series vacuum pump is an updated model on the basic of 2XZ model, covering a pumping speed range of 8m3/h to 60m3/h.
An integrated gas ballast feed allows condensable vapors to be pumped down.
Lightweight, quiet, and compact, they feature an anti-suckback valve and gas ballast knob, quick disconnect ISO/KF fittings for inlet and outlet, and are ideal for a variety of applications.
Oil helps seal the clearance between the vanes and the housing in SV Series, 2XZ/T series,2XZ series vacuum pumps.
A choice of versions provides the right variant for every application.
Single stage oil flooded rotary vane vacuum pump : SV008-SV630
Two stage oil lubricated rotary vane vacuum pump : 2XZ-2C~2XZ-25C. T8~T60 ; 2X-4A-2X-100A
Forced lubrication pumps in the T series are particularly suitable for corrosive gas applications due to their FPM seals and Corrosion resistant technology and the use of special materials Aviation aluminum for the housing. The two largest models in this series also have integrated oil filters and oil casing flushing device.
Benefits:
1. Ideal low cost replacements for Varian, Leybold, Pfeiffer, Edwards or other brands.
2. Well ventilated, cool running pumps minimize oil backstreaming and thermal degradation
3. Positive oil feed system enables optimal pump lubrication
4. Low noise and low vibration
5. Single Phase Motors available
Typical applications are found in sectors:
1. Ideal low cost replacements for Varian, Leybold, Pfeiffer, Edwards or other brands.
2. Well ventilated, cool running pumps minimize oil backstreaming and thermal degradation
3. Positive oil feed system enables optimal pump lubrication
4. Low noise and low vibration
5. Single Phase Motors available
Typical applications are found in sectors:
1. * Analytics (mass spectrometry, electron microscopy)
2. * Coating technology (surface protection, decorative films, display units)
3. * Vacuum metallurgy (vacuum soldering, vacuum sintering)
4. * Leak detection technology (vacuum systems, packaging)
5. * Research institutes (elementary particle physics, fusion research, laser applications)
6. * Lighting industry (light bulb manufacture)
7. * Medicine/pharmaceutical technology (plasma sterilization, freeze drying)
4. * Leak detection technology (vacuum systems, packaging)
5. * Research institutes (elementary particle physics, fusion research, laser applications)
6. * Lighting industry (light bulb manufacture)
7. * Medicine/pharmaceutical technology (plasma sterilization, freeze drying)
The difference between T and 2XZ series double stage rotary vane vacuum pump | ||||
Housing Material | Cast iron | Aviation aluminum | ||
Shaft sealing | Buna-N rubber | FPM | ||
Structure | Traditional structure | Intergration design | ||
Shape | Traditional shape | Streamline design | ||
Noise | 70 dB(A) | 60d B(A) | ||
Oil feeding methods | Passive valve stem type | Forced feeding type | ||
Spare parts quantity | 68 PCS | 55 PCS | ||
PRODUCT FAMILY | ROTARY VANE VACUUM PUMP VERSION | OIL-LUBRICATED OR DRY-RUNNING | CHARACTERISTICS |
SV | Single-stage | Oil-lubricated | Proven and reliable. 8m3/h-630m3/h |
2XZ | Two-stage | Oil-lubricated | Reliable medium vacuum. 2L/S-25L/S |
T | Two-stage | Oil-lubricated | Reliable medium vacuum. 8m3/h-60m3/h |
2X | Two-stage | Oil-lubricated | Robust pump. 4L/S-100L/S |
ZBW | / | Dry-running | Reliable vacuum. 16m3/h-360m3/h |

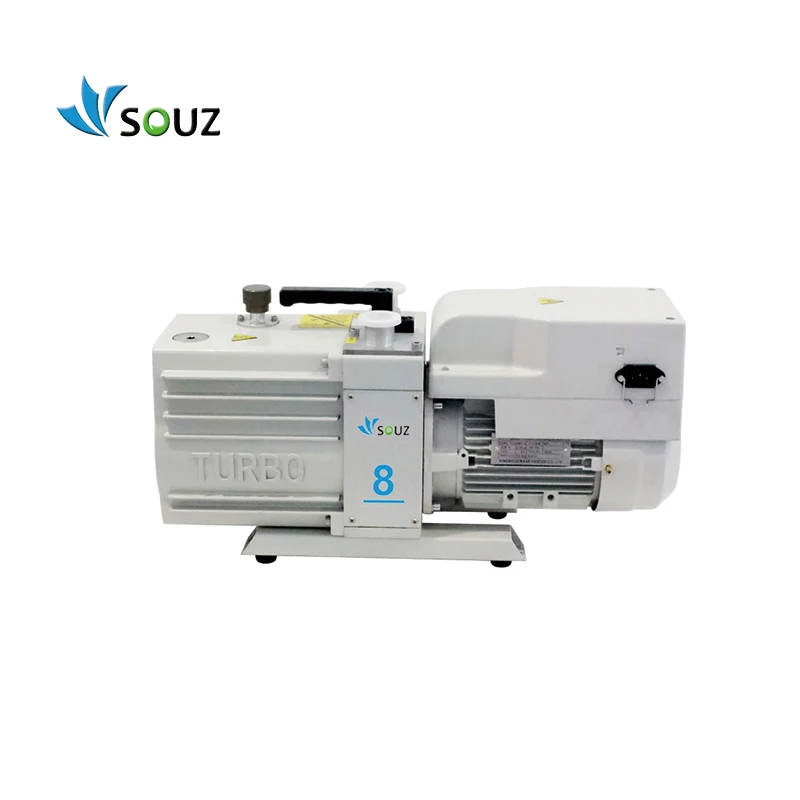

SOUZ VACUUM T Series 2 Stage Oil Sealed Rotary Vane Vacuum Pump | ||||||
Model | Capacity | Ultimate vacuum | Motor power | |||
T 8 | 8 m3/h (2 L/S) | 1 Pa | 0.37 KW(0.5 HP) | |||
Inlet diam. | Rotary speed | Oil consumption | Noise | |||
KF25 | 1400 RPM | 1L | 58dB(A) | |||
Cooling method | Package weight | Package size | Package material | |||
Air cooling | 34KG / 37KG | 54*18.5*27 cm | Carton Case | |||
Factory Price 2 Stage Oil Lubricated Vacuum Pump 2LPS Air Pump Speed T8 Rotary Vane Vacuum Pump | ||||||

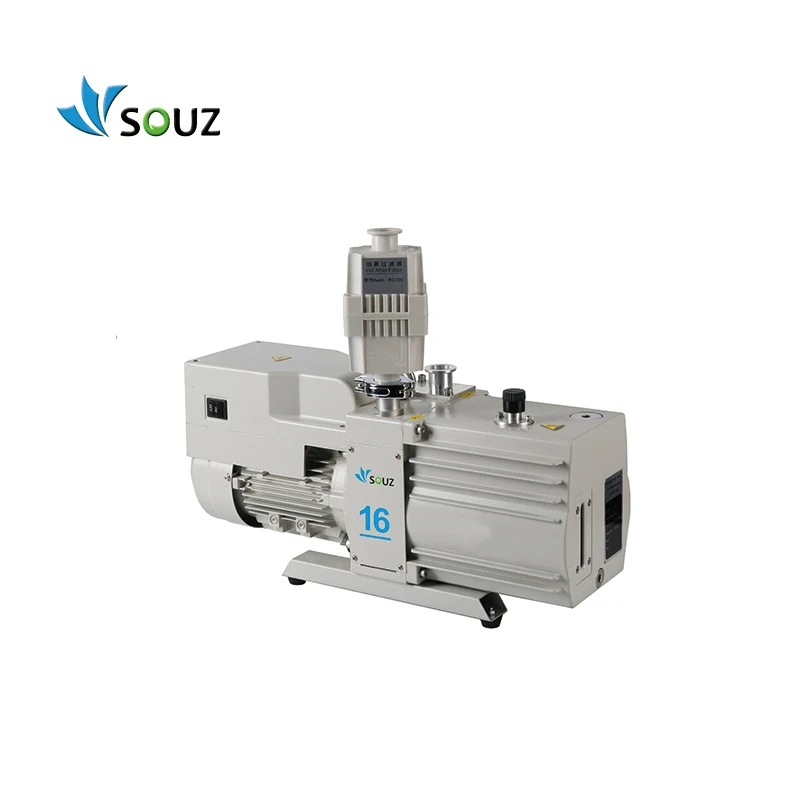

T Series Rotary Vane Vacuum Pumps | ||||||||||||||
Specs./ Model | T 8 | T 16 | T 24 | T 30 | T 40 | T 60 | ||||||||
Capacity | 50HZ | 8 m3/h (2 L/S ) | 16m3/h (4L/S) | 24m3/h (6L/S) | 30m3/h (8L/S) | 40m3/h (11L/S) | 60m3/h (16L/S) | |||||||
60HZ | 8.6m3/h （2.4L/S） | 18 m3/h （4.8 L/S） | 28m3/h （8 L/S） | 36m3/h （10 L/S） | 48m3/h (13L/S) | 72m3/h (20L/S) | ||||||||
Max.vacuum | Pa | 1 Pa | 1 Pa | 1 Pa | 1 Pa | 1 Pa | 1 Pa | |||||||
Vapor capacity | g/h | 100 | 230 | 230 | 800 | 1000 | 1100 | |||||||
Rotary speed | 50HZ | 1400 RPM | 1400 RPM | 1400 RPM | 1400 RPM | 1400 RPM | 1400 RPM | |||||||
60HZ | 1720 RPM | 1720 RPM | 1720 RPM | 1720 RPM | 1720 RPM | 1720 RPM | ||||||||
Motor power | KW | 0.37 KW | 0.55 KW | 0.75 KW | 0.75 KW | 1.1 KW | 1.5 KW | |||||||
Voltage | 380V-418V/3PH-50/60HZ; 200V-240V/1PH-50/60HZ | 380V-418V/3PH-50/60HZ | ||||||||||||
Inlet diam. | KF25 | KF25 | KF25 | KF25 | KF40 | KF40 | ||||||||
Noise | dB(A) | 58 | 58 | 58 | 58 | 58 | 58 | |||||||
Oil capacity | L | 1 L | 1.8 L | 2 L | 2 L | 4 L | 5 L | |||||||
Ambient temp. | ℃ | 12-45℃ | 8-45℃ | |||||||||||
Performance ceuve of T series
Find More information from SOUZ VACUUM
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2: How can i storage the vacuum pump?
A2: Drain off the vacuum oil completely before kept in dry,clean indoor with temperatures between 0 -40℃.
Q3: Does this pump equipped with gas ballast valve ?
A3: Of course, all of our 2XZ series vacuum pump equipped with gas ballast valve.
Q4: Is the pump supplied with vacuum oil?
A4: Yes, all oil vacuum pumps are supplied with the first charge of 100# vacuum oil that sealed in a bottle in order to avoid leaks during the transportation. But not supplied if shipping by Airplane.
Q5: How long is your warranty?
A5: One year except the consumable spare parts.
Q6.Can I use any oil in my vacuum pump?
A6. NO. Vacuum pump MUST be using vacuum pump oil, no other motor oil,gear oil. .
Q7. Any other good service your company can provide?
A7. Yes,we can provide good after-sale and fast delivery.
A4: Yes, all oil vacuum pumps are supplied with the first charge of 100# vacuum oil that sealed in a bottle in order to avoid leaks during the transportation. But not supplied if shipping by Airplane.
Q5: How long is your warranty?
A5: One year except the consumable spare parts.
Q6.Can I use any oil in my vacuum pump?
A6. NO. Vacuum pump MUST be using vacuum pump oil, no other motor oil,gear oil. .
Q7. Any other good service your company can provide?
A7. Yes,we can provide good after-sale and fast delivery.
Похожие товары
2 этап пластинчато-роторный вакуумный насос турбомолекулярный вакуумный насос ручной вакуумный насос
44 238,10 ₽
TRD-100 Высокое качество 100 м3/ч 3 кВт 2-ступенчатый воздушный вакуумный роторный насос для вакуумной сушки
134 872,25 ₽ - 156 451,81 ₽

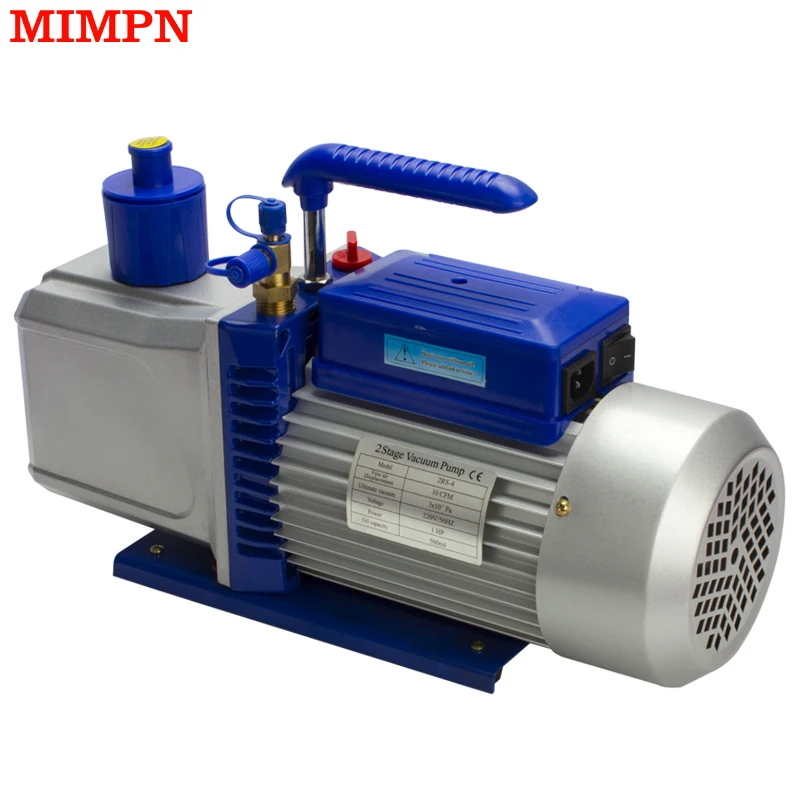

1 л вакуумный насос 10 куб ФТ/мин для 2-х стадийной Электрический вакуумный насос 220V/50HZ недорогой высокое качество малый вакуумный насос
7 552,85 ₽ - 9 710,81 ₽

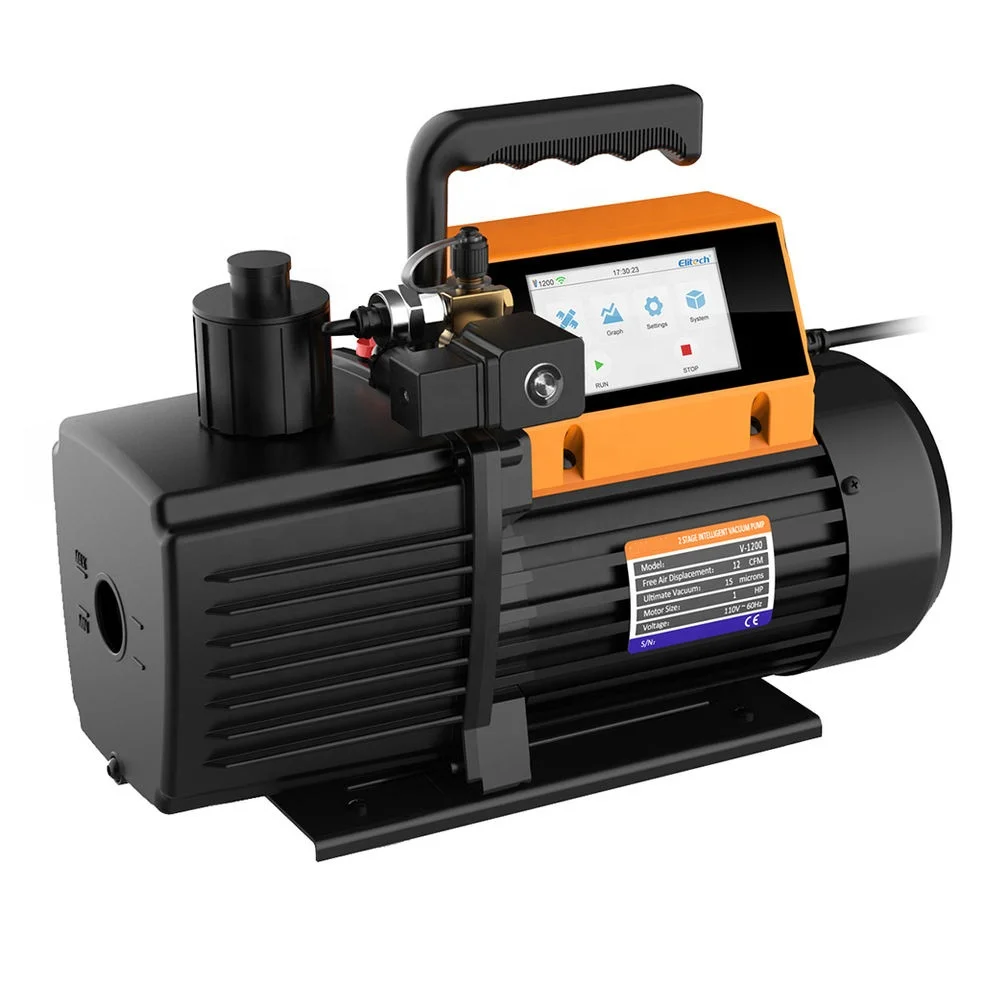

Вакуумный насос 12 CFM 2-ступенчатый Интеллектуальный вакуумный насос HVAC управление приложением R410a для кондиционера хладагента воздуха инструмент
34 527,30 ₽ - 43 159,12 ₽
Китайский масляный электрический насос 2RS-2 OEM автомобильная мощность 2-ступенчатый вакуумный насос 5CFM

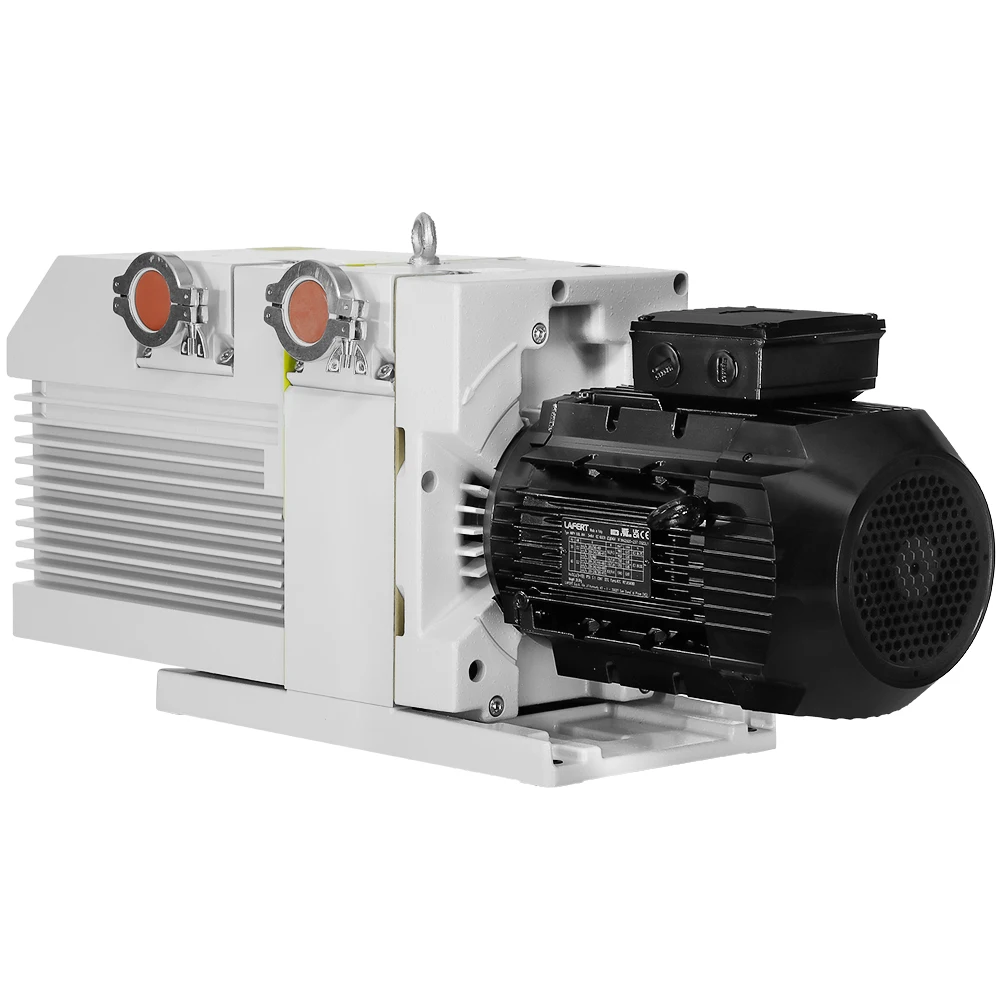

Вакуумный насос Leybold TRIVAC D65B, двухступенчатый роторный вакуумный насос
755 284,60 ₽ - 766 074,38 ₽

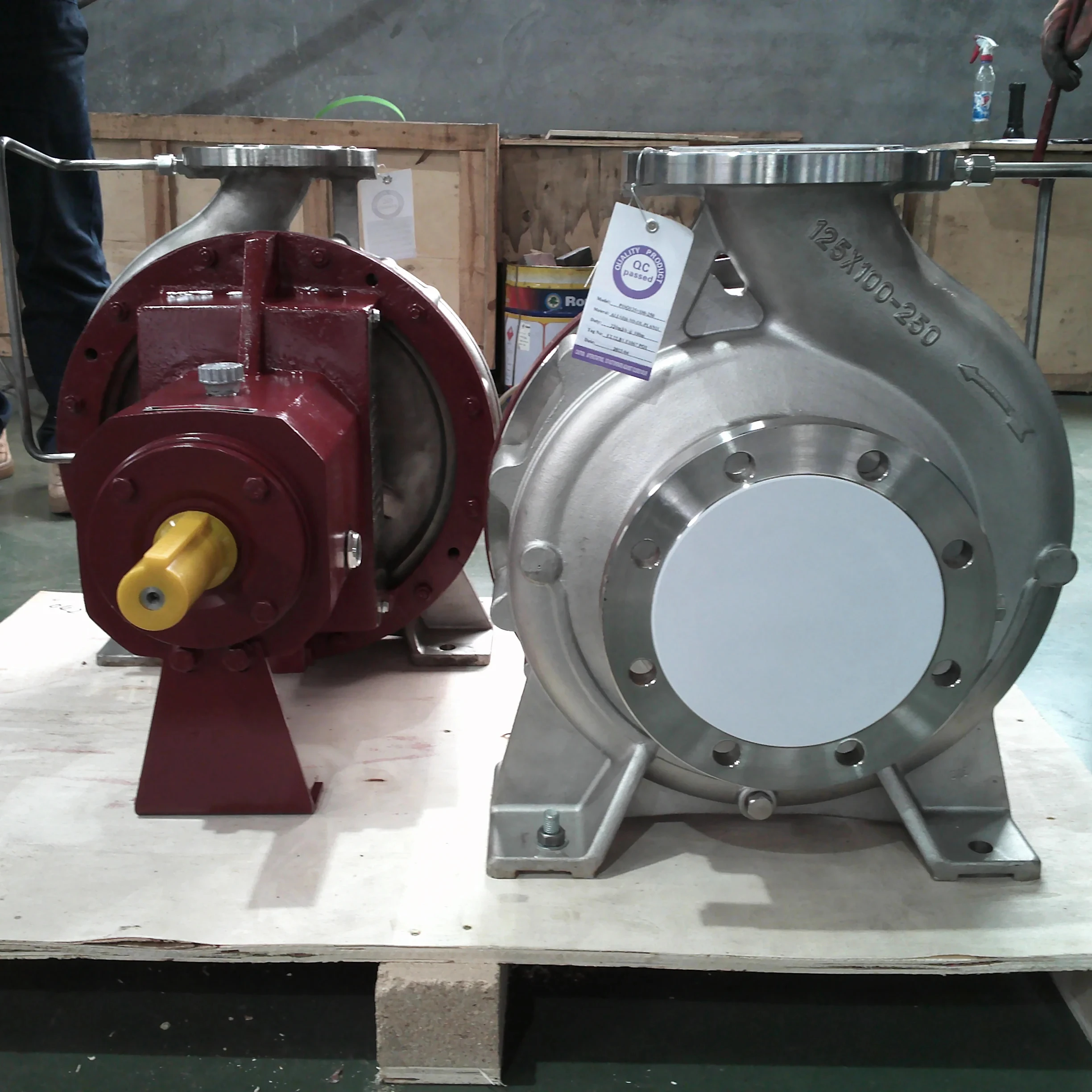

Скидка на запрос! Устойчивый к мутности Промышленный насос, химическая обработка насоса
