2020 Hot Sale AC EV Charger Piles for Electric Vehicles

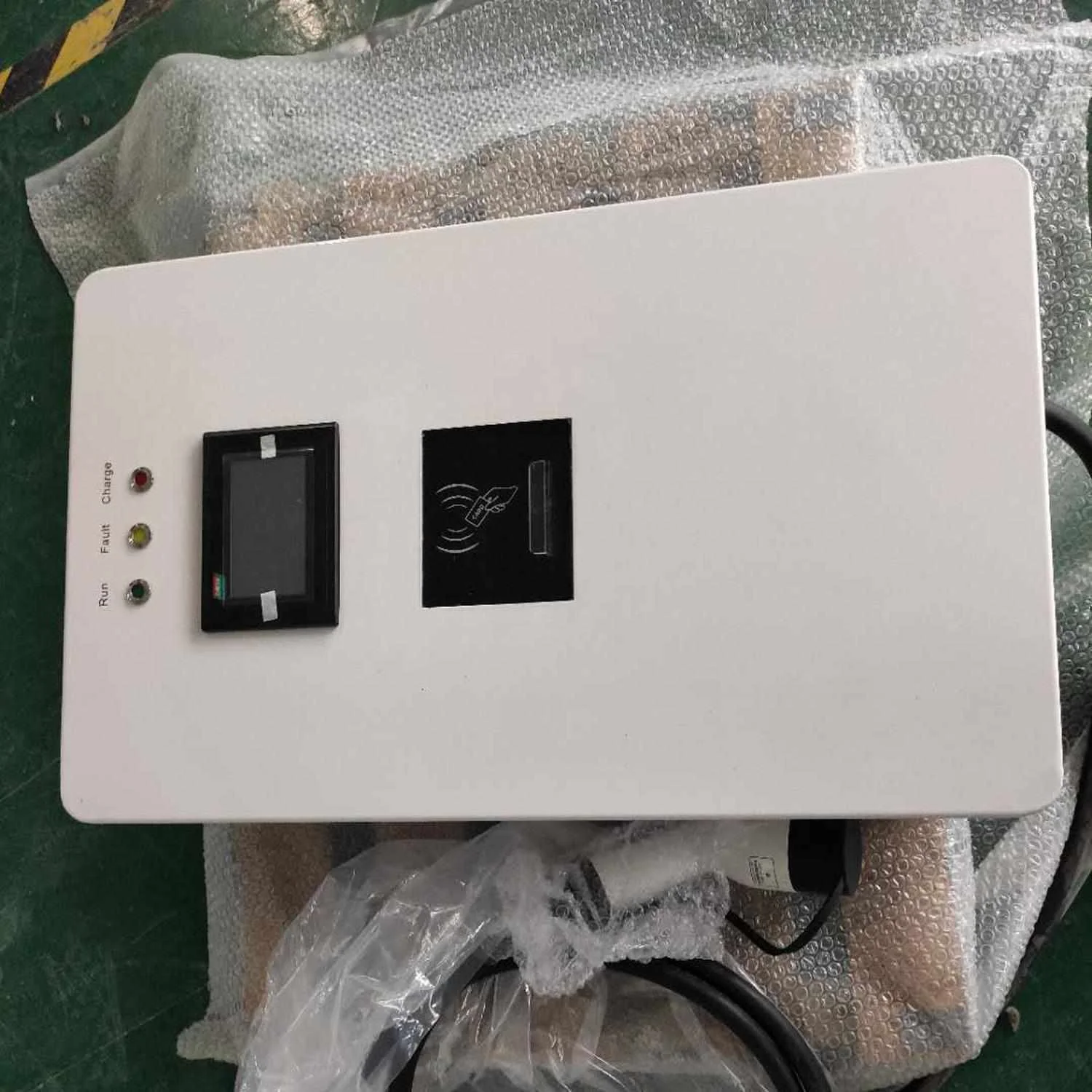

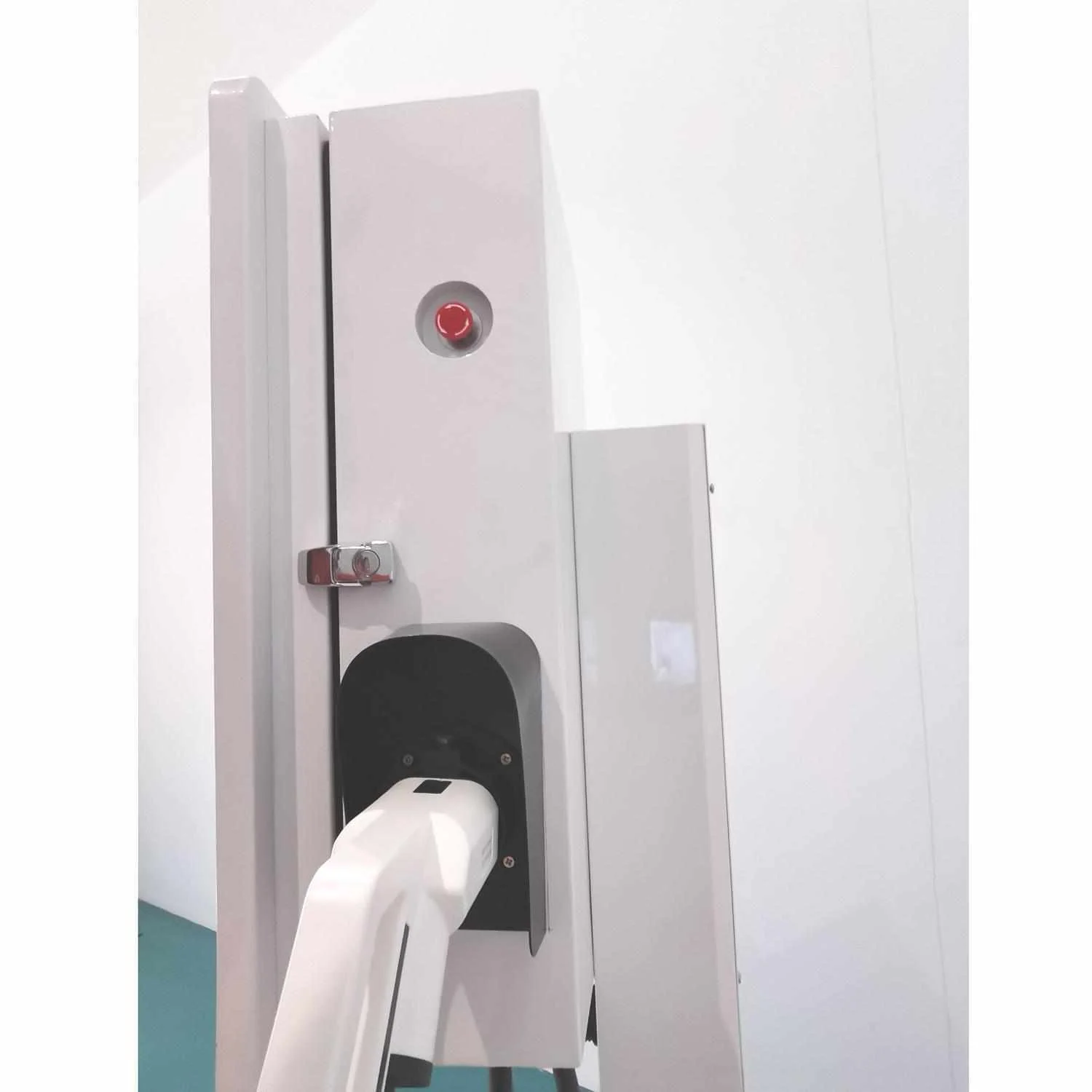

The electric vehicle charging system is a high-performance integrated AC charging system designed by the company. The system uses the world's leading high-frequency switching power supply module, monitors the use of industrial-grade CPU chips, human-machine interface using industrial color touch screen.The product has the advantages of high reliability, high efficiency, high security,high availability, beautiful appearance, and excellent technology.

Main feature:
Charging module:
1.Using active power factor compensation technology, rated power factor value of 0.99.
2.With comprehensive soft-switching technology, the rated efficiency is up to 94%.
3.Ultra-low radiation. Advanced electromagnetic compatibility design.
4.The safety specification design complies with UL, CE, NEBS standards.
5.High power density.
6.With output overvoltage hardware protection and output overvoltage software
7.Protection. There are two options for software overvoltage protection: one overvoltage lockout mode and two overvoltage lockout modes.

System:
1.The AC input voltage has a normal operating range of 260Vac to 530Vac.
2.Perfect battery management. With battery low voltage protection, it can realize temperature compensation, automatic voltage regulation, stepless current limiting and other functions.
3.Convenient and simple operation interface, fast maintenance interface
4.Perfect AC side lightning protection design.
5.Complete fault protection and fault alarm function.
6.The system has an insulation fault ground alarm function.
7.Conforms to GBT18487.1-2015, GBT20234.1/2/3-2015, GBT27930-2015

Applications:
This product integrates charger, charging interface, human-computer interaction interface,
communication, billing, etc., for the rapid charging of electric vehicles. Its use of small area,
fast charging time and other characteristics,generally used in various large charging stations,
shopping malls, office buildings and other "instant charge" places.

Technical Parameters:

Product Details

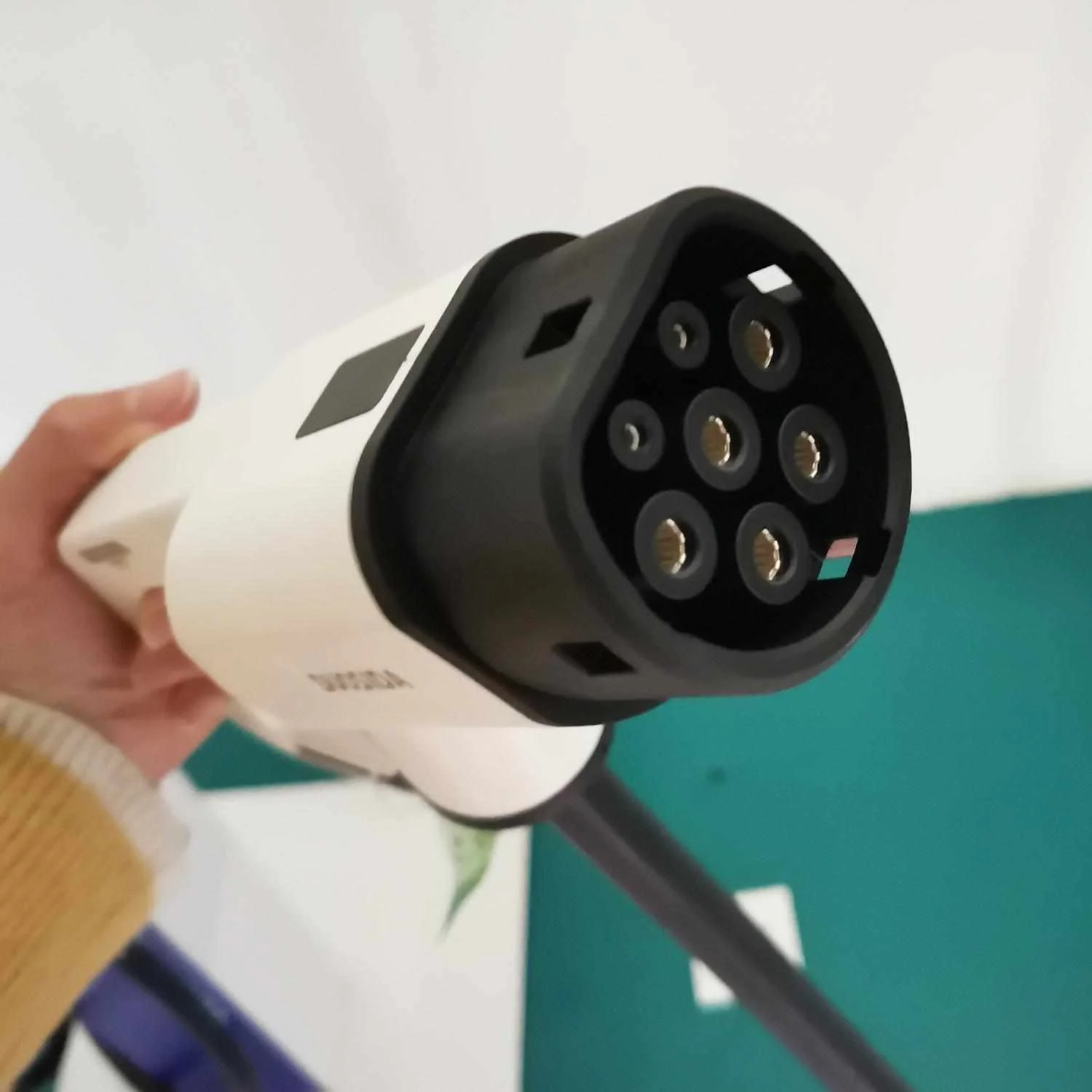

AC Type2 connector

Features
A. Meet 62196-2 IEC 2010 SHEET 2-IIe standard
B. Excellent protection performance, protection level IP54(working condition)
C. Mechanical life: No-load plug in/pull out>5000 times
D. Coupled insertion force: >45n<80n
E. Impat of external fore: Can afford 1m drop and 2t vehicle run over pressure
F. Operation temperature: -30℃ ~ +50℃
G. Case material: Thermoplastic, flame retardant grade UI 94 V-0
H. Contact bush: Copper alloy, silver plating
I. Rated current: 63A
J. Operation voltage: 415V
K. Insulation resistance: >1000mω(DC500V)
L. Terminal temperature rise: <50K
M. Withstand voltage: 2000V
N. Contact resistance: 0.5mω max

Contact Information

Kris Wang

WhatsApp/phone:+8618815010920

WeChat:+8618957652263

www.cnevcharger.com

Tommy Hu

WhatsApp:+8613736915467

www.cnevcharger.com

Packageing&Shipping

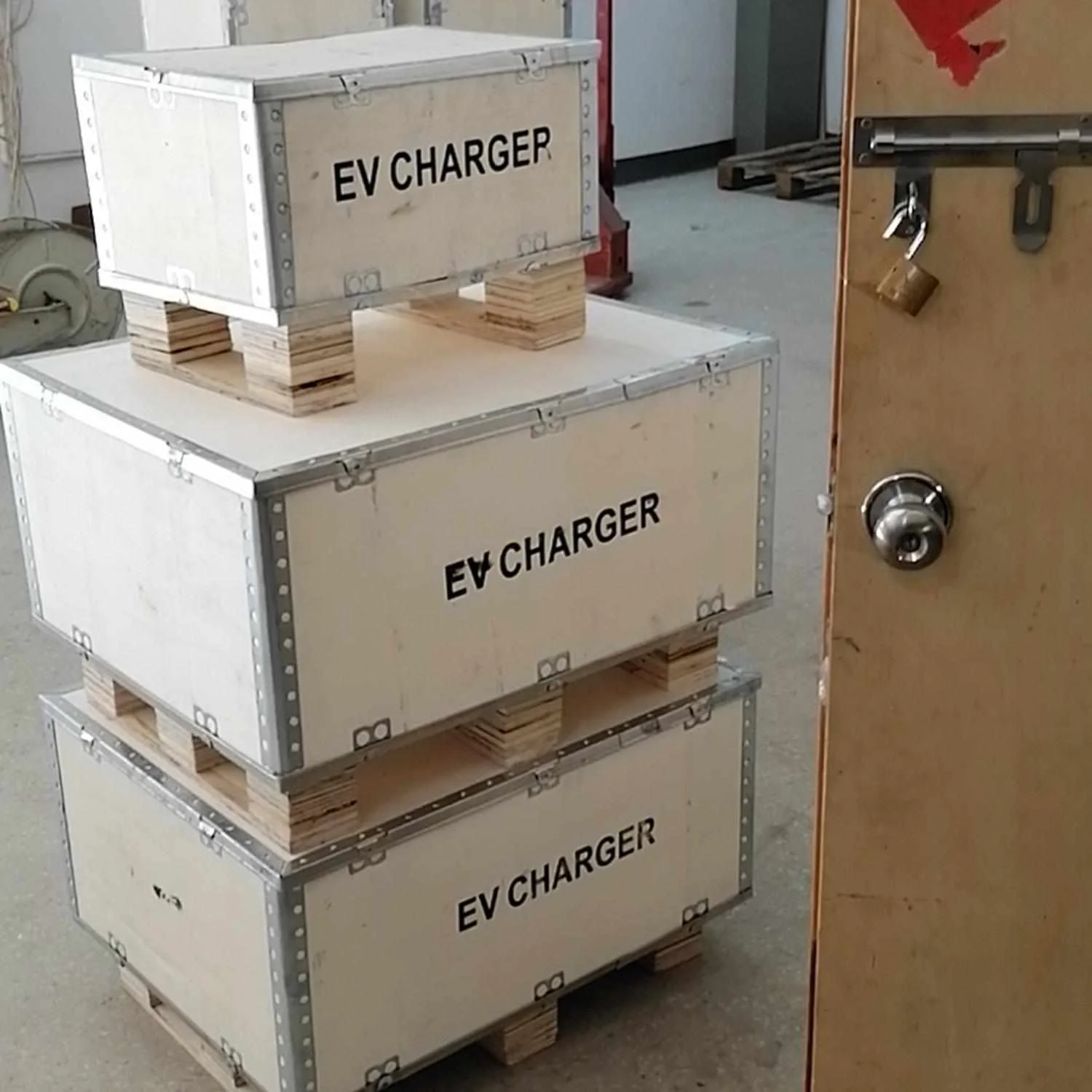

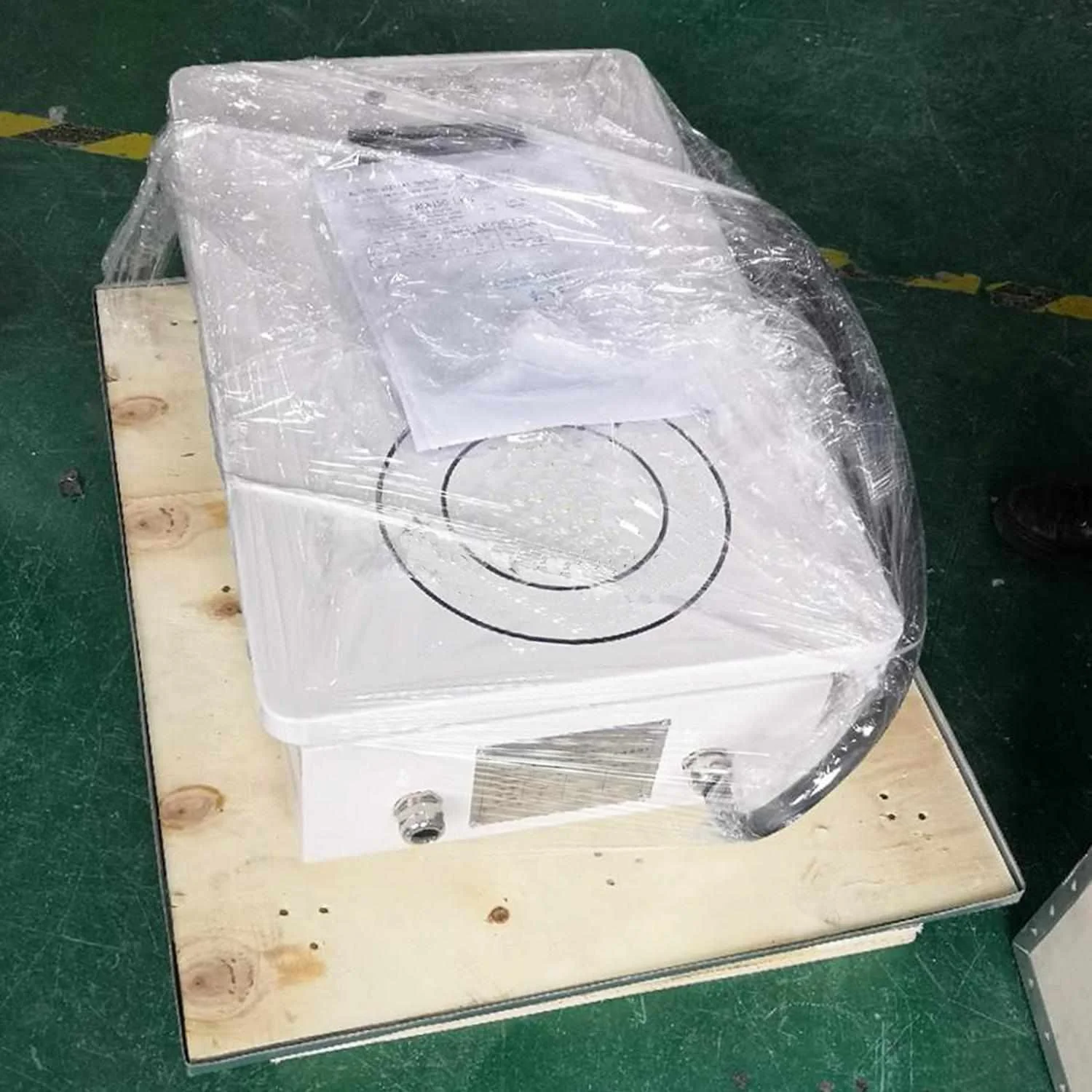

Standard Wooden and Carton Box Package.

Two modes of transportation: sea and air.
