Колесная база для электрического фургона ISUZU ELF EVK100 4x2 3815
- Категория: >>>
- Поставщик: Chongqing Isuzu (shanghai) Motors Sales & Service Co. Ltd.Chongqing Ltd.
Сохранить в закладки 1600158403634:
Описание и отзывы
Характеристики
Product Overview

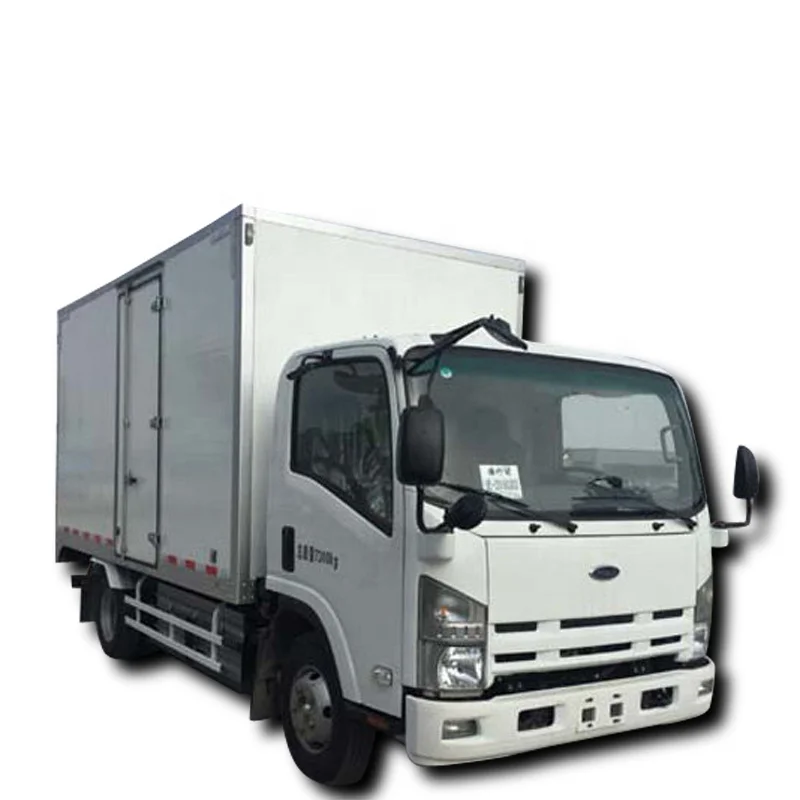

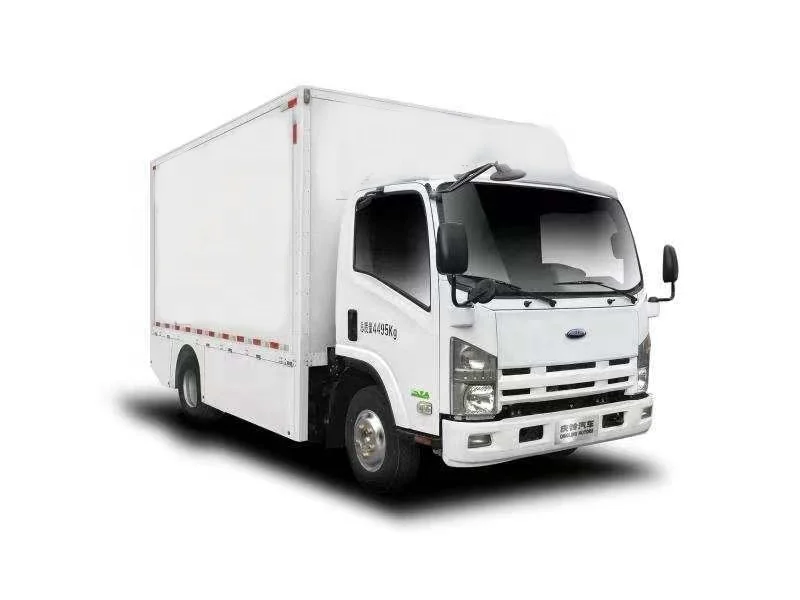

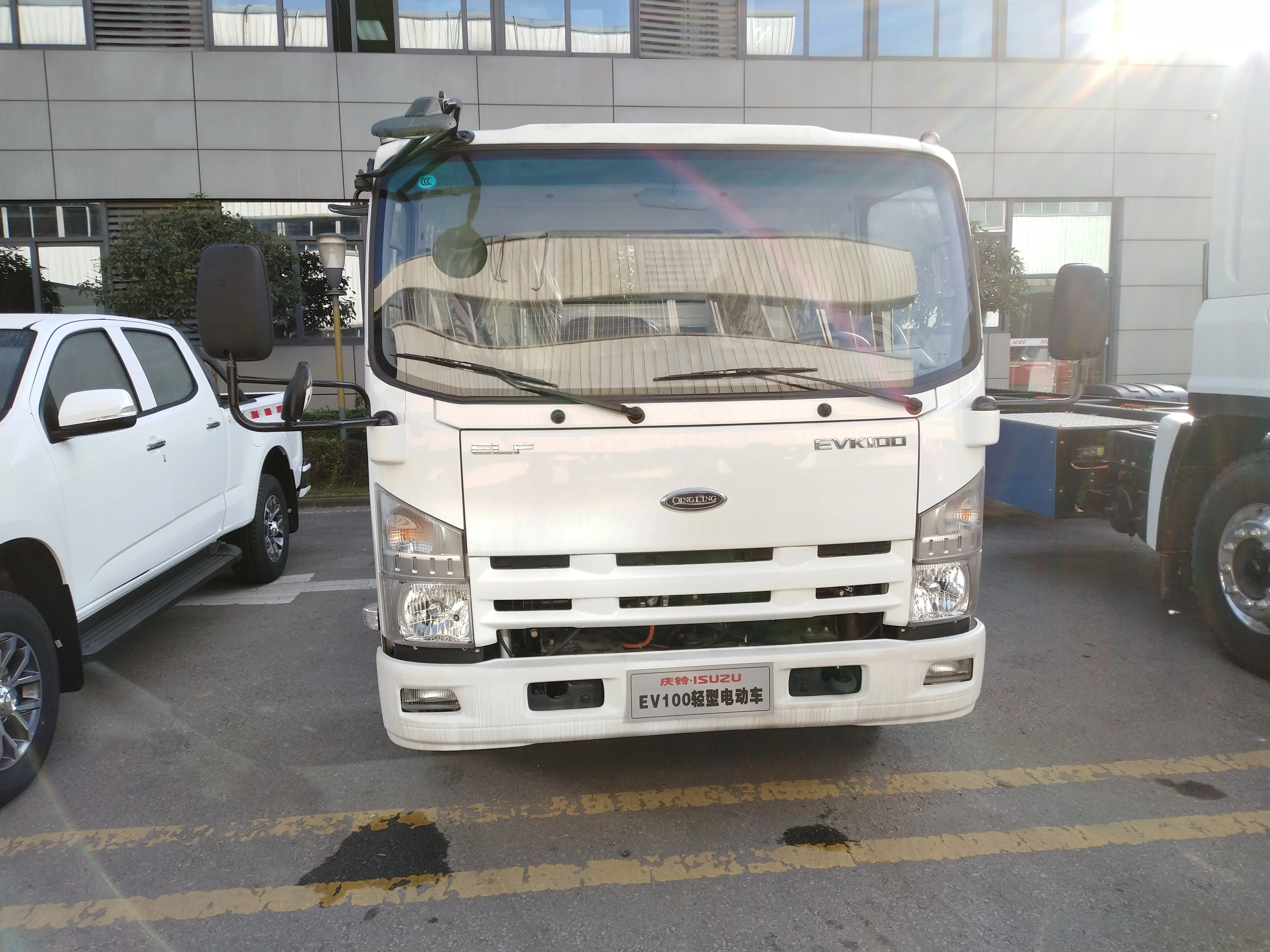

ISUZU CHINA EVK100 4x2 Van Truck
Qingling pure electric commercial vehicle is Qingling Auto's independent innovation, market-oriented, customer demand-oriented, excellent performance matching, after three generations of product research and development and technological precipitation, it is launched with industry-leading reliability, safety and economy. , Lightweight, and long cruising range.
FEATURES AT A GLANCE
LIGHTWEIGHT
LONG CRUISING RANGE
PRODUCT SPECIFICATIONS
ISUZU CHINA EVK100 4x2 Van Truck | ||||
Chassis Model: | QL5070XXYBEVECDA | |||
Vehivle Parameters | Overall Dimension (L x W x H) | 6790×2110×3110 (mm) | ||
Curb Weight: | 3685kg | |||
GVW: | 7300kg | |||
Wheelbase: | 3815mm | |||
Drive Type: | Motor Direct Driving | |||
Motor | Motor Model: | YTD060W23 | ||
Motor Type: | Permanent magnet synchronous motor | |||
Rated /Peak Power: | 60/110kw | |||
Rated /Peak Peak torque: | 310/1000N.m | |||
Battery | Battery Brand/ Model: | CATL/ CB220 | ||
Battery Type: | Lithium iron phosphate | |||
Battery Capacity: | 106.95kwh | |||
Performance | Maximum Speed: | 100km/h | ||
Endurance mileage: | 433km | |||
Charge mode: | Fast charge(1h) | |||
Max Climb Capability | 30% | |||
Seats | Front Seat: | 3 | ||
Chassis | Front/ Rear Wheel Distance: | 1685/1525mm | ||
Front/Rear Suspension | 1110/1865mm | |||
Axle Loads: | 2580/4720kg | |||
Approach/Departure angle: | 18/13 | |||
Leaf Spring: | 3/3+2,8/6+5 | |||
Tires: | 7 (Including Spare Tire) | |||
Tire Model: | 7.00R16 14PR | |||
Standard Configuration: | 1 | Power steering system | ||
2 | Air Conditioning | |||
3 | ABS | |||
4 | Tubeless Tire | |||
Optional | 1 | Air diversion device | ||
2 | Single side single door for aluminum box | |||
3 | Power window and Central lock | |||
Box | Box Dimension (L x W x H) | 4970×2050×2100 | ||
Material | Aluminum | |||
Technology
Power Battery
The vehicle adopts the domestic first-class brand of lithium iron phosphate battery, which has good thermal stability and higher safety and reliability; the system has a long cycle life, which can reach more than 3000 times;
The battery has good stability and long service life, up to 8 years.
The power battery has the characteristics of high energy density and high battery consistency. It is equipped with a passively balanced battery management system and temperature management system, which has a longer cycle life;
Optional heating system, can realize the vehicle driving in cold areas; support 1C charging, fast charging speed.
The battery has good stability and long service life, up to 8 years.
The power battery has the characteristics of high energy density and high battery consistency. It is equipped with a passively balanced battery management system and temperature management system, which has a longer cycle life;
Optional heating system, can realize the vehicle driving in cold areas; support 1C charging, fast charging speed.
Motor
The powertrain developed for the actual operating conditions of the vehicle has multiple sets of power systems such as motor direct drive, AMT, and single reduction, which fully cover the needs of various models.
The motor controller adopts a double closed-loop control system of speed and torque, and calibrates different output torques according to different working conditions. The control is more accurate, the system efficiency is higher, and the vehicle has a long cruising range.
The motor controller adopts a double closed-loop control system of speed and torque, and calibrates different output torques according to different working conditions. The control is more accurate, the system efficiency is higher, and the vehicle has a long cruising range.
Electric control
The vehicle controller (VCU) is developed in accordance with the requirements of the ISO26262 standard, with a dual-core main and auxiliary chip architecture, and a high level of vehicle safety.
Set up a ramp assist system, and the vehicle starts on a ramp without slipping;
Set the economic driving mode, the cruising range can be increased by up to 10%;
Adopting a high-efficiency energy recovery system (maximum recovery efficiency of 20%), the vehicle has a longer cruising range.
Set up a ramp assist system, and the vehicle starts on a ramp without slipping;
Set the economic driving mode, the cruising range can be increased by up to 10%;
Adopting a high-efficiency energy recovery system (maximum recovery efficiency of 20%), the vehicle has a longer cruising range.
Successful Project
Transport
Project in Korea
Project in Janpan
