Акриловая пластина Чистая комната модуль сборка жесткая стена Чистая комната
34 608,12 ₽
Вертикальный ламинированный воздушный фильтр с фильтром FFU для чистых помещений h14 ffu
- Категория: Cleaning Equipments >>>
- Поставщик: Guangzhou Cleanroom Construction Co. Ltd.Guangzhou Ltd.
Сохранить в закладки 1600158582925:
Описание и отзывы
Характеристики
Products Description

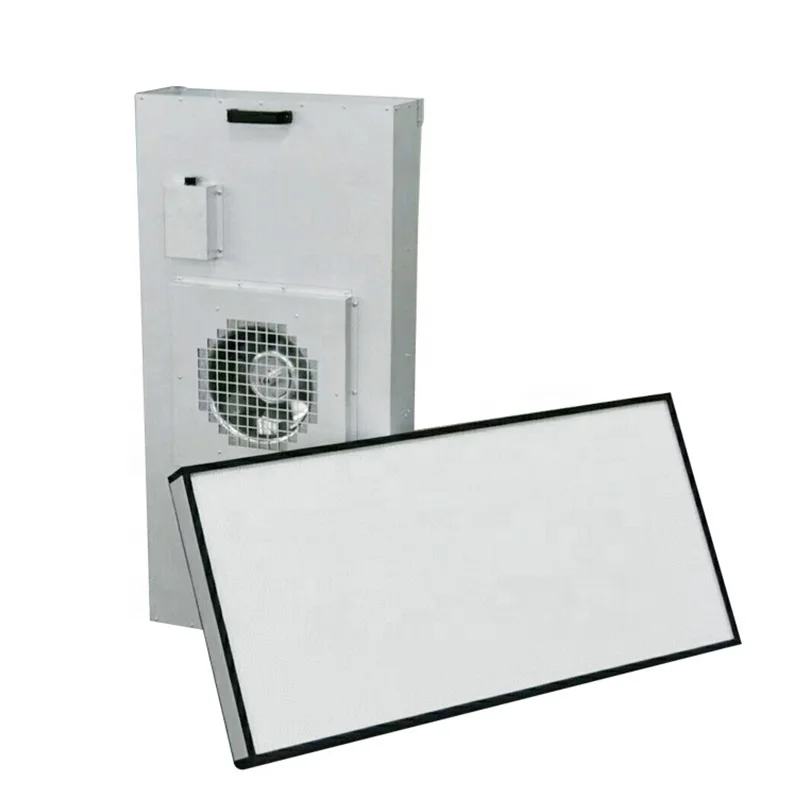

Fan Filter Unit
Fan filter unit (FFU) is a type of motorized air filtering equipment. It is installed within the system's ceiling or floor grid to
increase the flexibility of the air flow and remove harmful air particles from recirculating air in an environment.
increase the flexibility of the air flow and remove harmful air particles from recirculating air in an environment.
Application:
Semiconductor, electron, flat-panel display, disc-drive, manufacture and optics, bio-engineering, clean bench, clean room, and any other places.
Semiconductor, electron, flat-panel display, disc-drive, manufacture and optics, bio-engineering, clean bench, clean room, and any other places.
Main Technical Parameters
Item | GCC-FFU-500 | GCC-FFU-600 | GCC-FFU-1000 | GCC-FFU-1200 | GCC-FFU-2400 | ||||
Material | Aluminum/Stainless Steel/Steel | Aluminum/Stainless Steel/Steel | |||||||
External Size(m) | 575*575*300 | 615*615*300 | 1175*575*300 | 615*1225*300 | 1225*1225*300 | ||||
External Size(ft) | - | 2x2 | - | 2x4 | 4x4 | ||||
Air Flow(m³/h) | 500 | 600 | 1000 | 1200 | 2400 | ||||
Weight(Kg) | 21 | 24 | 37 | 41 | 80 | ||||
Efficiency | With pre-filter（G1）and HEPA filter (H14); HEPA(H14) filteration efficiency: 99.999% (0.3um diameter) | 99.99%@0.3μm,G3 | |||||||
Voltage | 110/220/380V, 50/60Hz | ||||||||
Power | 100W~300W | 0.3~0.5 | |||||||
Wind Speed(m/s) | 0.3~0.5 | ||||||||
Noise(dB) | 55~63 | 55~62 | |||||||
Remark | FFU size can be customized. You can contact the salesperson directly. | ||||||||
Alternative Configuration:
a. Stainless steel construction or Aluminum construction
b. Plastic fan or Aluminum Fan
a. Stainless steel construction or Aluminum construction
b. Plastic fan or Aluminum Fan
c. Air Flow
d. External Size
Space-saving
The height is low, the space can be saved when the system is designed. It adopts the good quality aluminium alloy and makes by cold rolled steel with power coated. It applies to all manufacturer’s installation of Grid system and to change the size of FFU according to it.
High-performance configuration
HEPA centrifuge with long-life span, energy-saving, low noise, no maintaince, small vibration, adjustable speed, stabilizing
performance which can remain the same air flow at the final resistance of HEPA filter. The inner tube is made by metal and the special air entrance with low air resistance and good sound insulation.
Energy-saving
The spread board is equipped inside, wind pressure is even. The efficiency of motor is high. The power-consuming is low, which can save Energy. The single motor provides three kinds of speed. The air speed and air flow can be adjusted according to practical condition.
OEM
Customized design is available.
The height is low, the space can be saved when the system is designed. It adopts the good quality aluminium alloy and makes by cold rolled steel with power coated. It applies to all manufacturer’s installation of Grid system and to change the size of FFU according to it.
High-performance configuration
HEPA centrifuge with long-life span, energy-saving, low noise, no maintaince, small vibration, adjustable speed, stabilizing
performance which can remain the same air flow at the final resistance of HEPA filter. The inner tube is made by metal and the special air entrance with low air resistance and good sound insulation.
Energy-saving
The spread board is equipped inside, wind pressure is even. The efficiency of motor is high. The power-consuming is low, which can save Energy. The single motor provides three kinds of speed. The air speed and air flow can be adjusted according to practical condition.
OEM
Customized design is available.

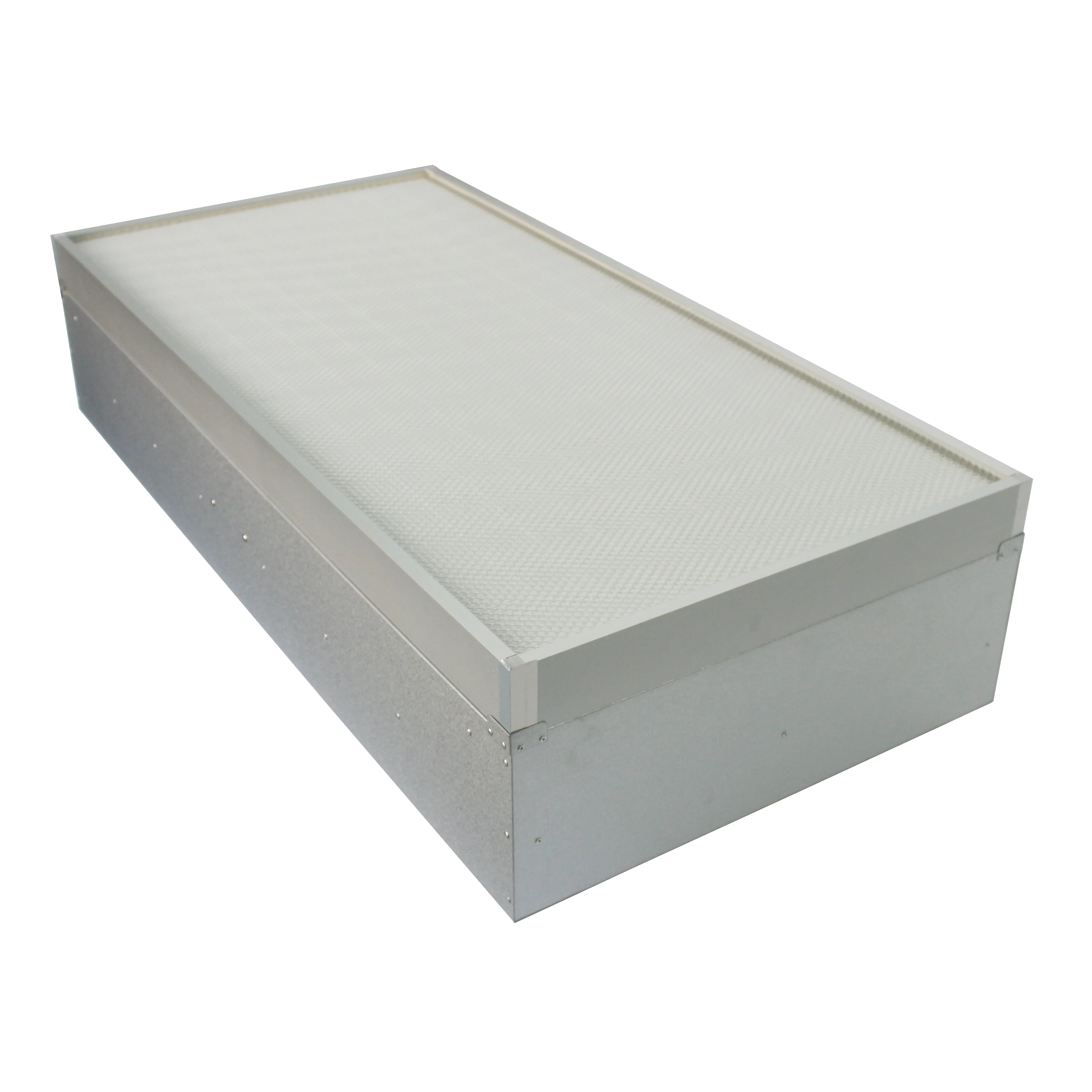

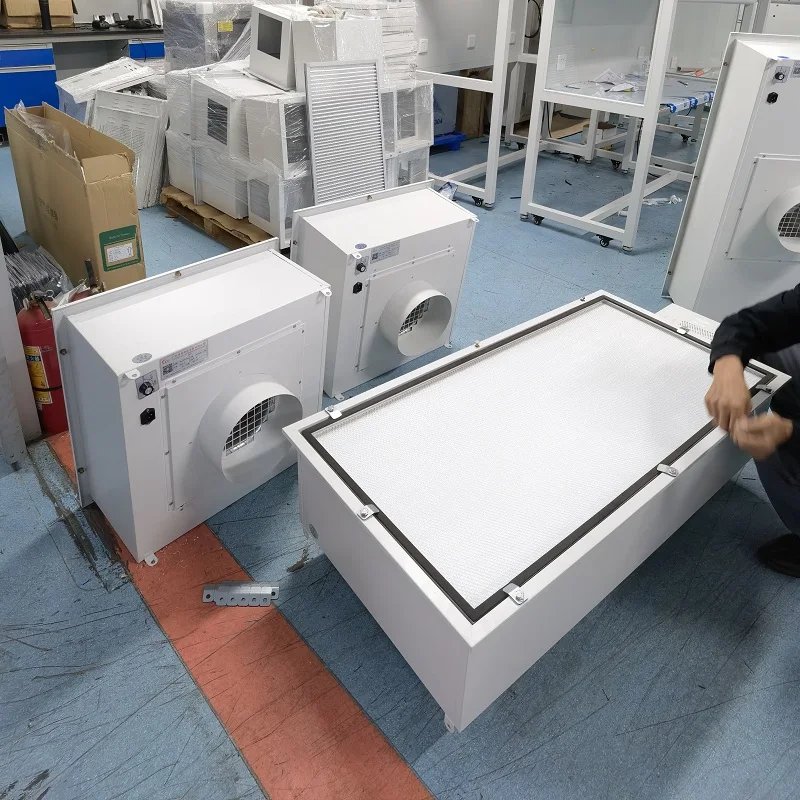

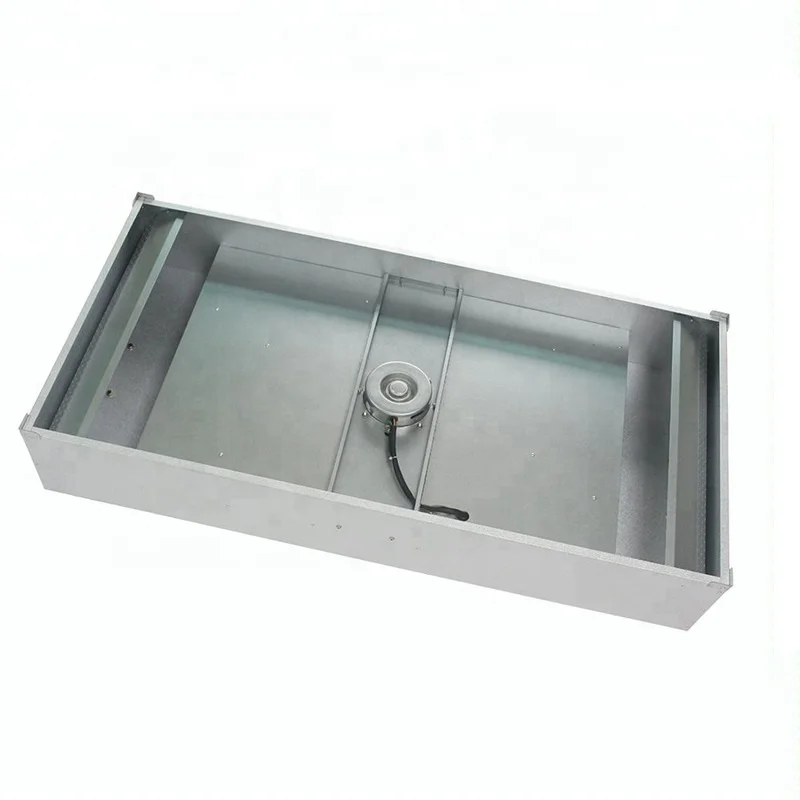

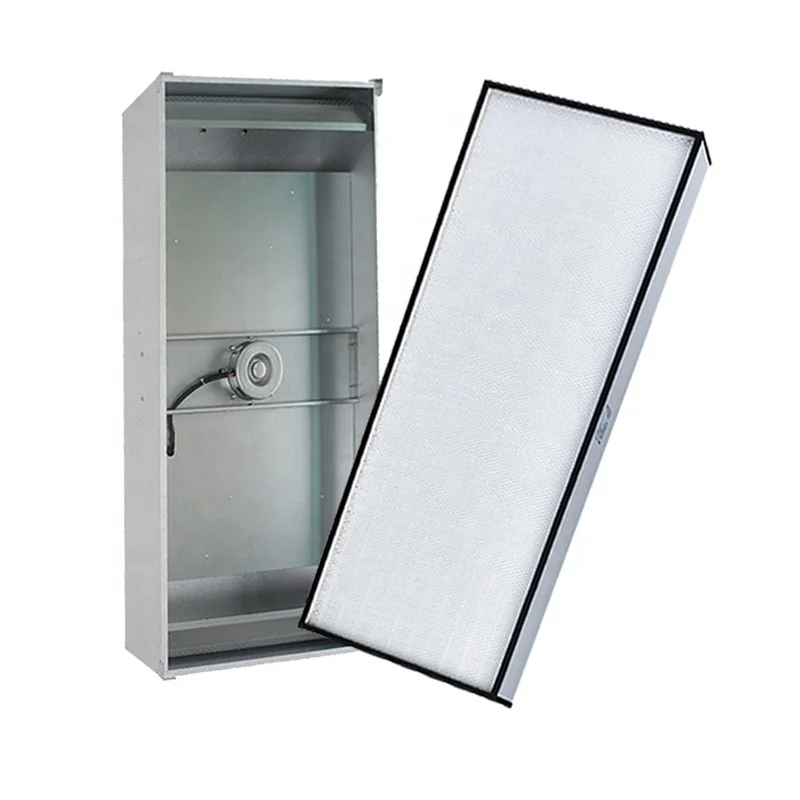

Details Images
Packaging
Related Products
Company Profile
Guangdong Clean Purifying Equipment Co.,Ltd
GCC Guangdong Clean Purifying Equipment Co., Ltd is one of the leading manufacturers in clean room equipment. Our main productsare air showers, pass boxes, fan filter units (FFU), clean booths, 100class clean benches , air outlets, 100 class laminar flow hoods, clean mobile self-purifications, weighing booths, hospital laminar flow ceilings, clean storage closets, Air filters, Laboratory benches, and all kinds steel made cabinets etc. Our products are made in strict compliance with FS209E, ISO14644-1 and GMP standard, widely applied in medical treatment, public health, micro-electronics, optical fiber& cable, bio-pharmaceuticals, food& beverage, agriculture, forestry, animal husbandry, veterinary medicine, inspection & quarantine, aerospace, automobile, precision instruments, institutions of higher education, scientific research and teaching, etc. GCC is to provide professional purification technology and solutions for you. GCC ample completed series products can satisfy your any demand in clean room, air filtration and laboratory: from standard equipment and air filter to special kinds in different occasion and demand, we always supply advanced, high-quality reasonable and economical productions and service supporting for every different industry all over the world.
Our Factory
Our Workshop
Sales Department
D&R Department
Certifications
Why Choose Us
