Планетарный редуктор WAB WAD серии WVRB высокоточный низкооборотный
- Категория: >>>
- Поставщик: Wanshsin Seikou (Hunan) Co. Ltd.
Сохранить в закладки 1600159870522:
Описание и отзывы
Характеристики

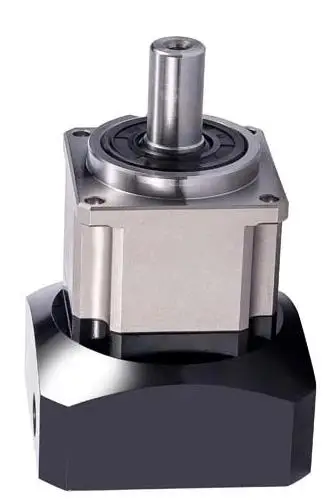

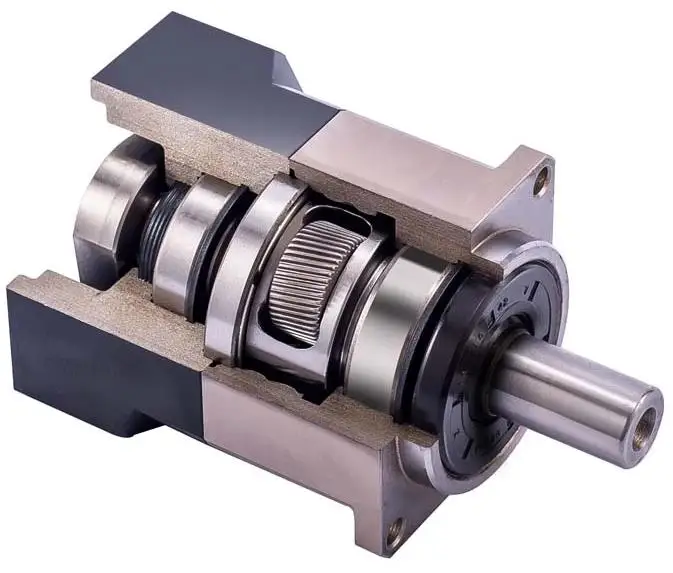

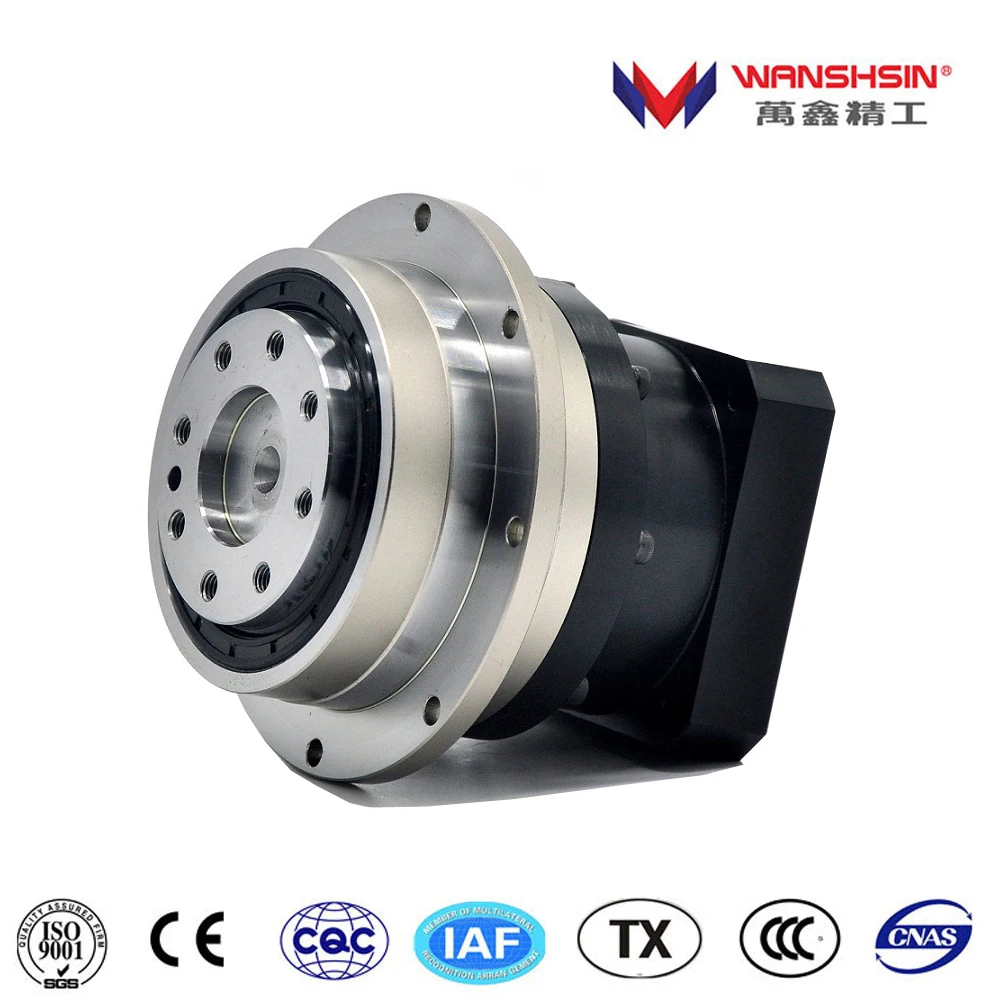

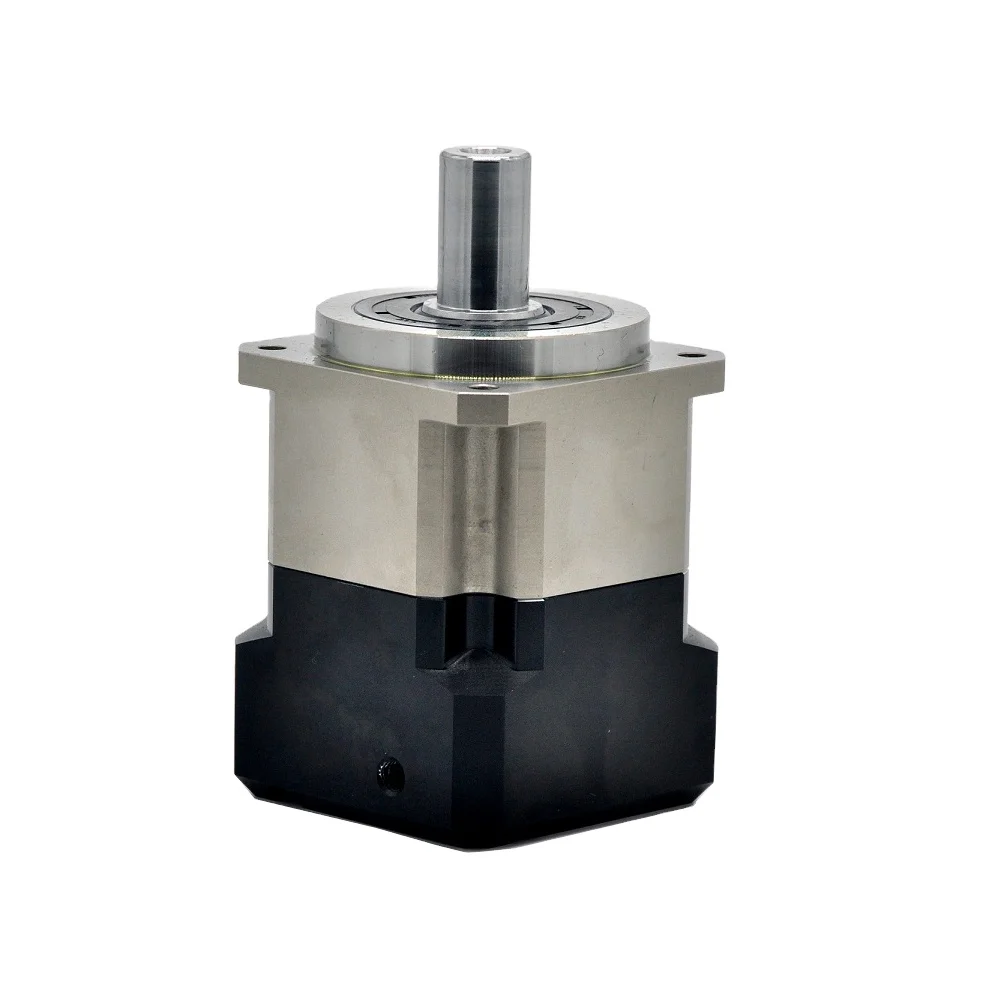

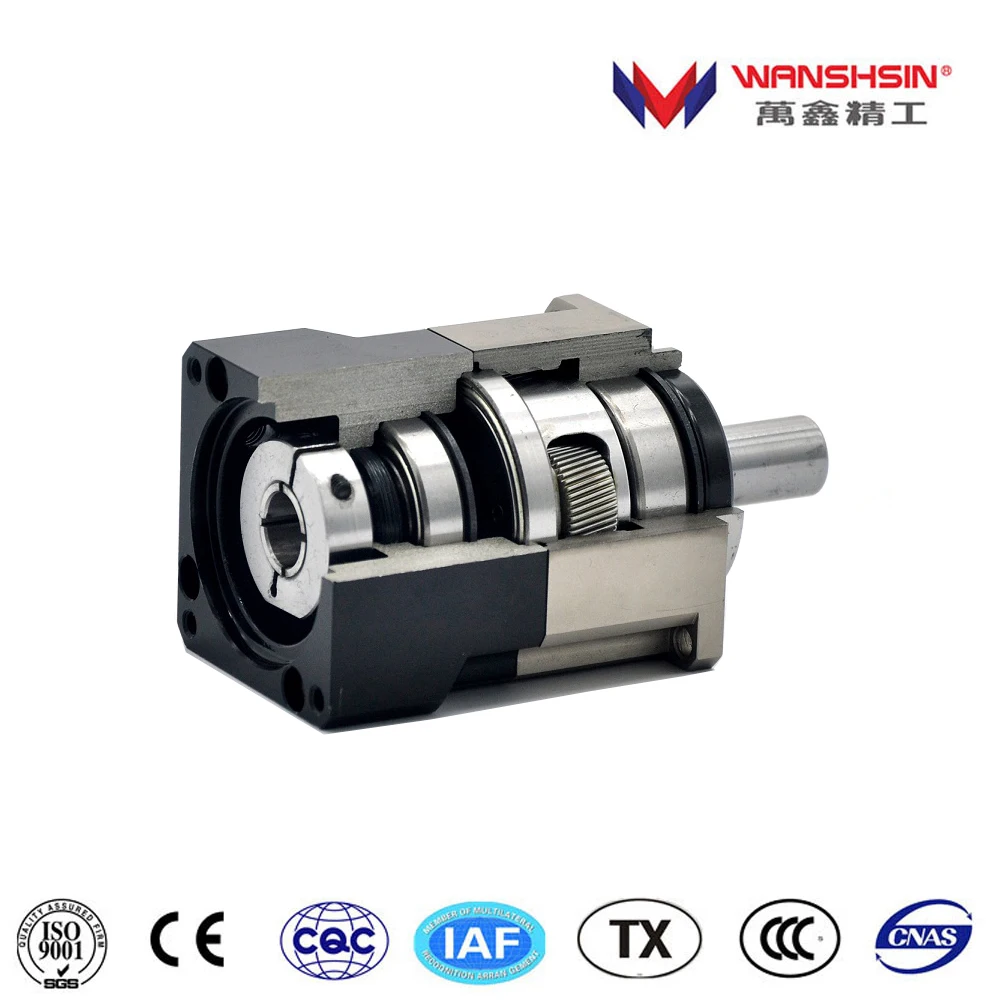

WAB WAD WVRB series Planetary Gearbox High Precision Low Backlash Planetary Gear Reducer
1.Planetary carrier and output shaft are intergrated structure to ensure maximum torsional rigidity.
2.Planetary wheel with full needle design, increase the contact area to improve the rigidity and output torque.
3.The Gear adopts low carbon alloy steel, through carburizing and quenching, surface hardness is HRC62, anti-impact and strong abrasion resistance.
4.Gears refer to foreign imported software-assisted design to obtain the best tooth shape to reduce noise.
5.The input terminal is connected to the motor shaft in a double-tight manner to obtain the maximum clamping force and zero backlash power transmission.
6.Adopt spiral bevel gear design, allow high output torque, more than 30％ higher than straight bevel gear.
7.High tolerance input speed, more than 8 times higher than straight bevel gear input.
8.The meshing tooth imprint of spiral bevel gear has been optimized by optimum design, and the contact tooth surface load is uniform, and long running life.
9.Bevel gears are meshed by optimum motion error analysis and strict process control to ensure high precision running backlash.
10.IP65, anti-dust, anti-water; low backlash, <3arcmin; low noise, <58dB
11.high efficiency(96%);Gear grinding process;easy motor mounting;life-time lubrication;various figure diameters.
2.Planetary wheel with full needle design, increase the contact area to improve the rigidity and output torque.
3.The Gear adopts low carbon alloy steel, through carburizing and quenching, surface hardness is HRC62, anti-impact and strong abrasion resistance.
4.Gears refer to foreign imported software-assisted design to obtain the best tooth shape to reduce noise.
5.The input terminal is connected to the motor shaft in a double-tight manner to obtain the maximum clamping force and zero backlash power transmission.
6.Adopt spiral bevel gear design, allow high output torque, more than 30％ higher than straight bevel gear.
7.High tolerance input speed, more than 8 times higher than straight bevel gear input.
8.The meshing tooth imprint of spiral bevel gear has been optimized by optimum design, and the contact tooth surface load is uniform, and long running life.
9.Bevel gears are meshed by optimum motion error analysis and strict process control to ensure high precision running backlash.
10.IP65, anti-dust, anti-water; low backlash, <3arcmin; low noise, <58dB
11.high efficiency(96%);Gear grinding process;easy motor mounting;life-time lubrication;various figure diameters.
WAB | WAD | WVRB | WAE | WPF | WPL | WR | |
Reduction Ratio | 3~200 | 3~200 | 3~200 | 3~200 | 3~200 | 3~200 | 1,2,3,5 |
Maximum input speed | 10000RPM | 10000RPM | 10000RPM | 10000RPM | 10000RPM | 10000RPM | 2000RPM |
Output torque | 14~200N.M | 14~200N.M | 14~200N.M | 14~200N.M | 12~550N.M | 12~550N.M | 15~60N.M |
Precision backlash | P1/P2/P3 | P0/P1/P2 | P1/P2/P3 | P1/P2/P3 | P1/P2/P3 | P1/P2/P3 | P1/P2/P3 |
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your refer. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. The specific delivery time depends on the items and the quantity of your order.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
Q: What's your warranty terms?
A:1 year after the shipping date against B/L.
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your refer. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. The specific delivery time depends on the items and the quantity of your order.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
Q: What's your warranty terms?
A:1 year after the shipping date against B/L.
Похожие товары
От китайского бренда с плоским верхом 6Ton башенного крана XGT6010C-6S1 для продажи
730 000,00 $ - 750 000,00 $
Большая стеклянная палочка банан пирекс Анальная пробка секс-игрушка Овощной фаллоимитатор премиум качества
2,95 $ - 5,00 $
Интеллектуальный Серводвигатель постоянного тока с кодировщиками W V U-двигатель 48V 1300W DC серводвигатель
288,00 $ - 298,00 $

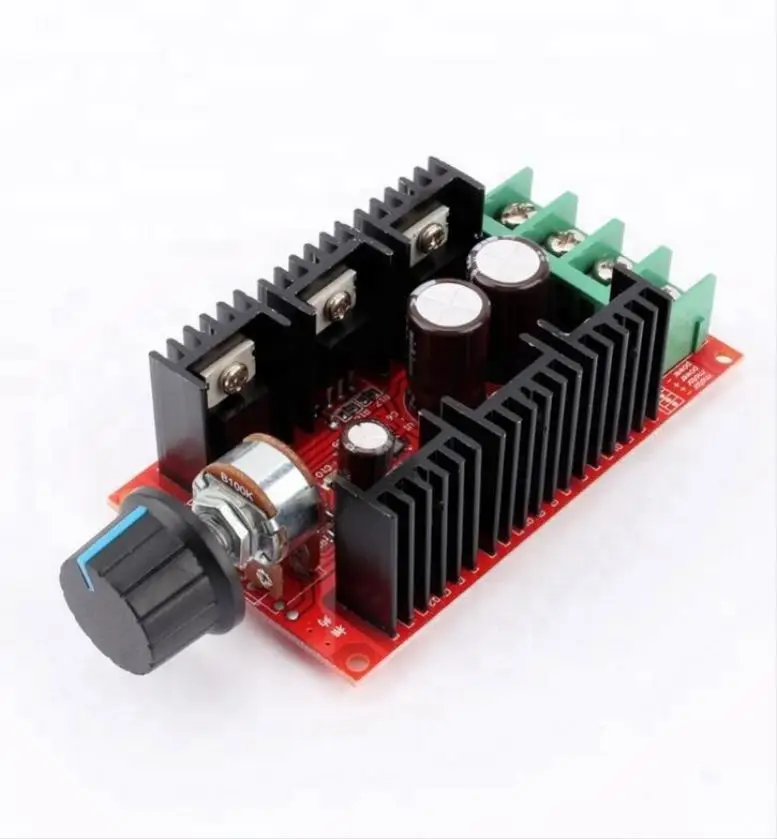

9-50V PWM DC мотор HOO DC плата управления скоростью 2000W 40A

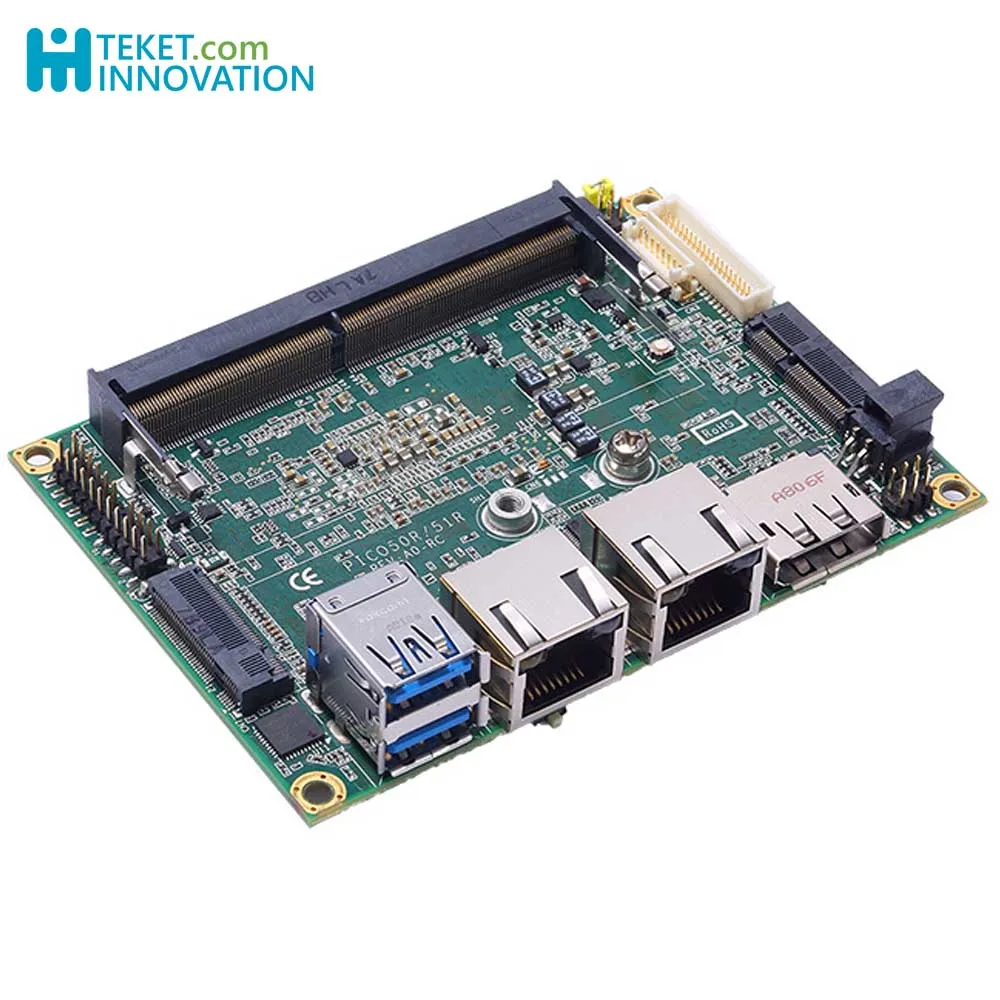

Оригинальная материнская плата для Axiomtek PICO51R Pico-ITX SBC с процессором 7-го поколения Intel Core i7/i5/i3 и процессором Celeron, DisplayPort ++

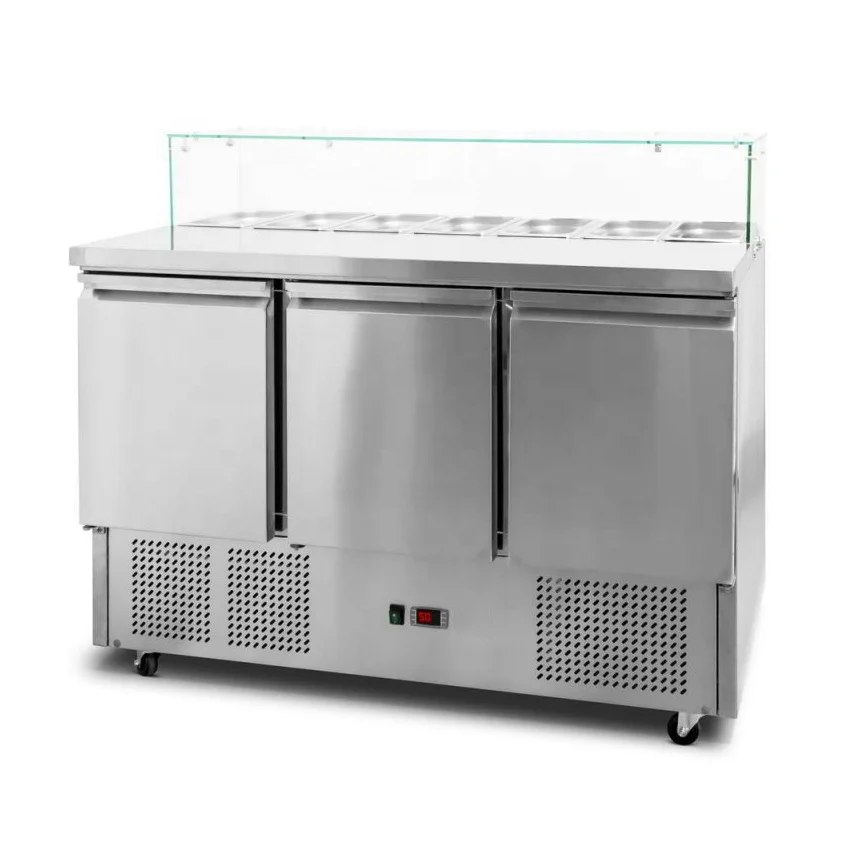

Профессиональный дизайн, стол для пиццы из нержавеющей стали, холодильник/дисплей для пиццы, холодильник со стеклянной крышкой
