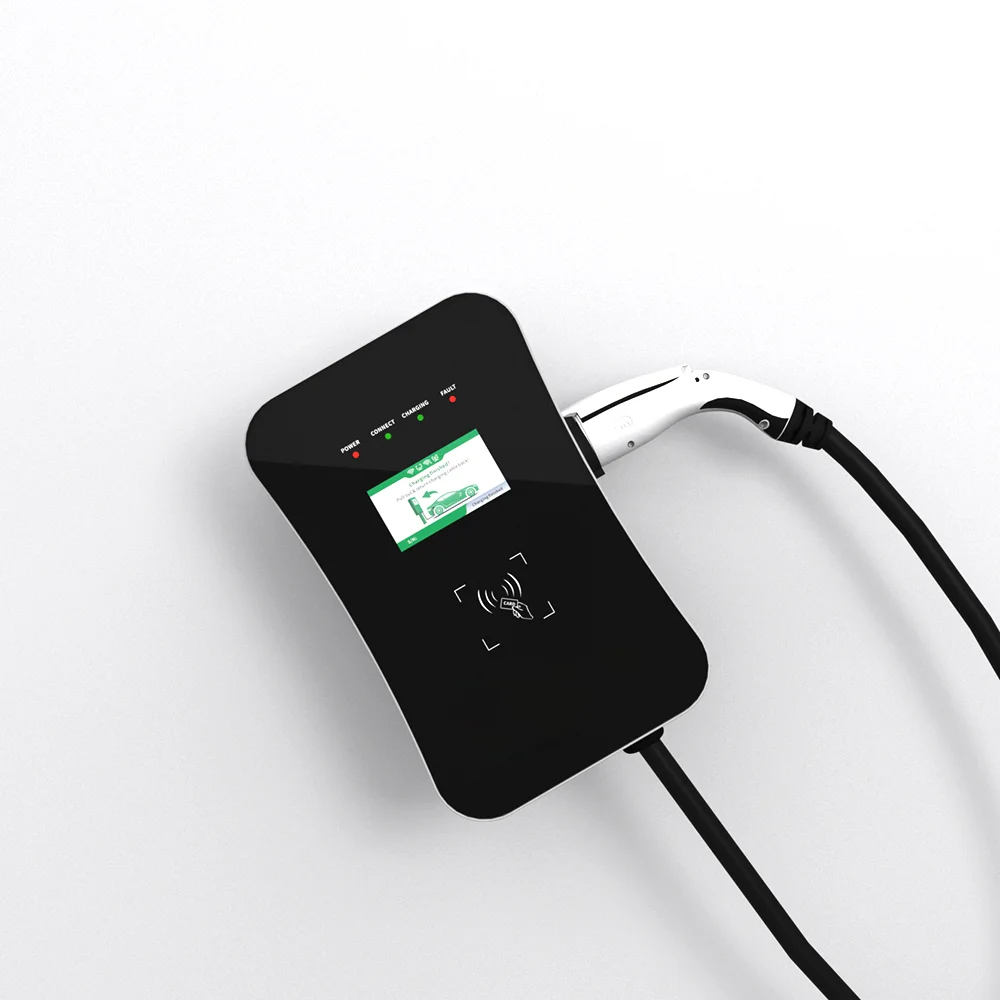

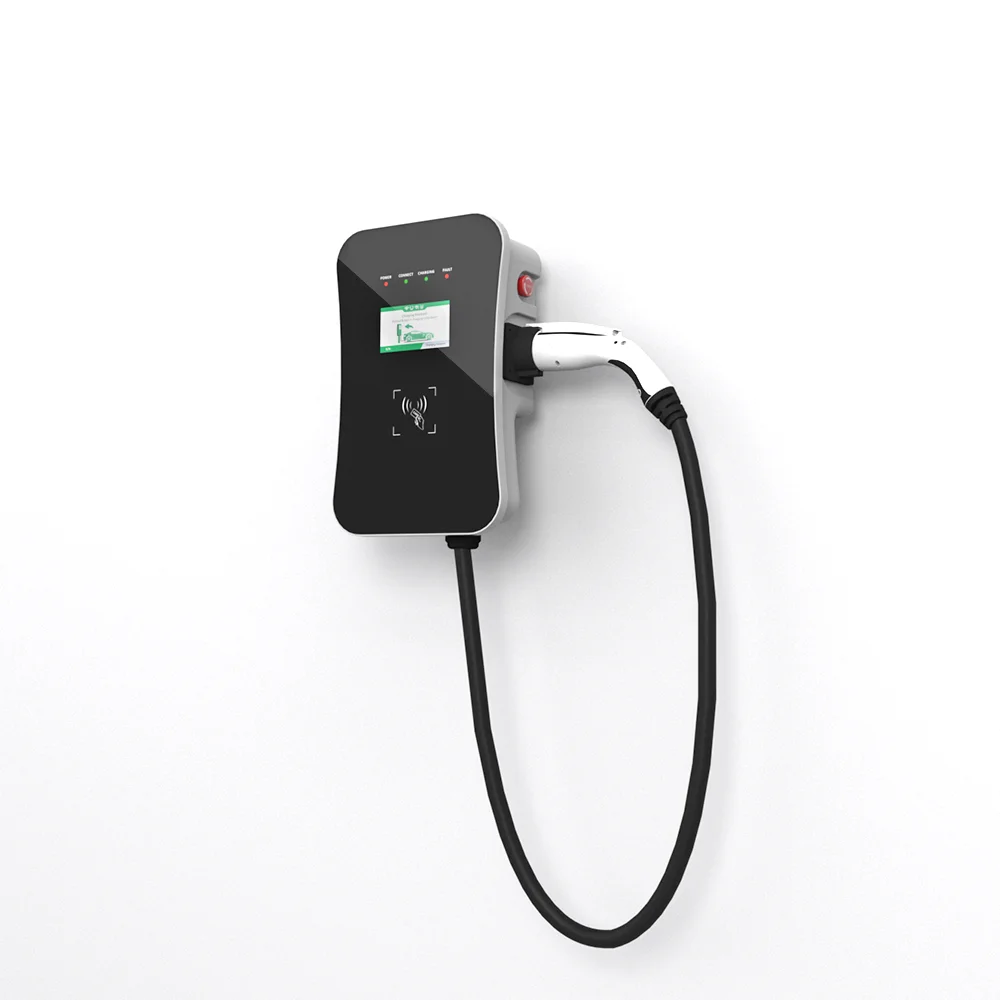

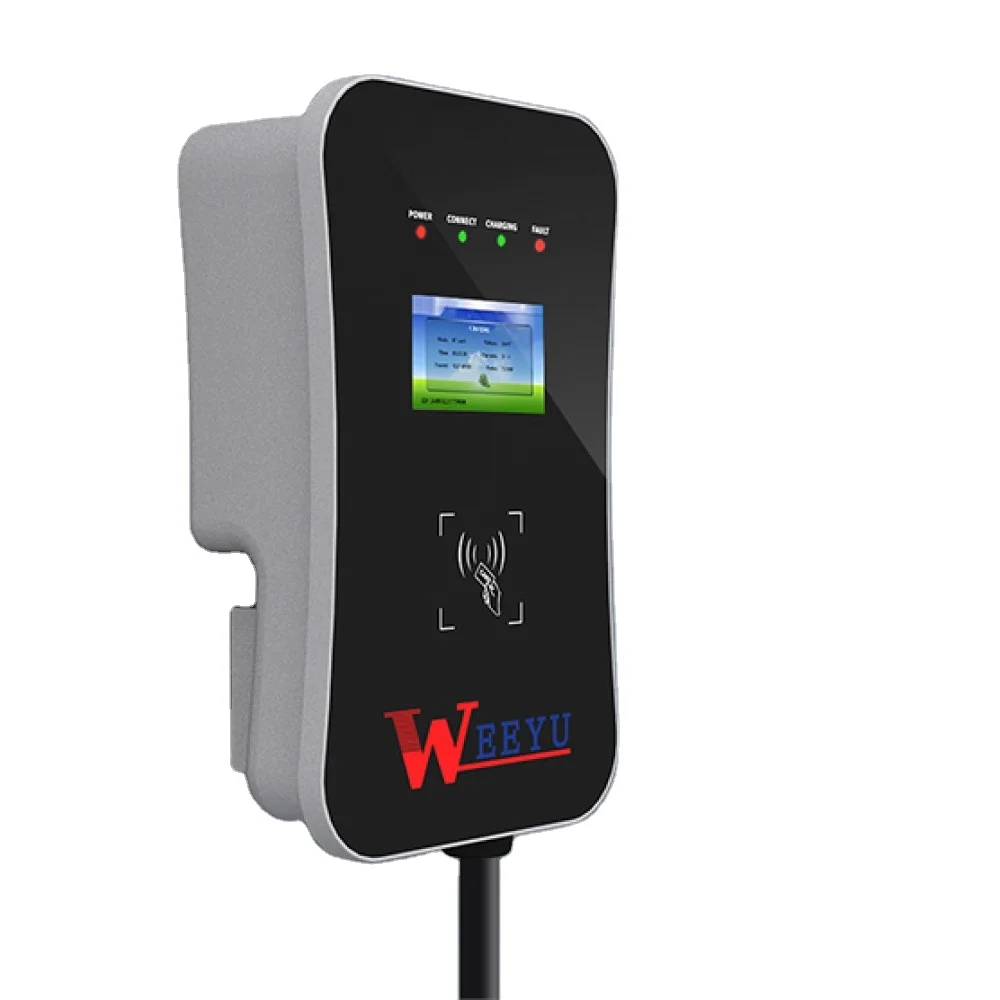

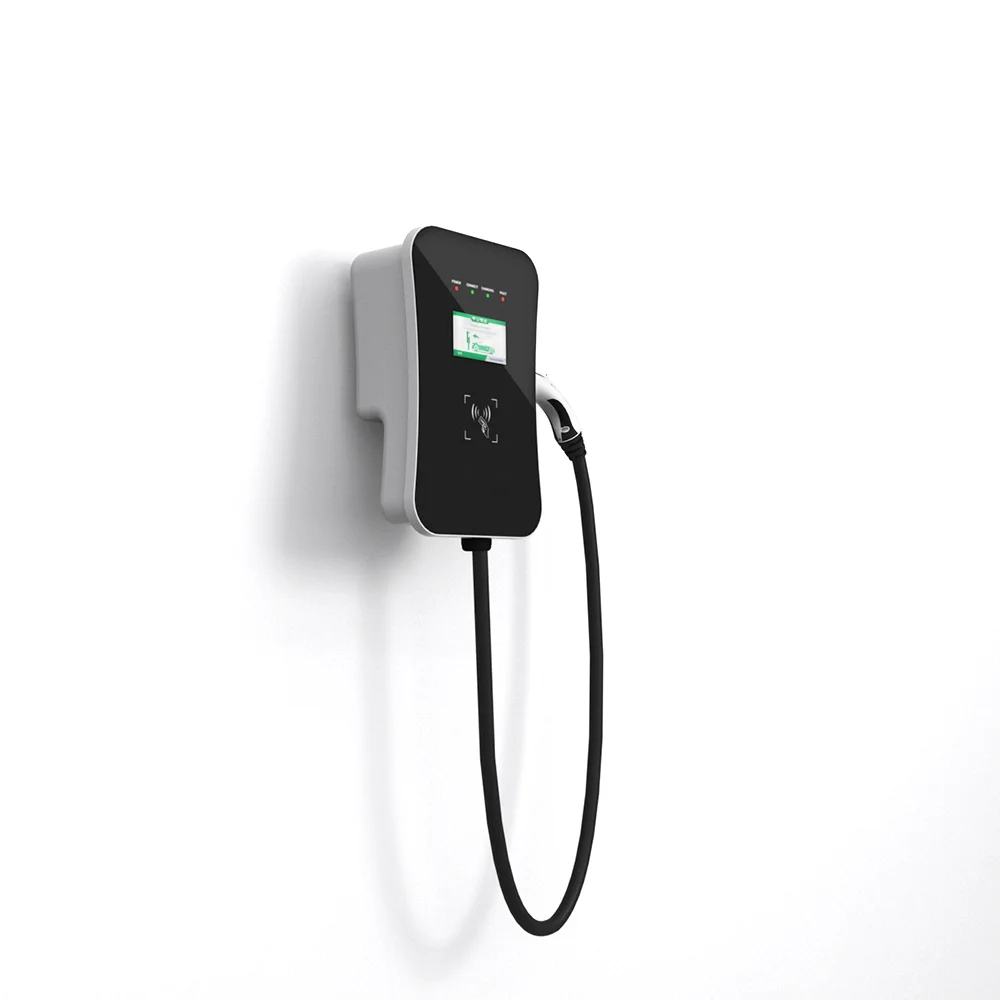

IoCharger CE Тип 2 OCPP 1.6J wifi & 4G AC mode3 быстрая зарядная станция wallbox 7 кВт 22 кВт EV зарядное устройство
420,00 $
WEEYU ev зарядная станция dc ac зарядное устройство настенное крепление
- Категория: Настенные зарядные станции >>>
- Поставщик: Sichuan Weiyu Electric Co. Ltd.
Сохранить в закладки 1600161458150:
Описание и отзывы
Характеристики
Sichuan weiyu wallbox charger advantages:
1. Factory with dedicated sales and R&D team
2. Customize designs
3. CE
2. Customize designs
3. CE
SPECIFICATION
Feature
1. RFID card reader /app interface
2. LCD screen optional
3. Wall-mounted or pole mounted for optional
4. IP54 for indoor and outdoor application
5. 5M(18inch) or 7.5M(25inch) charger plug for choose
6. OCPP, WIFI
Wallbox charger specification
Charging Connector/ plug type | IEC62196-2 /Type 2 | SAEJ1772 /Type 1 | ||||||
AC Power input rating | 1 phase 220V±15% | 3 phase 380V±15% | AC Level 2 240V | |||||
AC Power Output Rating | 3.5KW /16A | 11KW /16A | 3.5KW/16A | |||||
7KW/32A | 22KW/32A | 7KW/32A | ||||||
N/A | 43KW/63A | 10KW.40A | ||||||
Rated Frequency | 50/60HZ | |||||||
User interface & control | ||||||||
Charging control | Plug and charge √ | RFID card √ | CMS operate √ | |||||
Display Screen | 4.3inch LCD screen | |||||||
Wifi connection | Support √ | OCPP Protocol | 1.6J √ | 2.0.1 √ | ||||
Ethernet Interface | LANE(RJ-45) √ | APP interface | Support √ | |||||
Environmental | ||||||
Storage Temperature | -40 ~ 75℃ | Operating Temperature | -30 ~ 55℃ | |||
Operating Humidity | Up tp 95%, non-condensing | Altitude | ≤2000m | |||
Cooling Method | Natural Cooling | |||||
Protection | ||||||
Over Voltage Protection | √ | Under Voltage Protection | √ | |||
Over Load Protection | √ | Short Circuit Protection | √ | |||
Earth Leakage Protection | √ | Ground Protection | √ | |||
Over-temp Protection | √ | Surge Protection | √ | |||
RCD | RCCB or Type B | Protection ratings | IP54 ( CE certified) | |||
Wallbox Charger Mechanical | ||||||
Dimension(H×W×D,mm) | 410×260×164 | Weight | 1 phase :9kg 3 phase:12kg | |||
Charging Cable Length | 5m or 7.5m or customized | Enclosure Material | Front-panel: Tempered Glass, Back-cover: Plate Metal | |||
M3T Mounting Pole(Optional) | ||||||
Dimension(H×W×D,mm) | 1400×200×100 | Weight | ＜8kg | |||
Enclosure Material | Metal | |||||
ABOUT WEEYU
Sichuan Weiyu Electric Co,.Ltd.
Today everyone’s talking about energy perserving, environmental protection, global warming and deteriorating habitation issues. EV emerged for this need along with more and more people driving EV. While as important as the developement of EV itself, the infrastructure and accessories of powering those EV are equally critical to speed up this motion. So we decided to take part in, and to devote our efforts in the EVSE industry.
Though founded in 2016, weeyu is not new to electric industry, as our parent company Injet Electric(a public company, stock code:300820) has been manufacturing electric products for over 26 years. Most of our engineers and management team are from Injet, those are the key asset of Weeyu, who indepently designed our own charging station, which is different from other existing models in the market, and are relentlessly persuiting better, faster and more convenient new models.
The products we do mostly include type 1, type 2, one phase, three phase, level 2 voltage, 16A, 32A, 40A current, 3.5kw, 7kw, 10kw, 11kw, 22kw charging station of SAE J1172 and IEC 62196-2 standards for home use(residential) and commercial use which cover most market needs in most countries.
As a manufacturer of ev charging stations, to survive in this fierce market, our products are supposed to last long, to be safe,reliable, affordable and easy to use for everyone so we take quality, safty, stability, price, service and supports to our customers of great importance. Meanwhile, startups, small businesses and large corporates are all welcomed at Weeyu. We’re able to produce large quantity in the same time with the flexibility to do customize designs, logos and colors, samples and trial ordersetc to boost your business and brand growth.
Whatever you requires, we have the people, the technology and determination to make it happen for you!
Though founded in 2016, weeyu is not new to electric industry, as our parent company Injet Electric(a public company, stock code:300820) has been manufacturing electric products for over 26 years. Most of our engineers and management team are from Injet, those are the key asset of Weeyu, who indepently designed our own charging station, which is different from other existing models in the market, and are relentlessly persuiting better, faster and more convenient new models.
The products we do mostly include type 1, type 2, one phase, three phase, level 2 voltage, 16A, 32A, 40A current, 3.5kw, 7kw, 10kw, 11kw, 22kw charging station of SAE J1172 and IEC 62196-2 standards for home use(residential) and commercial use which cover most market needs in most countries.
As a manufacturer of ev charging stations, to survive in this fierce market, our products are supposed to last long, to be safe,reliable, affordable and easy to use for everyone so we take quality, safty, stability, price, service and supports to our customers of great importance. Meanwhile, startups, small businesses and large corporates are all welcomed at Weeyu. We’re able to produce large quantity in the same time with the flexibility to do customize designs, logos and colors, samples and trial ordersetc to boost your business and brand growth.
Whatever you requires, we have the people, the technology and determination to make it happen for you!
Our Customer
We have sold the ac EV charger station to more than 40 countries, like Poland,German,UK,Russia,India,Slovakia,Bolivia,Argentina,USA,Singapore,Netherlands,Switzerland. Welcome all friends come our factory and check our chargers and visit us.
Our M3W series AC EV wallbox charger station is suitable for Audi A3 e-Tron, for BMW i3,BMW i8, for Chevrolet Spark, for Mercedes B Class E-Celi, for Mercedes S500 PHEV, for Mercedes Vito E-Cell Van, for Porsche Panamera S PHEV, for Vollkswagen e-Up, for Volkswagen e-Golf, for Volvo V60 PHEV, for Tesla S/X, for Chevrolet Volt, for Citroen C-Zero, for Fisker Karma, for Ford Focus Electric, for Ford C-Max Energi, for Mia, for Mia Electric Van, for Mitsubishi-I Miev, for Mitsubishi Outlander Phev, for Nissan NV200 SE Van, for Nissan Leaf, for Peugeot Ion, for Renault Fluence, for Renault Kangoo, for Smiths Edison Van, for Smiths Newton, for Tata Indica Vista EV, for Toyota Prius, for Vauxhall Ampera.
Certifications
F A Q
Q1: What is your terms of packing of EV Charging point?
Q4: What is your sample policy?
Q5: Do you test all your goods before delivery?
If you can't find the exact product you need in the picture, welcome to contact us at any time, we will reply you as soon as
possible.
A: We pack our EV Charging Point in cartons.
Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will
provide specific solutions for your requirements.
provide specific solutions for your requirements.
Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you can't find the exact product you need in the picture, welcome to contact us at any time, we will reply you as soon as
possible.
