Автоматическая настольная УФ сушильная машина мощностью 4 кВт недорогая небольшая УФ печь для лабораторного использования фермы и дома новый рабочий компонент двигателя

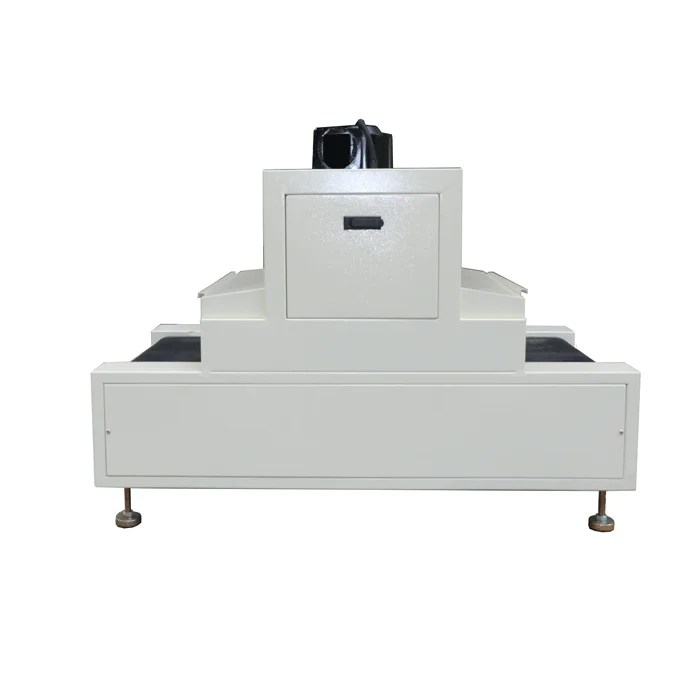

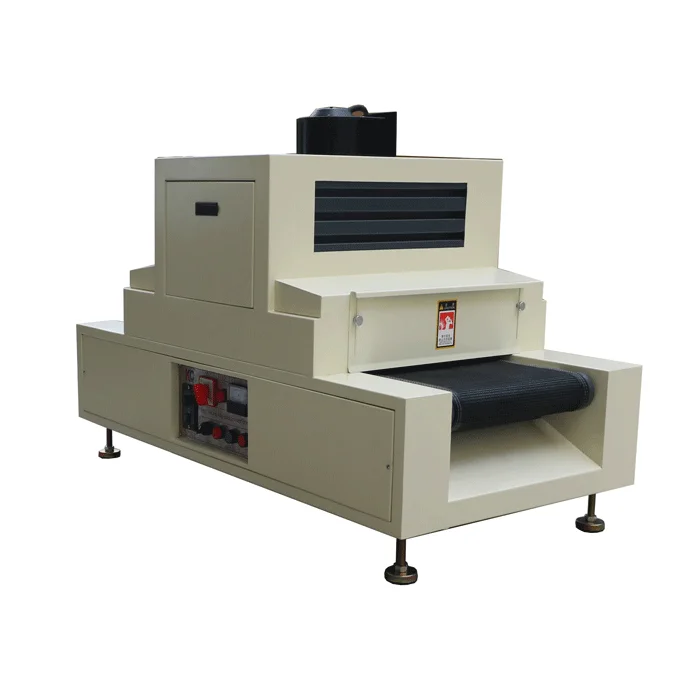

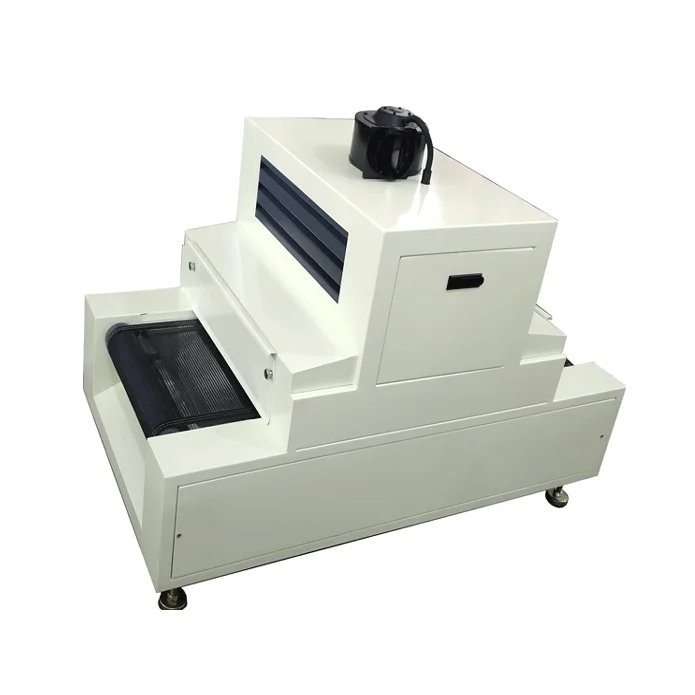

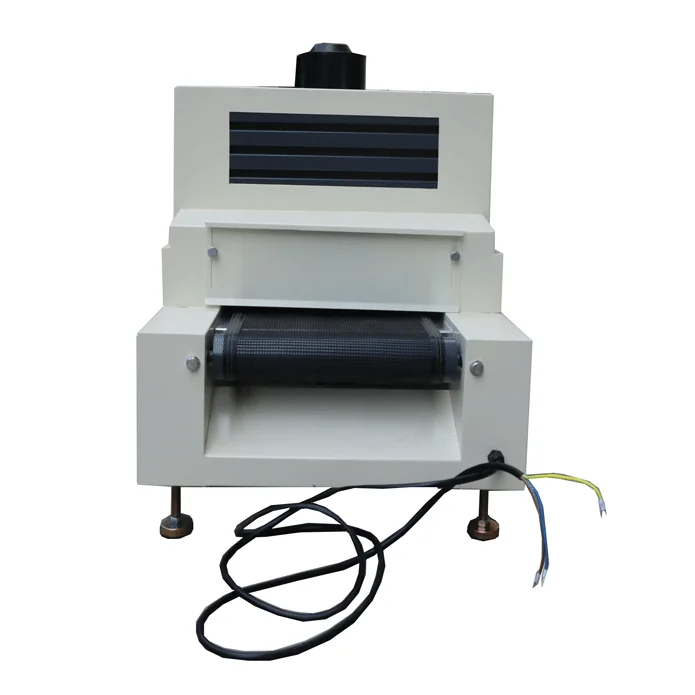

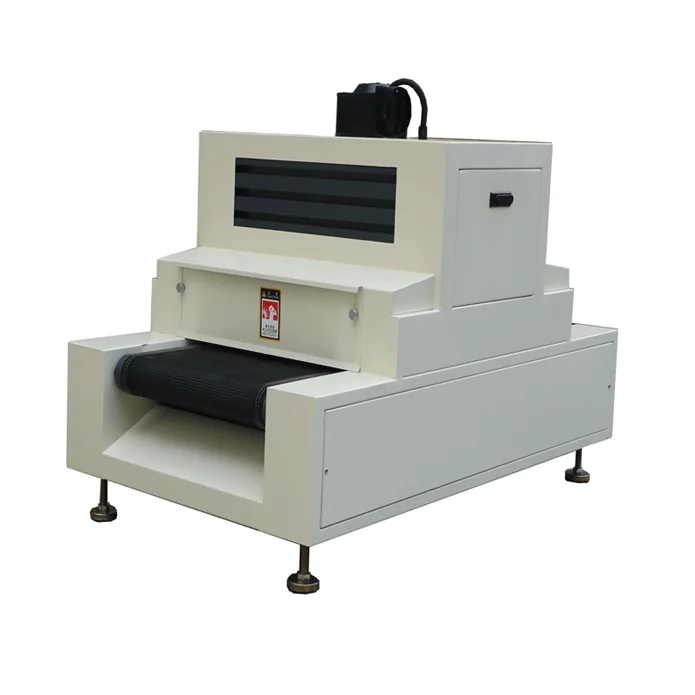

 Tabletop UV Drying Machine//Usage and characters

Guide

• UV curing for CD;
  UV curing for Small-dimension Electronic products;
  UV curing for circuit wafer UV gule;
  UV curing for A4 paper;
  UV curing for Inkjet cartridge of printer;
  Test on UV printing Ink.


• KC Serials Tabletop UV Curing Unit:Used in the field of post-printing by UV ink. it can exposure  UV light onto the film of UV ink to make it dry.


• Testing in UV ink producing factory.


• Drying after printing UV pad ink by pad printing machine.


• Tabletop UV curing machine and lower price. Suitable for curing small dimension objects;


• Install one pc 2KW UV lamp; conveyor size is 300*1250mm.

Application fields

• Electron, Hardware, Auto, Toys, Gifts, Plastics parts,


• Plastics products, House appliances, work of art, Stationery, Ornament, cosmetic, sports apparatus .UV drying for UV ink .

Tabletop UV Drying Machine//Parameter

Technical parameters

M-40155TUVC

• Max products:380×400mm(W×L)


• Total wattage:4.15KW;


• Wind fan wattage:150W/220V;


• Conveyor motor wattage:4×25W/1P/220V;


• Conveyor speed:0~10m/min;


• Speed change ways:continue;


• Dimension:1280×720×860mm(l×w×h);


• Weight:100KG;


• Lamp wattage:2KW/220V;


• Max height of products: 50mm.

• Max products:380×400mm(W×L);


• Total wattage:4.15KW;


• Wind fan wattage:150W/220V×2;


• Conveyor motor wattage:4×25W/1P/220V;


• Conveyor speed:0~10m/min;


• Speed change ways:continue;


• Dimension:1550×550×660mm(l×w×h);


• Weight:108KG;


• Lamp wattage:2KW/220V×2pcs;


• Max height of products: 50mm.

Works supply

• Power: 1 phase 220V.

Package list

• Outer Dimension:   1.20×0.47×0.68m(L×W×H)


• Gross weight: 67Kg;

• Package Dimension:   1.24×0.57×0.75m(L×W×H)


• Gross weight: 110Kg;


• CBM: 0.5301

H.S.Code

8443198000

Certificate

CE

Tabletop UV Curing Machine//Advantage

Function

• The conveyer speed can adjustment according to the products drying condition;


• Conveyer belt mabe by teflon materials;


• Famous brand UV lamp installed ;


• Cooling fan installed on the side to remove the heat in curing chamber;


• Worked on Table, save the space;


• Teflon conveyer belt and resist high temperature. function.


• Electrical components and control systems using Famous brand  to ensure stable Curing quality.

M-30125UVC Tabletop UV Curing Machine//Technical support
