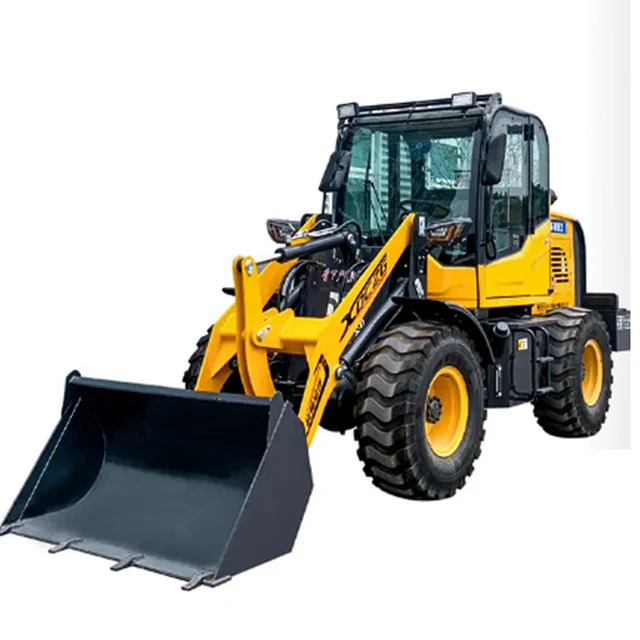

Мини погрузчик WL816 wolf на 1 6 тонны с копьем для тюков
- Категория: >>>
- Поставщик: Qingdao Zongjin Engineering Machinery Co. Ltd.
Сохранить в закладки 1600163834377:
Описание и отзывы
Характеристики
Products Description
WL816 can working in both agricultural environment and construction environment depending to its special heavy duty design especially the articulation.
The main market are European,Australia and north America.Beautiful color and design making it conform to people's aesthetic taste.
Comfortable, safe and powerful are the features of WL816.
The main market are European,Australia and north America.Beautiful color and design making it conform to people's aesthetic taste.
Comfortable, safe and powerful are the features of WL816.
Standard Configurations
1. Xinchai498 Euro3 engine, 36.8kw
2. Electric joystick
3. Rear view camera
4. Varta battery
5. 4 ways hydraulic pipelines
6. Adjustable steering wheel and seat
7. Bucket
3. Rear view camera
4. Varta battery
5. 4 ways hydraulic pipelines
6. Adjustable steering wheel and seat
7. Bucket
Optional Configurations
1. Full electric joystick
2. Diesel heater
3. Air conditioner
4. Quick hitch
3. Air conditioner
4. Quick hitch

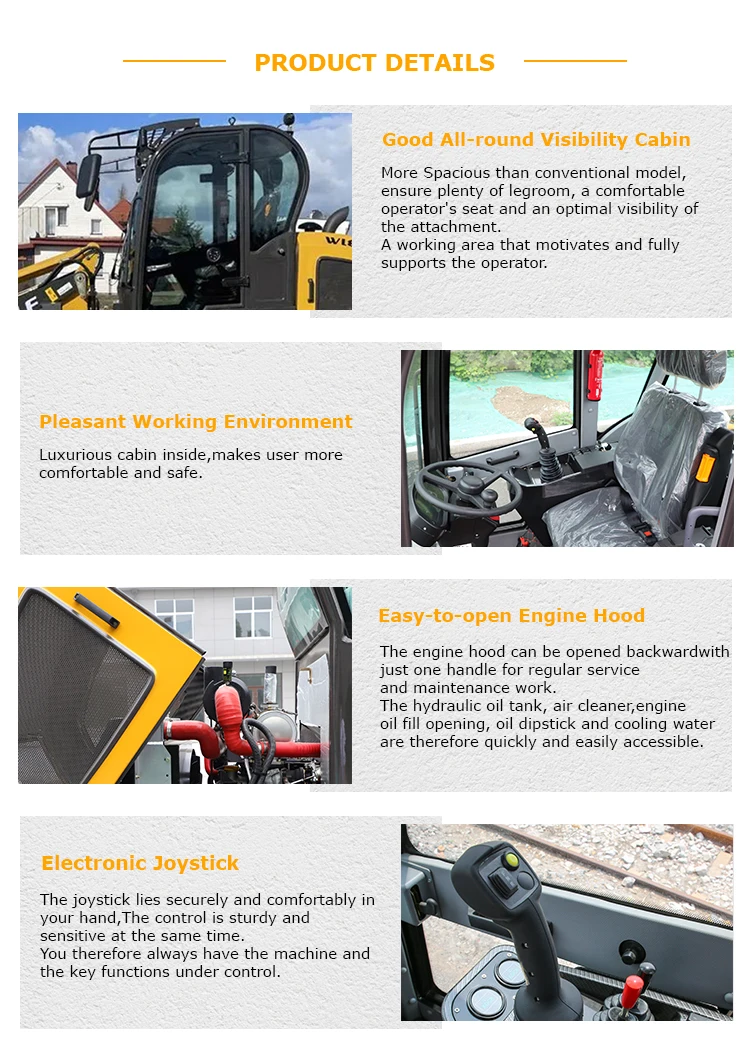

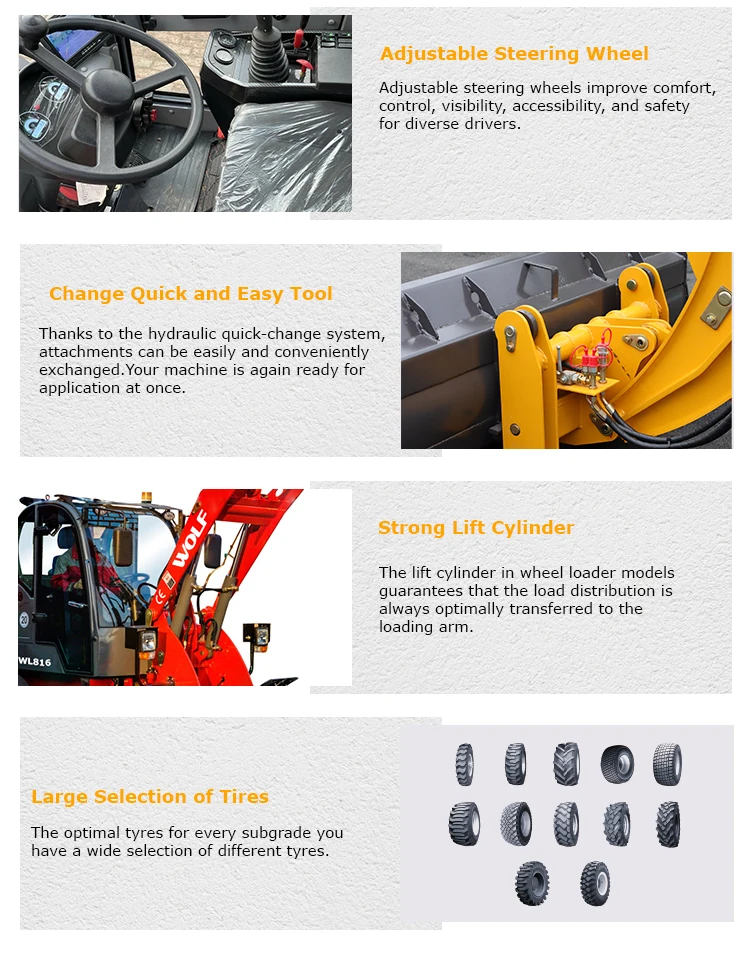

Details

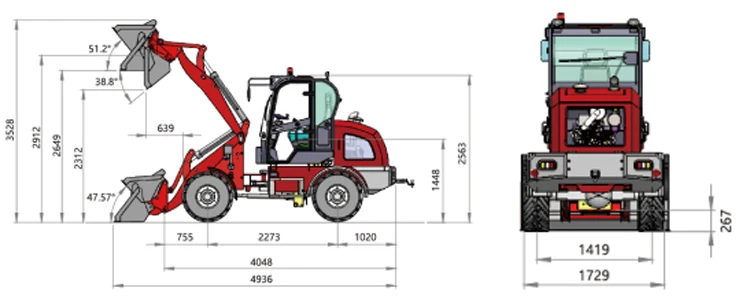

Specification
Performance | Rated loading | 1600kg |
Overall weight | 4000kg | |
Rated bucket capacity | 0.9m3 | |
Maximum tractive force | ≥34KN | |
Maximum breakout force | ≥51KN | |
Maximum grade ability | 30° | |
Maximum dump height | 2850mm | |
Maximum dump reach | 800mm | |
Overall dimension (L×W×H) | 5280×1700×2680mm | |
Minimum turning radius | 3802mm | |
Engine | Standard model | Xinchai 498(Euro III) |
Optional model | Yanmar 4TNV94 tier3 Kohler KDI1903TCR tier4 | |
Type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
No. of cylinder-bore/stroke | 4—100×125mm | |
Rated power | 37kw—2200r/min | |
Maximum torque | 250N.m | |
Min fuel-consume ratio | ≤243g/kw.h | |
Transmission system | Torque converter | YJ1—26501 |
Gearbox mode | Counter shaft power-shift | |
Gear shift | 2 forward shift 2 reverse shift | |
Maximum speed | 20km/h | |
Drive axles | Main reducing spiral | Circular Arc Bevel gear, single stage |
Decelerating mode | Single stage planetary type | |
Wheelbase (mm) | 2260mm | |
Wheel tread | 1490mm | |
Ground clearance | 310mm | |
Hydraulic system | System working pressure | 16MPa |
Boom lifting time | 4.8s±0.2s | |
Total time | 9.2s±0.5s | |
Fuel tank capacity | 80L | |
Function of leveling automatically | Yes | |
Brake system | Service brake | Disc brake on 4 wheels |
Parking brake | Hand brake | |
Tyre | Type specification | 20.5/70-16 |
Front tyre pressure | 0.22Mpa | |
Rear tyre pressure | 0.22Mpa |
WOLF In The Word

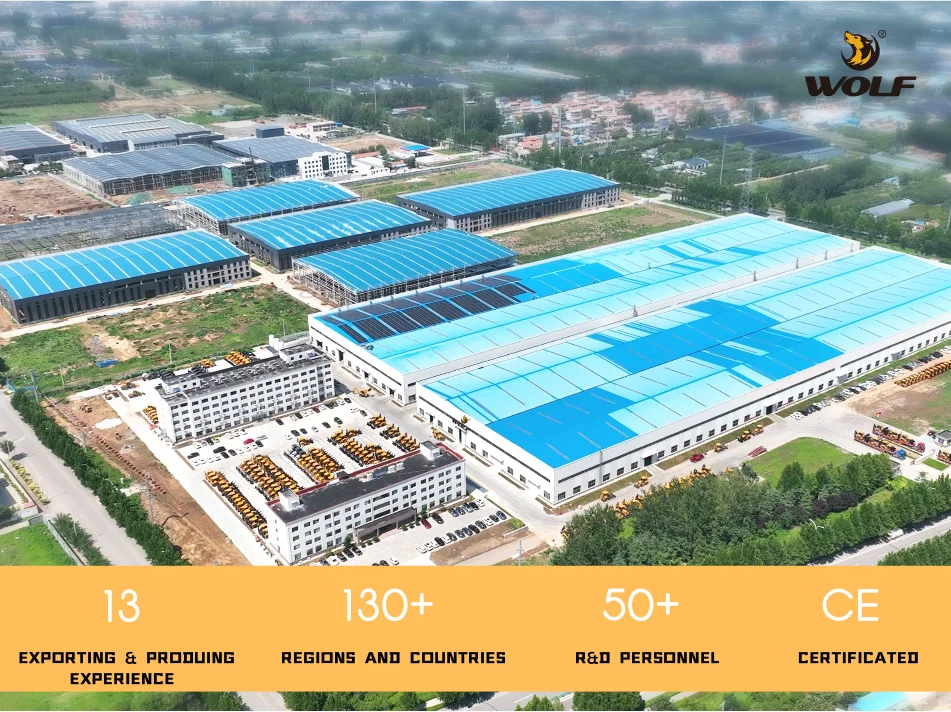

Company Profile
About wolf
Qingdao Zongjin Engineering Machinery Co., Ltd. is a leading Chinese manufacturer of loaders, excavators, forklifts, and spare parts. Established in 2011, the products are exported to over 130 countries and regions worldwide, which are widely used in construction, engineering, farm, garden, logistics and various other industries. All WOLF products are CE certified, complying with international standards.
WOLF offers customized solutions to specific requirements. From personalized configurations to color schemes and attachments, we empower our customers to create their own exclusive machines that perfectly align with their operational goals.our specialized customer service and after-sales team are available around the clock to address any queries, demonstrating our commitment to swift and efficient problem-solving.
Choose WOLF, let’s work together to build a better future!
WOLF offers customized solutions to specific requirements. From personalized configurations to color schemes and attachments, we empower our customers to create their own exclusive machines that perfectly align with their operational goals.our specialized customer service and after-sales team are available around the clock to address any queries, demonstrating our commitment to swift and efficient problem-solving.
Choose WOLF, let’s work together to build a better future!
FAQ
Q:Why should I choose Wolf instead of other brands?
Q: Can I see the loader production progress after order?
A:Yes,during production. we could take some photos/videos for your reference.
Q:What kind of service can I get from you if l buy? How can I get parts?
A:We have 1year warranty for each machine. within 1year if any parts broken because of quality issues. the new parts would be seni to you free ofcharge, within 5 working days.We have professional after sales department to support for you at any time. We also have partner in Germany, could provide fast support for spare parts
A:With 10 years' exporting experience, Wolf has been a well known brand in the market now you can see Wolf machines in more than 50 countries
What we can provide.
1. Quality machines.CE certificated
2.More competitive price based on same configuration machines
3. More timely and effective service base on same price
What we can provide.
1. Quality machines.CE certificated
2.More competitive price based on same configuration machines
3. More timely and effective service base on same price
Q: What is your main market?
A: Europe, North America, South America, Oceania, Southeast Asia, Africa, Eastern Asia and so on.
A: Europe, North America, South America, Oceania, Southeast Asia, Africa, Eastern Asia and so on.
Q: Can I test the machine before order?
A:Yes.we have dealersinGermanv/Austria/Switzerland/Portuaal/Sweden/Finland Denmark/ Poland/Serbia etc. Please tell me your detailed address, then 1would like to recommend the closest customer for you, then you could go to test
Q: What is your delivery time?
A:The deliverytime is around 30 working days. In peak season, the production time would take longer
Q: What is the payment term?
A:Normally we use T/T30% deposit for production. balance 70% before shipment. Or upon loading photos
A:Yes.we have dealersinGermanv/Austria/Switzerland/Portuaal/Sweden/Finland Denmark/ Poland/Serbia etc. Please tell me your detailed address, then 1would like to recommend the closest customer for you, then you could go to test
Q: What is your delivery time?
A:The deliverytime is around 30 working days. In peak season, the production time would take longer
Q: What is the payment term?
A:Normally we use T/T30% deposit for production. balance 70% before shipment. Or upon loading photos
Q: Can I see the loader production progress after order?
A:Yes,during production. we could take some photos/videos for your reference.
Q:What kind of service can I get from you if l buy? How can I get parts?
A:We have 1year warranty for each machine. within 1year if any parts broken because of quality issues. the new parts would be seni to you free ofcharge, within 5 working days.We have professional after sales department to support for you at any time. We also have partner in Germany, could provide fast support for spare parts
