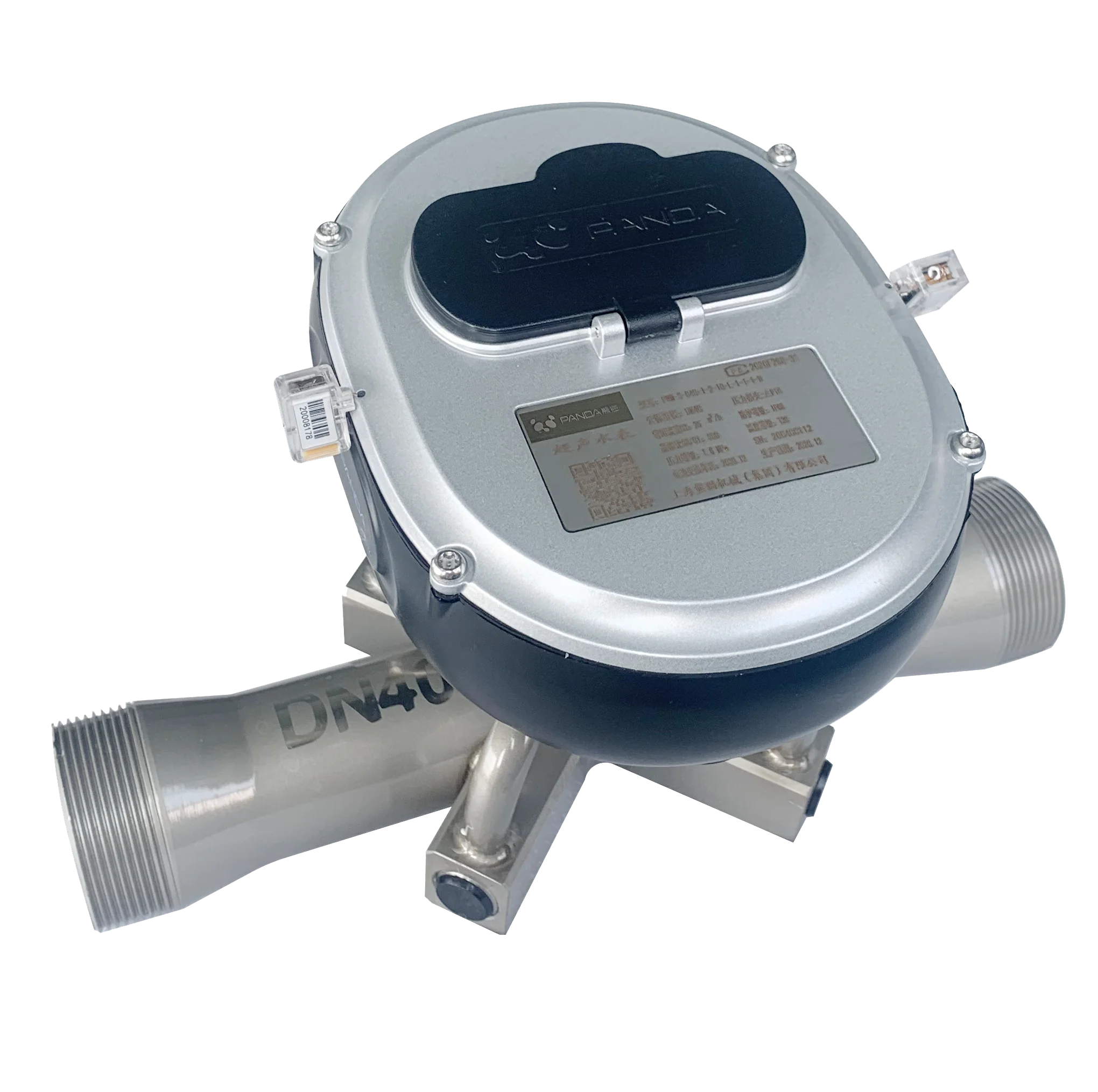

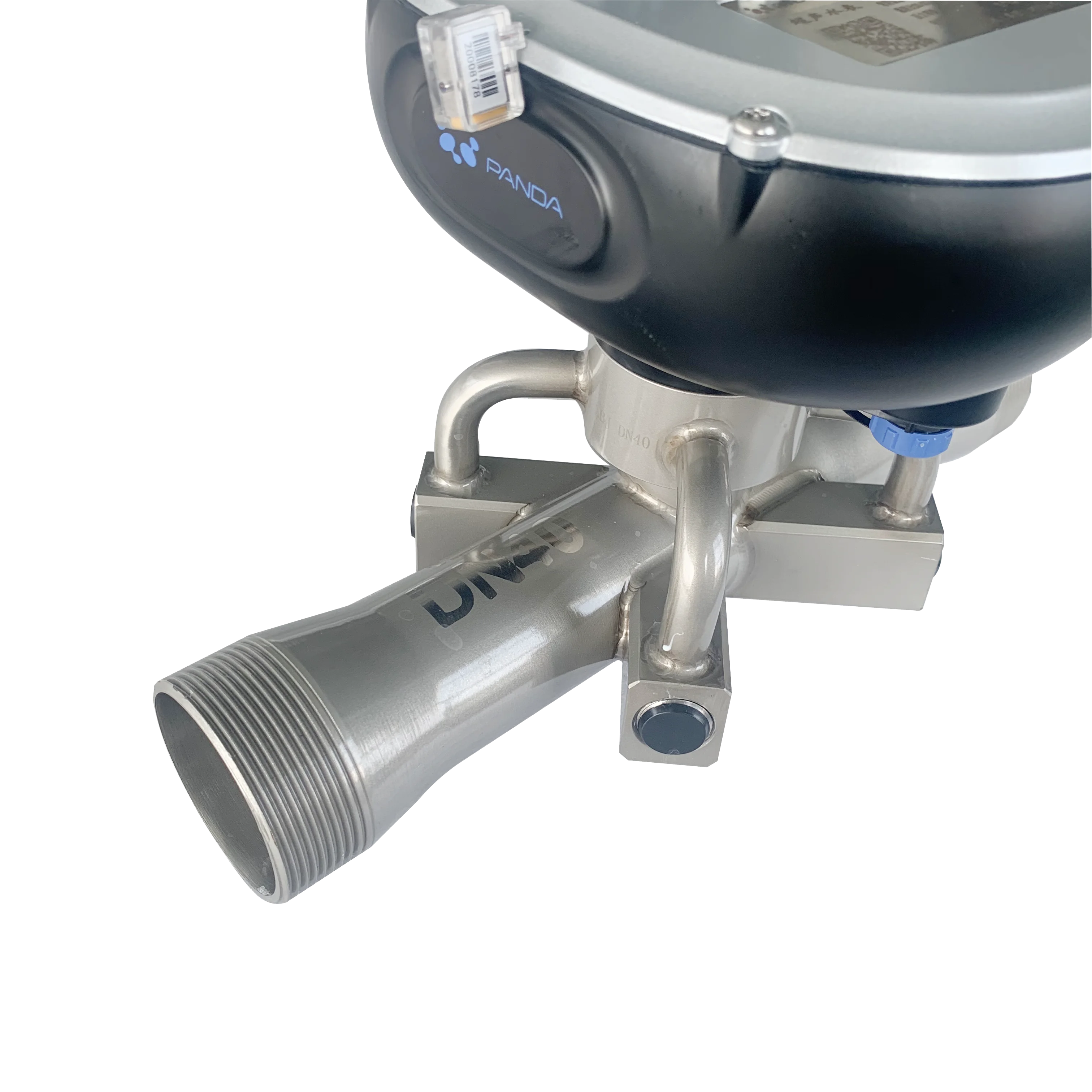

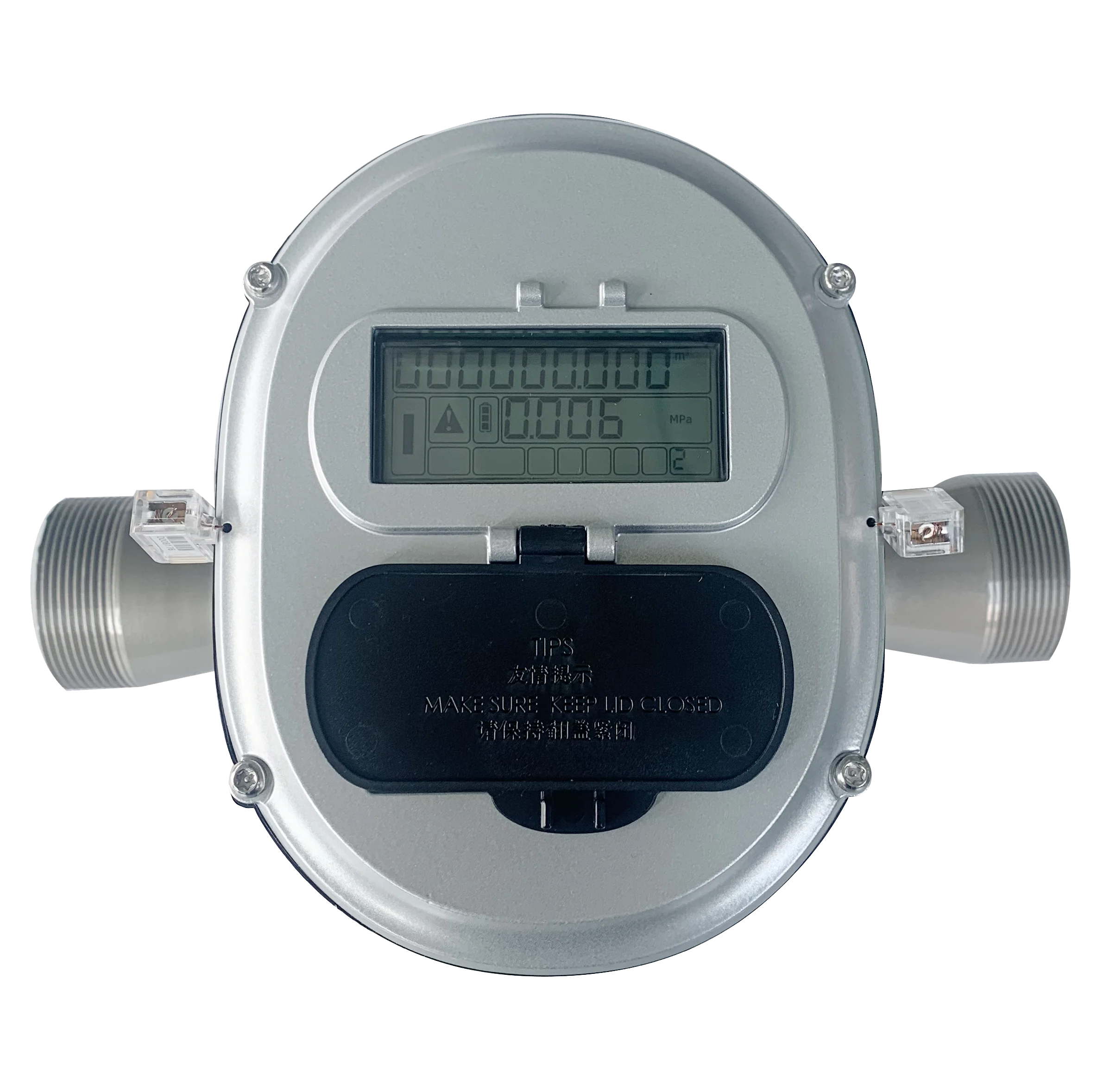

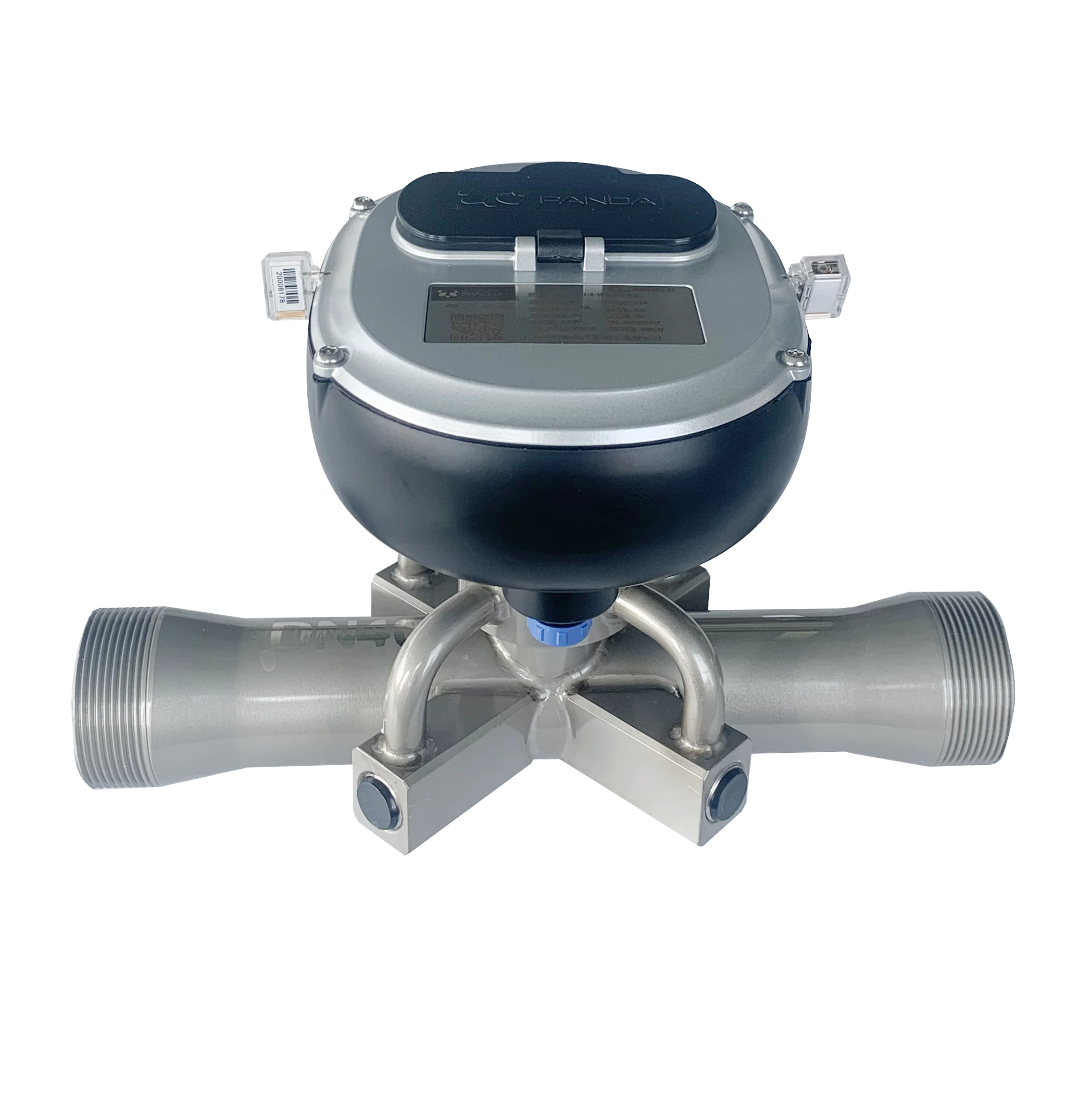

Name: Импульсный расходомер воды DN32 DN40 от производителя
SKU: 1600164285718
Availability: InStock

13,99 $ - 15,99 $

1,49 $ - 3,69 $

0,20 $ - 0,30 $

0,50 $ - 0,62 $

100,00 $ - 200,00 $

35-53 $

10 000-35 000 $

7,50-7,70 $

3 $

5,50-6,40 $

Max.Working Pressure	1.6Mpa
Temperature Class	T30,T50,T70,T90(Default T30)
Accuracy Class	ISO4064, Accuracy Class 2
Body Material	Stainless Steel 304(opt. SS316 or SS316L)
Battery Life	15 Years (Consumption≤0.3mW)
Protection Class	IP68
Environmental Temperature	-40~+70℃, ≤100%RH
Pressure Loss	ΔP10,ΔP16(Based on different dynamic flow)
Climatic And Mechanical Environment	O Class
Electromagnetic Class	E2
Communication	RS485(baud rate is adjustable); Pulse(default 2ml/pulse, changeable), Opt. NB-IoT,GPRS
Display	9 digits LCD display Volume, Flow rate, velocity, pressure, error alarm, flow direction etc.
RS485	Baud Rate 2400bps, 4800bps, 9600bps(Default 9600bps, ModBus-RTU)
Connection	Thread
Flow Profile Sensitivity Class	U3/D0
Data Storage	Store the latest 10 years’ data including day, month and year, The data can be permanently saved even powered off
Frequency	1-4 times/second

Импульсный расходомер воды DN32 DN40 от производителя

Technical Specification:
