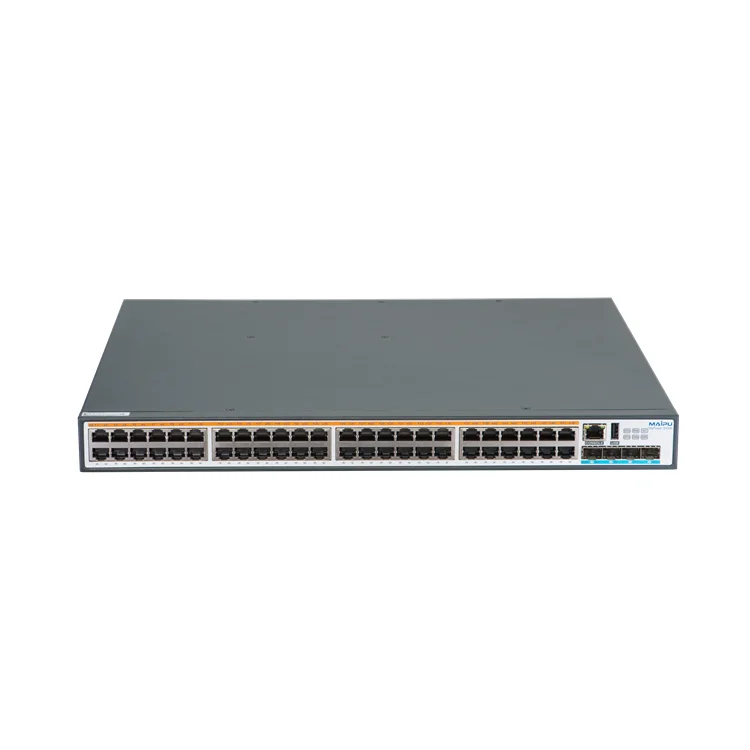

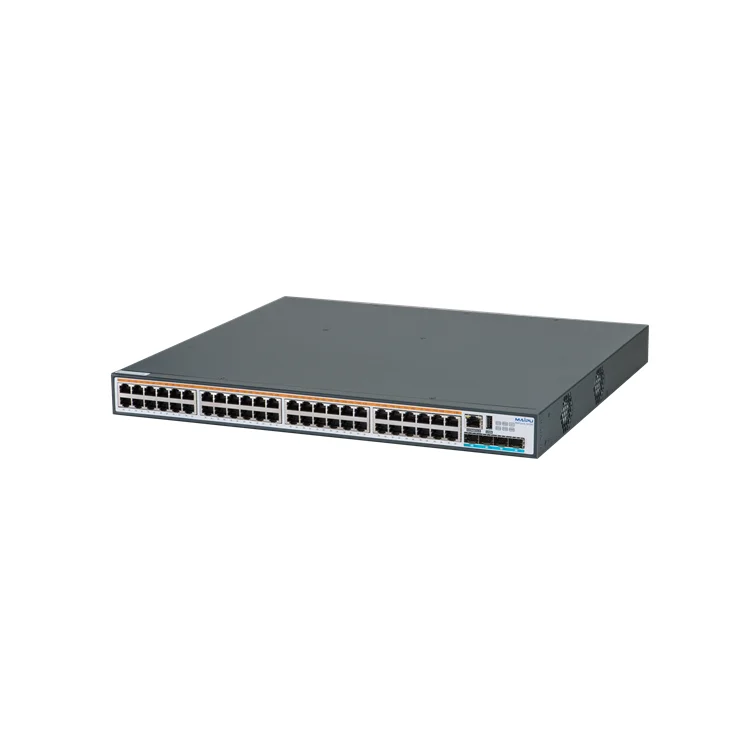

48 портов gigabit poe l3 ethernet сетевой агрегационный коммутатор 760 Вт

Frame model

S4330-54TXP

Product configurations

Device Structure

Desktop

Physical Port

48*10/100/1000M electric interfaces, 4*10G SFP+ interfaces, One Extension Slot, Dual Power Slots, PoE&PoE+ Enable.

RJ45 Console Port

1

USB Port

1

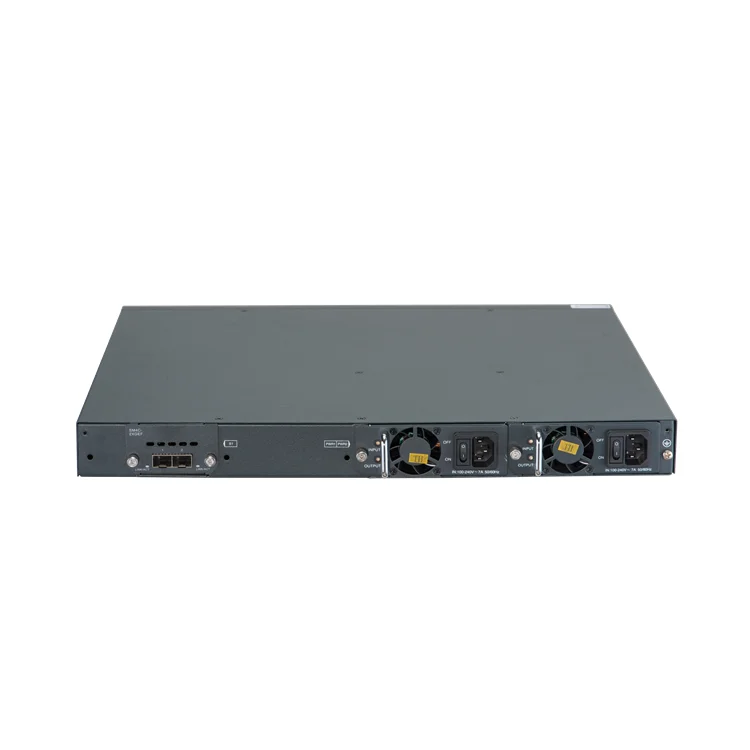

10G Extension Slots

1

Power Supply Slots

Dual

Intelligent Fans

Yes

Performance parameters

Switching Capability

216Gbps

Throughput

160.7Mpps

Jumbo

12K

VLAN Entry

4K

MAC Entry

32K

Routing Entry

12K

Multicast Entry

4K

ACL Entry

4K

Packet Buffer

16Mbit

Anti-static

Yes

Anti-lightning

Yes

MTBF

>100000 hours

Physical index

Dimension (W×D×H)

442*420*44.2(mm)

Power supply

Power Input

AC 100-240V, 50-60Hz

Power Consumption

≤75W

Environment

Working Temperature

0℃~50℃

Humidity

10~90%, non-condensing

Software Features

Standard L2 Protocol

LAN

Port Type UNI/NNI, Port Speed, Port MTU, Switch Port, Port Loopback, Port Energy Control, Loopback interface, Null interface

MAC address aging time, Mac address learning on|off,  Mac address learning limitation, Mac address VLAN bunding, MAC debug

VLAN, VLAN PVID, VLAN interface, VLAN Tag/Untag, VLAN Trunk, MAC VLAN, Protocol VLAN, Subnet VLAN, Super VLAN, Voice VLAN, VLAN Debug

STP/RSTP/MSTP, BPDU Guard, Flap Guard, Loop Guard, Root Guard, TC Guard

G.8032(ERPSv1&v2)

Static Multicast, IGMP Snooping, IGMP Snooping Proxy

LACP Link aggregation, LACP Port Priority, LACP Load Balance, LACP Rate Monitor, LACP Debug

ULFD, Track, Loopback Detection, Loopback Debug

Standard L3 Protocol

Routing Protocol

Static route, RIP v1/v2, RIPng, OSPFv2, OSPFv3, BGP, BGPv6, ISIS, VRRP, Policy Route, IP-VRF

BFD

BFD with Static|RIP|OSPF|BGP|ISIS

L3 Multicast

IGMP, PIM-SM

DHCP

DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DHCP Option51/82, DHCPv6

Stacking

VST

VST Member, VST Domain, VST Member Priority, VSL Channel

MAD

MAD LACP, MAD Fast-hello

Network Security

Port Security

Port Security On aging|deny|permit|violation|ACL

Network Security

IP Source Guard, DHCP Snooping, Host Guard, Dynamic ARP Inspection

Anti-attack

Anti-attack detect|drop|flood|log

AAA

Authentication, Authorization, Accounting, Radius, TACACS, 802.1x

QoS

Flow Classification

802.1P priority, DSCP priority

Traffic Speed Control

Rate Limit, Traffic Shaping

Congestion Management

SP, RR, WDRR, SP+WRR

Congestion Avoidance

Tail-drop, RED, WRED

Management

Network Management

SNMP v1/v2/v3, MIB, RMON, SYSLOG, DNS, CLI, Telnet, FTP/TFTP, Debug

Network Monitoring

SPAN, sFlow, LLDP, IP-SLA Based On ICMP-echo|ICMP-path-echo|ICMP-path-jitter|VoIP jitter|UDP echo

IEEE Standard

IEEE 802.3 (10BASE-T)           IEEE 802.3u (100BASE-T)

IEEE 802.3z (1000BASE-X)      IEEE 802.3ab (1000BASE-T)

IEEE 802.3ae (10G BASE-X)     IEEE 802.1x (port authentication)

IEEE 802.3ad (Link Aggregation) IEEE 802.3x (Flow Control)

IEEE802.3az (Energy Efficient Ethernet)

IEEE 802.1d (STP) IEEE 802.1Q (Virtual LAN)

IEEE 802.1w (RSTP) IEEE 802.1s (MSTP)

IEEE 802.1p (Cos priority)

Series

Model

Description

MyPower S4330 Series Host

MyPower S4330 Series

S4330-54TXP

48*10/100/1000M electric interfaces, 4*10G SFP+ interfaces, One Extension Slot, Dual Power Slots, PoE&PoE+ Enable.

Power Supply

Power Module

AD500-1D005E

500W AC Power Supply Module

DD500-5D005E

500W DC Power Supply Module

10G Extension Module

10G Module

SM4C-2XGEF

2-Port 10G Extension Module

Stacking Cable

Stacking Cable

SFP-STACK-15

High speed stacking cable, SFP+ to SFP+,10Gbps, L=1.5m

SFP-STACK-30

High speed stacking cable, SFP+ to SFP+,10Gbps, L=3.0m

SFP-STACK-50

High speed stacking cable, SFP+ to SFP+,10Gbps, L=5.0m
