Голосовой модуль JQ6500 MP3 модуль с последовательным портом MCU однонаправленное управление музыкой в 5
- Категория: >>>
- Поставщик: Shenzhen DXD Technology Development Co. Ltd.
Сохранить в закладки 1600165844940:
Описание и отзывы
Характеристики
Product Description

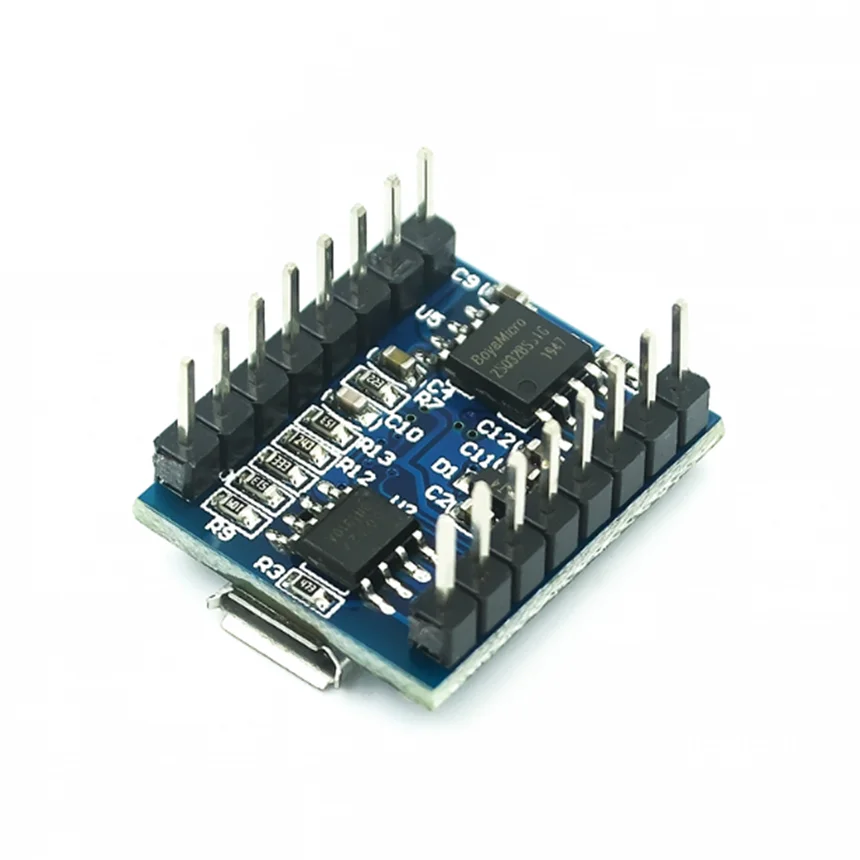

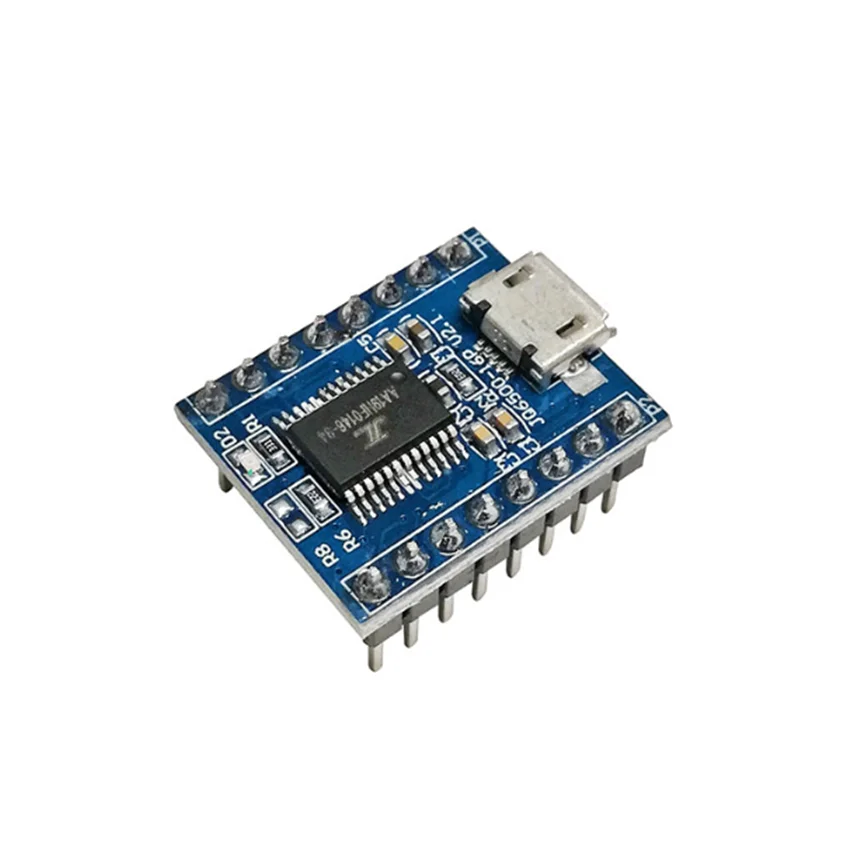

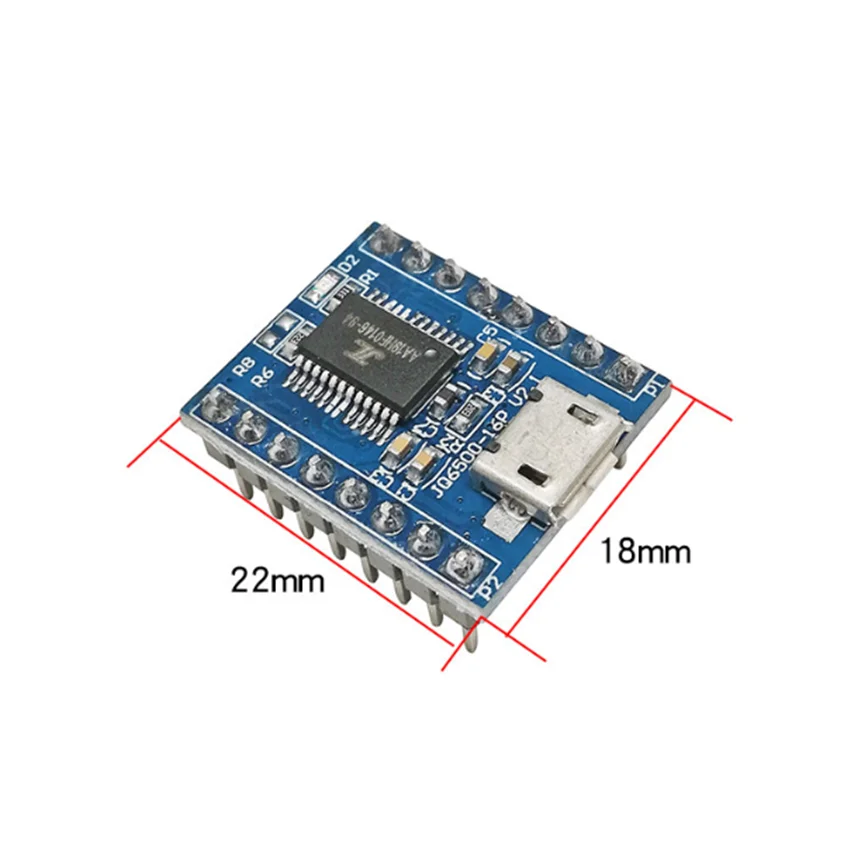

JQ6500 voice module MP3 module MCU serial port control broadcast one-to-one 5-way control music IC
product description:
This module uses SPI FLASH, which is measured in bits, and the hard disk is measured in bytes, 8bit=1byte, 16Mbit=2Mbyte is equivalent to 2M displayed by the computer, please buy the customer to distinguish the capacity
1.1 Introduction
JQ6500 is an MP3 chip that provides a serial port, which perfectly integrates MP3 and WMV hard decoding. At the same time, the software supports the TF card driver, supports the computer to directly update the content of the spi flash, and supports the FAT16 and FAT32 file systems. The functions of playing specified music and how to play music can be completed through simple serial port commands, without the need for cumbersome low-level operations, easy to use, stable and reliable is the biggest feature of this product. In addition, the chip is also a deeply customized product, specially developed for low-cost solutions in the field of fixed voice playback.
1.2 Features
1.Support sampling rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48
2. 24-bit DAC output, dynamic range support 90dB, SNR support 85dB
3. Fully support FAT16, FAT32 file system, maximum support 32G TF card, support 32G U disk, 64M bytes NORFLASH
4. Multiple control modes, parallel port control mode, serial port mode, AD key control mode
5. Broadcast language insertion function, you can pause the background music being played
6. Audio data is sorted by folder, up to 100 folders are supported, and 1000 songs can be assigned to each folder
7, 30-level volume adjustable, 10-level EQ adjustable
8. You can plug in the spi flash, connect the computer to display the spi flash drive letter to update the content;
9. You can control and play the specified music through the serial port of the single chip microcomputer;
10. In the button mode, you can choose the playback mode: interruptible, uninterruptible, single loop, large loop;
Interruptible: during playback, pressing the button will interrupt the current state to execute a new one;
Uninterruptible: it is invalid to press any key during playback, and it will not be effective until the current track is finished;
1.3 Application
1. Car navigation voice broadcast
2. Highway transportation inspection, voice prompts at toll stations;
3. Voice prompts for security checks at train stations and bus stations;
4. Voice prompts for electricity, communications and financial business halls;
5. Voice prompts for vehicle entry and exit channel verification;
6. **Voice prompt for border inspection channel;
7. Multi-channel voice alarm or device operation guidance voice;
8. Voice notice for safe driving of electric sightseeing cars;
9. Automatic alarm for mechanical and electrical equipment failure;
10. Fire alarm prompt;
11. Automatic broadcast equipment, regular broadcast
This module uses SPI FLASH, which is measured in bits, and the hard disk is measured in bytes, 8bit=1byte, 16Mbit=2Mbyte is equivalent to 2M displayed by the computer, please buy the customer to distinguish the capacity
1.1 Introduction
JQ6500 is an MP3 chip that provides a serial port, which perfectly integrates MP3 and WMV hard decoding. At the same time, the software supports the TF card driver, supports the computer to directly update the content of the spi flash, and supports the FAT16 and FAT32 file systems. The functions of playing specified music and how to play music can be completed through simple serial port commands, without the need for cumbersome low-level operations, easy to use, stable and reliable is the biggest feature of this product. In addition, the chip is also a deeply customized product, specially developed for low-cost solutions in the field of fixed voice playback.
1.2 Features
1.Support sampling rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48
2. 24-bit DAC output, dynamic range support 90dB, SNR support 85dB
3. Fully support FAT16, FAT32 file system, maximum support 32G TF card, support 32G U disk, 64M bytes NORFLASH
4. Multiple control modes, parallel port control mode, serial port mode, AD key control mode
5. Broadcast language insertion function, you can pause the background music being played
6. Audio data is sorted by folder, up to 100 folders are supported, and 1000 songs can be assigned to each folder
7, 30-level volume adjustable, 10-level EQ adjustable
8. You can plug in the spi flash, connect the computer to display the spi flash drive letter to update the content;
9. You can control and play the specified music through the serial port of the single chip microcomputer;
10. In the button mode, you can choose the playback mode: interruptible, uninterruptible, single loop, large loop;
Interruptible: during playback, pressing the button will interrupt the current state to execute a new one;
Uninterruptible: it is invalid to press any key during playback, and it will not be effective until the current track is finished;
1.3 Application
1. Car navigation voice broadcast
2. Highway transportation inspection, voice prompts at toll stations;
3. Voice prompts for security checks at train stations and bus stations;
4. Voice prompts for electricity, communications and financial business halls;
5. Voice prompts for vehicle entry and exit channel verification;
6. **Voice prompt for border inspection channel;
7. Multi-channel voice alarm or device operation guidance voice;
8. Voice notice for safe driving of electric sightseeing cars;
9. Automatic alarm for mechanical and electrical equipment failure;
10. Fire alarm prompt;
11. Automatic broadcast equipment, regular broadcast
