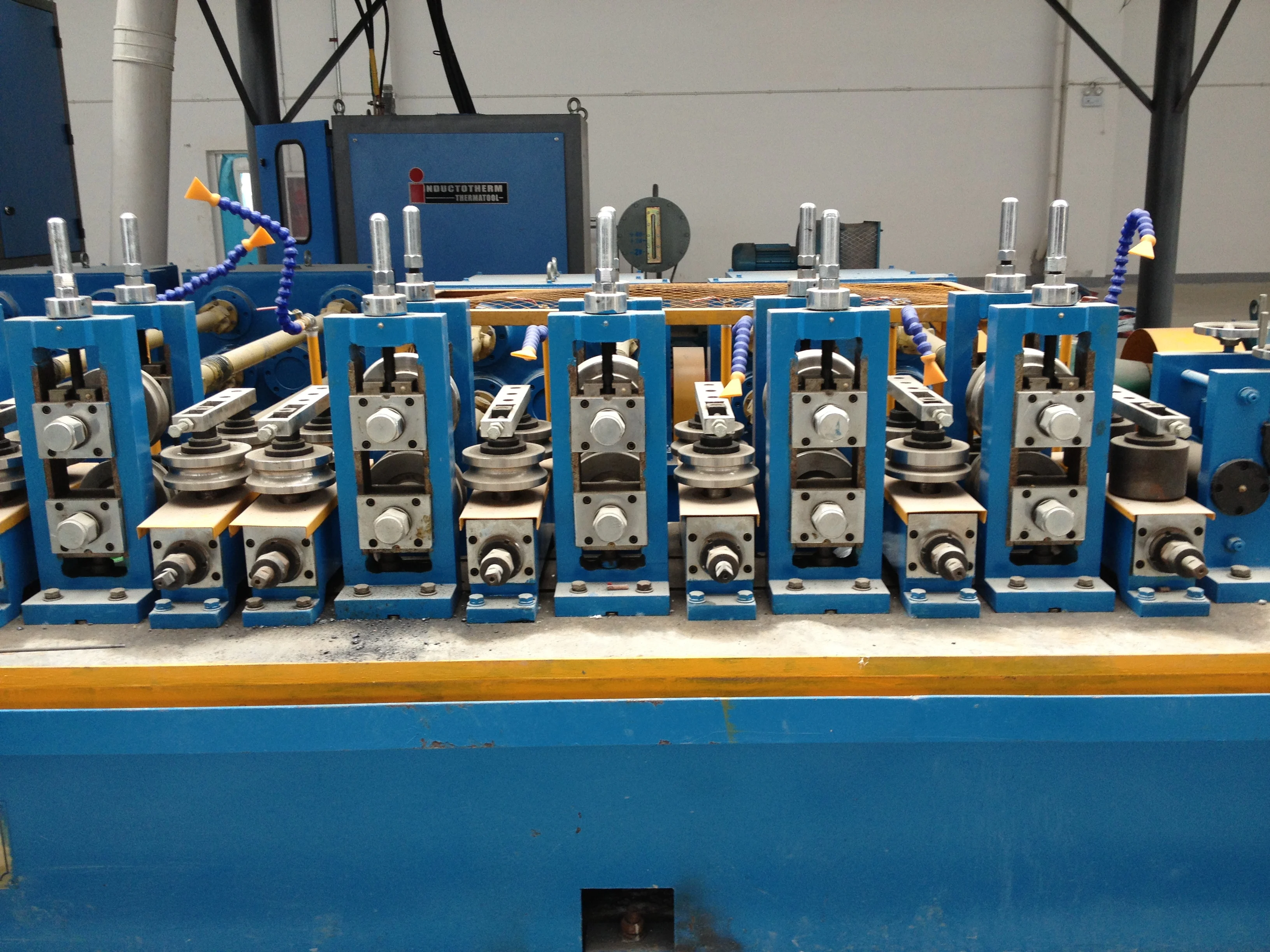

Горячая Распродажа 2020 года! Машина для производства труб ERW по конкурентоспособной цене
- Категория: >>>
- Поставщик: Baoding ZSHC Electrical Co. Ltd.
Сохранить в закладки 1600166374411:
Описание и отзывы
Характеристики
Products Description

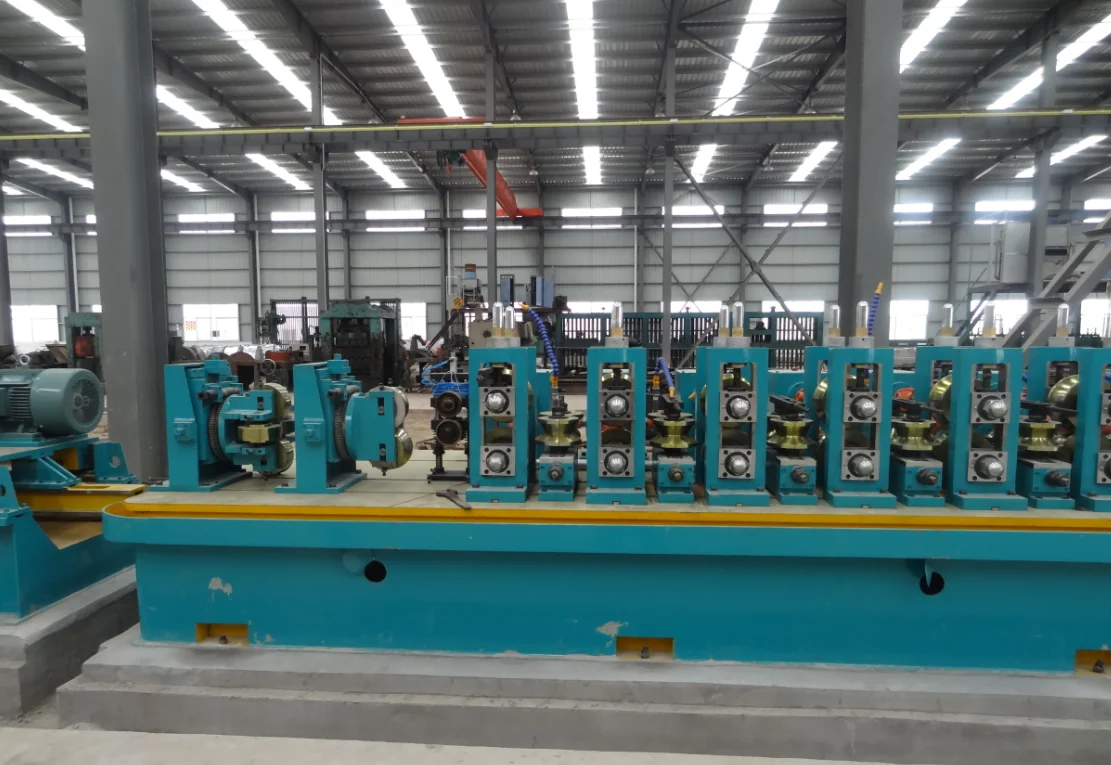

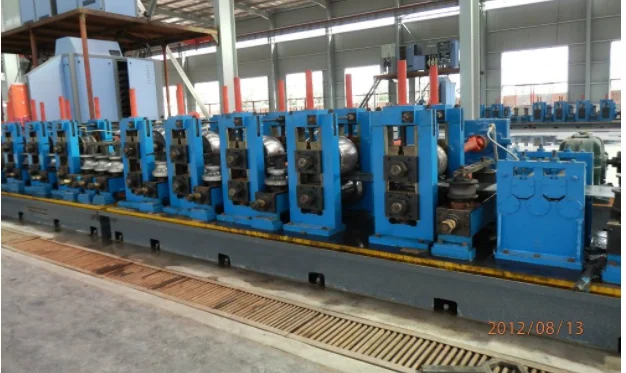

The φ127mm welded pipe making line is used to produce steel pipes of φ48mm-127mm in OD and 1.5-5.0mm in thickness, as well as corresponding square and rectangular pipe. The welded pipe making line from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.Finished product will be of round, square or rectangular pipe.
Process flow
{Steel strip}→→ Double-head un-coiler →→Shear and welder→→Horizontal accumulator→→Forming mill→→HF solid state welding→→Cooling→→Burr removing→→Sizing and Turks head→→Cutting saw →→ Run-out table
{Steel strip}→→ Double-head un-coiler →→Shear and welder→→Horizontal accumulator→→Forming mill→→HF solid state welding→→Cooling→→Burr removing→→Sizing and Turks head→→Cutting saw →→ Run-out table
The advantages of the welded pipe making line
1. High production efficiency, line speed can reach up to 70m/Min.
2. High Strength, the line works stably at a high speed, which improves product quality.
3. High good product rate, reach to 96.5%.
4. Siemen, Yaskawa, Allen-Bradley motors as option.

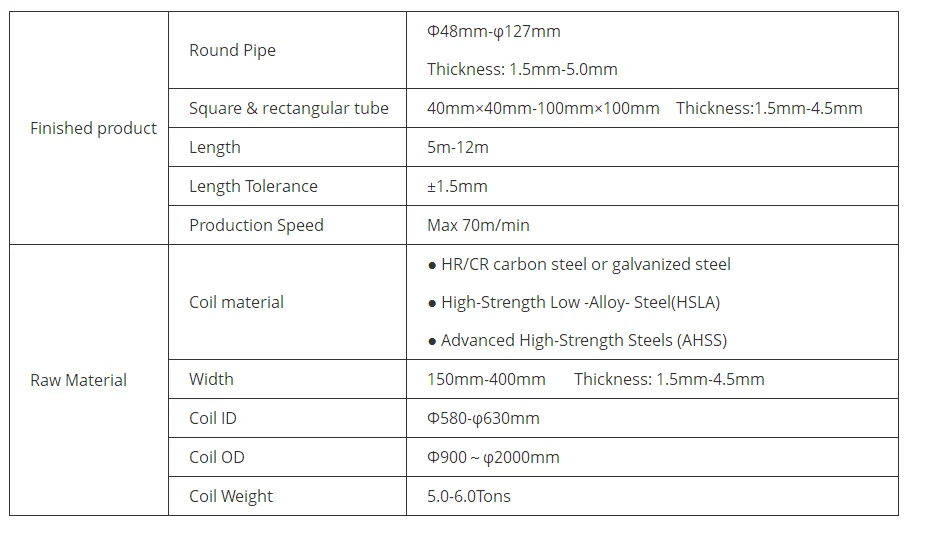

Detail Conditions:

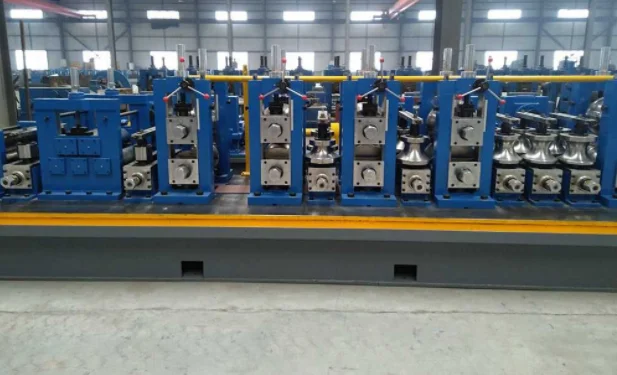

Details Images
Product packaging
After Sales Service
1. Field Commissioning
The seller would send one technical engineer to the equipment worksite to commissioning the Solid State H.F welder.
2. One Year Warranty Period
12 months from the date of the equipment is qualified to be commissioned by the Seller’s technician at the Buyer’s site. Or 18 months from the date of the equipment leaves the factory of the seller, which first comes, first serves
3. Sufficient spare parts inventory
4. Provide 7 x 24 hours full response service.
The seller would send one technical engineer to the equipment worksite to commissioning the Solid State H.F welder.
2. One Year Warranty Period
12 months from the date of the equipment is qualified to be commissioned by the Seller’s technician at the Buyer’s site. Or 18 months from the date of the equipment leaves the factory of the seller, which first comes, first serves
3. Sufficient spare parts inventory
4. Provide 7 x 24 hours full response service.
5. life-long paid service, and spare parts
Company Profile
ZSHC Mechanical & Electrical Equipment Co., Ltd. was established in 2009, covering 20,000 square meters, with more than 100 employees. It has developed into a comprehensive enterprise integrating R&D, production, sales and service.
As one of the global induction heating and welding manufacturer specializing in tube and pipe welders, ZSHC provides the widest range of HF Welders available.
The ZSHC Compact High Frequency Welder provides a great solution for those older tube mills with limited tube diameter ranges while benefiting the producer in terms of reliability, compact layout, safety and supportability. This simplified and compact design fits the traditional DC power supply into the RF Generator cabinet, making this welder the logical choice for a cost effective installation. The Compact welder is ideal for quick retrofitting on existing mills when replacing obsolete vacuum tube welders. All the reliability of a standard ZSHC Compact High Frequency Welder, with a small footprint.
All of our welders are based on the High Frequency or “HF” welding process that we developed almost 60 years ago and have led the way ever since. With its Current-Fed Inverter (CFI) design, our welding equipment range gives you the capability to successfully weld almost any metal you want – efficiently and economically.
We supply equipment needed to weld carbon and stainless steel, brass, copper, and aluminum, as well as exotic alloys, such as boron steel and HSLA, AHSS, and Trip Steels
All of our welders are based on the High Frequency or “HF” welding process that we developed almost 60 years ago and have led the way ever since. With its Current-Fed Inverter (CFI) design, our welding equipment range gives you the capability to successfully weld almost any metal you want – efficiently and economically.
We supply equipment needed to weld carbon and stainless steel, brass, copper, and aluminum, as well as exotic alloys, such as boron steel and HSLA, AHSS, and Trip Steels
Exhibition

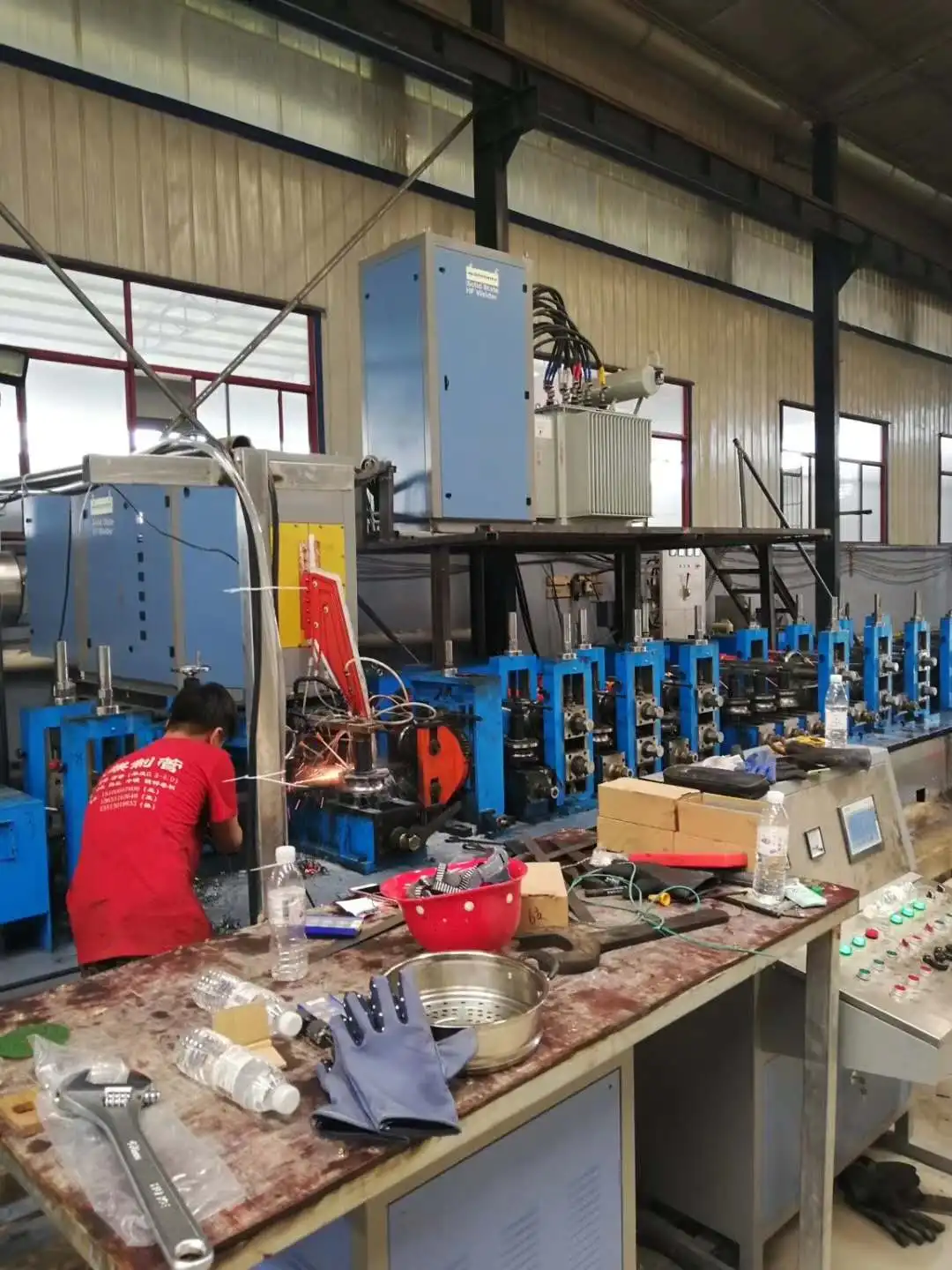

Customer Photos
Contact Us
We sincerely welcome all friends to visit us, seek cooperation, and brilliance together.
If you plan visit us, we will pick you up at the nearest airport or railway station.
We also can help you to book the hotels.
We can guide you to visit the famous tourist places in China.
We can help you find the relevant factories, such as the tube mill factory.
Похожие товары

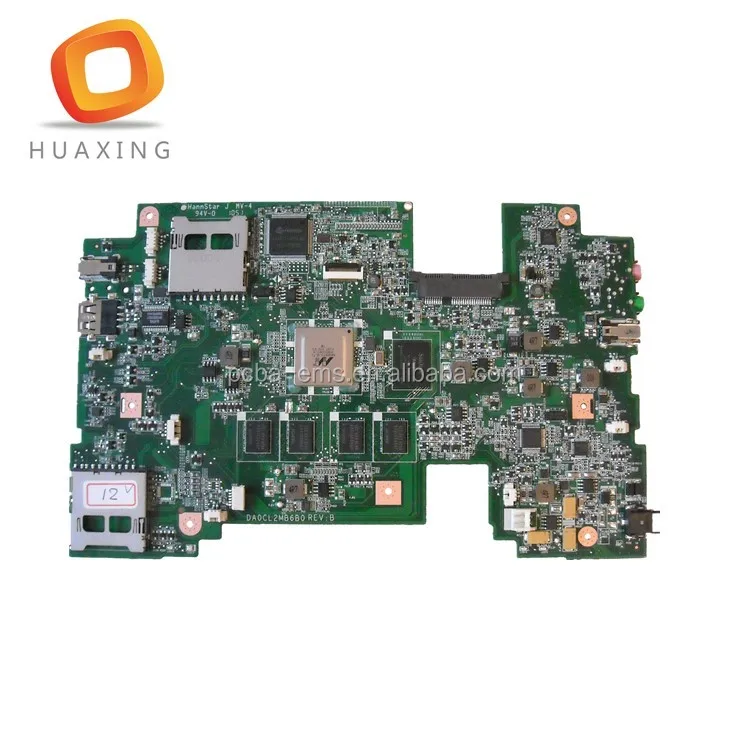

Печатная плата PCBA, обратная Инженерная компоновка, услуги по изготовлению печатных плат, сборка, производитель компонентов PCBA
5,90 $ - 7,90 $

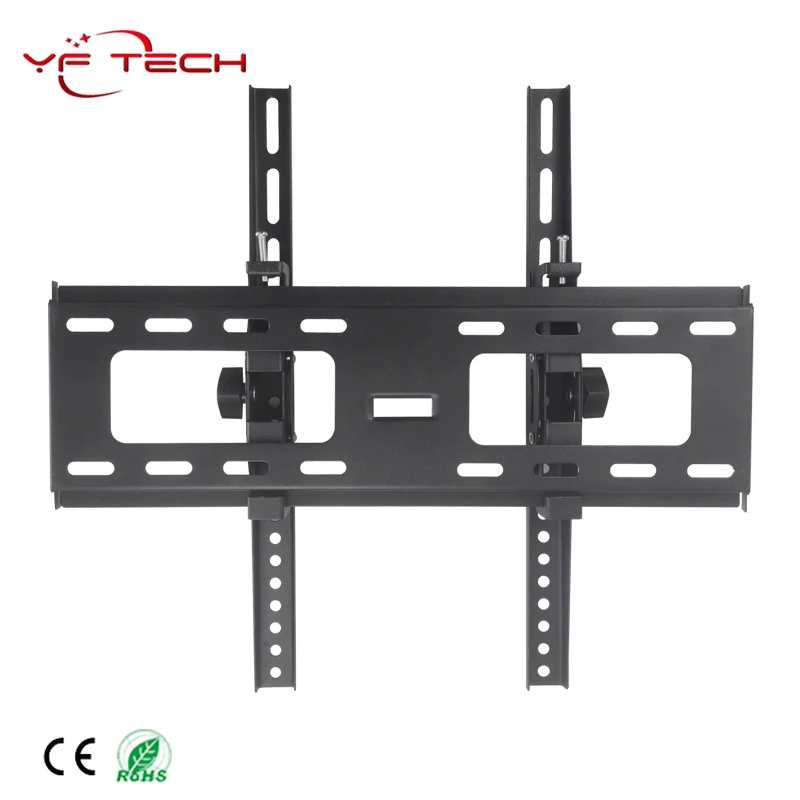

Прямая поставка с фабрики, прямой производитель, плоский настенный кронштейн для телевизора с плазменным ЖК-дисплеем 26-55 дюймов
2,90 $ - 4,05 $
Прямая продажа от производителя, держатель для телевизора, Настенные Кронштейны, поворотный настенный кронштейн
2,70 $ - 3,10 $
Reverse Engineering Incubator Amlifire Android Mobile Camera Egs002 Board Pcb
0,40 $ - 0,80 $

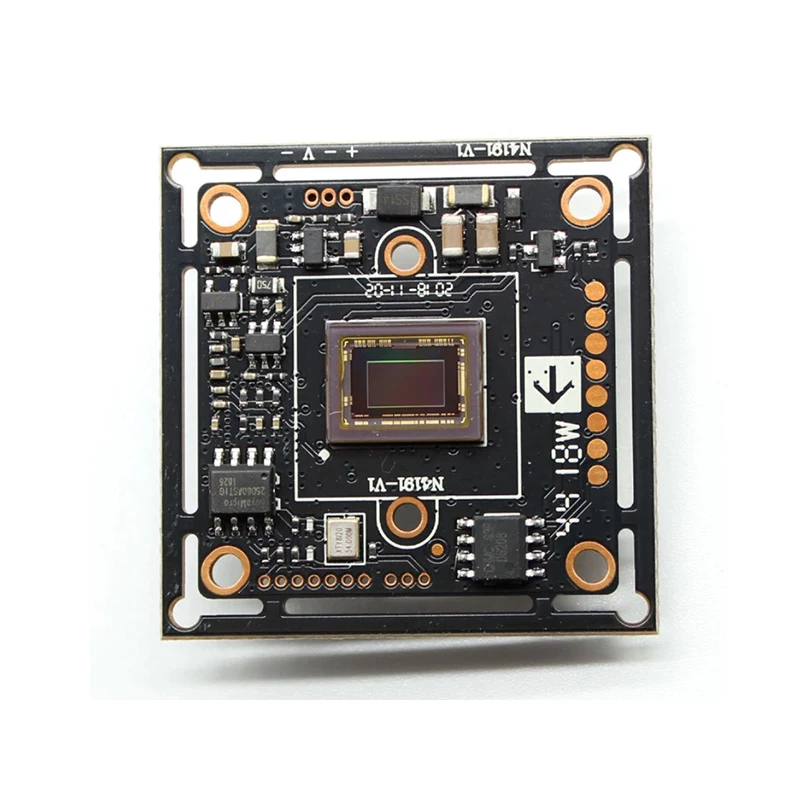

Китай Шэньчжэнь OEM Высокое качество Fr4 94v0 Cctv плата модуль камеры Pcb сборка
0,50 $ - 8,00 $

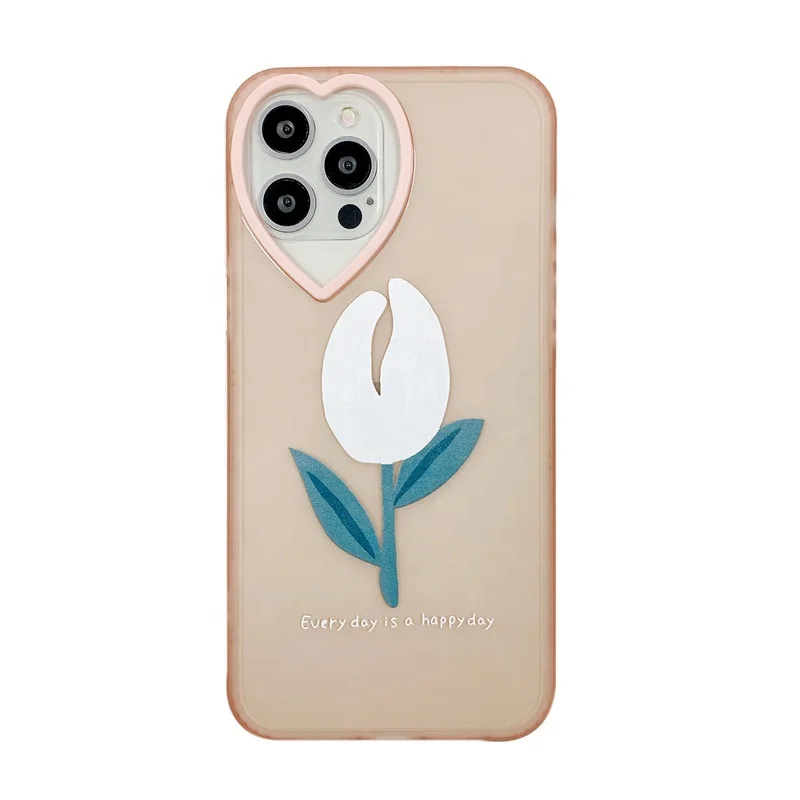

Любовь фоторамки с аккумулятором, трехцветная цветов подходит для Apple 12 Pro Max мобильный телефон чехол подходит для iPhone 11 XS с принтом «сердечки» для маленькой девочки XR
