Product Paramenters
Interactive Educational Touch Panel Specifications （65~86inch DB610 Full series） | ||||||
Product parameters | ||||||
Product model | DB610 | |||||
Product size | 65inch | 75inch | 86inch | |||
Product color | black | |||||
Display protection | 4mm ordinary explosion-proof glass | |||||
Product model | 65DB610 | 75DB610 | 86DB610 | |||
Backlight type | DLED | |||||
Display size | 1430 x 804(mm) | 1646 x 924(mm) | 1895 x 1066(mm) | |||
Resolution | 4K（3840 x 2160） | |||||
Brightness | 320cd/㎡±30 | 400cd/㎡±50 | 320cd/㎡±30 | |||
Dynamic contrast | 5000:01:00 | |||||
Viewing angle | H/V：178/178 | |||||
Screen ratio | 16:09 | |||||
Display color | 10Bit, 16.7M | |||||
Structure size (unit: mm) | ||||||
Product model | R65DB610 | R75DB610 | R86DB610 | |||
Overall size (L× H × T mm) | L1515 x H938 x W103 | L1736 x H1063 x W109 | L1989 x H1202 x W114.3 | |||
Packing size(L× H × T mm) | L1680 x H1070 x W215 | L1870 x H1180 x W220 | L2135 x H1325 x W215 | |||
N.W（KG）） | 47 | 60 | 78 | |||
G.W（KG） | 61 | 75 | 96 | |||
Wall mount size | L650 x H215 x T35 | L770 x H205 x T35 | L990 x H215 x T40 | |||
VESA Hole size | 600 (H) x 400(V) | 700 (H) x 400(V) | ||||
Wall mount screw specifications | M8 x L25 x 4 pcs | |||||
Built-in camera module (with high sensitivity digital microphone) | ||
Most effective pixel | 3264*2448（8,000,000 pixels） | |
Imaging distance | 30cm - 30m | |
Image Sensor | SONY IM x 179(1/3.2”)COMS | |
Receiver effective receiving range distance | ≤ 3m(Digital microphone, high sensitivity [-26dB of 94 dB SPL@1KHz] / two-channel stereo) | |
Sound pickup module signal to noise ratio | 61dB of（94 dB SPL@1KHz,A-weighted） | |
Motherboard input/output interface | ||
USB input | 6 (Type-A type USB2.0 x 5 , USB3.0 x 1 ) | |
USB output | 2（Type-B For External PC / HDMI Touch Out）s | |
Audio input | 1 VGA audio jack (standard ø3.5mm) | |
Audio output | 1 analog headphone jack (standard ø3.5mm) | |
Network input | v 1 RJ45 Ethernet interface (supports transparent transmission to OPS to achieve a network cable global access) | |
v 1 way external Wi-Fi antenna interface | ||
Centralized control interface | 1RS232 UART | |
Video input | v 1 VGA (D-SUB 15-pin female) | |
v 3 HDMI (including front panel 1 way) | ||
v 1 AV Mini socket | ||
v 1 YPbPr Mini socket | ||
v 1 channel TV cable TV interface | ||
Power input | AC 220-240V 50/60Hz | |
Power consumption (not including ops) | v 65inch 65DB610：240W（DLED） | |
v 75inch 75DB610：320W（DLED） | ||
v 86inch 86DB610：350W（DLED） | ||
Standby power consumption | ≦0.5W | |
Speaker power | Stereo mixed dual channel CLASS-D amplifier output, rated power: 15W | |
2 x 12W(L+R / 8Ω)of THD+N≤10%@1KHz(Audio Input:0.5VRMS) | ||
Products Description
Product performance description
1.Good price compared with capacity touch screen
2.No size limited, the size can bigger than 100’’.
3. 10 points or more touches allows multi people operating.
2.No size limited, the size can bigger than 100’’.
3. 10 points or more touches allows multi people operating.
4. Good quality with newest infrared Technology.
5. Multiple languages can be set.
6. With mobile stand.
7. Touch sensitive, fast screen refresh rate.
5. Multiple languages can be set.
6. With mobile stand.
7. Touch sensitive, fast screen refresh rate.

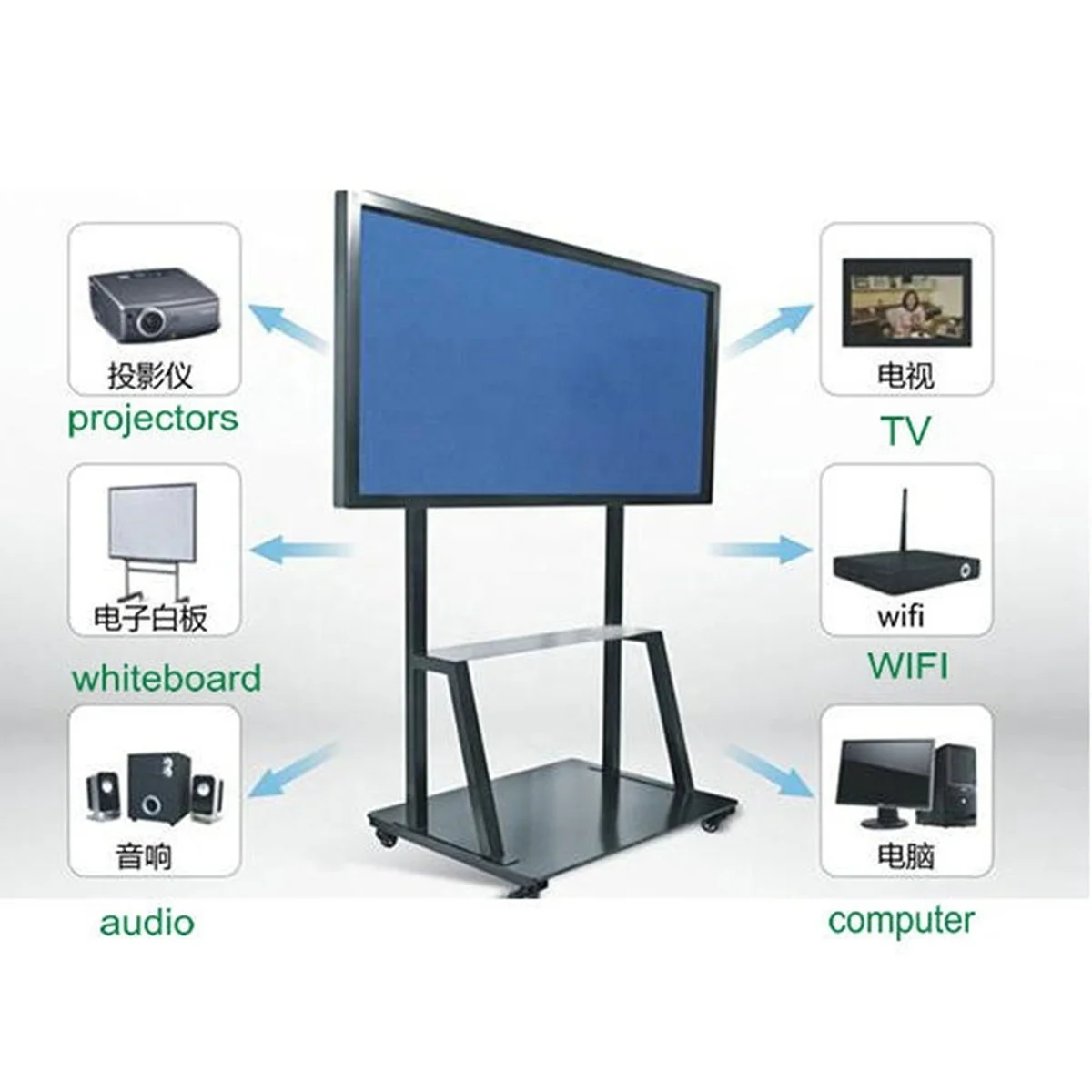

six in one
The interactive panel integrates computers, TVs, projectors, whiteboards, speakers, microphones, and cameras. It realizes a multi-functional use of a machine, which can be used for school teaching and business meetings. Remote teaching and remote meetings allow mutual One step closer.
Details Images

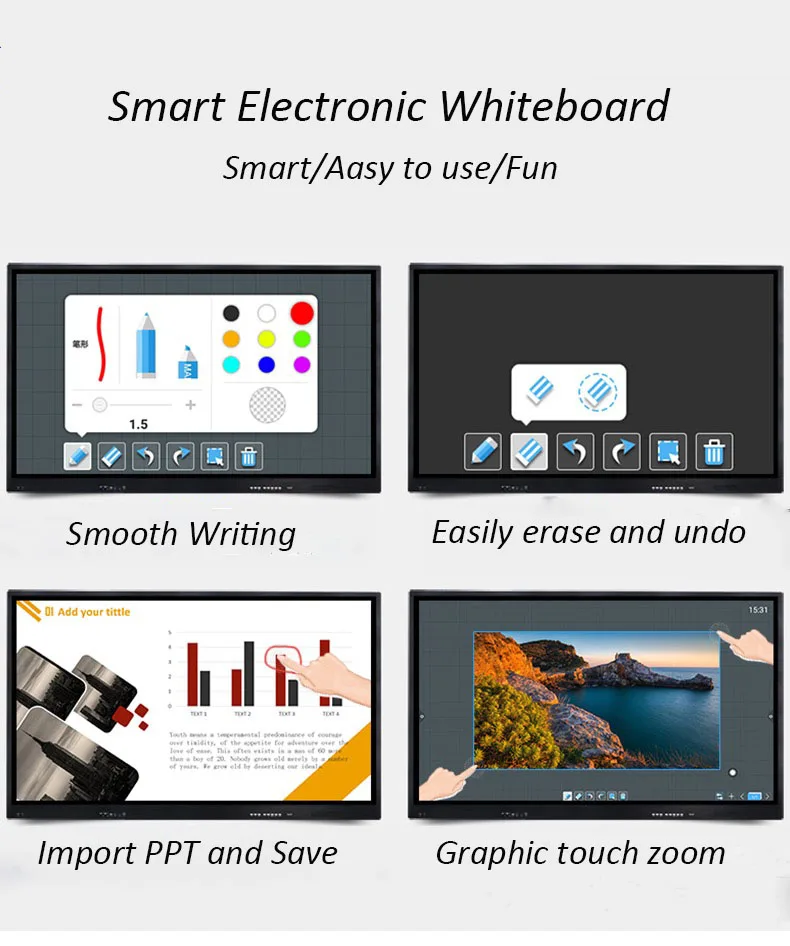

It combine with demonstrating while making comments, enabling touch writing, wireless screen transfer, and integration of saving and sharing.
Recommend Products
Packing&Shipping
Our packaging is made of honeycomb paper packaging, which effectively avoids the damage that may be suffered during transportation, and we will deliver the goods to the destination as quickly as possible.
Company Introduction
Shenzhen Heijin Industrial Manufacturing Co., Ltd. is located in Yinxing Hi-tech Industrial Park (Shenzhen Longhua New District Technology Business Incubator), with a total construction area of about 100,000 square meters. There are engineering department,production department, research and development department, domestic sales department, overseas sales department, comprehensive service department, finance department, project operation department and other departments. The main products are interactive electronic whiteboard, touch LCD integrated machine, interactive electronic whiteboard integrated machine, Central controller,digital physical booth, multimedia speakers, desk, infrared touch module, etc.
FAQ
FAQ:Q1: Are you manufacturer(factory)?
A: Yes, we're. Also OEM/ODM service available here.Welcome to share your ideas with us. It's our pleasure to provide best solution for you.
Q2: What's your MOQ?
A: One sample can be provided first for evaluation. Any quantity is welcome here for non-customized products. As per customized products, please contact us for further confirmation.
Q3: What's the lead time?
A: Mass order: 7--15days depending on order quantity. Sample: 1day when there is stock, 7-15days for custom design.
Q4: What's your guarantee for the products?
A: All our products have Tthree-years guarrantee from the shipping date.
Q5: What kinds of payment methods does your company accept?
A: Most of methods accepted here, such as T/T, L/C, Western Union, Credit Card,etc.
Q6: Return Policy?
A: For shipping destoy issue, we can arrange the new shipping soon once customer confirm the destory with us.
A: Yes, we're. Also OEM/ODM service available here.Welcome to share your ideas with us. It's our pleasure to provide best solution for you.
Q2: What's your MOQ?
A: One sample can be provided first for evaluation. Any quantity is welcome here for non-customized products. As per customized products, please contact us for further confirmation.
Q3: What's the lead time?
A: Mass order: 7--15days depending on order quantity. Sample: 1day when there is stock, 7-15days for custom design.
Q4: What's your guarantee for the products?
A: All our products have Tthree-years guarrantee from the shipping date.
Q5: What kinds of payment methods does your company accept?
A: Most of methods accepted here, such as T/T, L/C, Western Union, Credit Card,etc.
Q6: Return Policy?
A: For shipping destoy issue, we can arrange the new shipping soon once customer confirm the destory with us.
