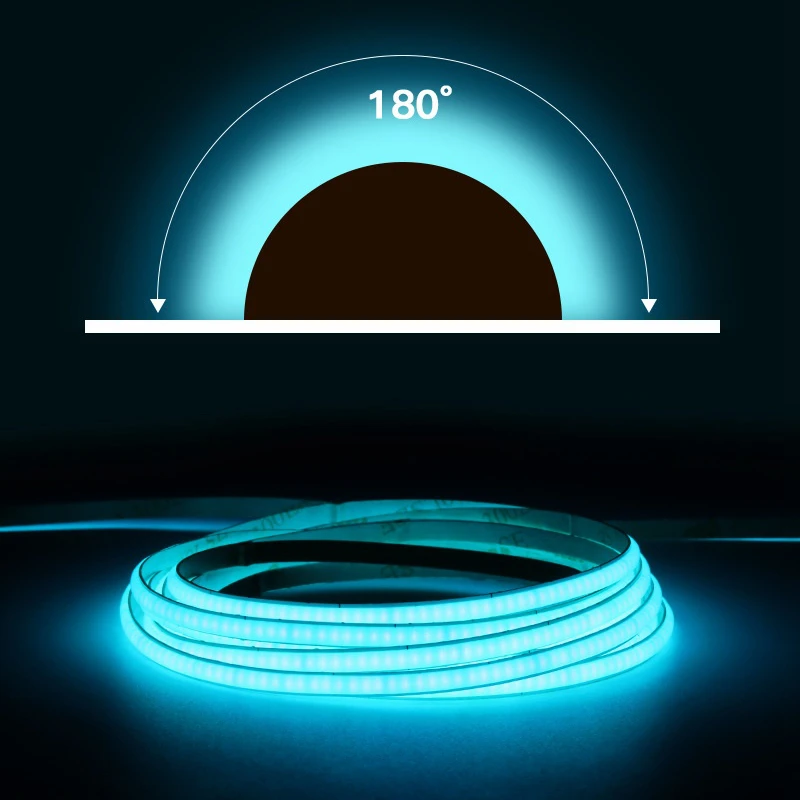

24 В 4 мм COB 480 1 Вт лед синий широкий красочный cob гибкая лента для украшения дома освещение низкое напряжение светодиод самоклеящийся
138,25 ₽ - 139,33 ₽
Dc5V адресуемых светодиодные полосы для компьютерные корпуса 3 Pin ARGB SATA интерфейс питания
- Категория: >>>
- Поставщик: Shenzhen Manwah Lighting Limited
Сохранить в закладки 1600166889007:
Описание и отзывы
Характеристики

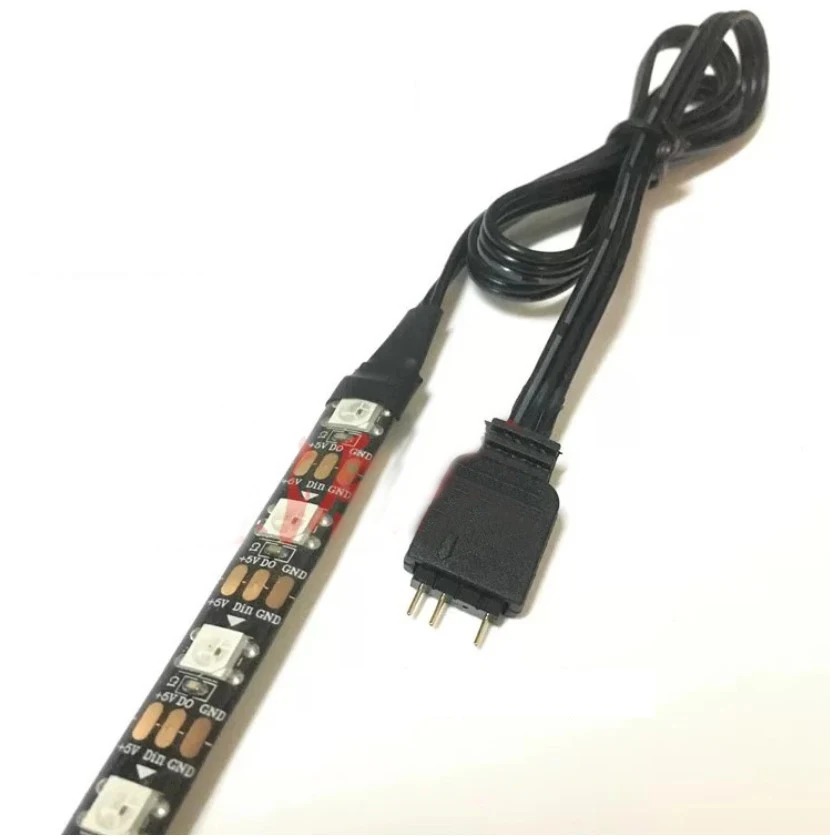

Dc5V Addressable LED Strip for Computer Cases 3 Pin ARGB Led Strip SATA Power Supply Interface Strip
Key Features:
Input voltage: DC5V;
Power: 30 LEDs/m----9W/m
60 LEDs/m----18W/m
144 LEDs/m----43.2W/m
LED resource: WS2812B led (5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED: Each LED is separately controlled
IC Type: Improved version ws2812 IC(built inside the 5050 smd rgb led)
Of IC: (1 IC drives 1 led chip);
Pixels: 30/60/74/96/100/144/meter;
Grey scale: 256;
Bits/color: 8-bits/color;
FPCB Width: 30leds/m----10mm
60leds/m----10mm
74leds/m----12mm
96leds/m----12mm
100leds/m----10mm
144leds/m----12mm
FPC color: Black/White
Protection rate: IP30 Non-Waterproof
IP65 Waterproof in Silicon Coating
IP67 Waterproof in Silicone Tube
Colors: Full color RGB, dream color changing;
Cuttable: Every LED is cuttable;
Package: In anti-static bag,IP30 IP65 with 3M adhensive tape on the back
(IP67 without 3M adhensive)
Each strip with one free male connector for connector
Specifications:
Type Of LED | SMD 5050 |
| Dimension | 5000*10mm |
| LED quantity | 60LEDs/meter |
| Power | 18w/m |
| CRI | Ra>80 |
| Color | White , Red, Green ,Blue, |
| Voltage | DC5V |
| FPCB width | 10mm |
| Waterproof Grade | IP20/IP65/IP68 |
| Working Life | ≥50000 hrs |
| FPCB Thickness | 0.25mm |
| PCB Color | White, black, yellow |
| Package Size | 5 meters/ roll,50 meters /ctn |
| Operating Temperature | -20~ + 60°C |
| Application | Outdoor decoration,outdoor lighting,indoor decoration |
Product Description
Package instruction:
More Details:
What is the difference between IP65, IP67 & IP68?
The differences between commonly sold IP65, IP67, & IP68 strips are slight, but very important. Using the above chart as a guide, we can see that all strips are protected at the highest level from solids and dust. The variations come with the protection against liquids.
IP65 = Water resistant. “Protected against water jets from any angle” *Do NOT submerge IP65 LED lights, these are not waterproof.
IP67 = Water resistant plus. “Protected against the events of temporary submersion (10 minutes)”*Do NOT submerge IP67 LED lights for extended periods, these are not waterproof.
IP68 = Waterproof “Protected against the events of permanent submersion up to 3 meters”
Application
a, Cove lighting
b, Architectural lights for canopy, corridor, window, archway
c, Backlight or edge lighting for signage
d, DIY lights for home use
e, Path and contour marking
f, Decorative lights for holiday, event, show, exhibition
g, Special light effect for art gallery and glass-made items
Packaging & Shipping
Packing info: one roll in a anti-static bag
Conton size: 52*27*25cm
Qty: 80 bags for ip20
Gross weight: 7.5kgs
Company Information
Our Services
Certifications
Related Products
FAQ
1,What are the best selling products in Manwah?
-CE & RoHS LED strips
-UL & cUL LED strip
-Controllers
-LED panel
-LED flood light
2,What is the main market for Manwah?
We are selling more to EU and north America and it stands our turnover up to 60-70%.
3, What LEDs do you usually use for your LED products?
Cree and Epistar LEDs,Philips as well we mainly use for high power LED luminaires.Other chip brands requested also like Bridgelux and Sharp.
4,What is lead time for Manwah?
3-4 days for samples and 10-12 days for normal orders. But It will takes more time with customized products.
5, Can you do custom assembly or offer OEM product?
Yes, we can. Manwah has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team.
6,Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products.During the period, if customers have the approval showing product quality issues and if certified by our engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
7,Does Manwah design its products?
Yes, we design and assemble all the products we are selling.
Please chick here to contact us for more details about this product.
Похожие товары

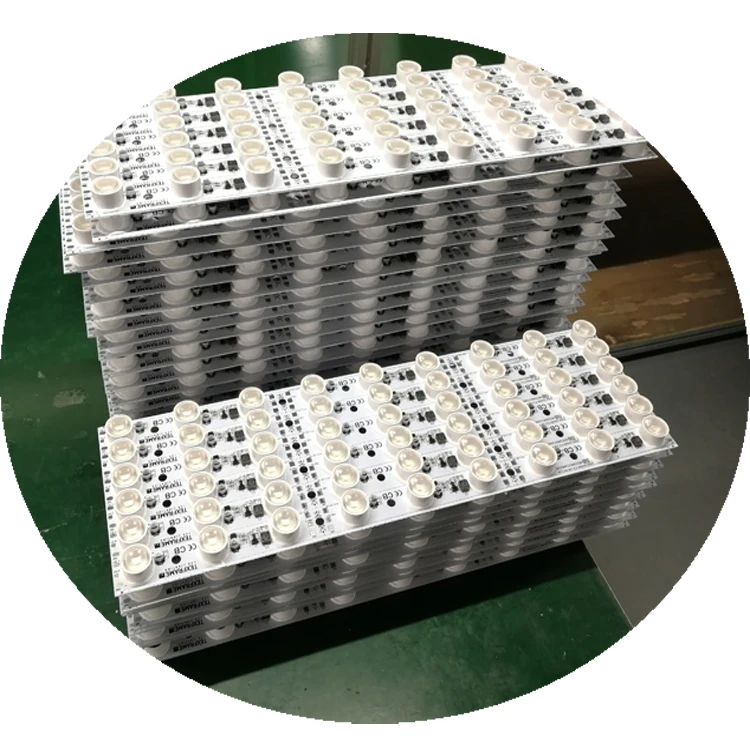

Световая лента Oled 470 мм с 1339 линзами, светодиодные модули, Лидер продаж, производство Китай, 24 В, алюминиевый белый 75 80 Ландшафтный 100
734,45 ₽ - 829,49 ₽
Бегущая лошадь течет водяной свет с ws2812 м 12 свет Низкое напряжение 5 В Волшебная световая лента

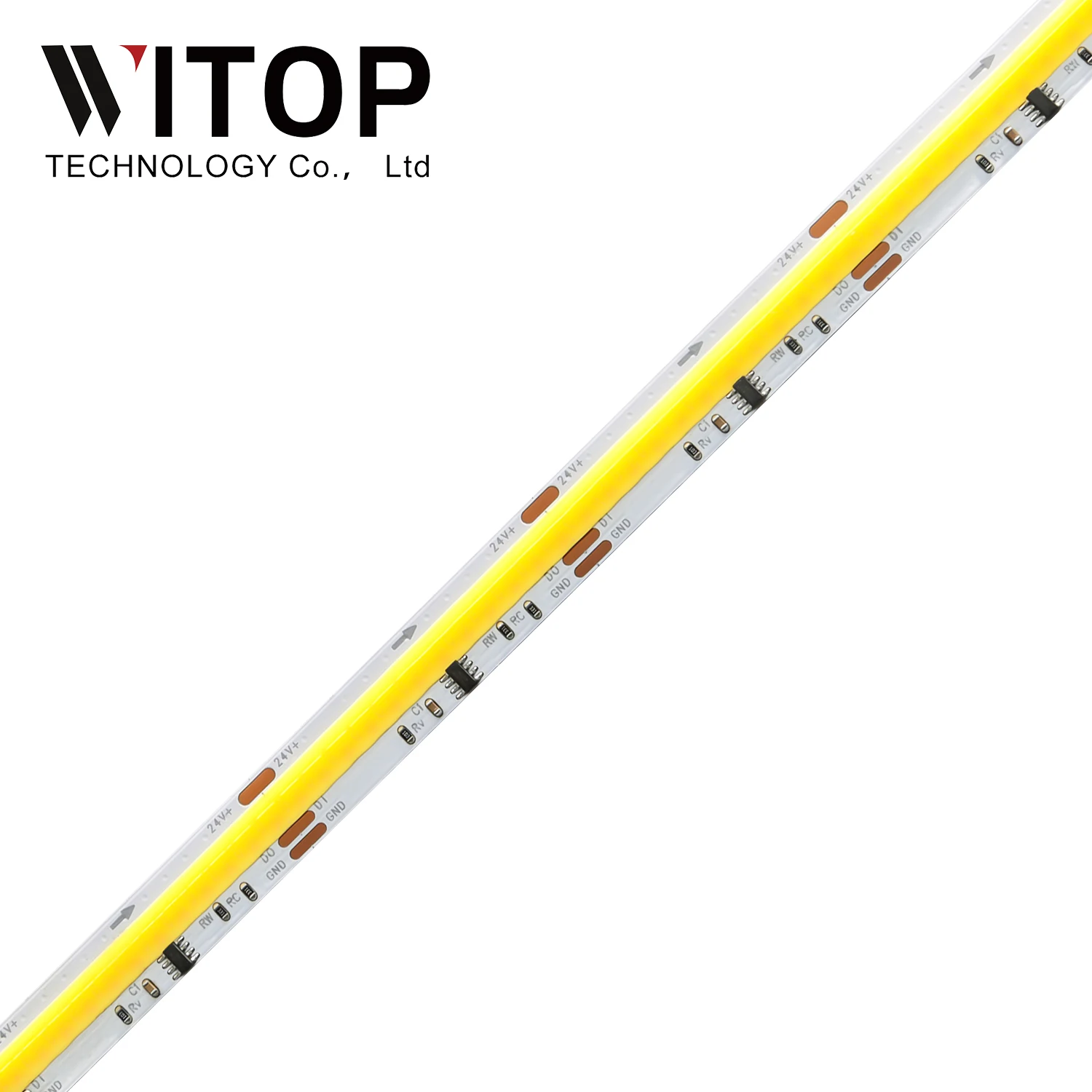

Цифровая светящаяся лампа CCT DC24V 10 мм WS2811 576 светодиодов/м, светодиодная лента
280,82 ₽ - 302,42 ₽

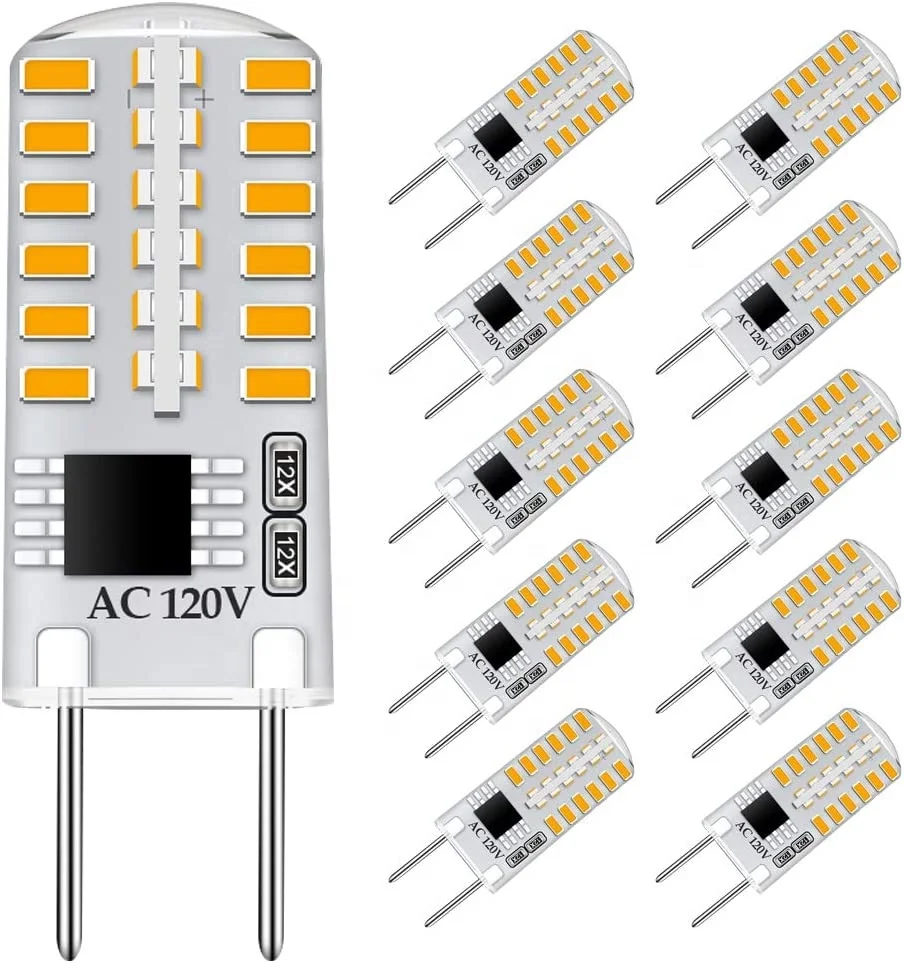

Светодиодная лампа для спальни 100 футов музыкальная система Светодиодная лампа 1,5 ватт эквивалентная светодиодная лампа 40 Вт G8 AC 130 В 110 В лампа для кукурузы
21,61 ₽ - 54,01 ₽
Зонтиками светодиодные гирлянды на батарейках 8 линий 104 шт. палатка светодиодная гирлянда гирлянды светодиодные IP65 наружные огни LED

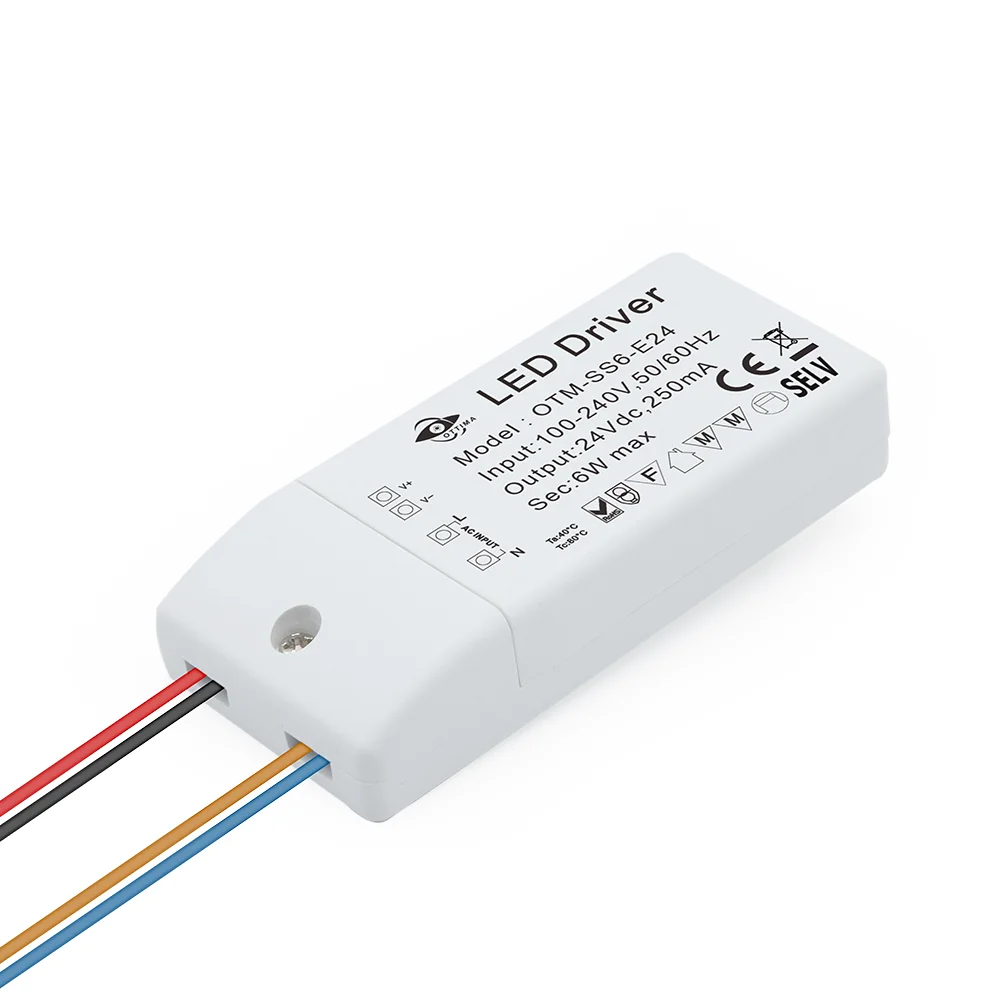

OTM-SS12-E24 заводское прямое постоянное напряжение светодиодный драйвер мини белый корпус светодиодные полосы 91*41*19 мм 24 В 500 мА 12 Вт Алюминий 12 В 90 80
243,02 ₽ - 297,02 ₽

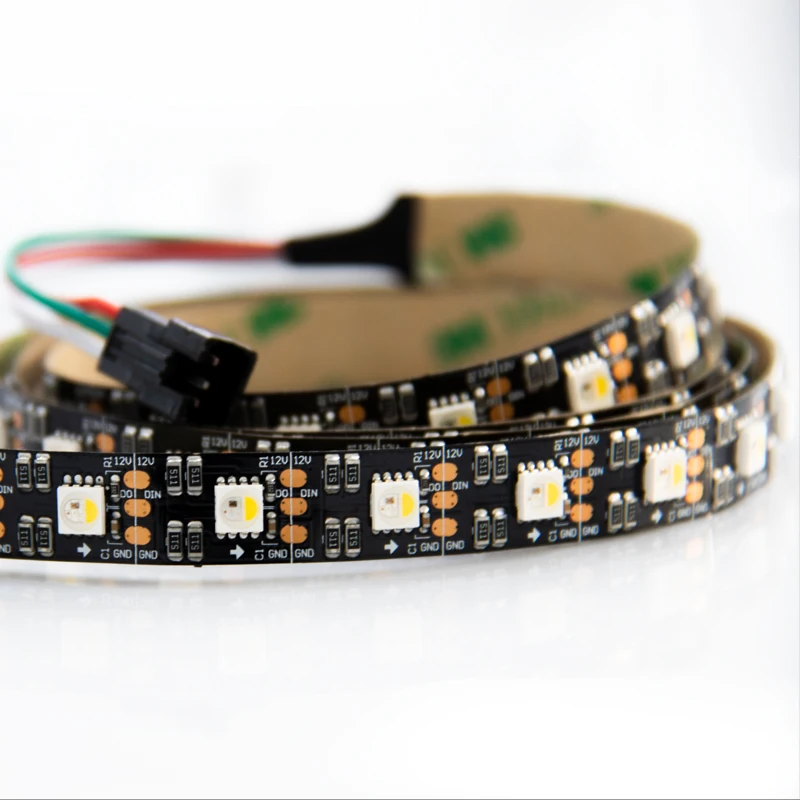

Потолочный фон для телевизора IP20 SPI программируемый цифровой пиксель RGBW один за другим Пиксель 12 в 5050 Светодиодная Неоновая Гибкая световая лента
