Product Description
SCULscrew two-stage compression low temperature unit Technical parameter table | ||||||||||||
ltem | Unit | SCUL50 | SCUL90 | SCUL110 | SCUL170 | |||||||
power source | 3N/380V/50HZ | |||||||||||
suitabe temperature range | SCUL Vaporization temperature-35℃~-55℃ | |||||||||||
Nominal refrigerating capacity | kw | 52.0 | 88.0 | 112.0 | 169.0 | |||||||
Nominal power | kw | 37.3 | 63.0 | 80.0 | 121.0 | |||||||
model | semi-hermetic screw compressor | |||||||||||
the way of start | 25%load+start triangle pressure drop startup | |||||||||||
model | Stainless steel plate type heat exchanger | |||||||||||
secondary refrigerant | Glycol water | |||||||||||
Flow | m³/h | 21.3 | 36.0 | 45.8 | 69.1 | |||||||
the drop of water pressure | kpa | 60~90 | ||||||||||
model | Horizontal type shell and tube type | |||||||||||
flow | m³/h | 15.4 | 26.0 | 33.1 | 50.0 | |||||||
the drop of water pressure | kpa | 40~70 | ||||||||||
name | R22/R507 | |||||||||||
capacity inpouring | kg | 35 | 60 | 80 | 120 | |||||||
connector specification | evaporator | 2-dn65 | 2-dn65 | 2-dn80 | 2-dn125 | |||||||
condenser | 2-dn65 | 2-dn65 | 2-dn80 | 2-dn125 | ||||||||
Length | mm | 3600 | 3600 | 3800 | 4100 | |||||||
width | mm | 2100 | 2100 | 2100 | 2200 | |||||||
Height | mm | 2200 | 2300 | 2400 | 2500 | |||||||
weight | kg | 1900 | 2600 | 3700 | 5600 | |||||||

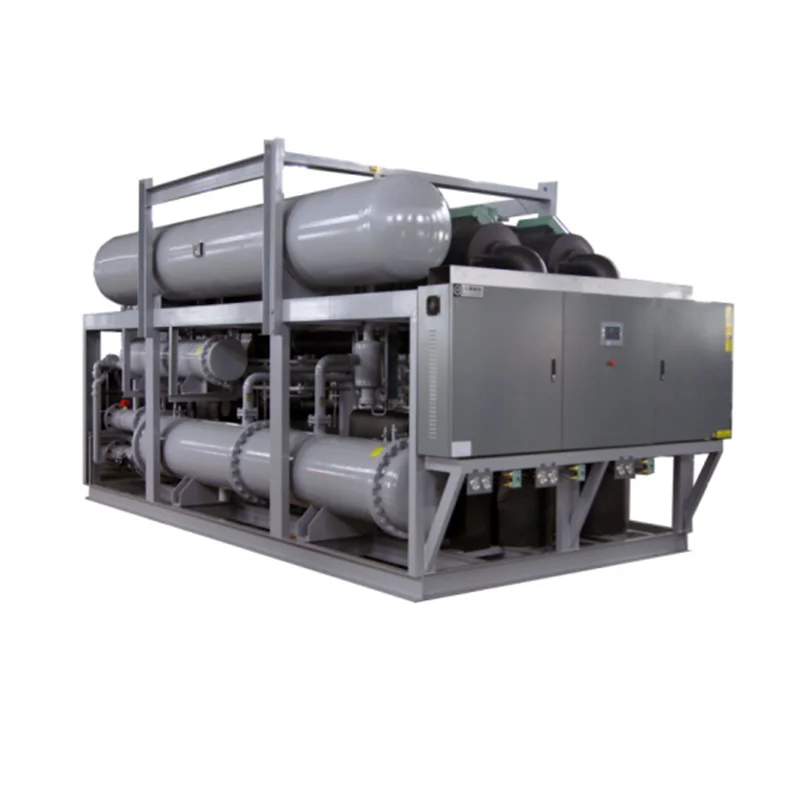

product Overview
Low temperature/ultralow temperature refrigeration unit is designed by our major technicians with their years of experience in designing low temperature cooling water rfrigeration unit, and its a new gencration of low temperature/ ultralow temperature refrigeration unit, integrating advanced technology of products both here and abroad. It features high fficiency, energy-saving, environmental protection and high relibiit. Use of multiple advanced technology makes its comprehensive technical level reaches tho intornational lovel, and national patent for it has boen obtained.Products Description
Main Application
CWL series secondary refrigerant unit can provide -30℃ to -140℃low temperature secondary rofrigerant
CUL series condensing unit can provide -35℃to -145℃cryogenic coolant
This series of units can satisfy various process requirements as fllows:
1.It has the fllowing uses in pharmacy and chemical industries
During the technological process of needing temperature control such as reaction heat low temperature cooling, crystallization and coagulation technology, volatile steam condensation, high vacuum disilation process. glass filming. composite glass manufacturing and rubber powdering.
2.Cryogenic quenching in metal heat treatment
3.-30℃ to -120℃ cold testing laboratories where test for parts in automobile, electronic and aerospace industries are conducted
4.Low temperature recovery of oil and steam in petrochemical engineering
5.Ultralow temperature processing and storage in food service industry as well as leaping tuna low temperature rapid freezing
and refrigeration
6.Storage of low temperature weapons in war industry
7.Occasions where relevant low temperature/ultralow temperature are required
CUL series condensing unit can provide -35℃to -145℃cryogenic coolant
This series of units can satisfy various process requirements as fllows:
1.It has the fllowing uses in pharmacy and chemical industries
During the technological process of needing temperature control such as reaction heat low temperature cooling, crystallization and coagulation technology, volatile steam condensation, high vacuum disilation process. glass filming. composite glass manufacturing and rubber powdering.
2.Cryogenic quenching in metal heat treatment
3.-30℃ to -120℃ cold testing laboratories where test for parts in automobile, electronic and aerospace industries are conducted
4.Low temperature recovery of oil and steam in petrochemical engineering
5.Ultralow temperature processing and storage in food service industry as well as leaping tuna low temperature rapid freezing
and refrigeration
6.Storage of low temperature weapons in war industry
7.Occasions where relevant low temperature/ultralow temperature are required

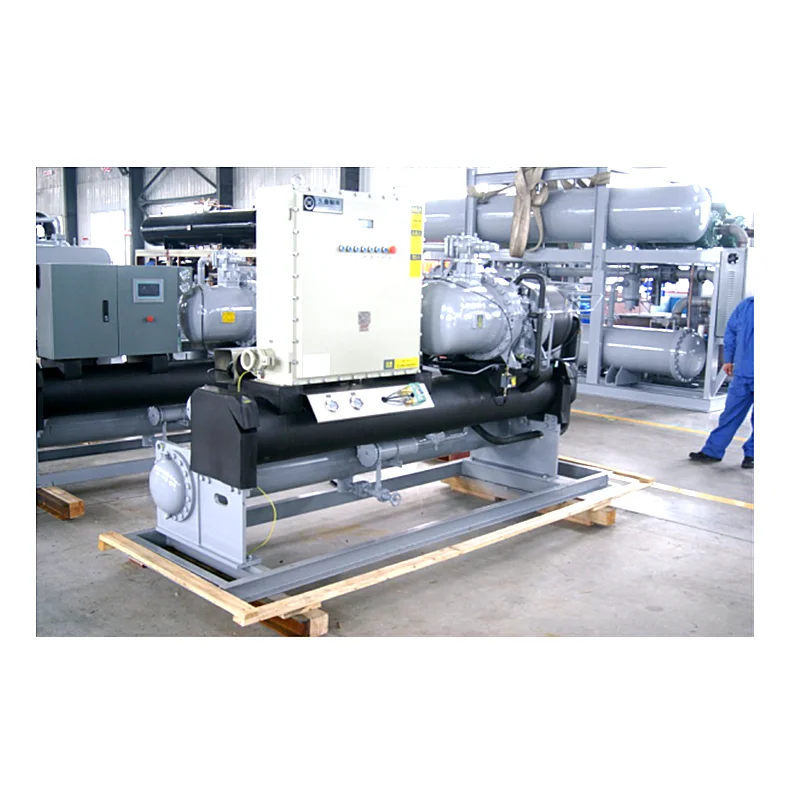

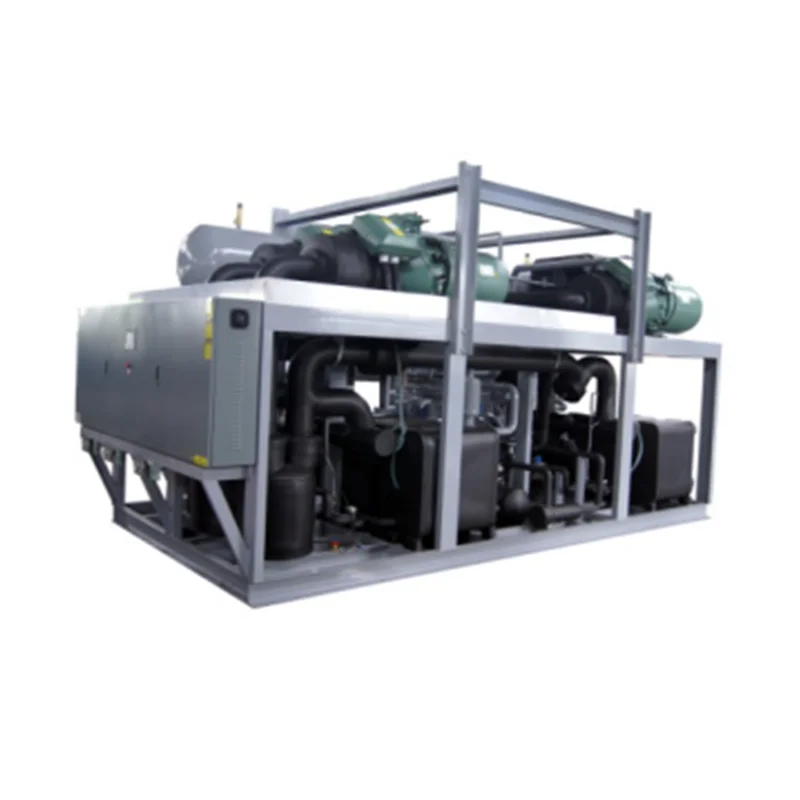

Details Images
This product main features of design
1.Broad temperature use scope（The highest refrigerant temperature is -35℃, and the lowest refrigerant temperature is -145℃, which can meet the needs of different temperature processes.）
2.Broad cooling quantity scope（According to different operating temperatures, the maximum cooling capacity of a single unit can reach 1100kw under the condition of -40℃ evaporation temperature.）
3.Manifolds of refrigerants are available for selection
4.Manifolds of famous brands of compressors are available for selection
5.High relility
6.Full automation control（Use Siemens industrial grade PLC controller, LCD touch screen for fully automatic operation）
7.High officiency and energy-saving
8.Expedient energy regulation
9.Expedient installation and commissioning
10.Critical low temperature refrigeration design is break through
11.Professional and skilful energy-saving operation plan （According to the different needs of users, we can tailor the freezing process for users and provide professional products suitable for users.）
1.Broad temperature use scope（The highest refrigerant temperature is -35℃, and the lowest refrigerant temperature is -145℃, which can meet the needs of different temperature processes.）
2.Broad cooling quantity scope（According to different operating temperatures, the maximum cooling capacity of a single unit can reach 1100kw under the condition of -40℃ evaporation temperature.）
3.Manifolds of refrigerants are available for selection
4.Manifolds of famous brands of compressors are available for selection
5.High relility
6.Full automation control（Use Siemens industrial grade PLC controller, LCD touch screen for fully automatic operation）
7.High officiency and energy-saving
8.Expedient energy regulation
9.Expedient installation and commissioning
10.Critical low temperature refrigeration design is break through
11.Professional and skilful energy-saving operation plan （According to the different needs of users, we can tailor the freezing process for users and provide professional products suitable for users.）
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Fujian Hanji Environmental Technology Co., Ltd., with a registered capital of 10 million, the company has a number of cooperative factories, mainly engaged in: production, sales, installation, maintenance, equipment leasing, engineering design, technology of refrigeration and air conditioning equipment, heating and cooling equipment and energy-saving environmental protection equipment R&D, technology transfer, technical consultation, technical services, VOC environmental protection equipment, sludge drying equipment and accessories, inhibitor ethylene glycol, corrosion inhibitor, refrigerant synergist and other cold storage assembly and ammonia storage transformation, refrigeration parts sales and installation And maintenance, system automation and energy-saving transformation and energy management, sales and maintenance of coolant products such as water treatment, antifreeze, inhibitory glycol, slow-release agent and refrigerant synergist
Passed the national compulsory product "3C" certification and GB/T19001-2008/ISO9001:2008 quality management company has obtained the national industrial product production license (refrigeration equipment), passed the national compulsory product "3C" certification and GB/T19001-2008 /ISO9001:2008 quality management system, GB/T24001:2004/ISO 14001:2004 environmental management system and GB/T28001:2001 occupational health and safety management system certification.
Passed the national compulsory product "3C" certification and GB/T19001-2008/ISO9001:2008 quality management company has obtained the national industrial product production license (refrigeration equipment), passed the national compulsory product "3C" certification and GB/T19001-2008 /ISO9001:2008 quality management system, GB/T24001:2004/ISO 14001:2004 environmental management system and GB/T28001:2001 occupational health and safety management system certification.
Customer Photos
Why Choose Us
Our services and advantages
1. Provide OEM orders
2. Workers/technicians with more than 15 years of refrigeration experience
3.Wide temperature range: +45℃~-145℃ available (currently there are no more than three manufacturers in China that can provide above -100℃)
4. Fast and flexible delivery time
5.Welcome to our factory for a visit.
1. Provide OEM orders
2. Workers/technicians with more than 15 years of refrigeration experience
3.Wide temperature range: +45℃~-145℃ available (currently there are no more than three manufacturers in China that can provide above -100℃)
4. Fast and flexible delivery time
5.Welcome to our factory for a visit.
6. The host and accessories required by the system are adequately stocked and the delivery is fast.
7. We have a very professional level in the construction of ice rinks, artificial snow, cold storage freezing, and various refrigeration equipment.
FAQ
In order to provide you with exact products and prices, please let me know the following information:
1. Cooling capacity: KW/BTU/kcal/ton
2. Water inlet/outlet temperature
3. Voltage/frequency: PH/V/HZ
4. Supplement: R22 / R407C / R410A / R134A and other refrigerant options (if you know)
5. Cooling water flow: m³/h
6. Use range (area)
7. The purpose of the product
Похожие товары

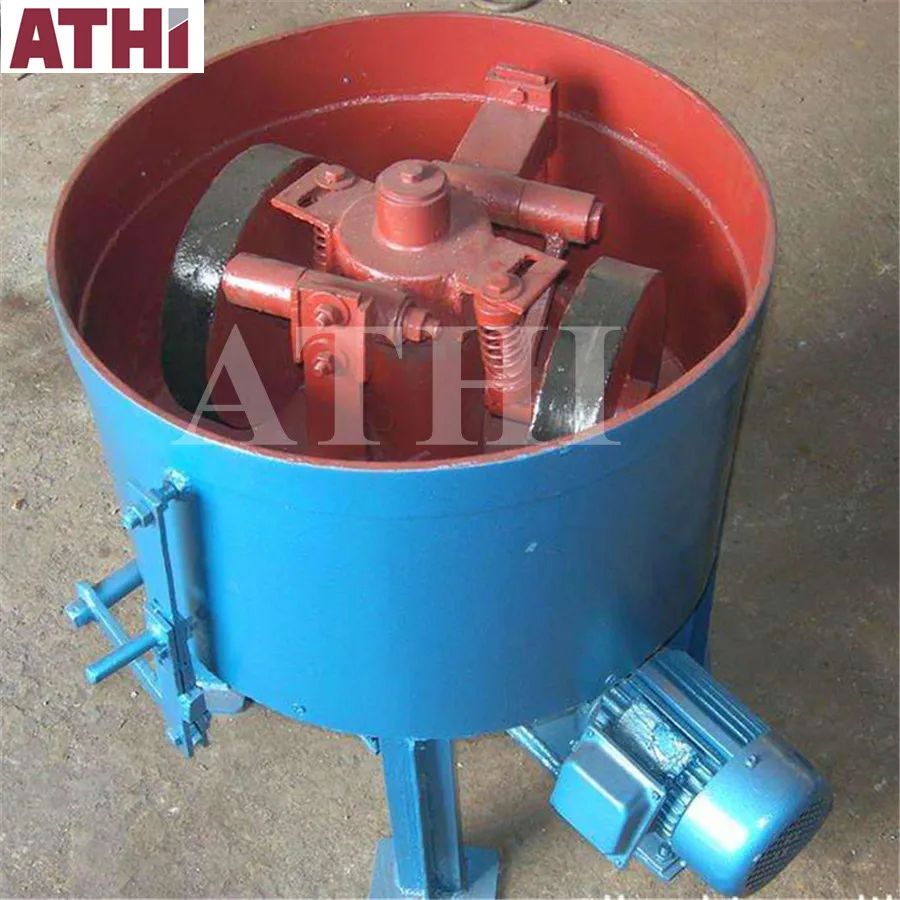

Литейное производство, и он имеет высокую эффективность из песчано-глинистой смеси muller миксер v-типа для регенерации песка линия
4 900,00 $ - 5 000,00 $
Экспортеры органического Черного Леса меда 250 г с деревянными ковшами и крышками с объемной упаковкой
16,00 $ - 23,00 $

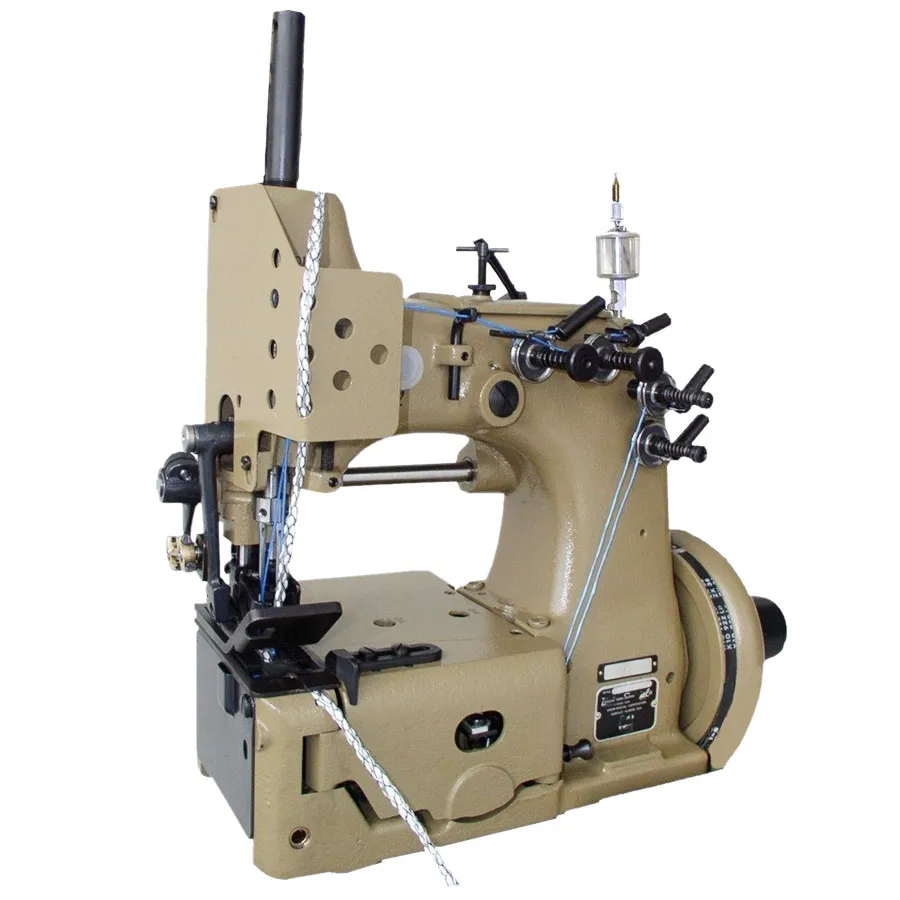

80700 машина для производства больших пакетов с двойной иглой FIBC
2 700,00 $ - 2 800,00 $

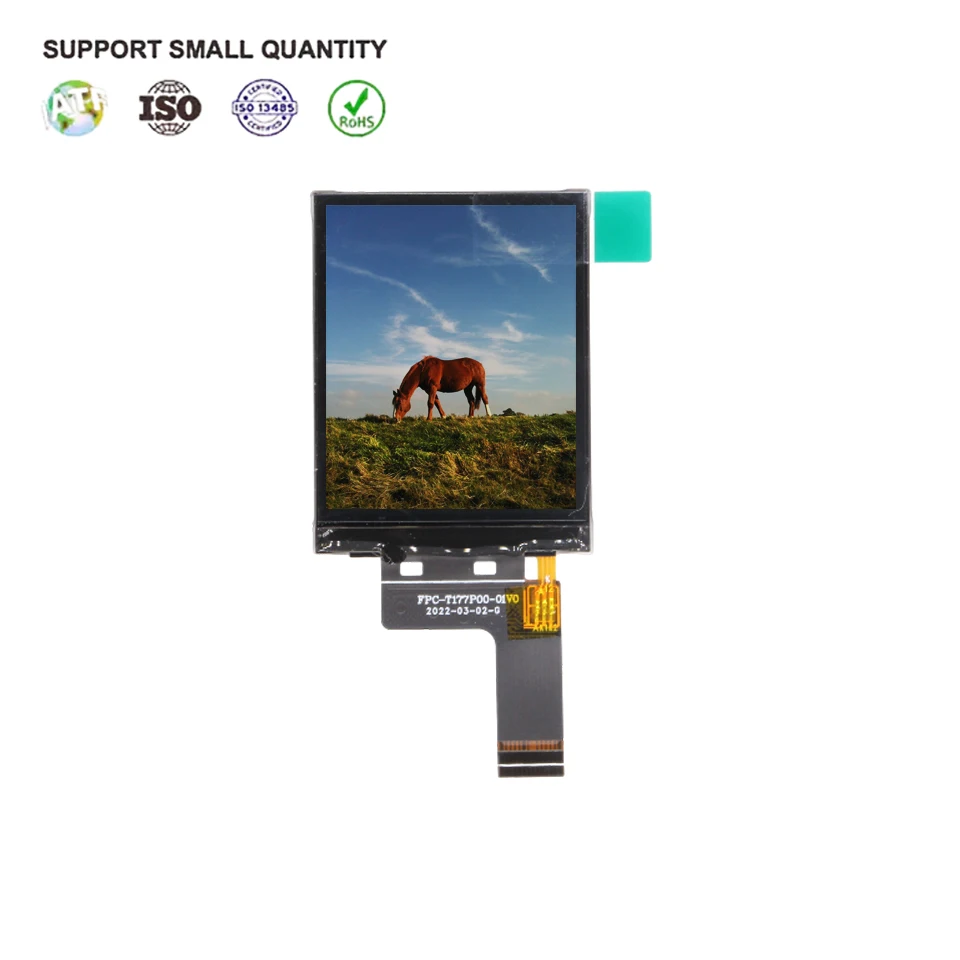

T177P00 1,77 дюймов 128*160 TFT ЖК-дисплей raspberry pi MIPI/RGB/SPI интерфейс IPS модуль ЖК-монитора
5,10 $ - 7,50 $

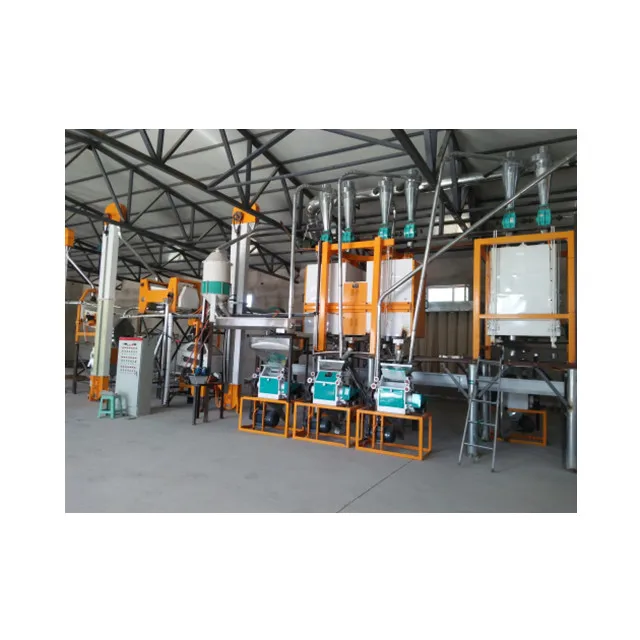

Малый завод по производству кукурузной муки
16 000,00 $
21S красная Смешанная полиэфирная вискозная окрашенная пряжа для
4,00 $ - 4,50 $

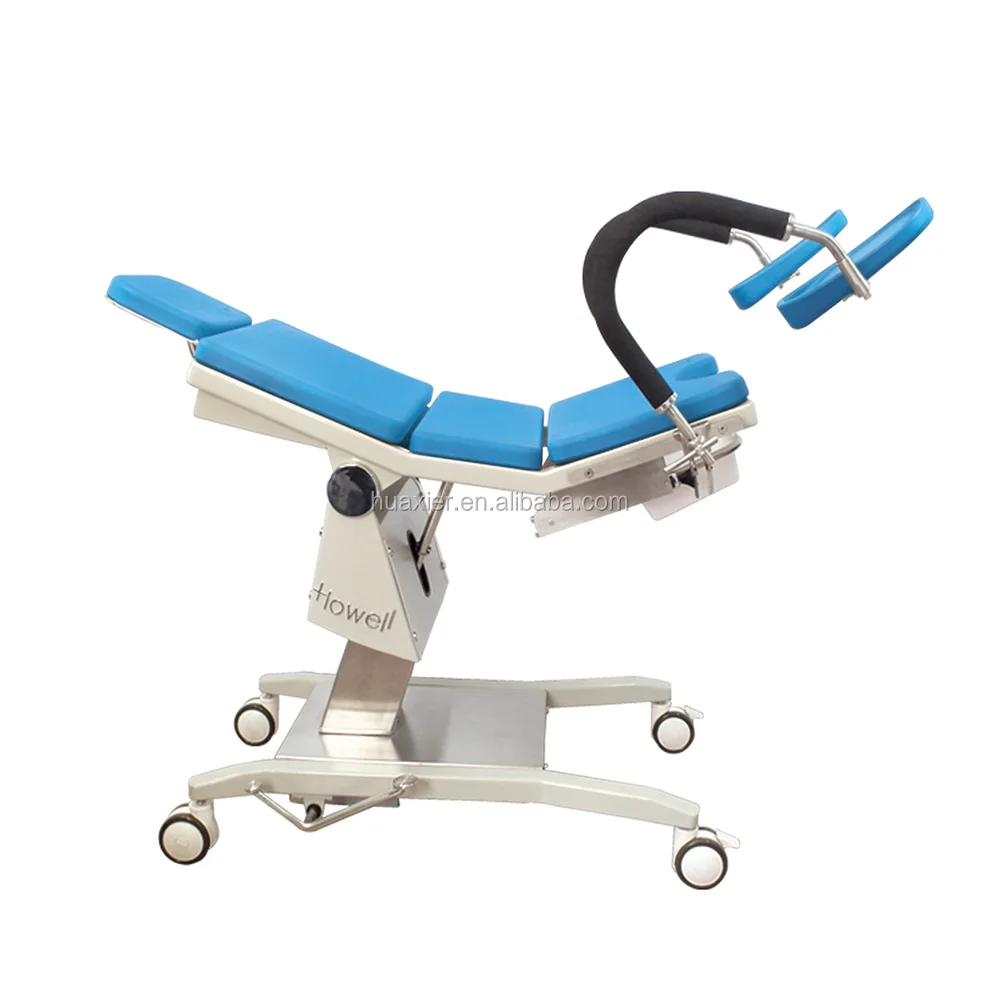

Механический Гинекологический Стол для осмотра/гинекологическое кресло для продажи Акушерское и гинекологическое оборудование HE-609D-01 580-980 мм
