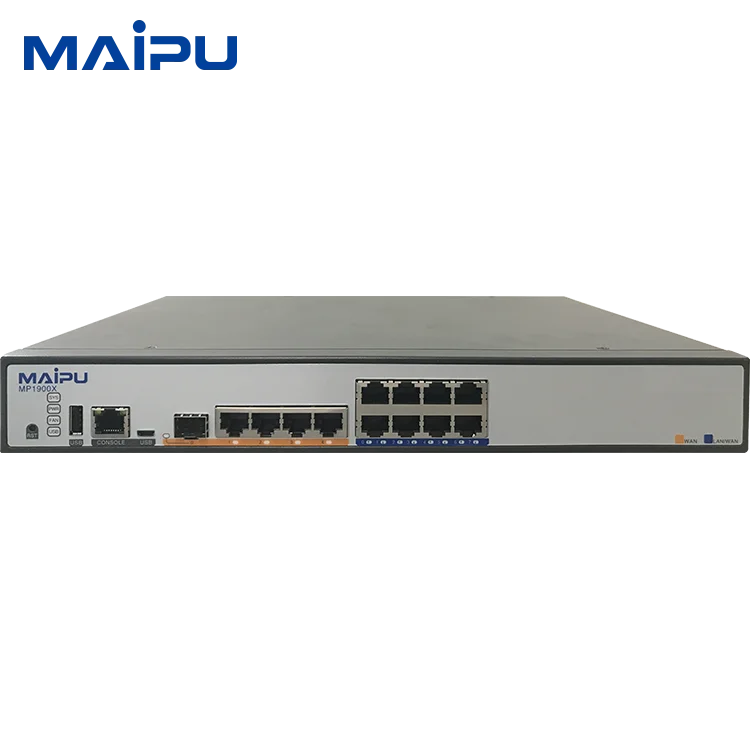

Maipu MP1900X 22 Gigabit MPLS VPN Enterprise Router GE WAN 8 Port LAN

Maipu MP1900X 22 Gigabit MPLS VPN Enterprise Router GE WAN 8 Port LAN

Категория: >>>
Поставщик: Chengdu Maipu International Infotech Co. Ltd.

Цена:285,00 $ - 500,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Overview

MP1900X series modular access router developed by Maipu is one new-generation enterprise-class access router, applicable to enterprise and government customers, for their small and medium sized branch offices. It integrates various WAN network technologies, such as Ethernet, SDH, LTE to provide the flexible access modes for enterprise users.

Product Specifications

Product Model	MP1900X-12-AC	MP1900X-22-AC
Hardware specification
CPU	1.0GHZ Dual Core		1.6GHZ Dual Core
Memory	512MB		1GB
Flash	128MB		128MB
Fixed interface (WAN&LAN)	1GEF WAN + 8GET LAN		1GEF+4GET WAN + 8GET LAN
Forwarding Performance	≥500Kpps		≥800Kpps
USB2.0 Interface	1
Service slots	Two RM2B slots
Console port	1
Dimension (WxDxH)	34026044.2mm (1U)
Power	≤26W
Power supply	Input voltage (AC): 100V-240V, 50Hz-60Hz
Temperature	Work temperature: 0-45℃
	Storage temperature: -40-70℃
Humidity	Work humidity: 5-85%, no-condensing
	Storage humidity: 5~95%, no-condensing
Cooling mode	Forced air cooling
Weight	≤3KG		≤3KG
Software specification
Link-layer protocol	DDR, PPP, Frame-Relay, Bridge, HDLC, SNA, PPPoE, LACP, Port isolation, VALN, Q-in-Q, MSTP, loopback detection, Error-Disable, MSTP, SPAN, LLDP
TCP/IP Protocol	DHCP, DHCPv6, DDNS/DNS, NAT/NAT64
Routing protocol	Static Route/Static Routev6, RIP/RIPng, OSPFv2/OSPFv3, BGP/BGP4+, IS-IS/IS-ISv6, IRMP, PBR
Security	Support ACL security filtering, PPP encryption, SSH, CPU protection, port security, AAA, IKE, PKI, 802.1X, URFP
VPN	MPLS, LDP, L2VPN, L3VPN, MPLS QoS, MPLS OAM, 6PE, GRE/GREv6, IPIP, L2TP, L2TPv3, VRF
QoS	FIFO, PQ, FQ, WFQ, CBWFQ, LLQ, RSVP, CAR, H-QoS, traffic shaping, Rate Limitation
Multicast	IGMP, MLD, PIM-SM/SSM, PIM-DM/SDM PIMv6-SM/SSM, MSDP, MVPN, NG-MVPN, PIMv6-SM/SSM
Reliability	Backup interface, VRRP/VRRPv3, VBRP, Track, BFD/BFDv6
Management & Monitoring	Keepalive gateway, NTP, Mirroring, RMON, CWMP, CLI, SSH, WEB, SNMP V1/V2/V3, Telnet, PING, Trace Route, Login, FTP, TFTP, TR069, IPFIX traffic monitoring, IP-SLA

Order Information

Router host
Host model	Description
MP1900X-12-AC	MP1900X-12-AC router, one console port, one USB interface, one GEF WAN port, eight 1000M LAN ports, two RM2B expansion slots, one AC power supply
MP1900X-22-AC	MP1900X-22-AC router, one console port, one USB interface, one GEF+ Four GET WAN port, eight 1000M LAN ports, two RM2B expansion slots, one AC power supply
Multi-functional module
Module name	Description
RM2B-1SA	Single-port high-speed V.35 serial module
RM2B-2SA	Two-port high-speed V.35 serial module
RM2B-1E1	Single-port non-channelized E1 module
RM2B-1CE1	Single-port channelized E1 module
RM2B-4E1	Four-port non-channelized E1 module
RM2B-4CE1	Four-port channelized E1 module
RM2B-1GE	Single-port Gigabit Ethernet Combo interface module
RM2B-4GET	Four-port Gigabit Ethernet electric interface module
RM2B-4GEF	Four-port Gigabit Ethernet electric interface module
RM2B-4G-LTE	LTE 4G card, LTE-FDD mode (band:1/3/5/7/8), TD-LTE mode (band 38/39/40/41), WCDMA/EDGE/GPRS/GSM
RM2B-4G-LTE-A	LTE 4G card, LTE-FDD mode (band:1/3/5/7/8), TD-LTE mode (band 38/39/40/41), WCDMA/EDGE/GPRS/GSM
RM2B-1POS-OC3	Single-port 155M POS interface module

Company Introduction

Founded in 1993, Maipu Communication Technology Co., Ltd., has already formed five product lines: Router, Switch, Wireless, Unified Communication and SDN applications. Nowadays, Maipu products and solutions have been widely used in diversified sectors, including bank, telecom, ISP, government and other enterprise customers. Till now, Maipu products and solutions have been deployed in nearly 60 countries, such as India, Pakistan, Switzerland, Poland, Czech, Austria, Mexico, Russia, Singapore,
Malaysia, Thailand, Indonesia and Niger.
