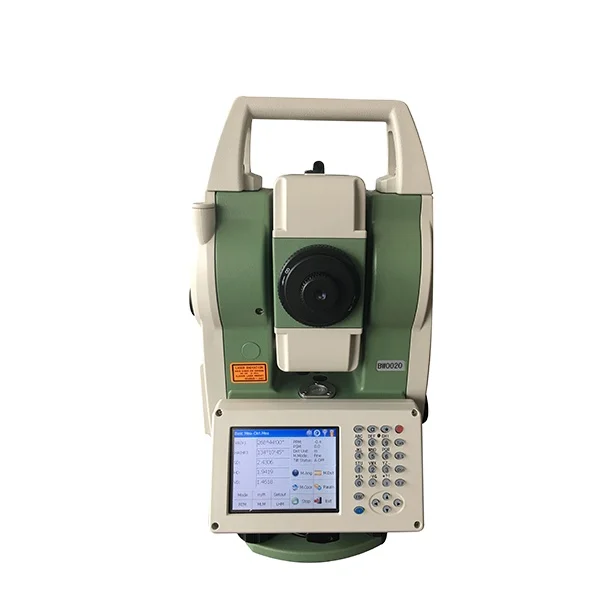

Прочная китайская общая станция FOIF RTS362 цена станции с 2

Сохранить в закладки 1600169302923:


Цена:1 200,00 $ - 2 400,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Product Description





Key Features of FOIF RTS series total station





♦ Endless drives and “Easy Measure” trigger on the side of the instrument





♦ Long Range Bluetooth





♦ Dual colour touch screen





♦ Windows CE System





♦ USB, mini USB, RS-232C





♦  Batteries (x2) with over 10 hours of working time





♦ Professional onboard software: FOIF FieldGenius or Carlson SurvCE





 Available models:





  ♦ RTS362-R500, 2” Precision and 500m reflectorless





 ♦ RTS362-R1000, 2” Precision and 1000m reflectorless





 ♦ RTS365-R500, 5” Precision and 500m reflectorless





 ♦ RTS365-R1000, 5” Precision and 1000m reflectorless

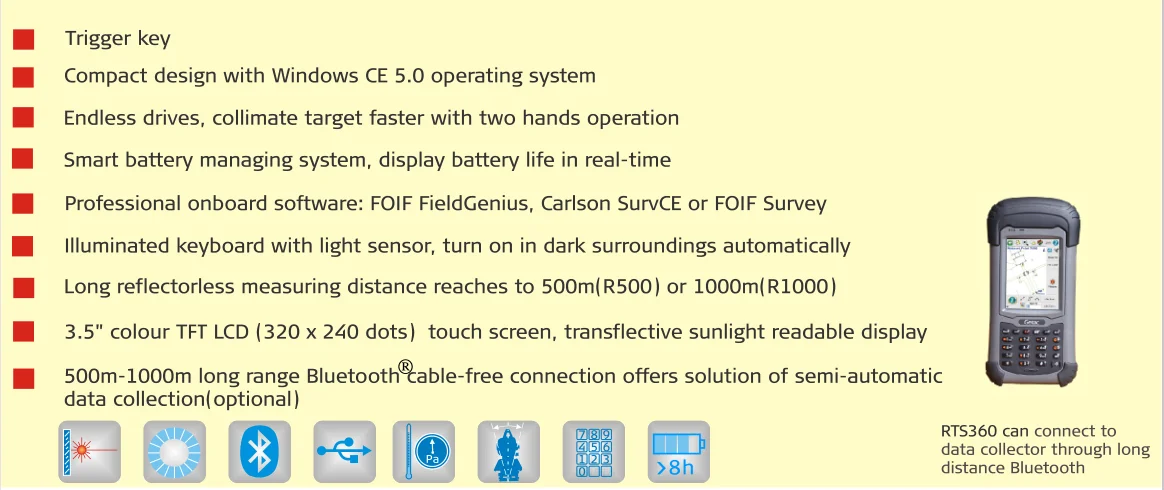

RTS360 Series Features





♦ Compact design with Windows CE 5.0 operating system



♦ Endless drives, collimate target faster with two hands operation



♦ Smart battery managing system, display battery life in real-time



♦ Professional onboard software: FOIF FieldGenius, Carlson SurvCE or FOIF Survey



♦ Illuminated keyboard with light sensor, turn on in dark surroundings automatically



♦ Long reflectorless measuring distance reaches to 500m(R500) or 1000m(R1000)



♦ 3.5" colour TFT LCD (320 x 240 dots) touch screen, transflective sunlight readable display



♦ 500m-1000m long range Bluetooth cable-free connection offers solution of semi-automatic data  collection(optional)





Product Overviews




















































































































































































































































Model



RTS362



Telescope



Length/Image



156mm/Erect



Objective aperture



φ45mm



Magnification



30x



Field of view



1°30’



Shortest focus distance



1.0m



Angle measurement



Reading system



Absolute encoder



Angle unit



360/400gon/6400mil,selectable



Display resolution



0.5"/1"/5"(0.1mgon/0.2mgon/1mgon)



Accuracy



2"



Distance measurement(R500)



Display resolution(m/inch) selectable



0.1mm/1mm



Laser class             prism



Class1



                           Reflector /Reflective sheet



Class3R



Measurement range (Good condition)



Reflectorless



1 to 500m



Reflective sheet/RP60



1 to 800m



Single prism



1 to 3000m



Accuracy



Prism



2mm+2ppm



Reflective sheet/RP60



3mm+2ppm



Reflectorless



1-200m: 3mm+2ppm/>=200m:5mm+3ppm



Measuring time



Initial : 2s



Prism(Standard model)



3s



Reflective sheet/RP60(Standard model)



3s



Reflectorless(Standard model)



3s



Level vial sensitivity



Plate level vial



30" /2mm



Circular level vial



8' /2mm



Compensator



Dual-axis compensator



Working range



3'



Setting accuracy



1"



Laser plummet(Standard)



Accuracy



±1mm/1.5m



Laser class



Class 2/ IEC60825-1



Laser brightness



Adjustable



Laser wave length



635nm



Display



3.5" colour TFT LCD(320 x 240 dots) touch screen



Transflective sunlight readable display



Power







Battery



3400mAh Li-ion Rechargeable



Output voltage



7.4V DC



Continuous operation time



8 hours



(Single distance measurement every 30 seconds



Charger



FDJ6-LI9 (100V / 240V)



Charging time ( at +20℃)



Approx. 4 hours



Application programs



Data collection/Stake out/Resection/REM/MLM/Point to line



AREA/Z coordinate/OFFset/3D Road/Traverse adjustment
Tape measurement/Section/Axis postioning measurement



Others



CPU



ARM9  Core



Memory



4G internal memory



Sensors



Built-in temperature and pressure sensors



Keyboard



Alphanumerical key board, both sides



Weight(including batteries)



6.0kg



Interface



USB/RS-232C/Bluetooth(Optional)



Water and dust protection



IP54 (IEC60529)

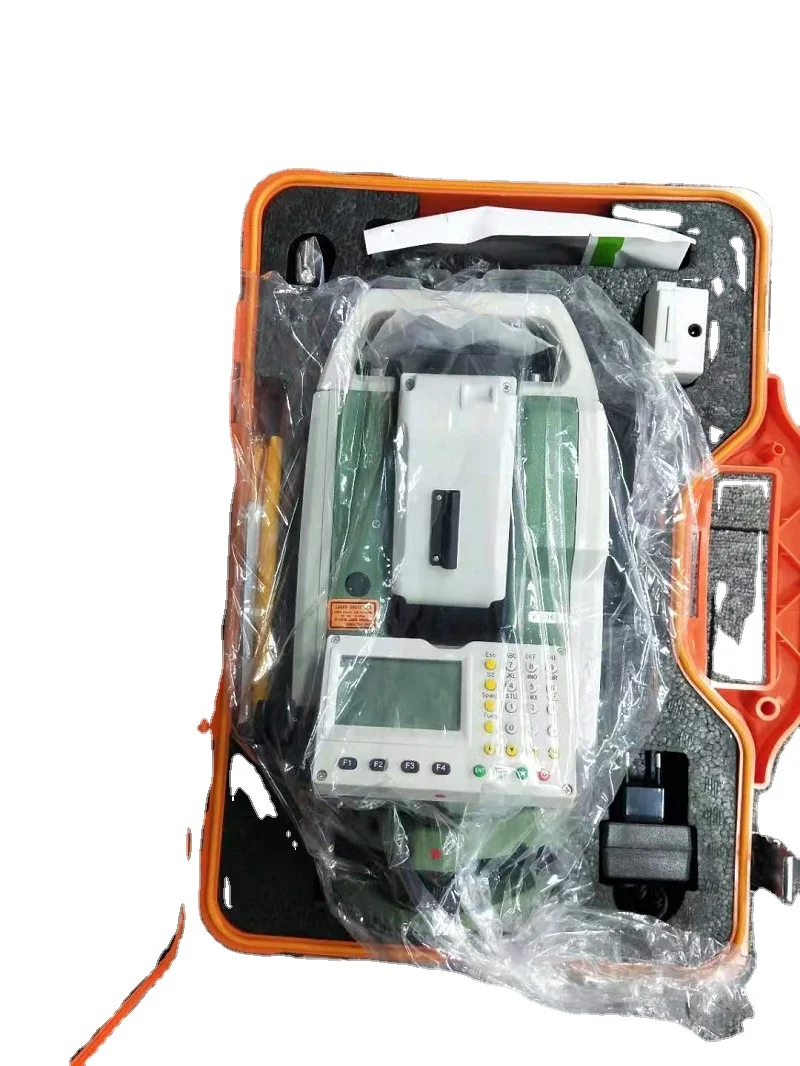

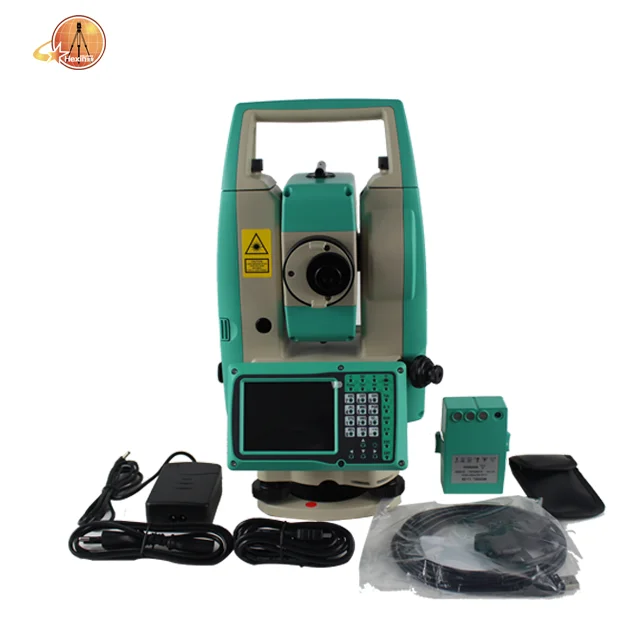

Standard Configuration :



  • Instrument main body

  • Batteries (x2)

  • Battery charger

  • Communication cable USB to mini USB

  • Communication cable RS-232C to USB

  • Reflective sheets 30×30 mm (x4)

  • Reflective sheet 60×60 mm (x1)

  • Tool kit

  • Rain protection bag

  • Instruction manual

  • Carrying case

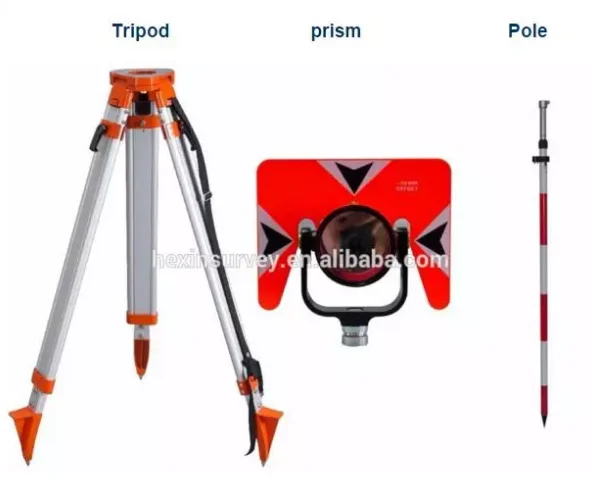

Total Station Accessories( optional ):








Payment


Generally, we accept Trade Assurance, Paypal, Advance T/T, and West union.


If you prefer other payment terms, please let us know.





Packaging & Shipping


Packaging is absolutely fine, high-end and upscale. We have been dealing with foreign clients for more than 8 years. Before leaving the factory, every part is strictly tested.Please rest assured that we have all the necessary accessories for the instrument.


We have strong cooperation with DHL, TNT, UPS, FEDEX,EMS,China Air Post.


You can also choose your own shipping forwarder.








Company Information





Company Information








With 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in Mainland China. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.

The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.

We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

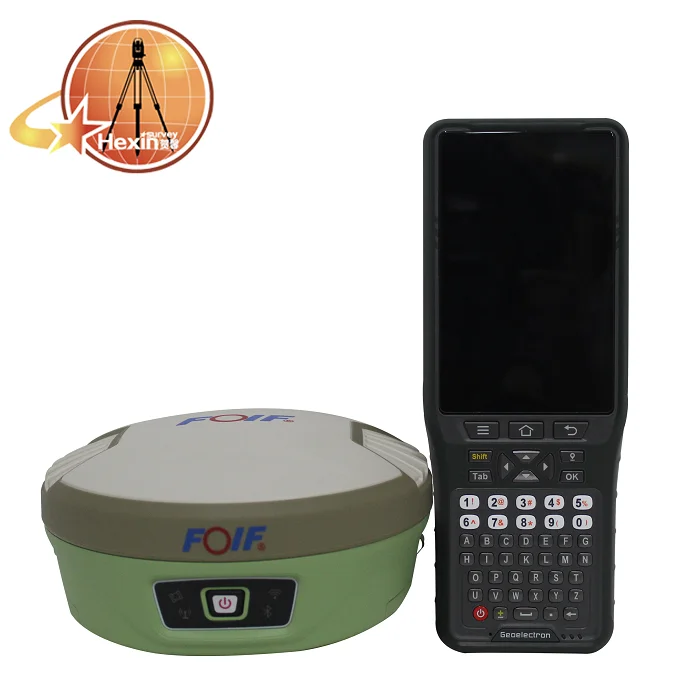

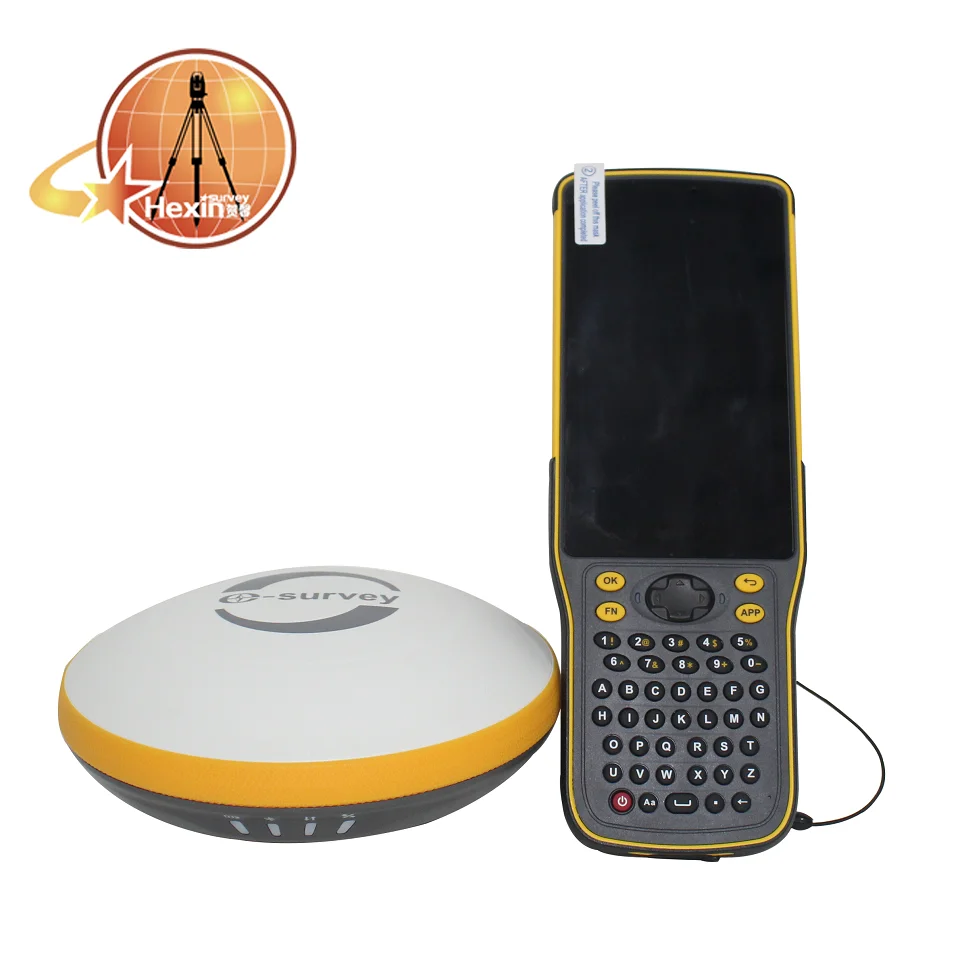

gnss rtk.png
