Product Description

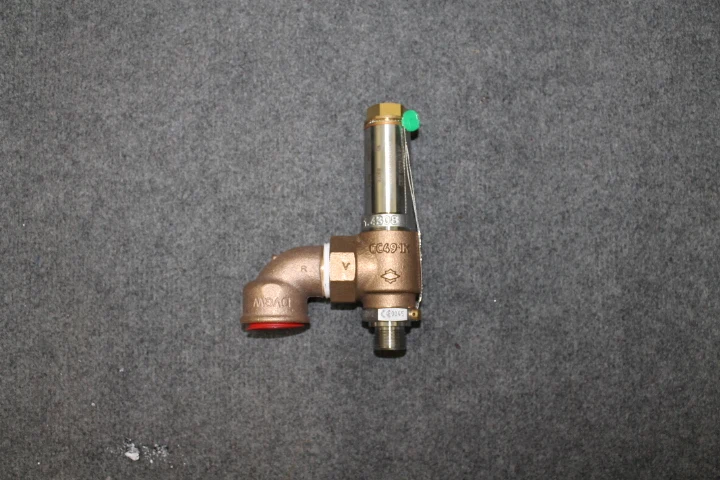

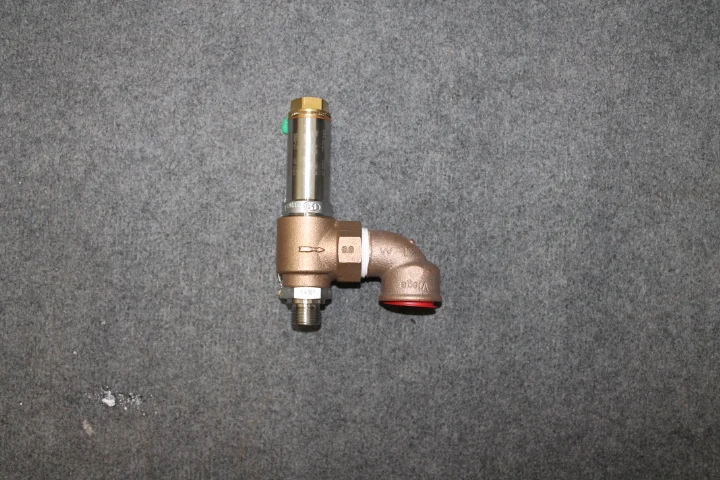

Cryogenic Safety Valve, angle type, bronze, PN50, type tested TÜV-SV.780. S/G
Full lift safety valve, orifice d0=23mm standard safety valve, with carbon filled PTFE valve seal, orifice d0=23mm with PCTFE
seal, closed bonnet "cleaned and degreased for oxygen service"
Applications:
Provided as safety device for protection against excessive pressure in stationary and moveable gas cylinders and pressure vessels. Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +185°C / +365°F (458K), suitable for horizontal installation
seal, closed bonnet "cleaned and degreased for oxygen service"
Applications:
Provided as safety device for protection against excessive pressure in stationary and moveable gas cylinders and pressure vessels. Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +185°C / +365°F (458K), suitable for horizontal installation
Specification
item | value |
Warranty | 3 years |
Type | Pressure Reducing Control Valves, Water Pressure Reducing Valves, Pressure Regulators, Air Valves & Vents |
Certification | ISO4126-1:2016, TUV SV 17-780 |
Customized support | OEM |
Place of Origin | Vietnam |
Hanoi | |
Brand Name | OEM |
Model Number | 06388 |
Application | General |
Temperature of Media | Low Temperature |
Power | none |
Media | Water |
Port Size | 1/2 |
Structure | Angle |
Product name | Cryogenic Safety Valve, angle type |
Material | Brass/ Nickel plated |
Pressure | Hight Pressure |
Certificate | ISO4126-1:2016/TUV SV 17-780 |
Size | 1/2 |
Valve type | angle |
Working Temperature | -196°C up to +185°C / |
Working medium | 651Nm³/h |
ASME | 247 PSI |
Packing & Delivery
packaging on the carton box
Company Profile
Since 2006 Nguyen Gia Traditec Co., Ltd supply and export high quality accessories medical products. The meanwhile wide products range offers solutions for different applications for equipment medical Industrial.
FAQ
1. who are we?
We are based in Ha Noi, Vietnam, start from 2006,sell to Southeast Asia(30.00%),Domestic Market(20.00%),Africa(10.00%),Eastern Asia(10.00%),Mid East(5.00%),South Asia(5.00%),North America(5.00%),Southern Europe(3.00%),Central America(3.00%),Oceania(2.00%),Western Europe(2.00%),Northern Europe(2.00%),Eastern Europe(2.00%),South America(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Parts medical ventilators
We are based in Ha Noi, Vietnam, start from 2006,sell to Southeast Asia(30.00%),Domestic Market(20.00%),Africa(10.00%),Eastern Asia(10.00%),Mid East(5.00%),South Asia(5.00%),North America(5.00%),Southern Europe(3.00%),Central America(3.00%),Oceania(2.00%),Western Europe(2.00%),Northern Europe(2.00%),Eastern Europe(2.00%),South America(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Parts medical ventilators
Parts medical Anethesia
Parts medical Electrosugicat
Parts medical suction
CardioVascular cannula products
4. why should you buy from us not from other suppliers?
Company Introduction
Since 2006 Nguyen Gia Traditec Co., Ltd supply and export high quality accessories medical products. The meanwhile wide products range offers solutions for different applications for equipment medical Industrial
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Cash,Escrow;
Language Spoken:English
4. why should you buy from us not from other suppliers?
Company Introduction
Since 2006 Nguyen Gia Traditec Co., Ltd supply and export high quality accessories medical products. The meanwhile wide products range offers solutions for different applications for equipment medical Industrial
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Cash,Escrow;
Language Spoken:English
Похожие товары
TKFM горячей воды обратный клапан/счетчик клапан/ватерлинии клапан
Включающий Тип 12VDC Электродвигатель с поворотом, 2 дюйма, с резьбой BSPT NPT, водяной Электрический моторизованный латунный шаровой клапан
6 579,83-7 695,05 ₽
профессиональные цзянсу завод гидротехнического многообразие
высокого качества ! Задвижка стальная 30с41нж
Упругие сидя клапаны бабочки с шестерней червя/двойной фланцевый клапан-бабочка
PN10 PN16 нержавеющая сталь SS316 клапан-бабочка для морской воды щелочи

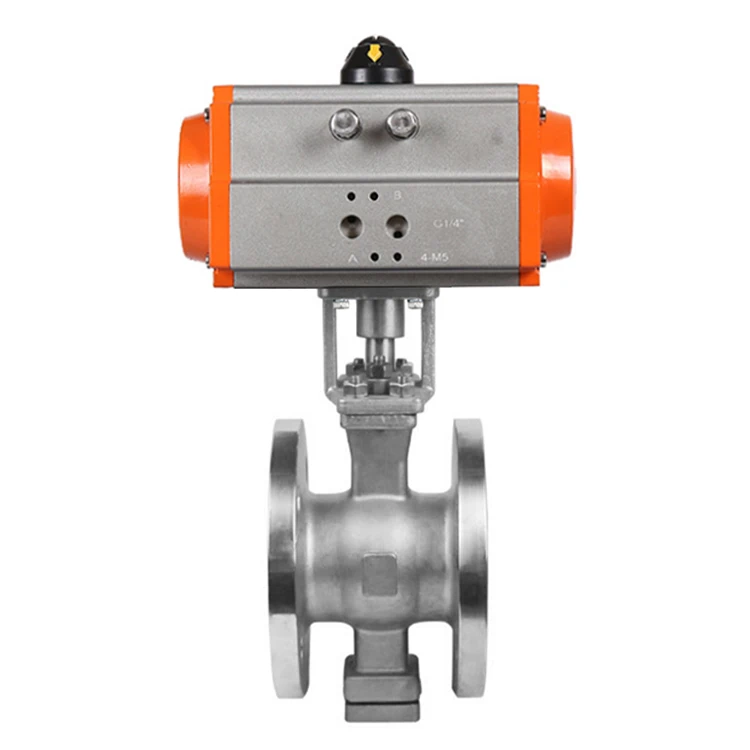

DN65 304 2 Way с пневматическим приводом пластина из нержавеющей стали V тип сегмента шаровой
