Nova VX6S 4K HD Video Controller LED
- Категория: >>>
- Поставщик: Shenzhen Jekaz Technology Co. Ltd.
Сохранить в закладки 1600172448960:
Описание и отзывы
Характеристики
Product Description
The VX6S is a professional LED display controller. Besides the function of display control, it also features in powerful front end processing, so an external scalar is no longer needed. With professional interfaces integrated, VX6S with excellent image quality and flexible image control greatly meet the needs of the broadcast industry, Its friendly in user-interface. so that the display to work has never been as easier and more enjoyable as with VX6S.
Ⅰ Features
- The inputs of the VX6S include 2X3G SDI,2X HDMI 1.3,2XDVI,1XDVI+DVI LOOP, and 1xUSB playback They support input resolution up to 4096×4096@60Hz; the input images of VX6S can be zoomed point-to-point according to the screen resolution;
- Provide seamless high-speed switch and fade-in/ fade-out effect so as to strengthen and display picture demonstration of professional quality;
- The location and size of PIP can both be adjusted, which can be controlled at will;
- Adopt the Nova G4 engine; the screen is stable and flicker free without scanning lines; the images are exquisite and have a good sense of depth;
- Can implement white balance calibration and color gamut mapping based on different features of LEDs used by screens to ensure reproduction of true colors;
- HDMI/external audio input;
- 10bit/8bit HD video source;
- The loading capacity: 3.9 million pixel;
- Support multiple controller montage for loading huge screen;
- Support Nova’s new-generation point-by-point correction technology; the correction is fast and efficient;
- Computer software for system configuration is not necessary. The system can be configured using one knob and one button. All can be done just by fingers. That’s what we called Touch Track!
- Adopt an innovative architecture to implement smart configuration; the screen debugging can be completed within 30 seconds; greatly shorten the preparation time on the stage;
- A intuitive LCD display interface and clear button light hint simplify the control of the system.
Ⅱ Specification
Input Index | ||
| Port | Number | Resolution Specification |
| CVBS | 2 | PAL/NTSC |
| VGA | 2 | VESA Standard, support max. 4096×40960@60Hz input |
| DVI | 1 | VESA Standard (support 1080i input), support HDCP |
| SDI | 1 | 480i,576i,720P,1080i/P |
| HDMI | 1 | EIA/CEA-861 standard, in accordance with HDMI-1.3 standard, support HDCP |
| DP | 1 | VESA Standard |
Output Index | ||
| Port | Number | Resolution Specification |
| DVI LOOP | 1 | Consistent with DVI input |
| VGA | 1 | Monitoring output connector Up to 4096×4096@60Hz output resolution |
| DVI | 1 | |
| SDI LOOP | 1 | Consistent with SDI input |
| LED OUT | 6 | 6 Gigabit Ethernet outputs. Only Ethernet port 1 supports audio output. When the multifunction card is connected for audio decoding, the multifunction card must be connected to the Ethernet port 1. |
Specification of complete machine | |
| Input Power | AC100~240VAC,50/60Hz |
| Overall Power Consumption | 25W |
| Operating Temperature | -20~60℃ |
| Size | 482.6×251.5×45(mm) |
| Weight | 2.55 Kg |
Details
1.Seamless switching,fade in fade out swtiching between any inputs. Multiple mixed analog and digital inputs including 2*Video,1*VGA,1*HDMI,1*DVI,1*SDI/HD-SDI/3G-SDI;
2.“TAKE” fast switching.
3.Four sets of preset PIP display mode: seamless or fade in fade out between modes switching.
4.windows in any size and overlay display. Display 4 input signals picture at the same time.Each picture size, position and overlay order are adjustable.
5.Preview monitor+sync monitor
6.Wi-Fi wirless control+ Wi-Fi video feedback monitor: Wi-Fi video feedback function is realized through installing APP software in handheld device to monitor input signals. Meanwhile,wireless Wi-Fi controls the device to switch signals and call modes.

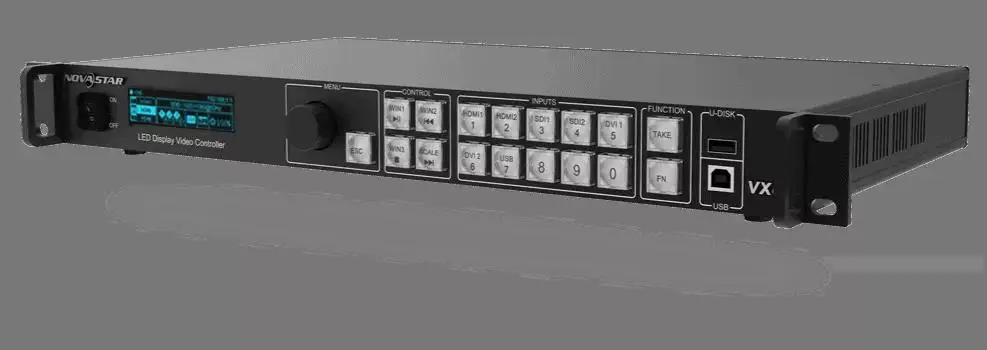

VX6s Video Controller
Simplified, but not simply
The VX6s is an all-in-one video controller that integrates 6 Gigabit Ethernet sending outputs, 3 layers and seamless switching functionality. The VX6s is designed with powerful video processing, switching and transmission capabilities.

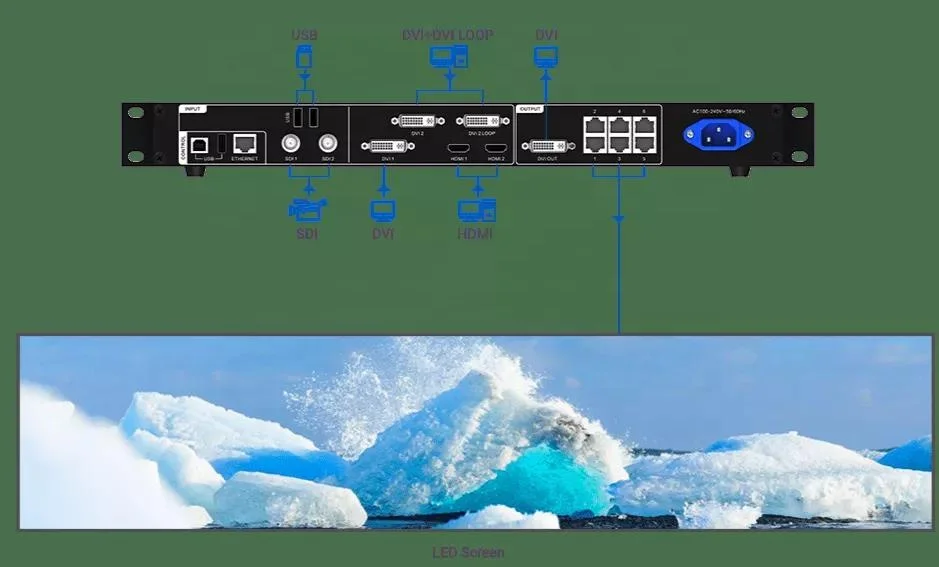

7 input connectors
Including 2 × 3G-SDI, 2 × HDMI 1.3, 2 × DVI,
1 × DVI+DVI LOOP, and 1 × USB playback

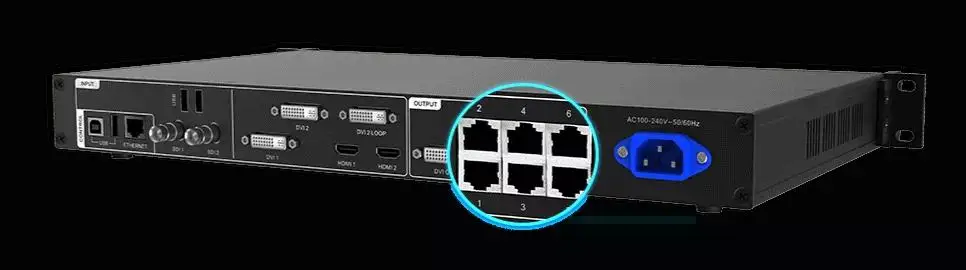

6 Gigabit Ethernet output
The maximum loading capacity high up to 3.9 million pixels
Maximum height or width can reach 4096 pixels
Multi VX6s units can be cascaded
Flexible layout of 3 layers
Support one-click load preset, support switching effect such as fade-in/ fade-out
Easy control,support V-Can,Smart LCT, and Nova LCT-Mars

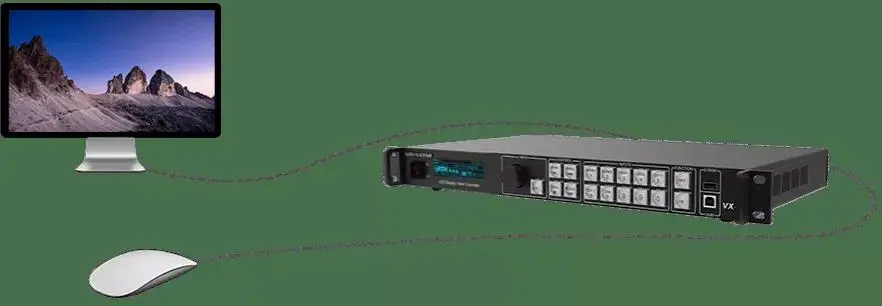

USB drive playback.USB playback can be intuitively controlled in real time by connecting a mouse and monitor
Application
