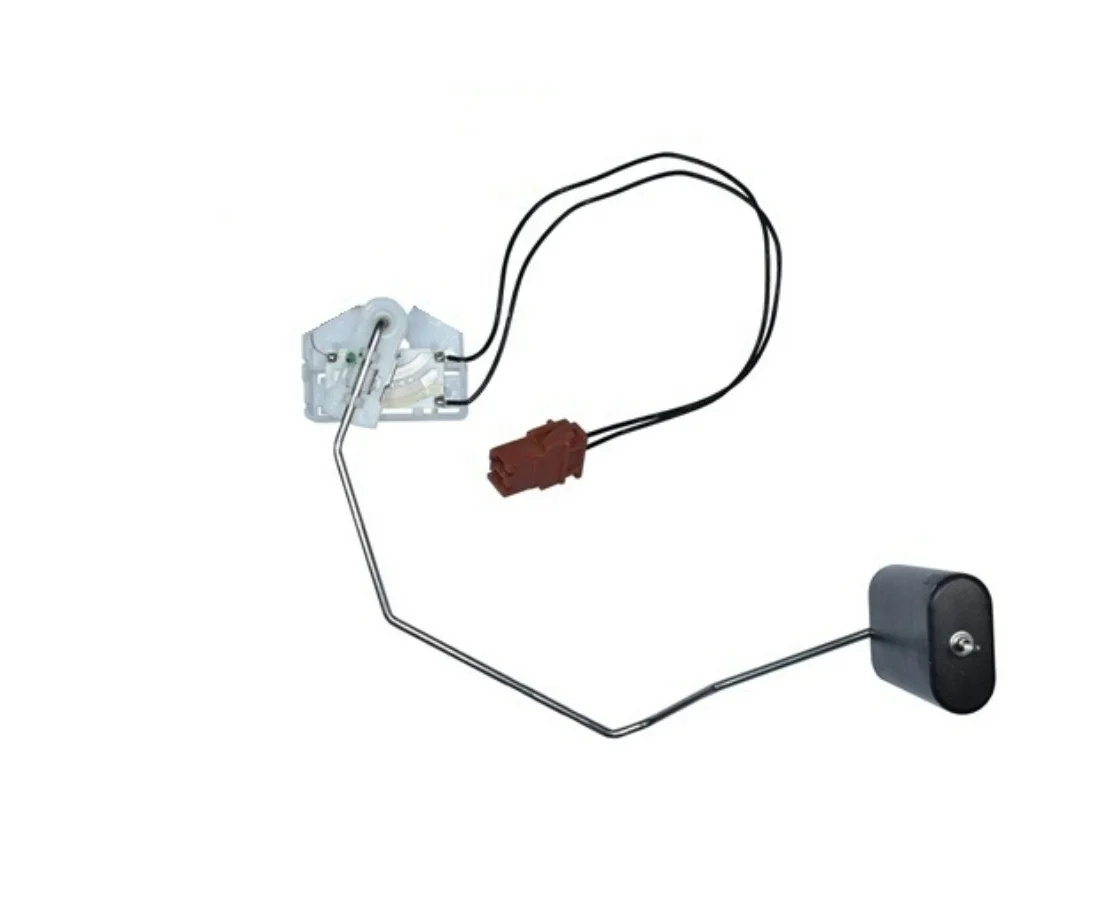

Высококачественный датчик уровня топлива с хорошей производительностью, Отправитель 8332002120 8332002180 83320-02120 83320-02180 для Toyota
3,00 $ - 12,00 $
Contrastech Лео 720S 313gm Высокий fps Глобальный затвор IMX287 промышленный картоноделательная машина камера ночного видения
- Категория: >>>
- Поставщик: Hangzhou Contrastech Co. Ltd.
Сохранить в закладки 1600172937127:
Описание и отзывы
Характеристики
Brief Introduction

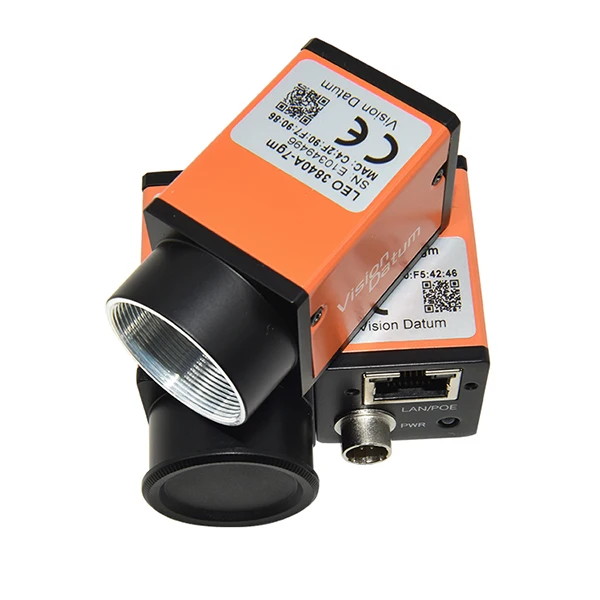

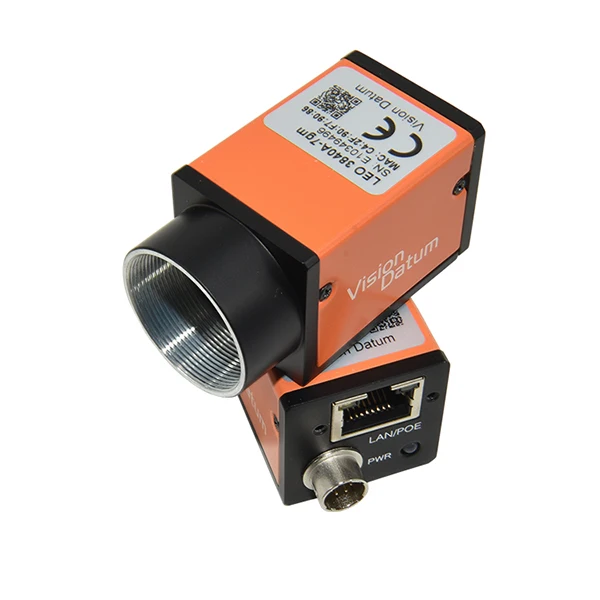

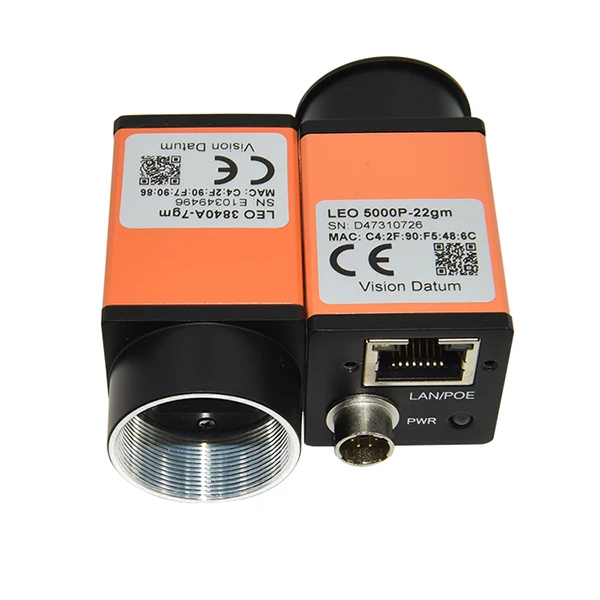

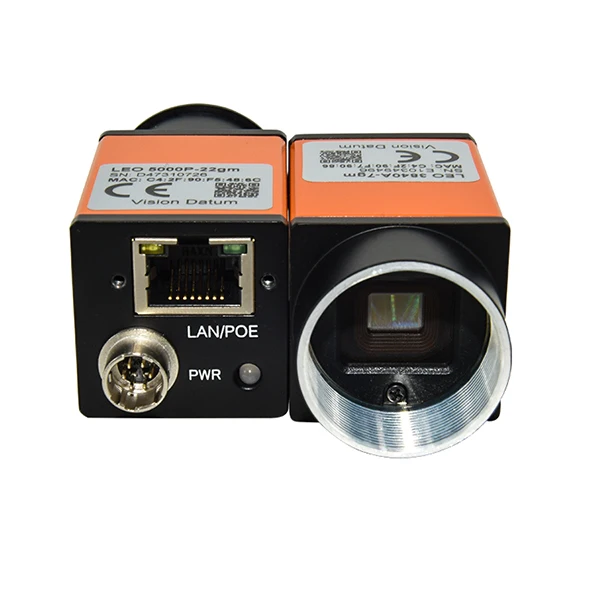

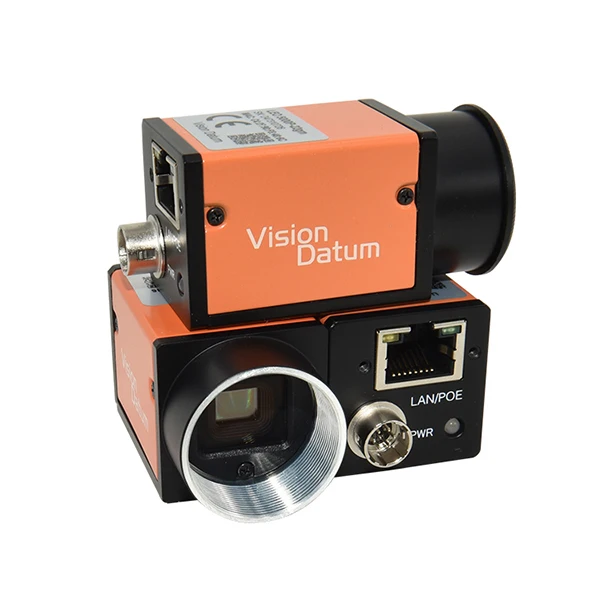

Contrastech LEO Series Area Scan Camera
LEO series area scan cameras, equipped with the advanced high-end image sensor
and it resolution from 0.3MP to 20MP.
Furthermore this series camera with different data interface——the GigE interface
with 100m transmission distance and the USB 3.0 interface supports plug and play.
The camera with The fully GenICam compliant SDK package, iDatum, allows the
vision system to be more flexible.
Product Main Features:
1. Wide Range of Resolution.
Resolution from VGA to 20MP.
Resolution from VGA to 20MP.
2. High Quality Sensors.
Lastest Python sensor from On-Semiconductor
Lastest Python sensor from On-Semiconductor
and SONY Pregius CMOS sensors provide high
quality images.
High frame rate ideal for high speed applications.
4. 128MB RAM.
Internal memory up to 128MB guarantees
Internal memory up to 128MB guarantees
no image loss.
5. One-cable Solutions
Gigabit Ethernet with PoE, USB 3.0.
Product Specifications
Model Name | LEO720S-313GM |
Resolution(H*V pixels) | 720*540 |
Pixel Size(μm2) | 6.9 |
Frame Rate | 340fps |
Exposure Time | 42µs~10s |
Mono/Color | Mono |
Image Foramt | Mono： Mono8/10/10p/12/12p Color： Bayer RG 8/10/10p/12/12p |
Operating Temperature | -30~80°C (Storage) 0~50°C (Working) |
Camera Dimension Drawing:
42.0 mm × 29.0 mm × 29.0 mm (65g)
Camera Interface Instruction
Applications & Cases
Major Applications:
Our camera are widely
used in the following fields:
VR/AR;
Defect Inspection;
Vision Localization;
Barcode Reading;
Logistic Industry;
Dimension Measurement;
SMT(Surface Mounted Technology).
Cases Exhibition
Case1: Penhead Defect Detection
Case2: Cap Spray-code Detection
More Model List
LEO Series GigE Area Scan Cameras | ||||||||
1. Please click the specific model name for more details. 2. gm: GigE Mono, gc: Gige Color, NIR: Near Infrared. 1/4": 1/4 inch. | ||||||||
Model Name | Resolution (H*V pixels) | Frame Rate (fps) | Sensor Size (inch) | Pixel Size (μm2) | ||||
640 × 480 | 173 | 1/4" | 4.8 | |||||
640 × 480 | 300 | 1/4" | 4.8 | |||||
640 × 480 | 200 | 1/3" | 7.4 | |||||
800 × 600 | 116 | 1/4" | 4.8 | |||||
1280 × 960 | 30 | 1/3" | 3.75 | |||||
1280 × 1024 | 90 | 1/2" | 4.8 | |||||
1280 × 1024 | 50 | 1" | 10 | |||||
1440 × 1080 | 70 | 1/2.9" | 3.45 | |||||
1920 × 1200 | 51 | 2/3" | 4.8 | |||||
1920 × 1200 | 40 | 1/1.2" | 5.86 | |||||
1920 × 1440 | 25 | 1/1.8" | 3.69 | |||||
2048 × 1536 | 38 | 1/1.8" | 3.45 | |||||
4024 × 3036 | 9.7 | 1/1.7" | 1.85 | |||||
3840 × 2748 | 7 | 1/2.3" | 1.67 | |||||
3840 × 2748 | 11.2 | 1/2.3" | 1.67 | |||||
2592 × 1944 | 14 | 1/2.5" | 2.2 | |||||
2592 × 2048 | 22 | 1" | 4.8 | |||||
2448 × 2048 | 24 | 2/3" | 3.45 | |||||
5470 × 3648 | 6 | 1" | 2.4 | |||||
3072x2048 | 17 | 1/1.8" | 2.4 | |||||
Related Products
You May Need The Following Products !
Company Profile
Hangzhou Contrastech Co.,Ltd.
As one high-tech enterprise Hangzhou Contrastech Co., Ltd. specializes in providing professional machine vision software, hardware and equipments. Contrastech has been researching and developing machine vision applications, and the major products include industrial camera, scientific standard camera, high definition frame grabber card, industrial FA lens, telecentric lens, machine vision lights and image processing software. The Engineering Dept. of Contrastech has lots of mature and successful machine vision solutions based on automatic industrial inspection, high precision measuring and module distinguishing.
Our Service
1. Any inquiries will be replied within 24 hours.
2. Professional manufacturer. Welcome to visit our website: https://contrastech.en.alibaba.com/
3.OEM/ODM available:
Please let us know your details, then we can help you to design and put it into production.
4. After-Sale Service:
1). All the products will have been strictly Quality Checked in the house before packing.
2). All the products will be well packed before shipping.
3). All our products have 1 year warranty. Free Technology Support at any time.
5. Faster delivery:
Small order in stock, and 2 to 4 weeks for large order(above 50pcs).
6. Payment:
You can pay for the order via:T/T, L/C, MonryGram and Western Union.
7.Shipping
We have strong cooperation with FedEX, DHL, UPS, TNT and ARAMEX.
You also can choose your own shipping forwarder.
3.OEM/ODM available:
Please let us know your details, then we can help you to design and put it into production.
4. After-Sale Service:
1). All the products will have been strictly Quality Checked in the house before packing.
2). All the products will be well packed before shipping.
3). All our products have 1 year warranty. Free Technology Support at any time.
5. Faster delivery:
Small order in stock, and 2 to 4 weeks for large order(above 50pcs).
6. Payment:
You can pay for the order via:T/T, L/C, MonryGram and Western Union.
7.Shipping
We have strong cooperation with FedEX, DHL, UPS, TNT and ARAMEX.
You also can choose your own shipping forwarder.
Похожие товары

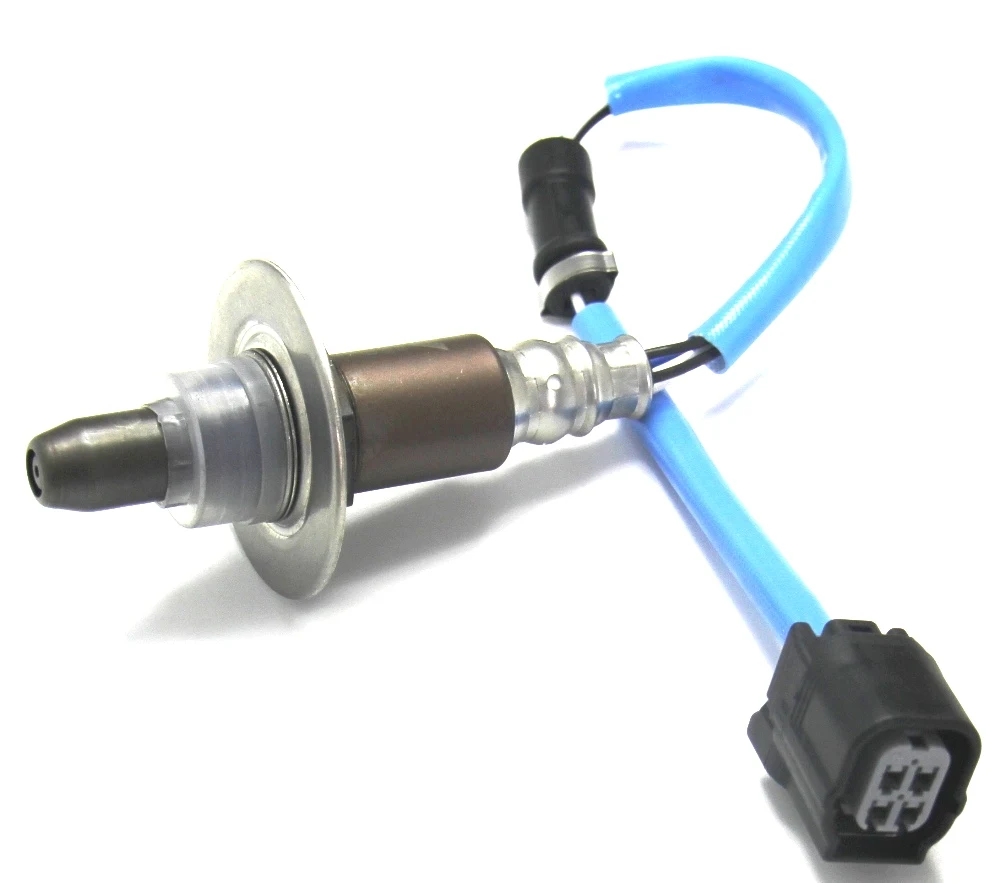

Для subaru forester sg5 m-10 растворенного экранированный разъем для кислородный датчик обнаружения arduino 0 258 006 для daihatsu 2002
7,73 $ - 9,14 $

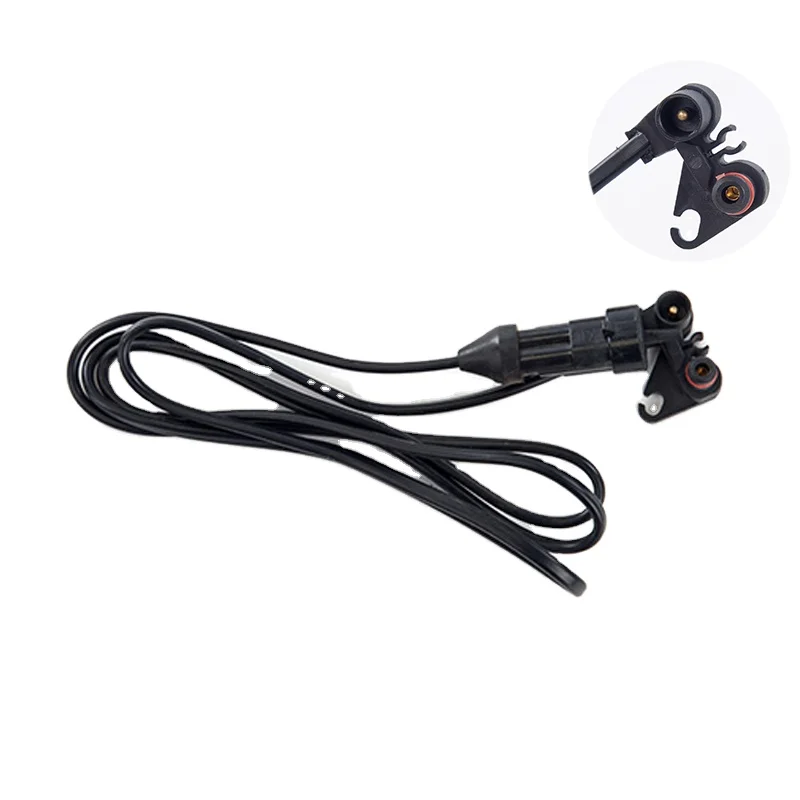

Износа тормозных колодок сенсор OE 12182091/5001216437/5001823000/50018340755001/848363/для IVECO MAN
2,30 $ - 2,50 $

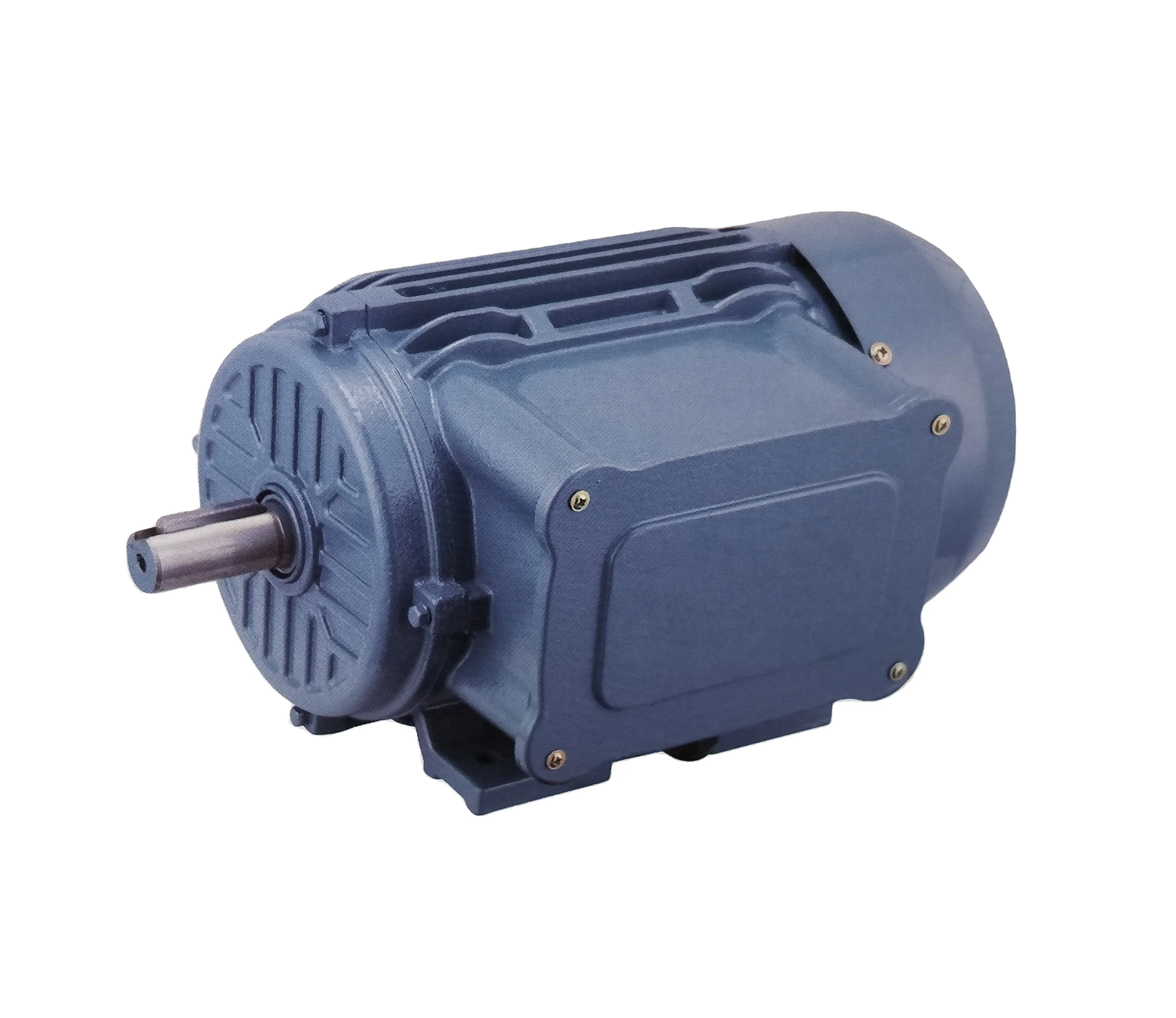

KINGNEW YCS серии YCS90S-4 асинхронный двигатель 0.75KW Защищённая от попадания капель моторный накопитель переменного тока 1HP трехфазный двигатель
45,00 $ - 50,00 $
Новый товар от производителя, Черный винтажный подвесной светильник из джутовой пеньковой веревки
1,35 $ - 1,45 $

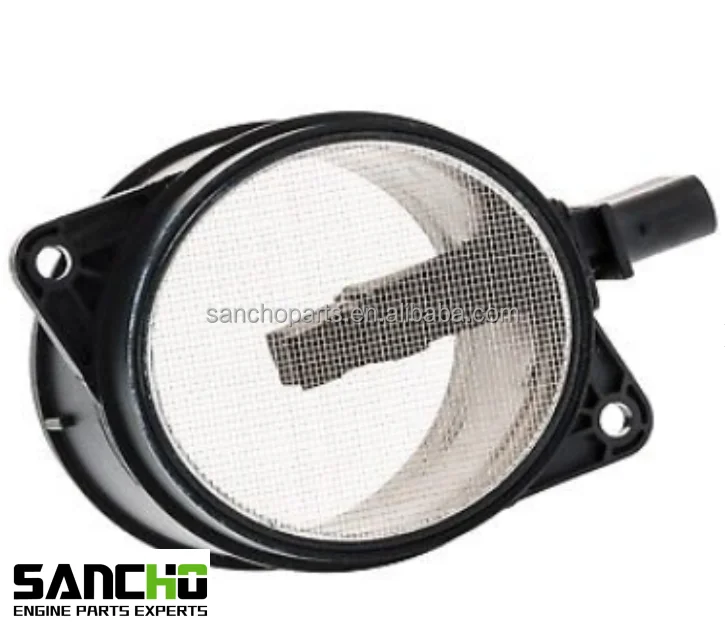

8509725 Датчик массового расхода воздуха MAF подходит для 7793633 7805415 13628509725 13622247074 0281002849 для BMW
Новый датчик расхода воздуха для Golf 1999-2005 0280218017 071906461B

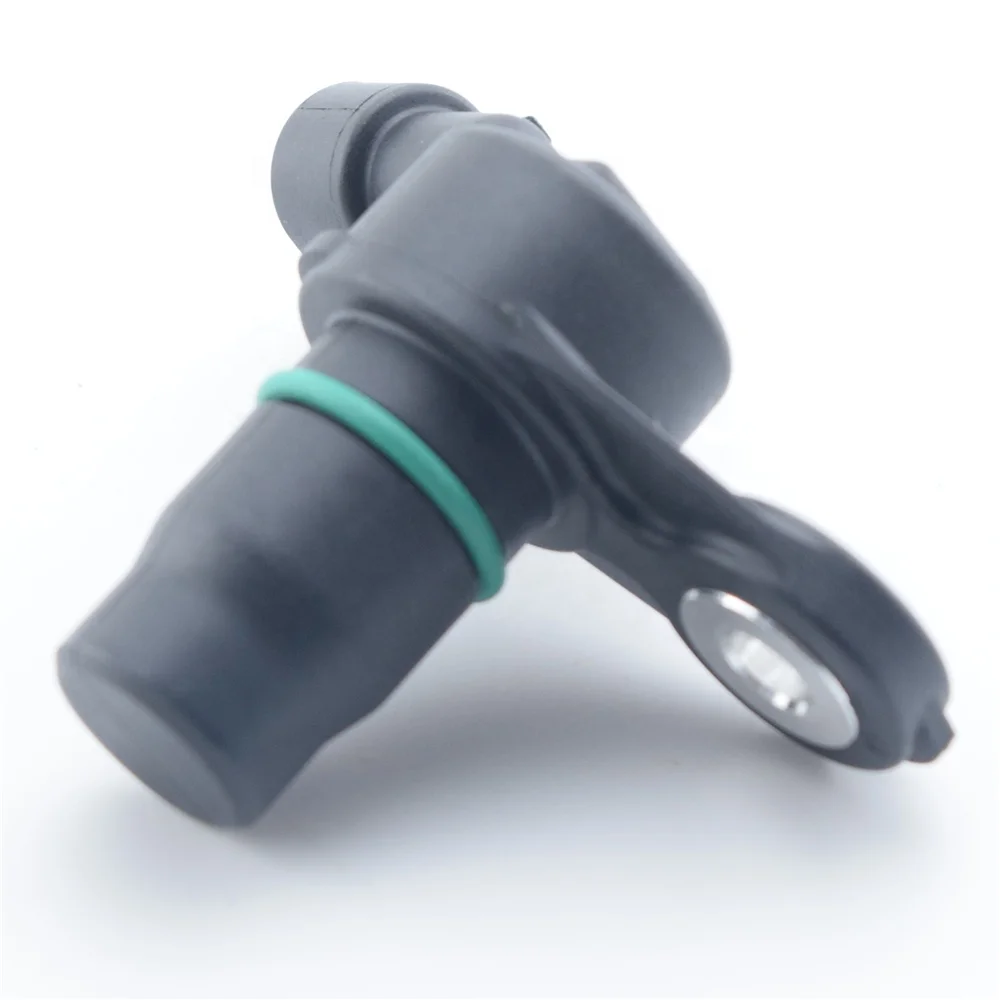

LBS-03161 CAMSHAFT POSITION SENSOR OE 12568715 12571266 12584079 24576400 8125840790 8125687150 8125712660 FOR CHEVROLET BUICK
