Воздушный компрессор водяная установка для бурения под разными

Сохранить в закладки 1600173025765:


Цена:80 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Product Description

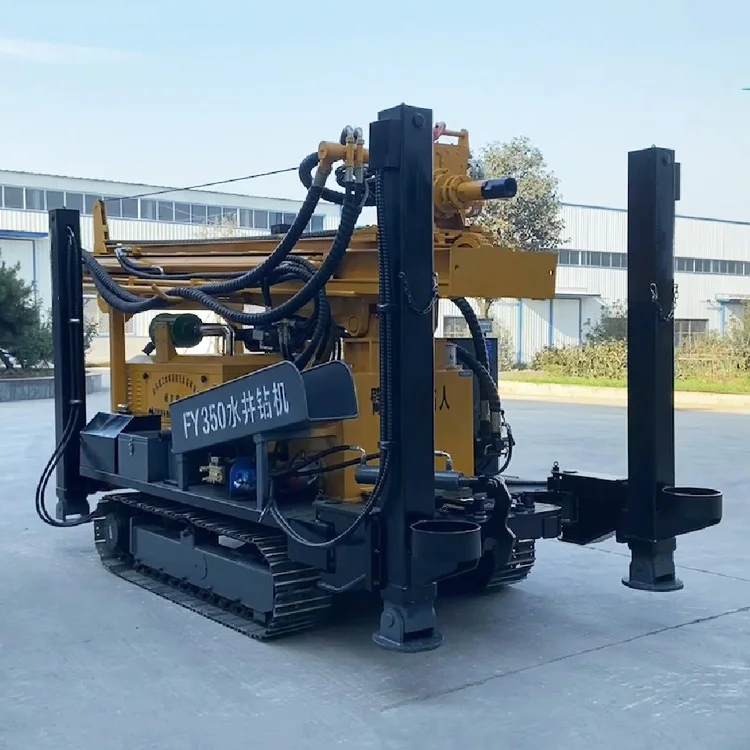

air compressor hammer water drill rigair compressor hammer water drill rig








1. The drilling rig hydraulic transmission of the rig effectively utilizes the power. This makes the overall power loss small and the drilling cost low.200m 300m 400m 500m 600m depth Truck crawler portable compressor DTH water well drilling rig


2. The drill rig has more positive speed stages and 14-500r / min speed range, and the output torque is 13428-250N.m.

3. The drilling rig has 2 reverse speeds, which is convenient for handling accidents.

4. The air compressor drilling rig adopts a long-stroke double-speed mechanism, a mechanical
power head, and a power head stroke of 3400MM to improve drilling efficiency and reduce the occurrence of plugging and burning accidents.


5. The water well drilling rig rig uses dual oil pumps for oil supply. A single pump is used for drilling, and a double pump is used for confluence when lifting. The power loss is small and the auxiliary time is short.

6. The drilling rig machine has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.


7. The crawler water drilling rig machine chassis is adopted, and the trip of the outrigger cylinder can be automatically loaded for 1.5m, which is convenient for relocation and transportation.


8. The drill rig reserves some functional interfaces in the hydraulic system, and can expand the functions according to the technological requirements of different users.

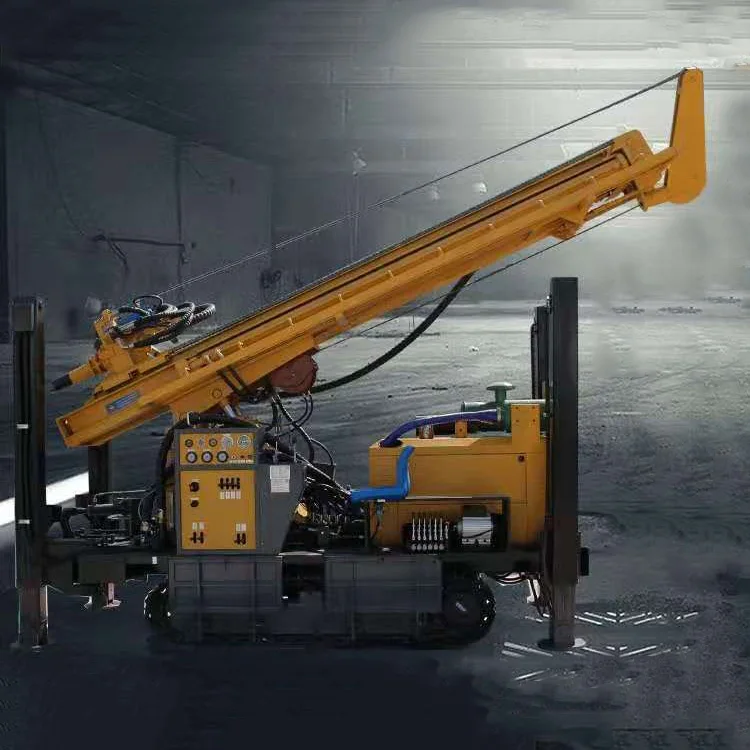

air compressor hammer water drill rig







































































The Weight(T)


5.8T


Dimensions(mm)


4110*1750*2450


The hole diameter(mm)


140-305mm


Drilling Depth(m)


200meters


Once-time advance length(mm)


3000/6000mm


Walking speed(Km/h)


2.5KM/H


Climbing angles(Max.)


30


Minimum clearance clearance(mm)


230


Using air pressure(Mpa)


1.7-3.3


Air consumption(m³/min)


17-31


Equipped capacitor(Kw)


92


Swing speed(rpm)


45-70


Swing torque(N.m)


3500-4800


Drill pipe diameter(mm)


Φ76 Φ89 Φ102


Drill pipe length(m)


1.5   2.0   3.0  6.0


Rig lifting force(T)


30

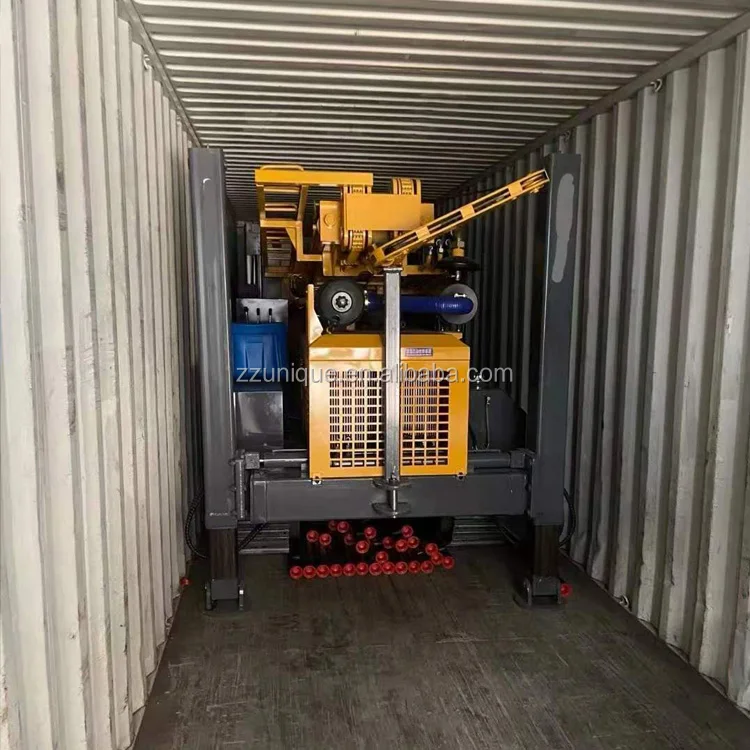

Packaging & Shipping

 air compressor hammer water drill rigair compressor hammer water drill rigair compressor hammer water drill rig


Product Application

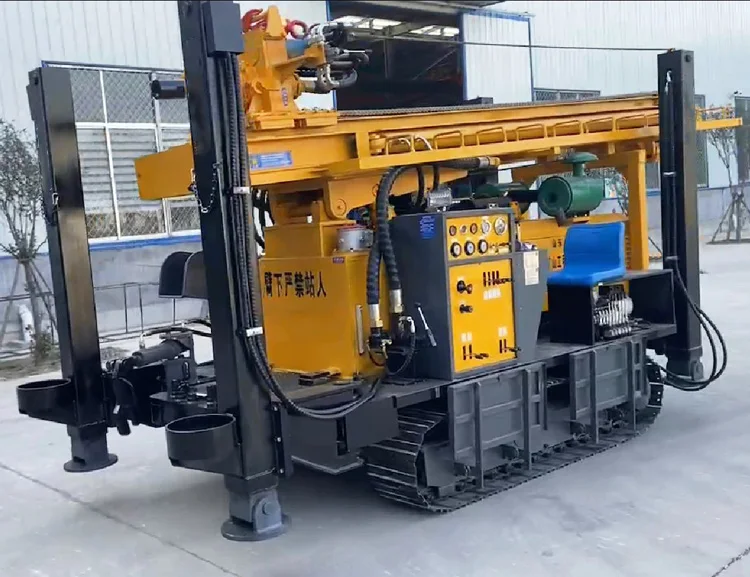

 air compressor hammer water drill rig






Company Information

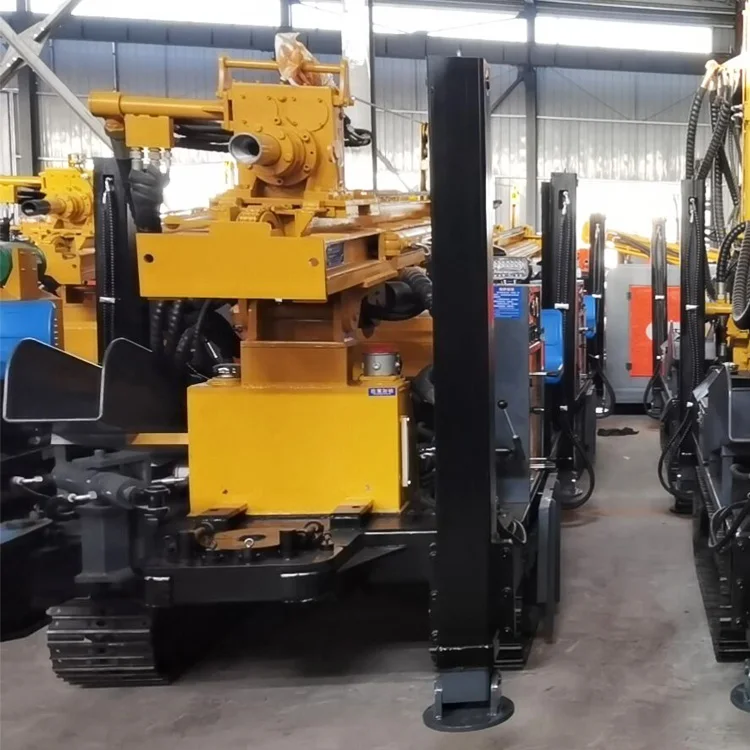

 air compressor hammer water drill rigair compressor hammer water drill rig
