Product Overview
Automatic Tomato Fruit Paste Washing Crushing Milling Making Machine
Tomato Paste Washing Making Machine is the star product of Shanghai Chase Machinery, Serving worldwide tomato processing factory better and improving food processing technology by manufacturing a wide range of tomato processing line in Kunshan.
We are making available fully domestic made machinery and lines designed according the most modern technology. Complete production line for tomato processing, to obtain tomato paste, tomato sauce, tomato ketchup and drinkable tomato juice.
We are making available fully domestic made machinery and lines designed according the most modern technology. Complete production line for tomato processing, to obtain tomato paste, tomato sauce, tomato ketchup and drinkable tomato juice.
We design, manufacture and supply complete Tomato Washing Machine including:
– Receiving, Washing and Sorting System
– Crushing and Refining System

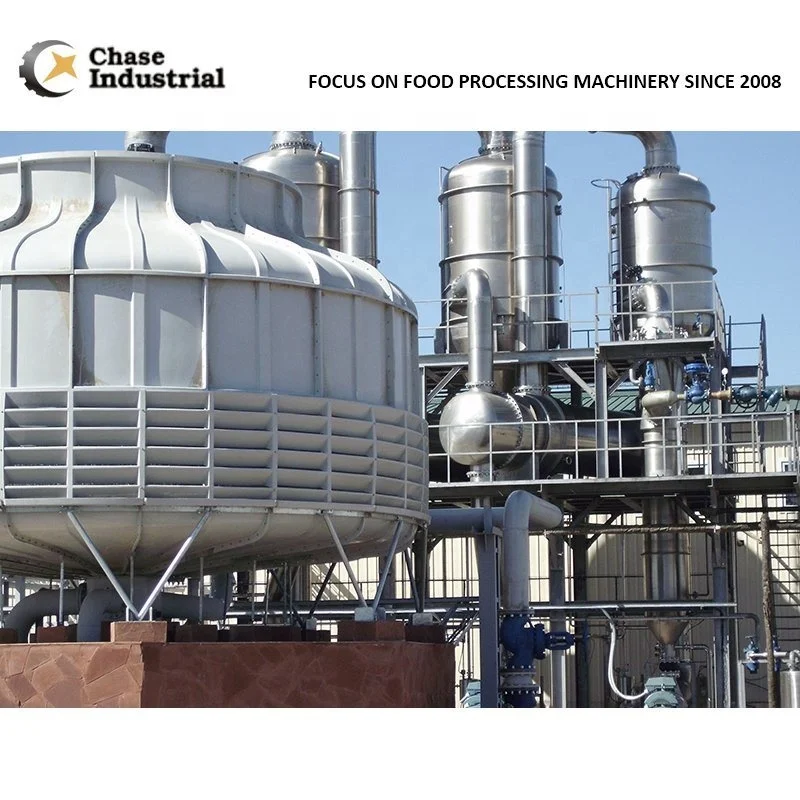

– Forced Circulation Continuous Evaporation System
– UHT Sterilizing and Aseptic Filling System
– Ketchup and Sauce Production System
– CIP Plant Cleaning System
– Receiving, Washing and Sorting System
– Crushing and Refining System
– Forced Circulation Continuous Evaporation System
– UHT Sterilizing and Aseptic Filling System
– Ketchup and Sauce Production System
– CIP Plant Cleaning System
Main Features of Tomato Paste Making Machine:
1. Customization: 20 Tons/D - 1500 Tons/D available.
2. Advanced technology guarantees high output rate, High Juice Yield: Up to 97%.
3. Low temperature evaporation resulting improved quality of products.
4. Energy-saving design, low energy consumption, environmental protection.
5. All accessories from world famous brand, high stability and low failure rate
2. Advanced technology guarantees high output rate, High Juice Yield: Up to 97%.
3. Low temperature evaporation resulting improved quality of products.
4. Energy-saving design, low energy consumption, environmental protection.
5. All accessories from world famous brand, high stability and low failure rate
Production Process
Tomato Processing Line
Tomato Washing Machine
Receiving and Elevating
1. It is advisable to install cement pools in the plant, which provides the processing line with a constant flow of raw material.
2. Fresh and ripe tomatoes cannot be stored for over 24 hours at temperature of over 30°c.
3. Chain and plate elevators are normally used for tomatoes elevating, which do little harm to tomatoes. The elevators are
equipped with sprayers, letting the tomatoes be re-washed during the processing of elevating.
4. Motors are equipped with stainless steel protective shield, which keep the motors from rain and snow in outdoor.
2. Fresh and ripe tomatoes cannot be stored for over 24 hours at temperature of over 30°c.
3. Chain and plate elevators are normally used for tomatoes elevating, which do little harm to tomatoes. The elevators are
equipped with sprayers, letting the tomatoes be re-washed during the processing of elevating.
4. Motors are equipped with stainless steel protective shield, which keep the motors from rain and snow in outdoor.

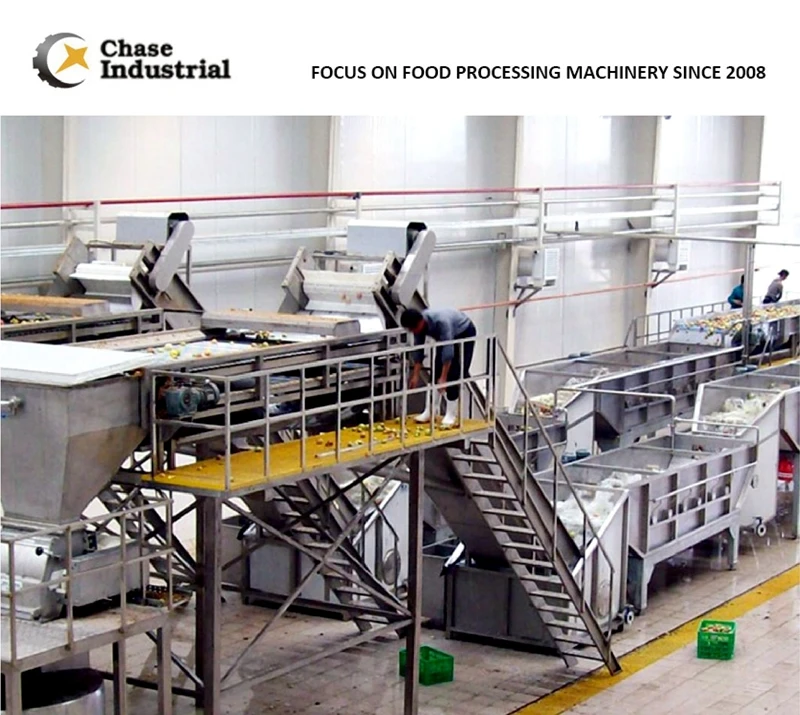

Washing and Sorting
1. Bubble washing machine/floating washing machine washes the tomatoes by floating water, which comes from bubble generator quipped at the bottom of the machine. There is no damage brought by bubble washing while the tomatoes are thorough washed.
2. Waste and sand sink to the bottom and are discharged by our special design.
3. Rolling bar design & speed adjustable.
4. The machine is equipped with waste conveying system, sending the waste directly to tank.
2. Waste and sand sink to the bottom and are discharged by our special design.
3. Rolling bar design & speed adjustable.
4. The machine is equipped with waste conveying system, sending the waste directly to tank.
Tomato Crushing Machine
Tomato Paste UHT Machine
Refining and Evaporating
1. Rotated speed can go as 1470r/min, which generates large centrifugal force and helps increase the juice yield.
2. Every blade goes through dynamic balance test, with the feature of lower noise and smoother operation.
3. Forced circulation evaporator: Continuous concentration under vacuum and low temperature.
2. Every blade goes through dynamic balance test, with the feature of lower noise and smoother operation.
3. Forced circulation evaporator: Continuous concentration under vacuum and low temperature.
Tomato Paste Aseptic Filling
Tomato Sauce Filling and Sealing Machine

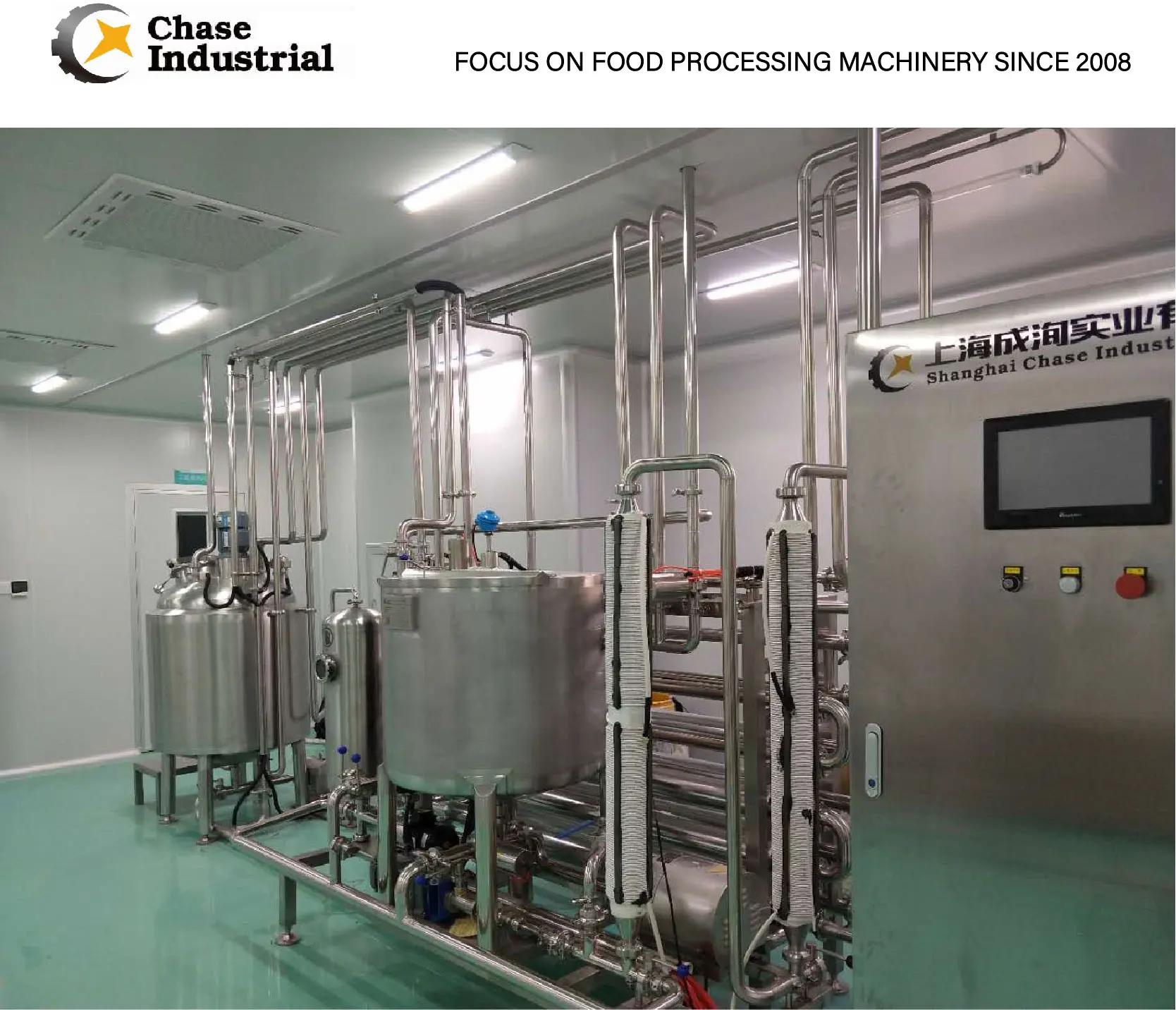

Sterilizing and Aseptic Filling and Sealing Packing
1. Tube-in-tube sterilizer, which contains heating, sterilizing and cooking section is mainly compose of tube in tube
heating-exchanger and feeding pump.
2. Four layers. Auto backtrack of no enough sterilized.
3. Mainly composed of aseptic filling head (single/double), operation system, computer controlling system, weight measurer, operation, platform, and etc.
4. Package forms can be various kinds as customers request.
heating-exchanger and feeding pump.
2. Four layers. Auto backtrack of no enough sterilized.
3. Mainly composed of aseptic filling head (single/double), operation system, computer controlling system, weight measurer, operation, platform, and etc.
4. Package forms can be various kinds as customers request.
Automatic Tomato Fruit Paste Washing Crushing Milling Making Machine | ||||||||||||||||
Processing Capacity (Fresh Fruit) | 60 | 150 | 250 | 500 | 750 | 1000 | 1250 | 1500 | ||||||||
Water Consumption (t/h) | 7 | 13 | 22 | 44 | 66 | 88 | 110 | 132 | ||||||||
Power (kw) | 84 | 152 | 412 | 636 | 955 | 1292 | 1411 | 1558 | ||||||||
Steam Consumption (t/h) | 1.7 | 3.9 | 5.2 | 9.1 | 15.1 | 20.2 | 24.6 | 29.2 | ||||||||
Compressed Air Consumption (t/h) | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 | ||||||||
Cooling Water Consumption (t/h) | 125 | 317 | 407 | 585 | 825 | 1075 | 1410 | 1630 | ||||||||
Company Profile
Shanghai Chase Industrial Co., Ltd | Kunshan Sundelong Machinery Equipment Co., Ltd.
Our factory was established in 2008 and is a professional manufacturer of fruit and vegetable processing equipment with nearly 15 years of experience. We focusing on the design and production of food crushing, destoning, pulping, sterilizing, asseptic filling equipment and a full set of solutions, and provide clients with customized
consultation, design, manufacturing, after-sales service and one-stop turnkey project. We have provided fruit and vegetable processing equipment for many branded companies and foreign trade companies, and have won high praise and long-term cooperation from customers.
consultation, design, manufacturing, after-sales service and one-stop turnkey project. We have provided fruit and vegetable processing equipment for many branded companies and foreign trade companies, and have won high praise and long-term cooperation from customers.
Until 2016, our factory Kunshan Sundelong Machinery Equipment Co., Ltd established its own brand: Shanghai Chase Industrial Co., Ltd, and began to promote the equipment we produced to the world as a brand. In recent years, we have obtained more than 40 patented technologies and qualification certificates, and the scale of the company has continued to expand.
In 2020, we expanded our business to food processing equipment, upgraded fruit and vegetable processing equipment and applied it to the processing of different types of food.
I believe that with our sincere communication, professional services and stable equipment, we and you can become long-term partners and move forward together.
Our Team
Our CEO graduated from a world-renowned university with an MBA degree. Our managers and engineers are industry practitioners for more than 10 years and have rich experience.
Our sales staff have good professional knowledge and service awareness, and will fully communicate with customers and provide professional advice
Most of our technicians are experienced practitioners in the industry, and the team leader is a company practitioner who has more than 5 years of experience.
Customers | Exhibitions | Cases
WELCOME TO VISIT US
Our Office is in Shanghai, China
Our self-owned factory is located in Kunshan, Jiangsu Province
30 minutes from Shanghai Hongqiao Airport (SHA)
1.5 hours from Shanghai Pudong Airport (PVG)
200+ PROJECTS GLOBALLY
EXPORTED TO 30+ COUNTRIES
Certifications | Suppliers
40+ PATENTS ACQUIRED
CE CERTIFICATES ACQUIRED
IOS9001 ACQUIRED
GOOD ACCESSORIES PROMISE GOOD QUALITY
WHEN PURCHASING ACCESSORIES
WE ONLY COOPERATED WITH FACTORY OR 1-CLASS AGENTS DIRECTLY
Transport | Installation | Payment
1. Package?
Under normal circumstances, the unit equipment is packed in wooden boxes by LCL sea, and the whole line is directly packed in containers and carried by FCL sea. If you have special requirements, you can let us know.
2. how can we guarantee quality?
We provide remote factory inspection, on-site factory inspection, factory acceptance check, one-year free after-sales service and lifetime after-sales service.
3. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,French
Under normal circumstances, the unit equipment is packed in wooden boxes by LCL sea, and the whole line is directly packed in containers and carried by FCL sea. If you have special requirements, you can let us know.
2. how can we guarantee quality?
We provide remote factory inspection, on-site factory inspection, factory acceptance check, one-year free after-sales service and lifetime after-sales service.
3. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,French
Похожие товары
EL серии 500kw stamford тип синхронный генератор, генератор 50kw, генератор переменного тока
Внешний nvme pcie ssd m2 2280 128 ГБ 500 120 480 ГБ 1 ТБ ssd m.2 мобильный жесткий диск для ноутбука, настольного компьютера

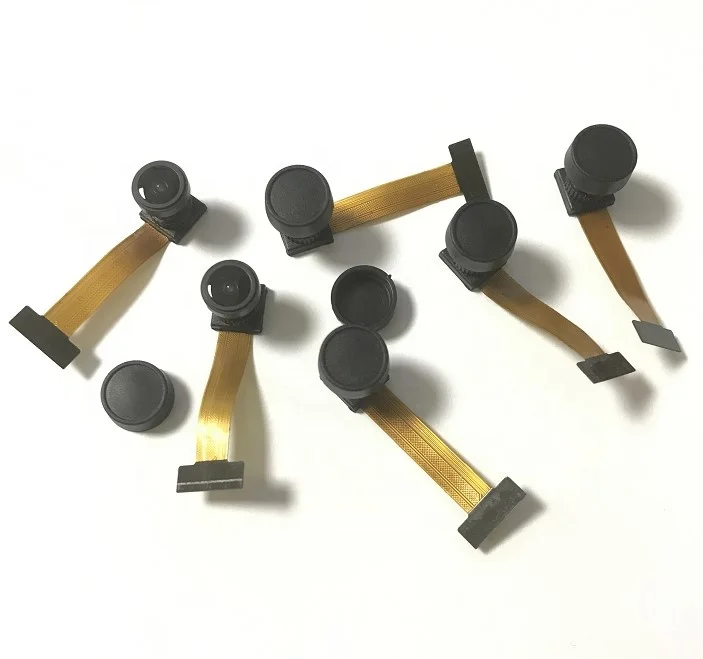

OV2640 110 - 120 градусов 4 см fpc кабель модуль камеры
2,99 $ - 3,85 $

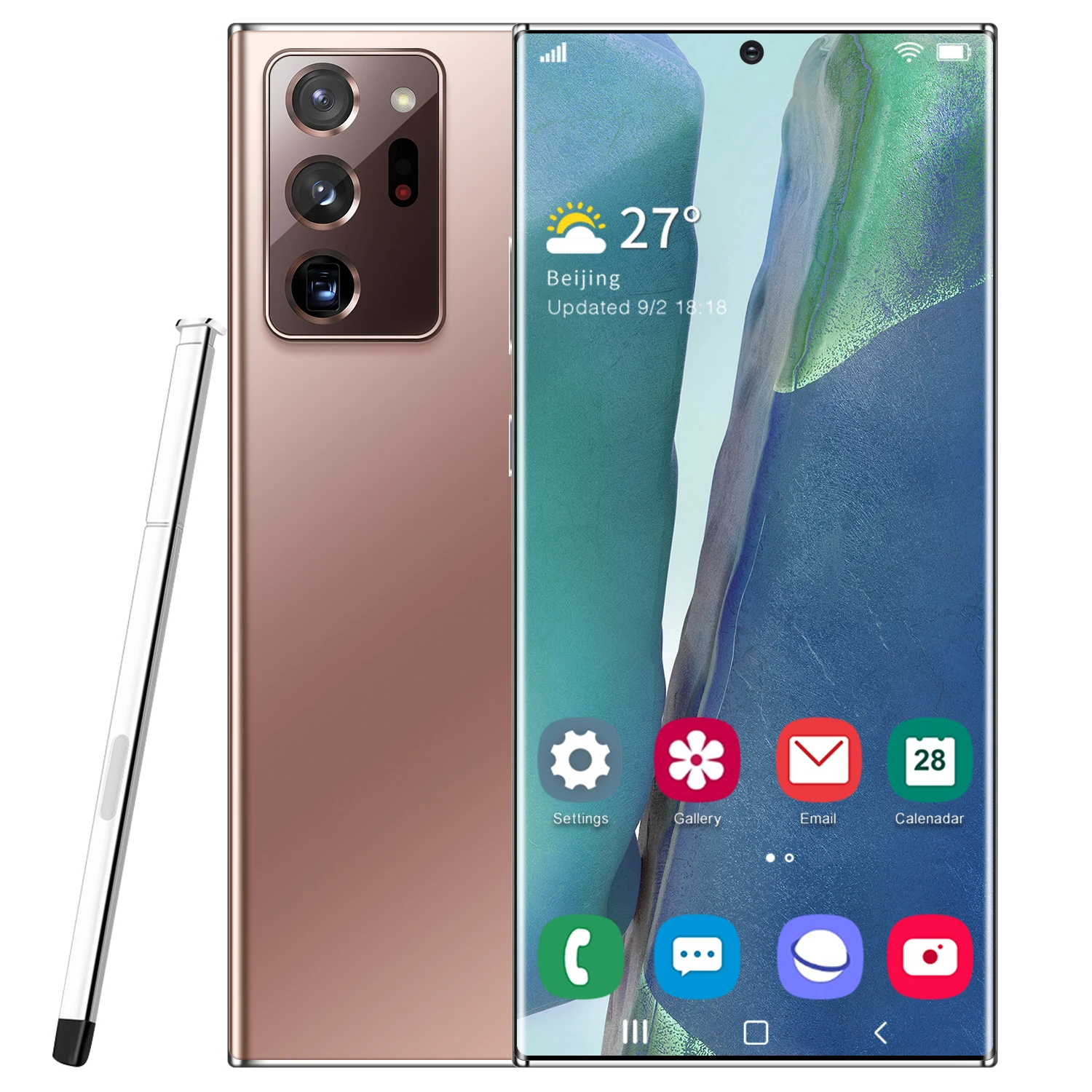

Новый стиль 2021 года, оригинальный смартфон Note20U + 12 Гб + 512 ГБ, HD-экран 6,9 дюйма, Android 9,1, камера 13 МП + 32 МП, смартфон
