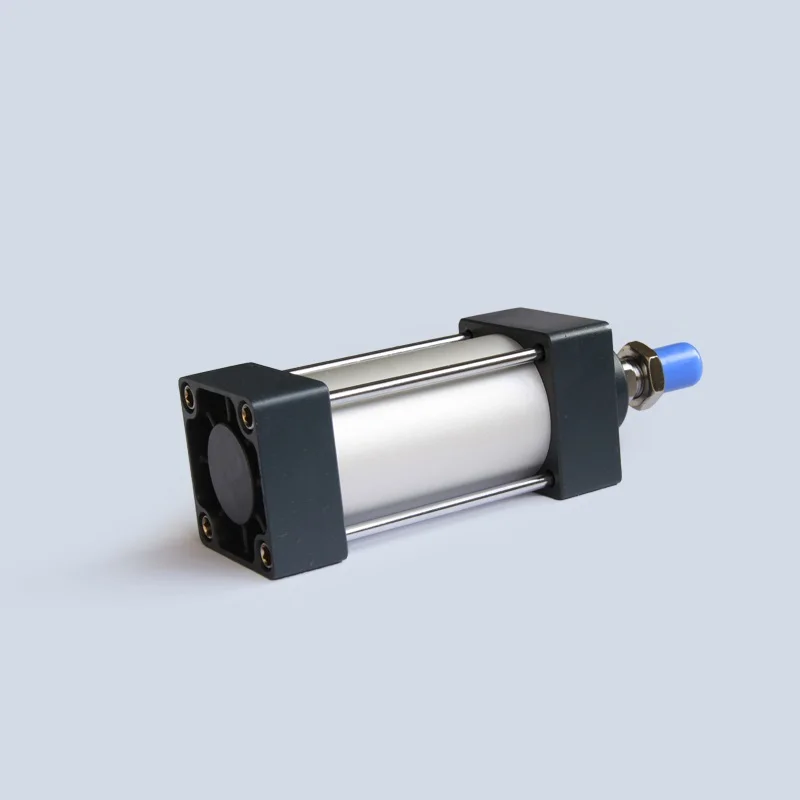

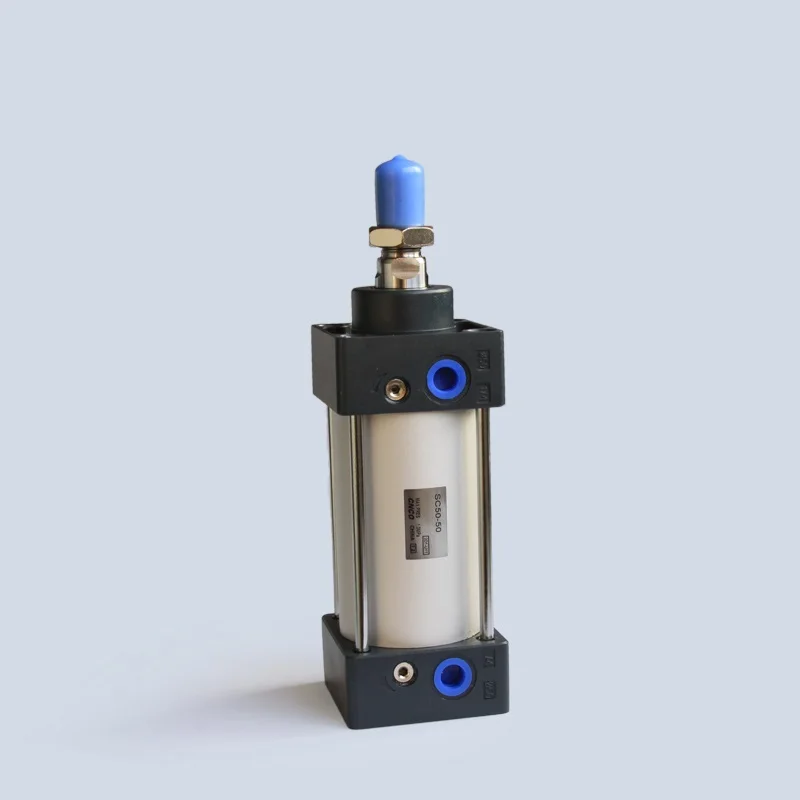

Пневматический цилиндр двойного действия sc50x50 мм AIRTAC
- Категория: >>>
- Поставщик: Shanghai Chenwei Trading Co. Ltd.
Сохранить в закладки 1600175961977:
Описание и отзывы
Характеристики
SC50x50mm AIRTAC Type Double Action Pneumatic Air Cylinder
Features:
1).Normal bore size from 32mm to 200mm,bigger size from 250mm to 400mm can also be provided.
2).Provided with adjustable cushion on both cylinder end covers to make sure cylinder works smoothly,safely and with low noise.
3).Spray painted cylinder head and internal hard anodized cylinder body.
4).With self lubricating bearing,the piston rod is lubrication free.
5).Magnet and sufficient fixing style are available.
6).Precision grinding piston rod,cylinder parts were processed by high precision CNC machine and good seals to guarantee good action and long lifetime.
7).Double ends SCD,stroke adjustable SCJ and tow –stage SCT can also be supplied.
How to Order:
Specification:
| Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| Port Size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT2/1 | PT1/2 | PT3/4 | PT3/4 |
| Action | Double Action | ||||||||
| Working Fluid | Filtered Compressed Air | ||||||||
| Working Pressure | 0.1-0.9MPa | ||||||||
| Proof Pressure | 1.5MPa | ||||||||
| Working Temperature | 0-60 °C | ||||||||
| Cushion | Adjustable Cushion | ||||||||
| Working Speed | 50-800mm/s | 50-500mm/s | |||||||
| Cushion Stroke | 24 mm | 32 mm | |||||||
| Mounting Type | FA FB CA CB LB TC TC-M & Basic Type | ||||||||
Standard Stroke:
| Bore(mm) | Standard stroke | Max. stroke | Permit. stroke |
| 32 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 | 1000 | 2000 |
| 40 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 | 1200 | 2000 |
| 50 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1200 | 2000 |
| 63 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 80 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 100 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
125 | 26 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 160 | 27 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 200 | 28 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
Main Material:
| No | Description | Material |
| 01 | Cylinder Tube | Aluminium Alloy |
| 02 | Piston | Aluminium Alloy |
| 03 | Piston Rod | High Carbon Steel(Chrome Plated With Attrition Treatment) |
| 04 | Front Cover | Aluminium Alloy |
| 05 | End Cover | Aluminium Alloy |
| 06 | Front Cover Seal | NBR |
| 07 | Piston Seal | NBR |
| 08 | Cover Gasket | NBR |
| 09 | Piston Rod O-ring | NBR |
| 10 | Cushion Gasket | NBR |
| 11 | Bush | Oil Impregnated Powder Copper |
Shippment
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
5:Customize according to your special demand.
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
Похожие товары

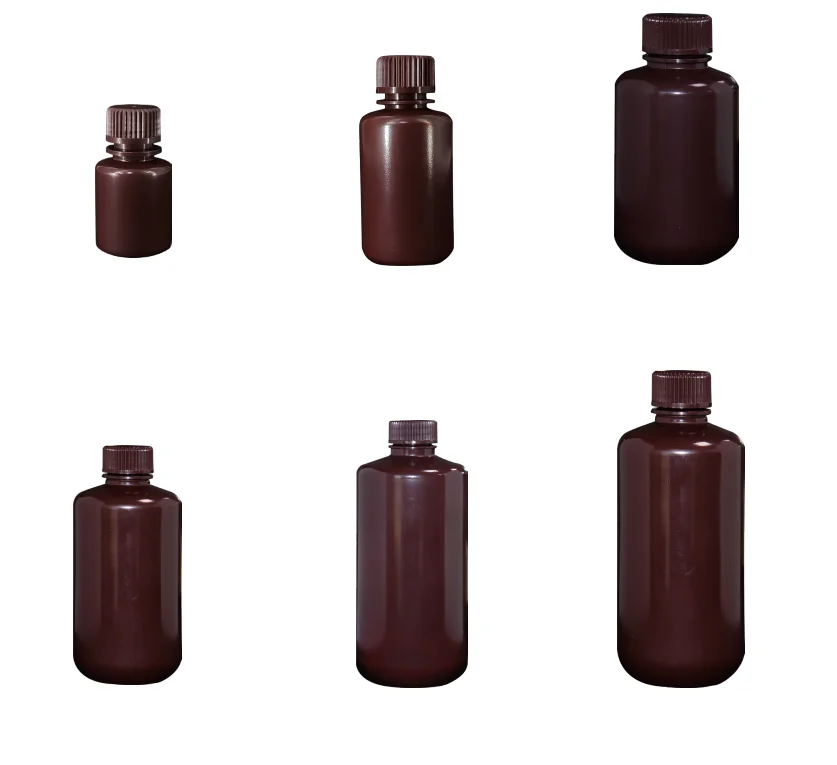

Лидер продаж 8 мл 15 30 60 125 250 500 1000 пластиковые полипропиленовые лабораторные флаконы с широким

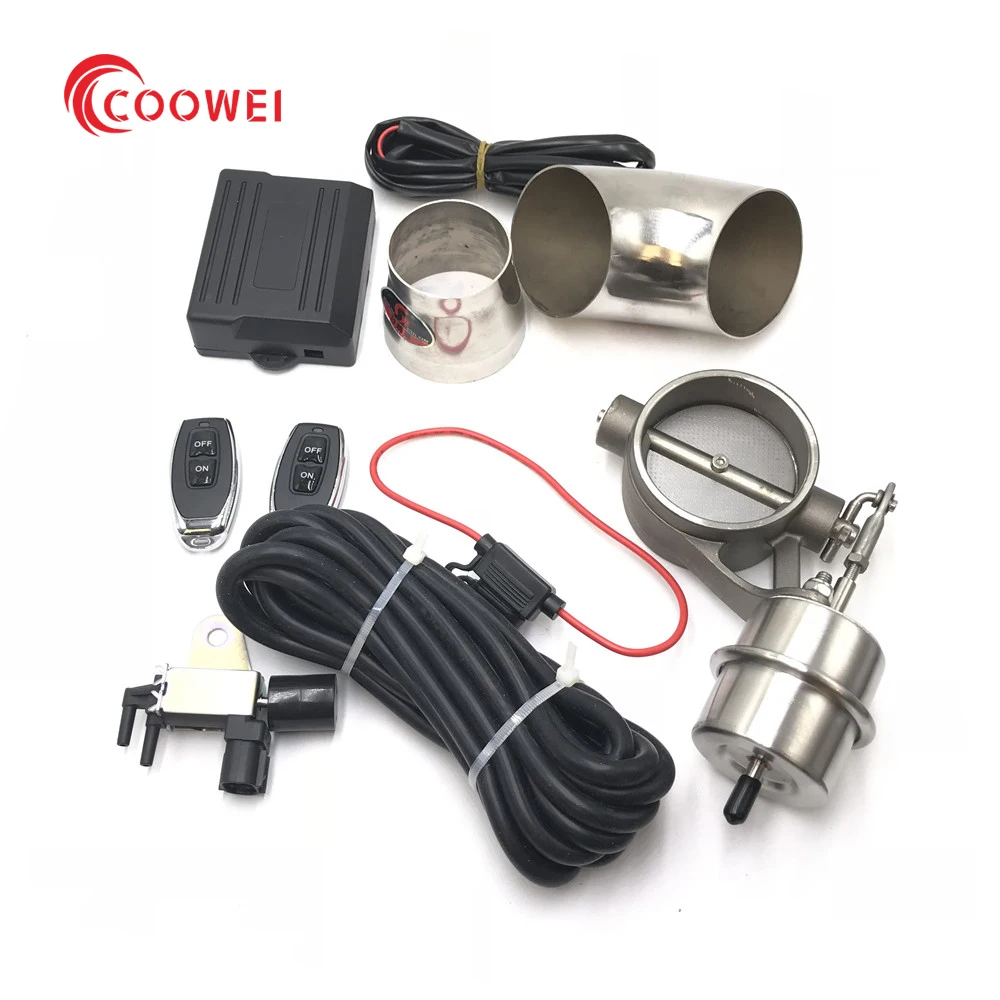

Вакуумный выпускной клапан вырез клапан 2,5 'дюйма общая клапан выхлопной трубы автомобильный отходящий газ модификации наборы для ухода за кожей
27,00 $ - 35,00 $

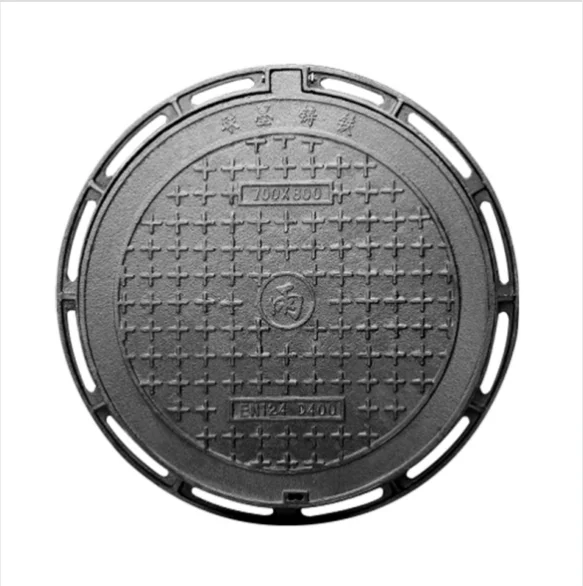

Заводская цена, круглая крышка люка, литой дождевой воды, крышка люка из ковкого чугуна

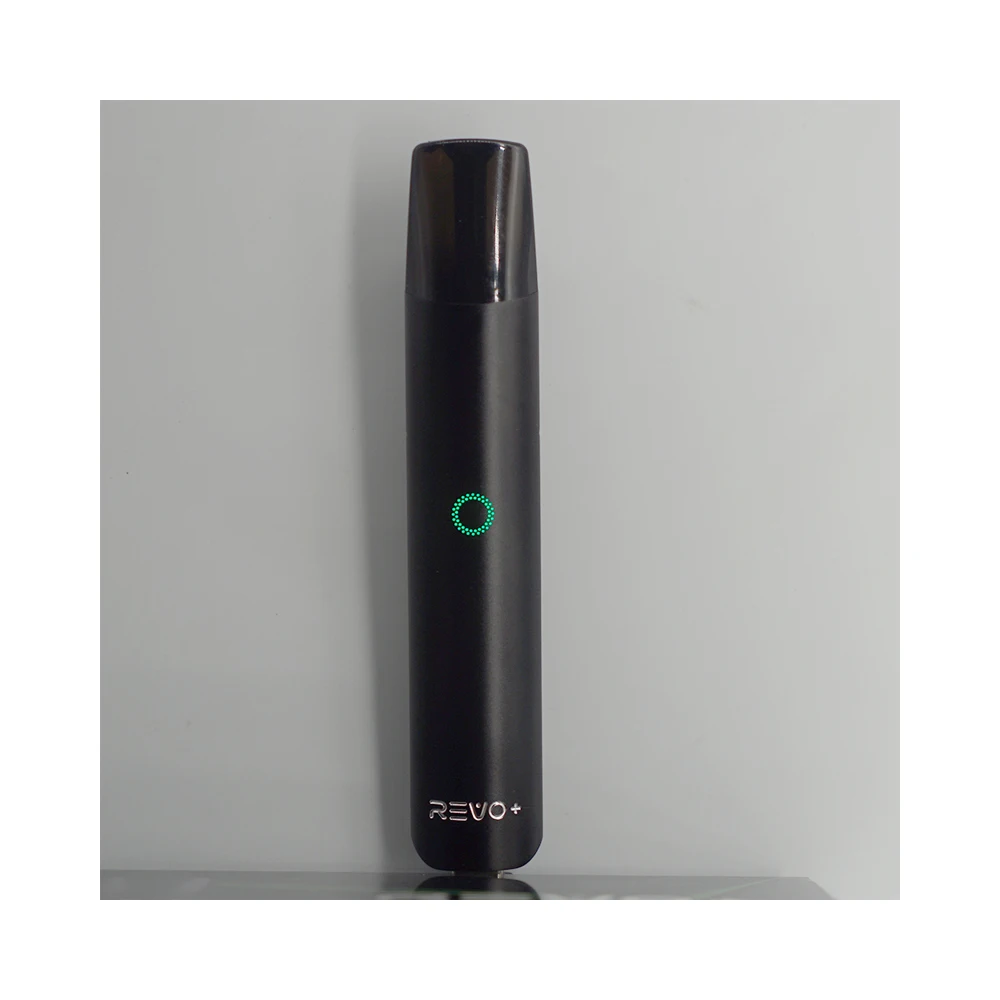

Производитель тщательно производит набор перезаряжаемых электронных сигарет
25,00 $

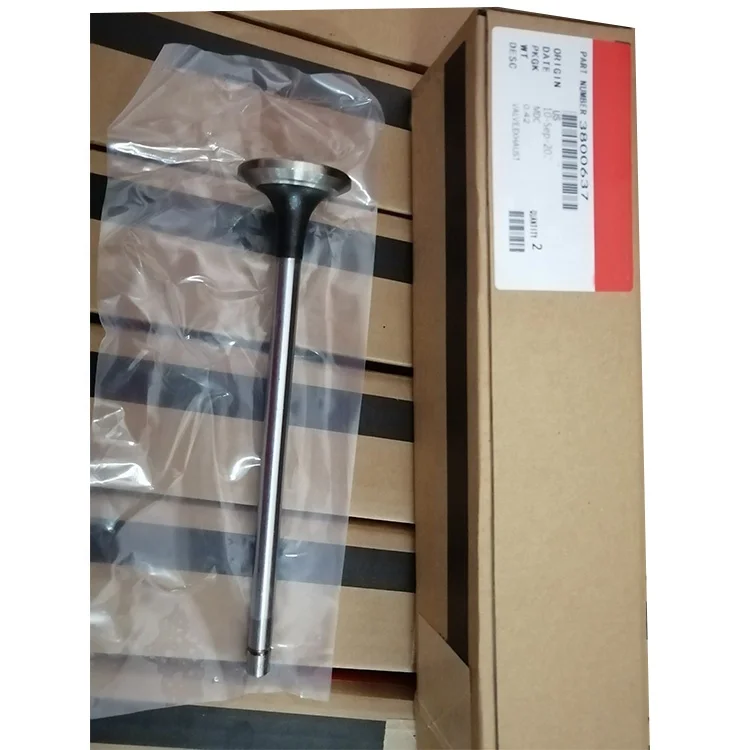

Запасные части для двигателя Xcec m11 qsm11 3417779 3800637 Выхлопной Клапан

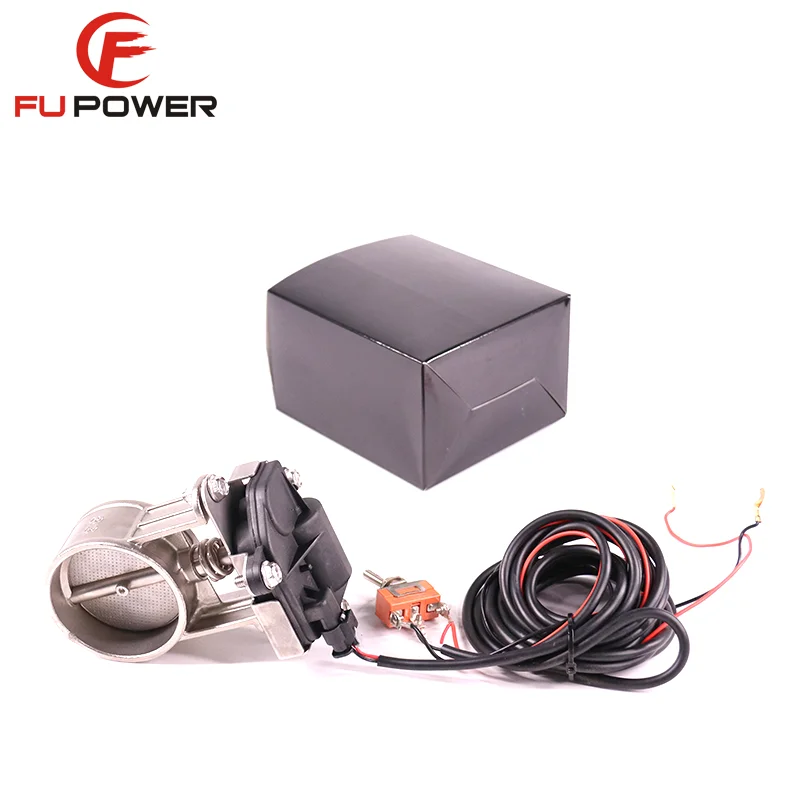

63,5/70/76/89/102 мм титановый выпускной клапан вырезанный клапан/Электрический Выпускной клапан с дистанционным управлением
75,00 $ - 85,00 $

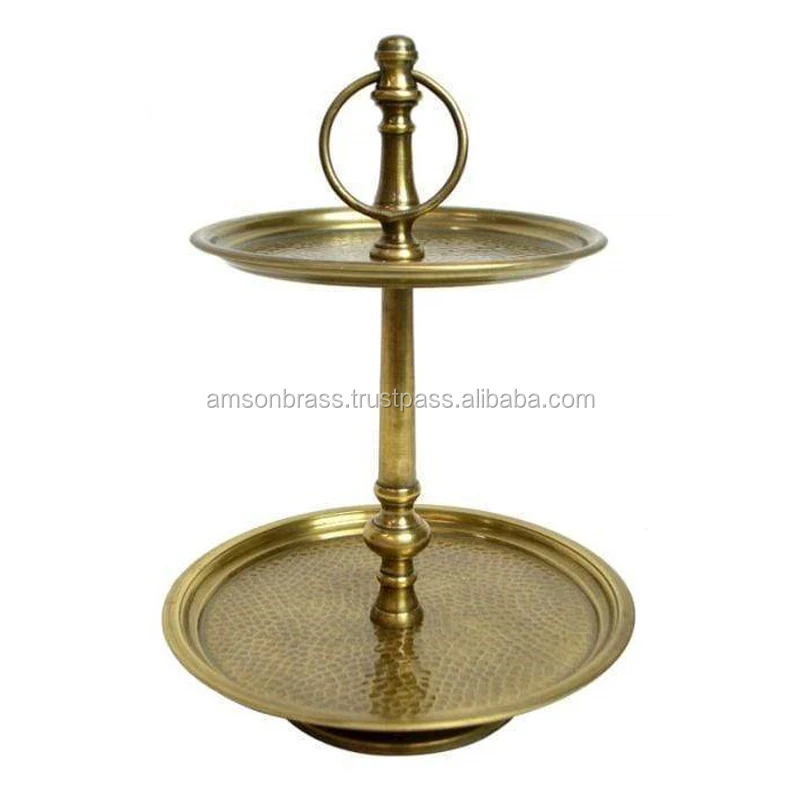

Подставка для торта с высоким уровнем подачи чая старинная Двухуровневая подставка из молотковой латуни кондитерских
