DHZ270 Disc Centrifuge Separator
Phone/Whatsapp/Wechat: +86 15140990256
Product Description
Main Features: It can realize liquid-solid separation. This machine has better separation. It can be operated manually or automatically or remotely with PLC control to timer the process of working and solid discharge to save lots of labour work. It is simple in structure and easy in maintenance.
Main Purposes: This machine is widely used for many industries, such as dairy, beverage, pharmacy, chemicals, petrol, metallurgy and biology, etc.
Structure and Principle: The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentate on the bowl's wall and then will be discharged through nozzle out of the sediment outlet.
Main Purposes: This machine is widely used for many industries, such as dairy, beverage, pharmacy, chemicals, petrol, metallurgy and biology, etc.
Structure and Principle: The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentate on the bowl's wall and then will be discharged through nozzle out of the sediment outlet.
Drawing
Technical parameter
Model | DHC220 | DHC/Z/N270 | DHC/Z/N360 | DHC/Z/N470 | DHC/Z/N550 |
Diameter (mm) | 220 | 270 | 360 | 470 | 550 |
Motor(kw) | 4 | 4 | 7.5 | 15 | 22 |
Gross weight (kg) | 580 | 600 | 1000 | 1720 | 2500 |

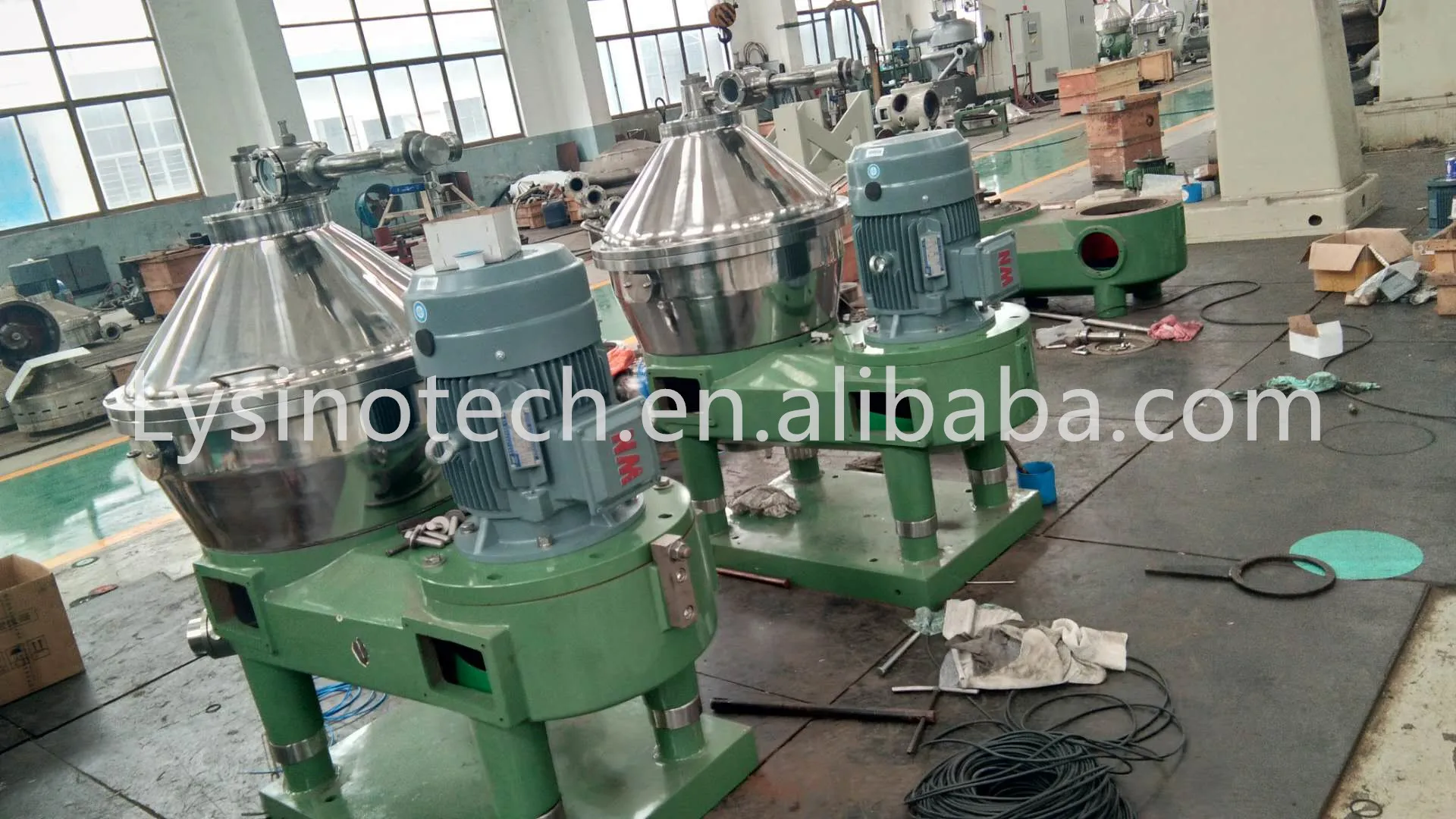

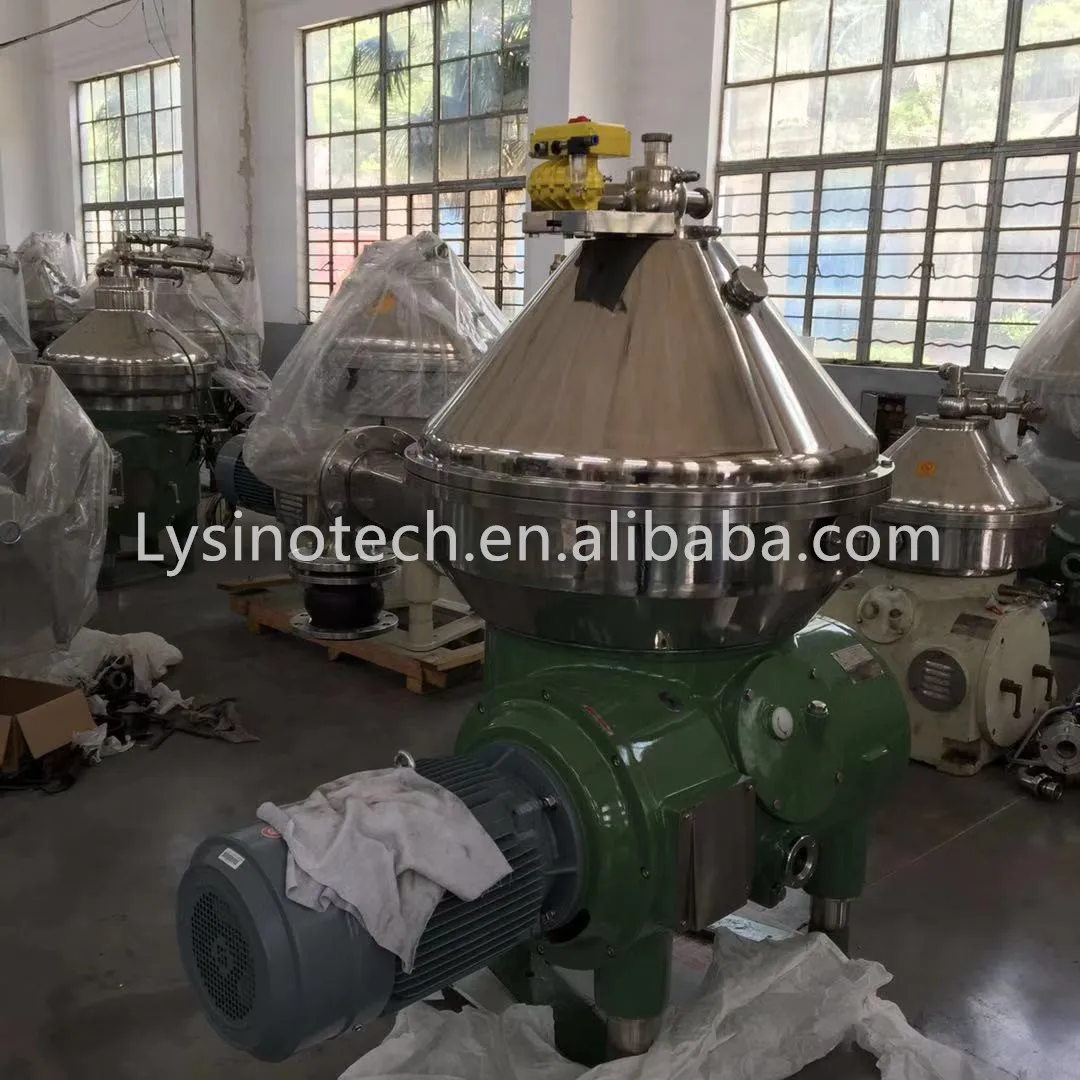

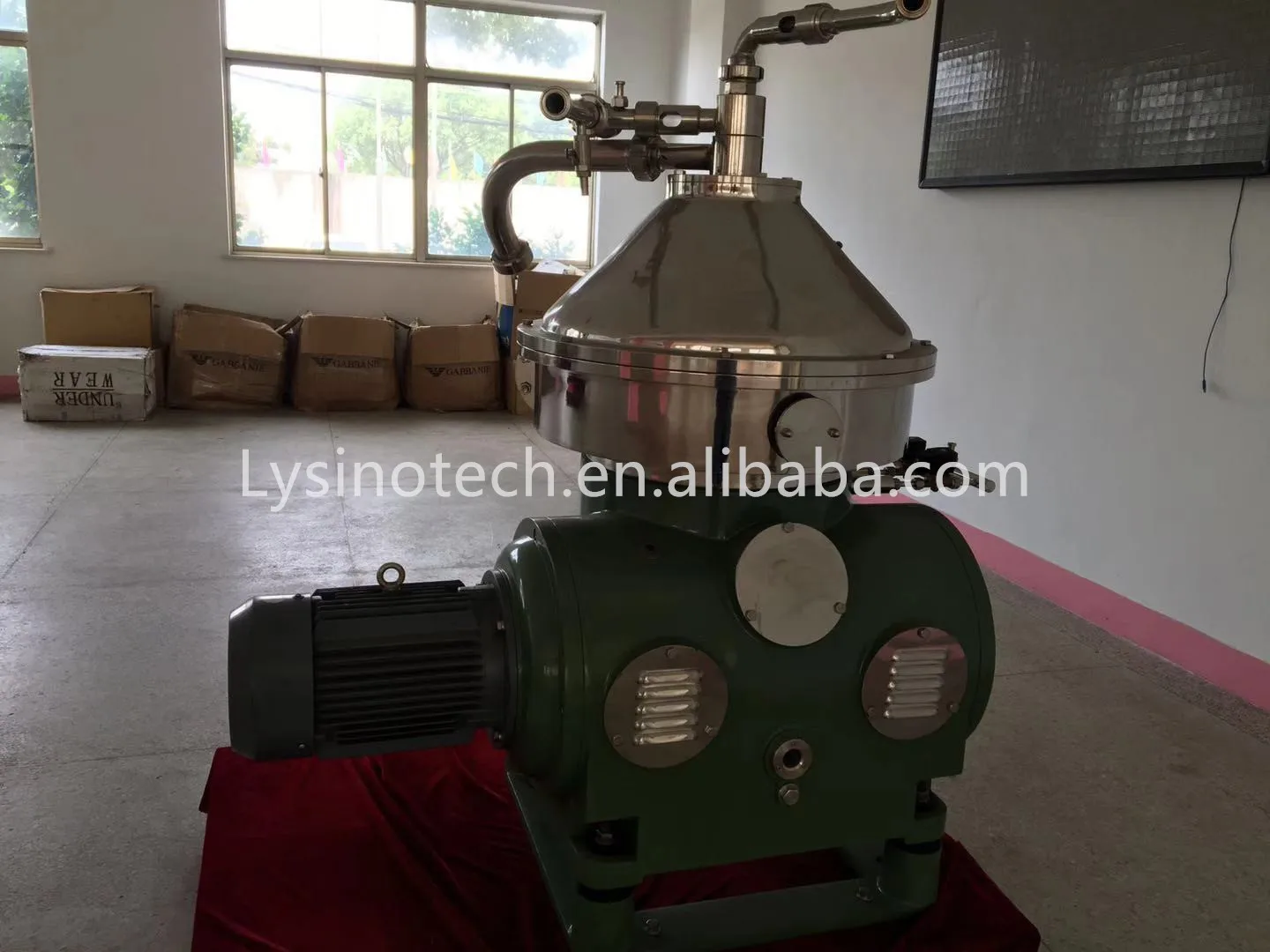

Detail images
Packing
Certifications
Our company
Sinotech Technology Devepment Co.,Ltd, We are the professional manufacturer of pharmaceutical machinery, separation equipment, food machinery, Liquid Filling Machine and packing machine. specializing in provide with the whole set of technology and equipment. we have professional technology team to design, research and development for customer according to customer’s requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our main area are the food and pharmacy project. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries.
Похожие товары
Оптовая продажа, Бесшовный шарф-труба с сублимационной печатью
Высококачественная витрина для ювелирных изделий, витрина для ювелирных изделий из нержавеющей стали
Тип орешков кешью, используемый в хлебобулочных изделиях и молочных кешью

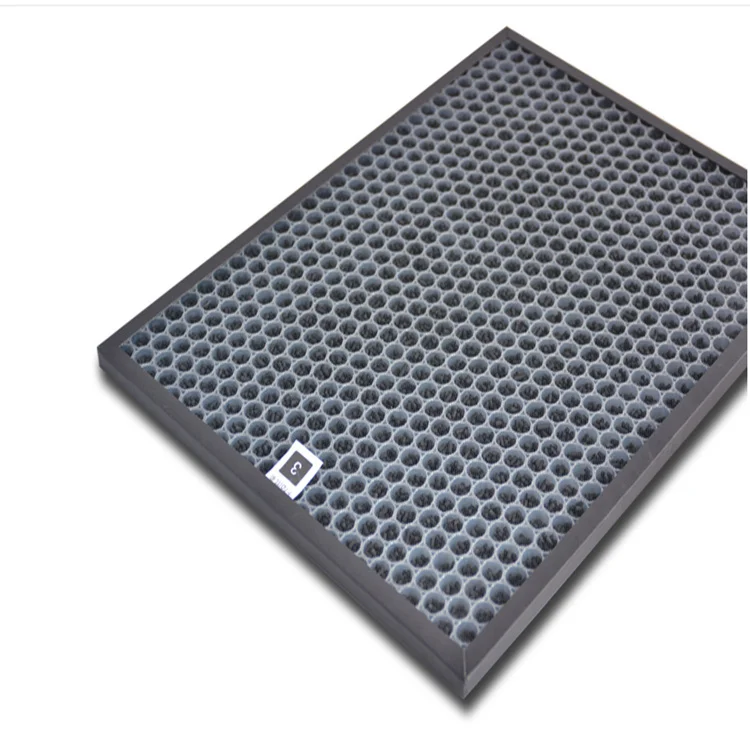

Замена фильтра HEPA для очистителя воздуха с активированным углем
Хорошие органические Ванильные бобы Мадагаскарские высшего качества для гурманов

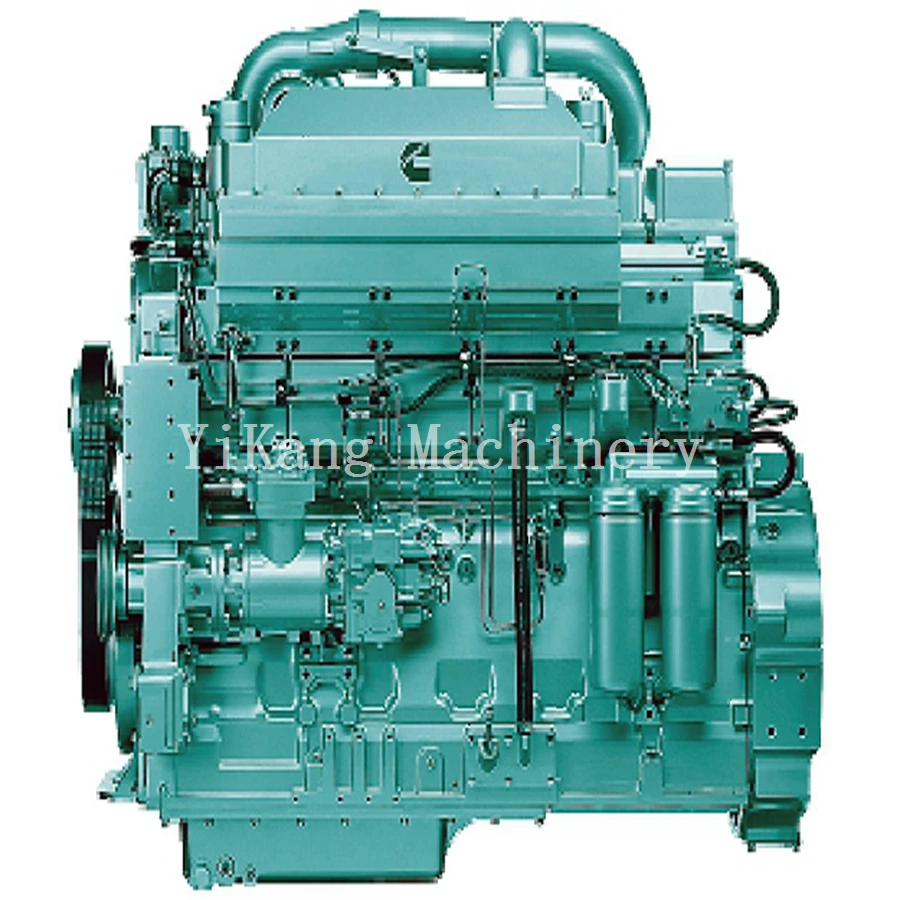

Dcec дизельный двигатель Cummins KTTA19-C700 для Belaz самосвал

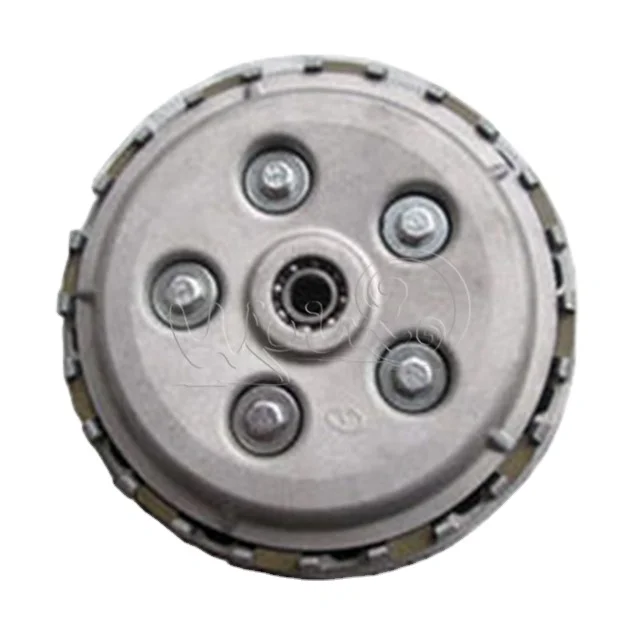

Motorcycle 650NK Clutch assembly 0700-050000
