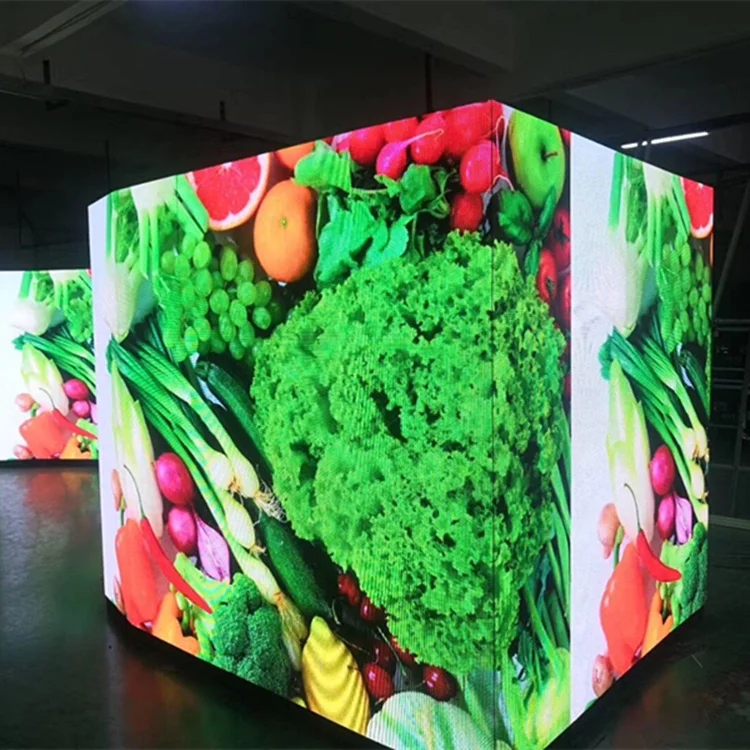

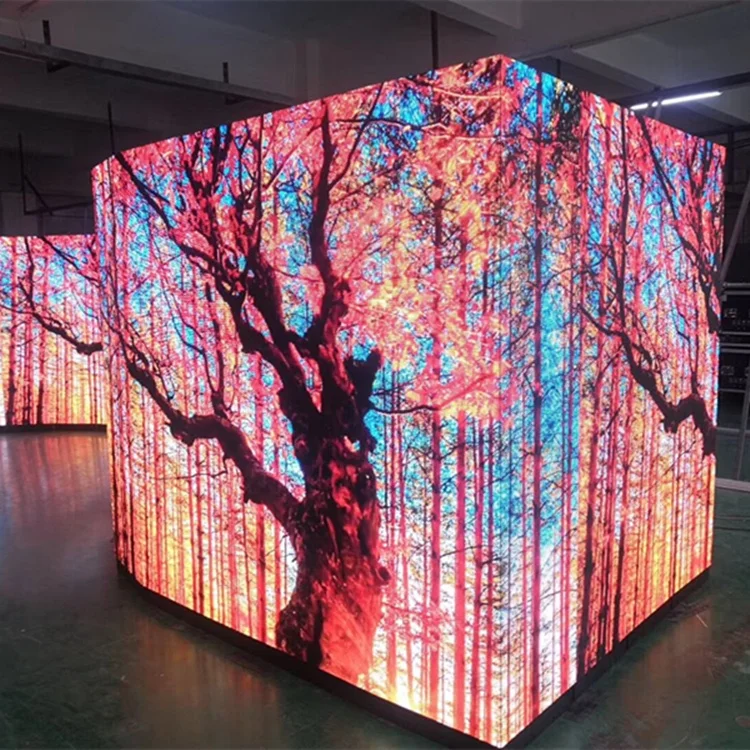

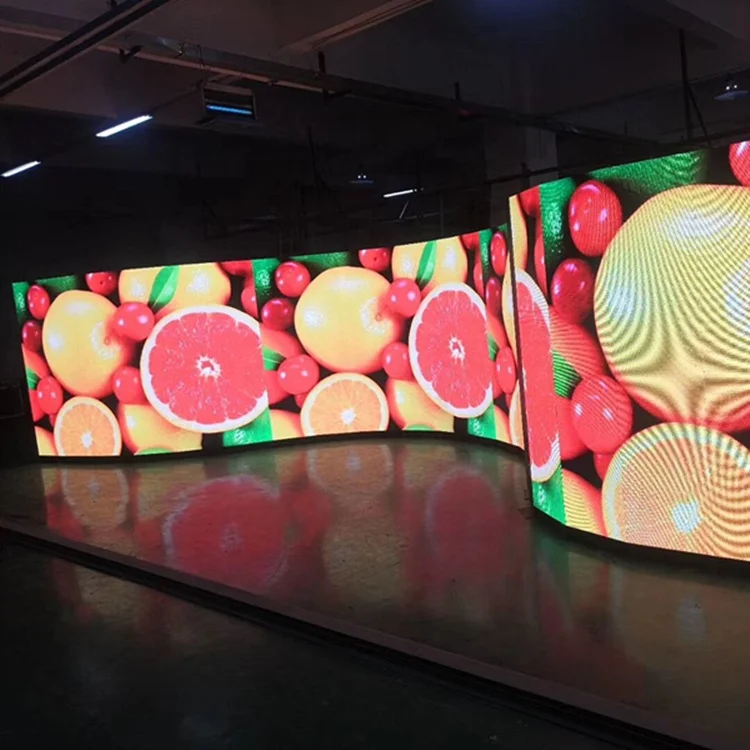

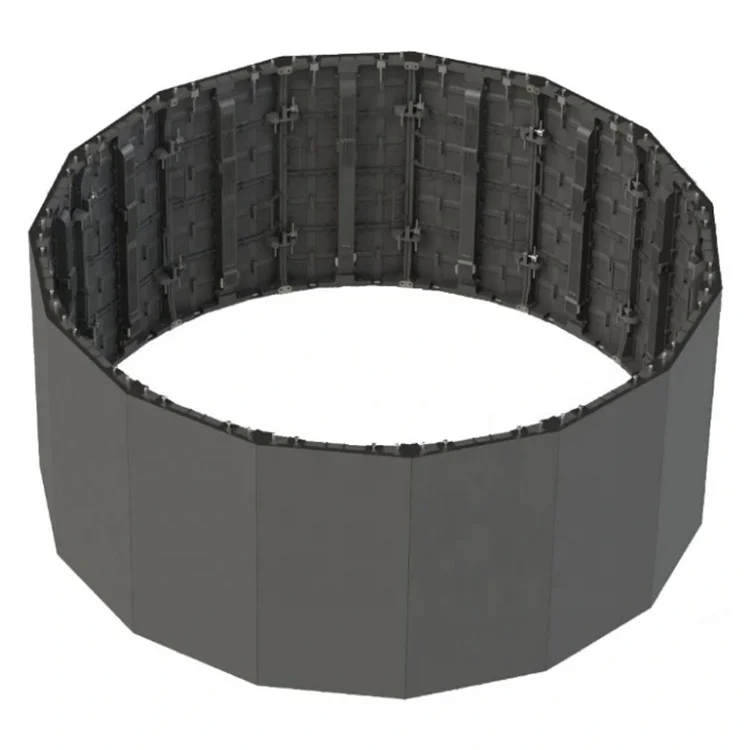

2021 Factory Manufacturer Directly Curve Advertising Video Wall Full Color Round Led Screen
Product Feature:
1. Vertical arrangement for LED chips, no color difference when looking from the left and the right;
2. Random dismantling, convenient maintenance;
3. Ghost-free image;
4. Signal and power double backup for module interfaces
Highlights:
1. Exclusive black matte technology for module masks improves the screen contrast a lot.
2.Cabinets are die-casted with high-strength aluminum alloy, which makes cabinets enjoy light weight, strong bearing capacity and high outline precision.
3. ICs driven by constant current with pre-charge function can remove ghost image and make pictures clear without trailing.
4. Double backup for module signal interfaces can supplement another signal when pins of an interface break.
5. Double backup for module power interfaces can make the display not be affected when pins of input power break.

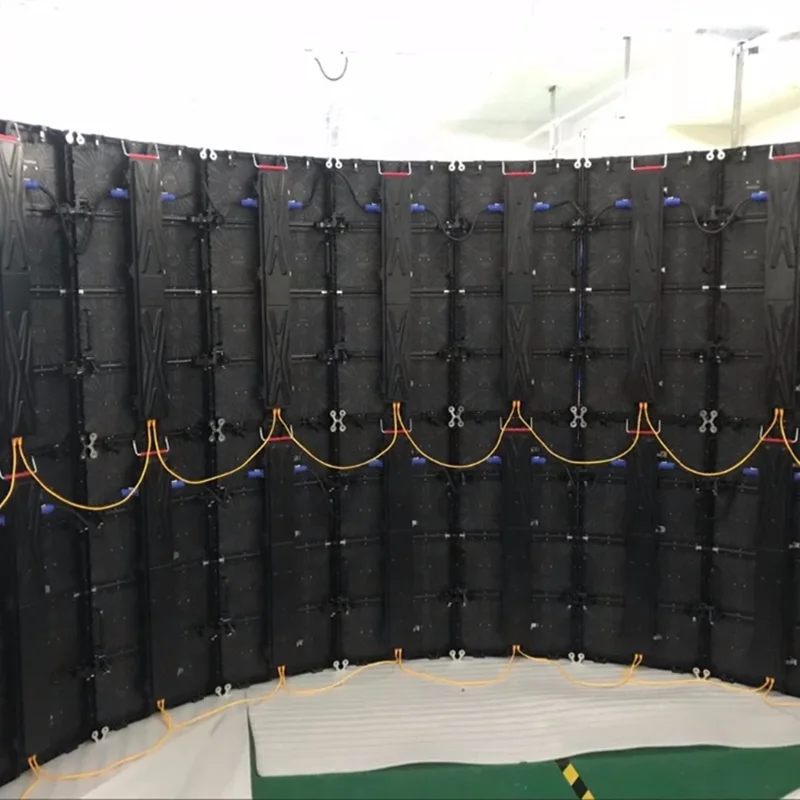

6. Modular structure design and convenient lock design make any cabinet be taken from any part of the screen easily.
Product Description
| module | Item | Parameter |
| Model Number | Chipstar P3.91 | |
| Module size | 250mm*250mm | |
| Pixel pitch | 3.91mm | |
| Pixels Density | 65536dots/m2 | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD2727 | |
| Max Power | 35W | |
| Weight | 0.65kg | |
| module resolutions | 64*64dot | |
| Drive type | Constant drive | |
| Scan mode | 1/16scan | |
| Port type | HUB75 | |
| Brightness of white balance | ≥1500cd/m2 | |
| LED Cabinet | Dimension | 500mm*500mm |
| Monomer Module Number | 4 | |
| Power supply | 5V/40A | |
| Thermal discharge | fan | |
| Pixel per cabinet | 128*128 | |
| Best viewing distance | 5M~20M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature | storage:-35ºC~+85ºC | |
| Relative humidity | working:-20ºC~+50ºC | |
| Thickness | 10%-95% | |
| Power | Working voltage | AC110~220V±10% |
| Average Power consumption | 170W/m2 | |
| Max.Power consumption | ≤60W/m2 | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| Life time | 100000hours | |
| Power switch | Automatic switch |
Checking
Application:
1. Advertising LED display screen
LED display can perfect combine text, pictures, video. Commercial advertising.
2. Stadium LED display screen
In stadium to live show, video play, slow motion playback, specific lens display, sports score information presentation.
Use in football field led screen fence, basketball stadium center screen, and screens in swimming stadium, Athletics stadium.
3.Transportation LED display screen
Widely use in the busy streets of city or on the highway.
Screens display weather, traffic regulations, to remind drivers to drive safely.
4. Stage rental LED display screen
Easily installed, removed and transport.
Widely used in stage show, concert, theater, party, and other entertainment event as background.
Case
Hot Selling
Packaging & Shipping
Packaging and Shipment
Product is packed by carton, wooden case or flight cases.
Shipping Method:by Express (DHL/FEDEX/UP etc) to your door
by ocean (cheap method) to sea port
by air to airport
Pls give name of airport and sea port if you want to ship by air or by sea.
Our Services
Feedback
1. We rely on our product quality and customer satisfaction to succeed. Therefore, your feedback is extremely important, please leave good feedback if you get satisfied with our goods and service.
2. We care about our valued customers, and will always try to help you. Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues.
3. Please email us before leaving any negative feedback or opening any dispute on the site. We will help you to resolve the problem.
Guarantee:
1. We provide 2 years warranty. If the item is defective, please notify us within 7 days of delivery.
2. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
3. The buyer is responsible for all shipping costs incurred.
Thank you for choosing our products! We must try our best to provide you the best quality product as well as the best service for you.
Company Information
Chipstar LED Co., Ltd. specialized in manufacturing indoor and outdoor high-definition full-color LED display, LED lighting and lighting application products.Our company has professional production equipment and excellent technology, industry veteran, high-quality, high standards of modern management team, a high level of professional and technical developer, has many years of operating experience and well-trained, a significant number of skilled workers.
Our products has passed CE, FCC and ROHS certificate. reliable quality, advanced technology, perfect technology, automation of form a complete set of production equipment, standard production line, perfect sales network and good pre-sales after sales service is to provide high quality products and continuous development of our roots.
Products are exported to North America, Europe and the Middle East region and other overseas markets, such as Sweden, UK, Italy, Germany, Romania, Serbia, Poland, Turkey, Spain, USA, , Canada, Singapore, Japan,etc.
Products Certificate
FAQ
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the
desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,
strictly control the production process, and pass the multiple quality inspection to ensure that every
product is qualified.
Q6:What about the warranty?
A:Two year warranty
Q7:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q8:Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
Look,Look!
Похожие товары
Молоток для кофеварки Nespresso, пресс для кофеварки из нержавеющей стали
2,76 $ - 3,03 $
Сменный светодиодный/ЖК-телевизор, светодиодный телевизор, прямая покупка от китайского производителя
Автоматический выключатель утечки RCBO 6Ka Mcb 32A Rcbo 4P с Rcbo 4P 30Ma
2,68 $ - 9,88 $
Пустая капсула для веганов HPMC
37,00 $
Пустые одноразовые кофейные чашки из алюминиевой фольги, цветная экологически чистая упаковка, индивидуальная Термоизолирующая крышка, капсула nespresso с логотипом
349,00 $ - 395,00 $

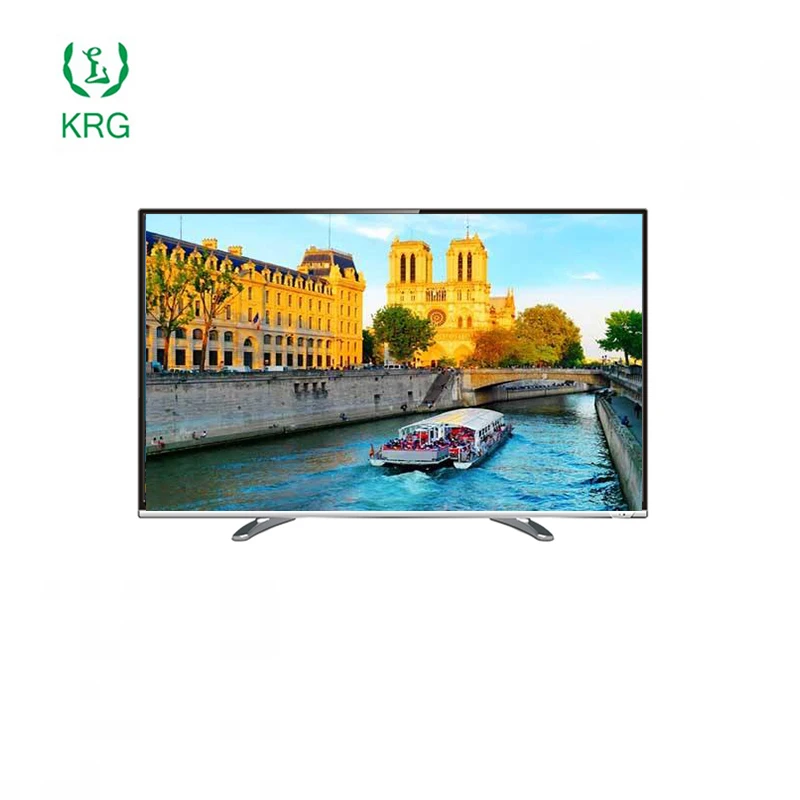

Телевизор 4k умный Телевизор с плоским экраном 60 дюймов Телевизор с высокой разрешающей способностью Китай led-Телевизор производитель SX-60D
60,00 $

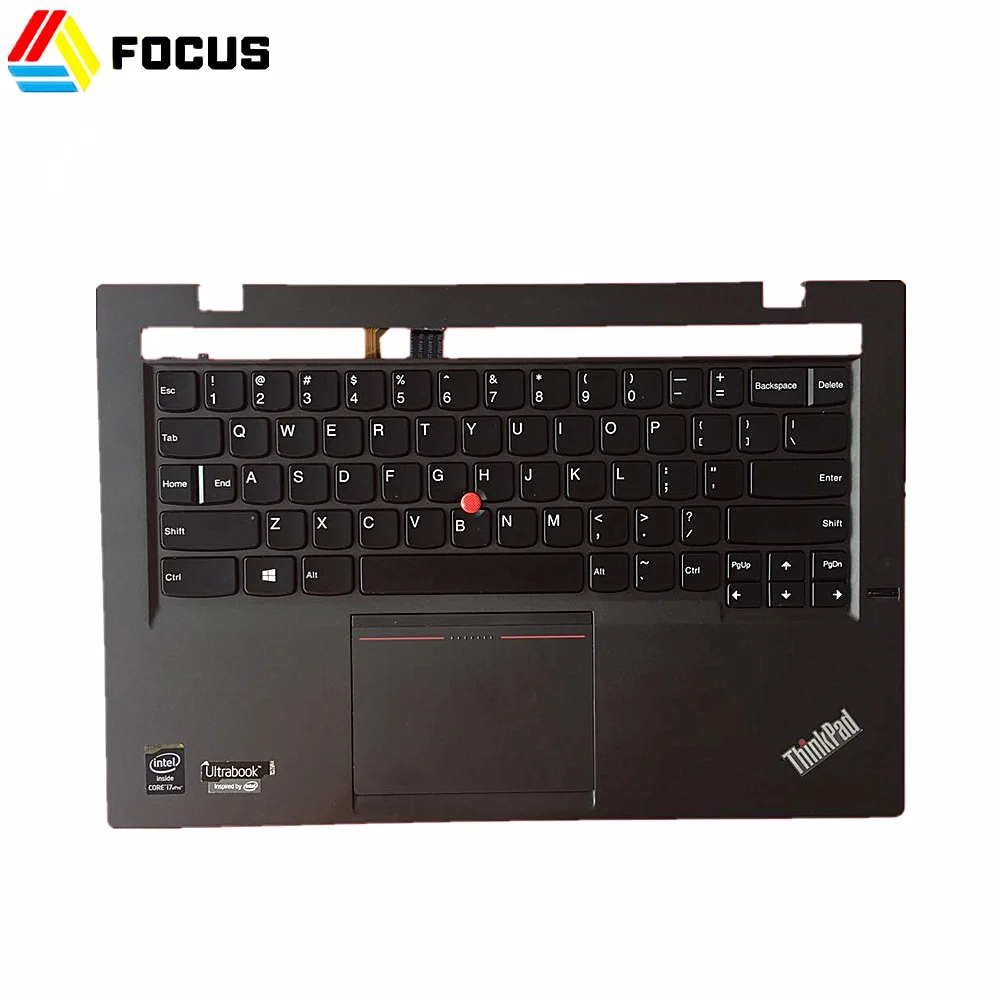

Подставка для рук для ноутбука, верхняя крышка корпуса с клавиатурой и сенсорной панелью и FPR для Lenovo Thinkpad X1 Carbon Gen 2 04X6525 04X6562
