Промышленный вентилятор для птицеводства/Оборудование обогрева свиней
- Категория: Heating Equipment >>>
- Поставщик: Qingzhou Boost Temperature Control Equipment Co. Ltd.
Сохранить в закладки 1600178922930:
Описание и отзывы
Характеристики
Product Description

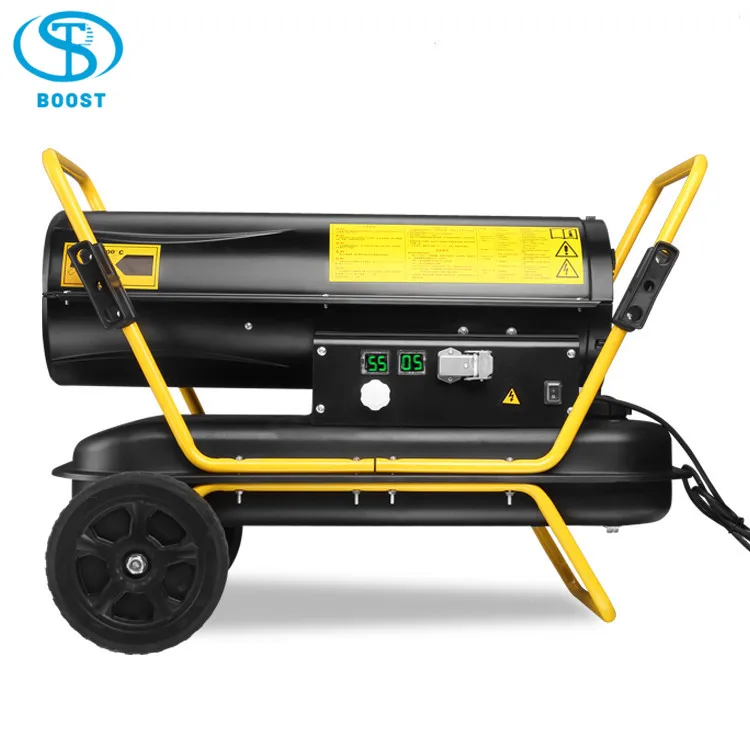

Industrial Poultry Heat fan/ pig heating equipment
We have several models, please let me know your requirement, then we will suggest you suitable model
Model | BSTAH-20 | BSTAH-30 | BSTAH-50 | BSTAH-70 | BSTAH-100 |
Power | 20kw | 30kw | 50kw | 70kw | 100kw |
Air volume | 550m3/h | 720m3/h | 1100m3/h | 1300m3/h | 1700m3/h |
Oil consumption | 1.0 L/H-1.7 L/H | 1.5 L/H- 2.4 L/H | 2.8 L/H- 4 L/H | 3.5 L/H- 5.4 L/H | 4.0L/H-8.0 L/H |
Tank capacity | 19L | 19L | 38L | 65L | 65L |
N.W/G.W | 19kg/20kg | 20kg/21kg | 27kg/28kg | 41kg/42kg | 41kg/42kg |
Packing size | 750*315*415 mm | 920*460*630 mm | 1050*490*615 mm | 1130*480*655 mm | 1130*480*655 mm |
Voltage/Hz | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Detailed Images
Motor
1.Pure copper motor
2.Primary safety of insulation
3.Fully enclosed waterproof and dustproof :IPX4
4.Leakage protection, high current grounding wire
5.Pure aluminum shell anti-rust, fast heat dissipation
2.Primary safety of insulation
3.Fully enclosed waterproof and dustproof :IPX4
4.Leakage protection, high current grounding wire
5.Pure aluminum shell anti-rust, fast heat dissipation
Large Air Duct,Large Heat
1.Special baking paint coating, anti corrosion and corrosion resistance
2.High strength galvanized sheet, high hardness, impact resistance
3.Convection insulation, not hot
4.Stainless steel combustion cylinder, high temperature resistant
2.High strength galvanized sheet, high hardness, impact resistance
3.Convection insulation, not hot
4.Stainless steel combustion cylinder, high temperature resistant
One key intelligent constant temperature control
1.Dual display computer version
2.The key numerical control panel ,More accurate control, More sufficient combustion
3.External temperature control probe
4.Precise temperature control
2.The key numerical control panel ,More accurate control, More sufficient combustion
3.External temperature control probe
4.Precise temperature control
Oil tank
Thickened 8mm steel oil tank
Visual oil scale
Visual oil scale
Working pressure gauge
The internal air pressure is regulated according to the environment.
The machine already to be with optimum pressure,if need to be adjustment, please contact the technician for help.
The machine already to be with optimum pressure,if need to be adjustment, please contact the technician for help.
Imported gear pump
Imported gear pump,Intelligent Temperature control ,More powerful and reassuring.
The fuel filter bowl is used together
Filter impurities in oil to ensure service life
Filter impurities in oil to ensure service life
Imported nozzle
Imported nozzle, stable quality
Imported nozzle
The oil tank port is equipped with filter screen,Impurity filtration

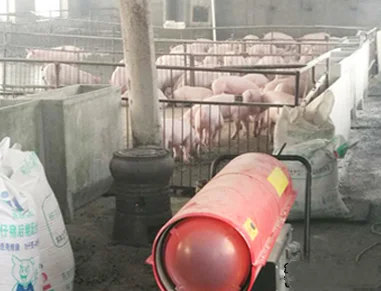

Application
Technical tips
1.Maintenance Tips
1.Every 500 hours is a maintenance interval. If the working environment is bad (breeding farm, dusty occasion.etc), the maintenance period need to be shortened to 250 hours
2.Inspection items
2.1.Clean or replace the filter sponge inside the air pump(Inlet/Outlet)
2.2.Clean or replace the oil suction filter
2.3.Clean the ignition pin(Brush off the accumulated carbon on the needle due to ignition)
2.4.Clean the oil tank, open the drain nut at the bottom of the oil tank, discharge the internal residue, and clean the inside of the oil tank with clean diesel or kerosene
Remarks:
Filter sponge, oil suction filter and oil nozzle are vulnerable parts, not within one year free warranty period
2.Installation Tips
A：Handle
B: Lower steel pipe
C: Cotter pin
D: Nut 8PCS
E: Nut
F: Wheel
G: Flat pad
H: Wheel axle
I: Oil tank
J: Screw
Company Introduction
Why chooe BOOST?
BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
After Sales Service
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Sample testing support.
* Visit our Factory.
After-sales service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
* Engineers are available to service machinery overseas.
FAQ
Q:Is your company a manufacture or Trading company?
A:We are professional manufacture of Ventilation equipment,Cooling equipment and Heating equipment for poultry,workshop and greenhouse in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
24hours Service
Похожие товары

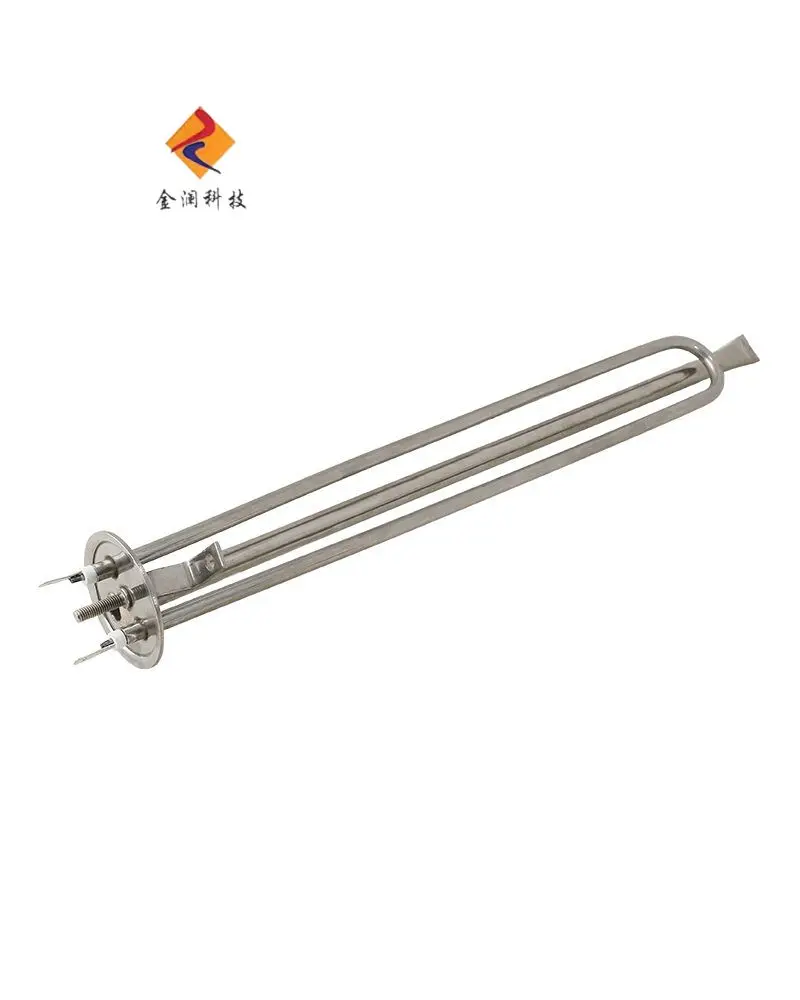

Лидер продаж, Электрический фланец 3 кВт/6 кВт/9 кВт/12 кВт/18 кВт, трубчатый жидкий нагревательный элемент для погружного водонагревателя
5,00 $

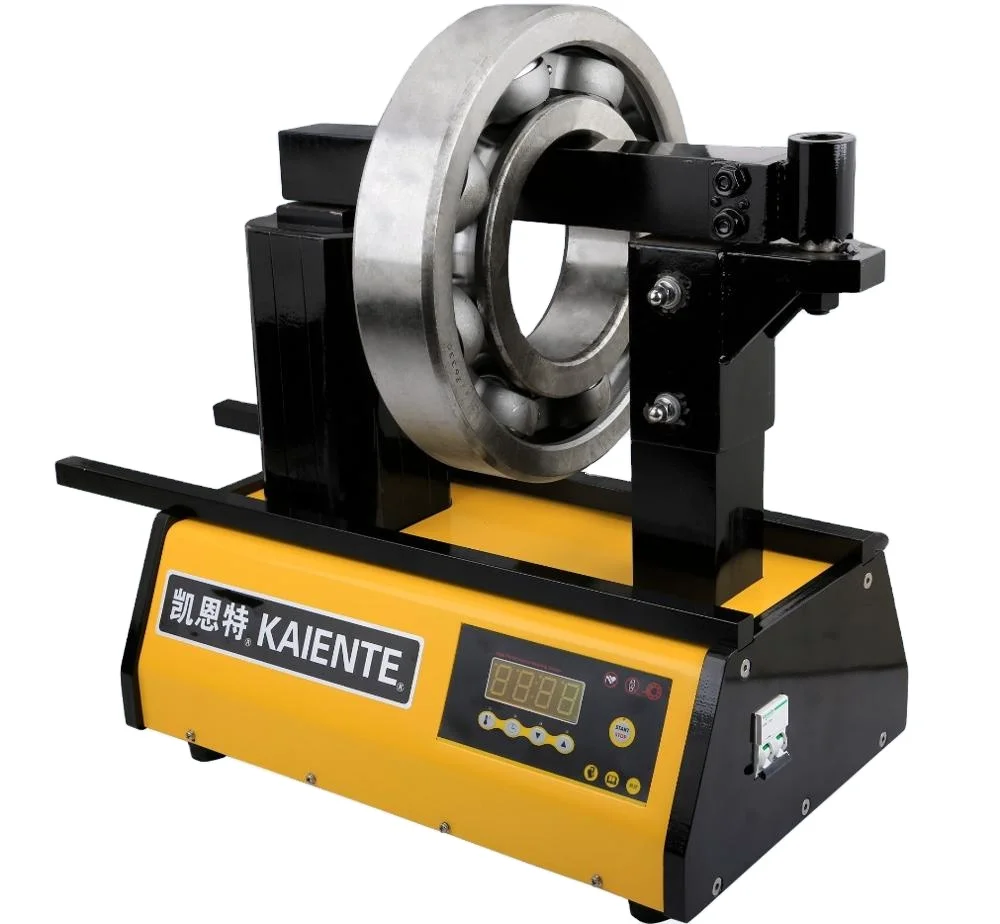

KET-RMD-40 портативный 18A 4KW Электрический магнитный индукционный нагреватель подшипника
1 745,00 $ - 1 800,00 $

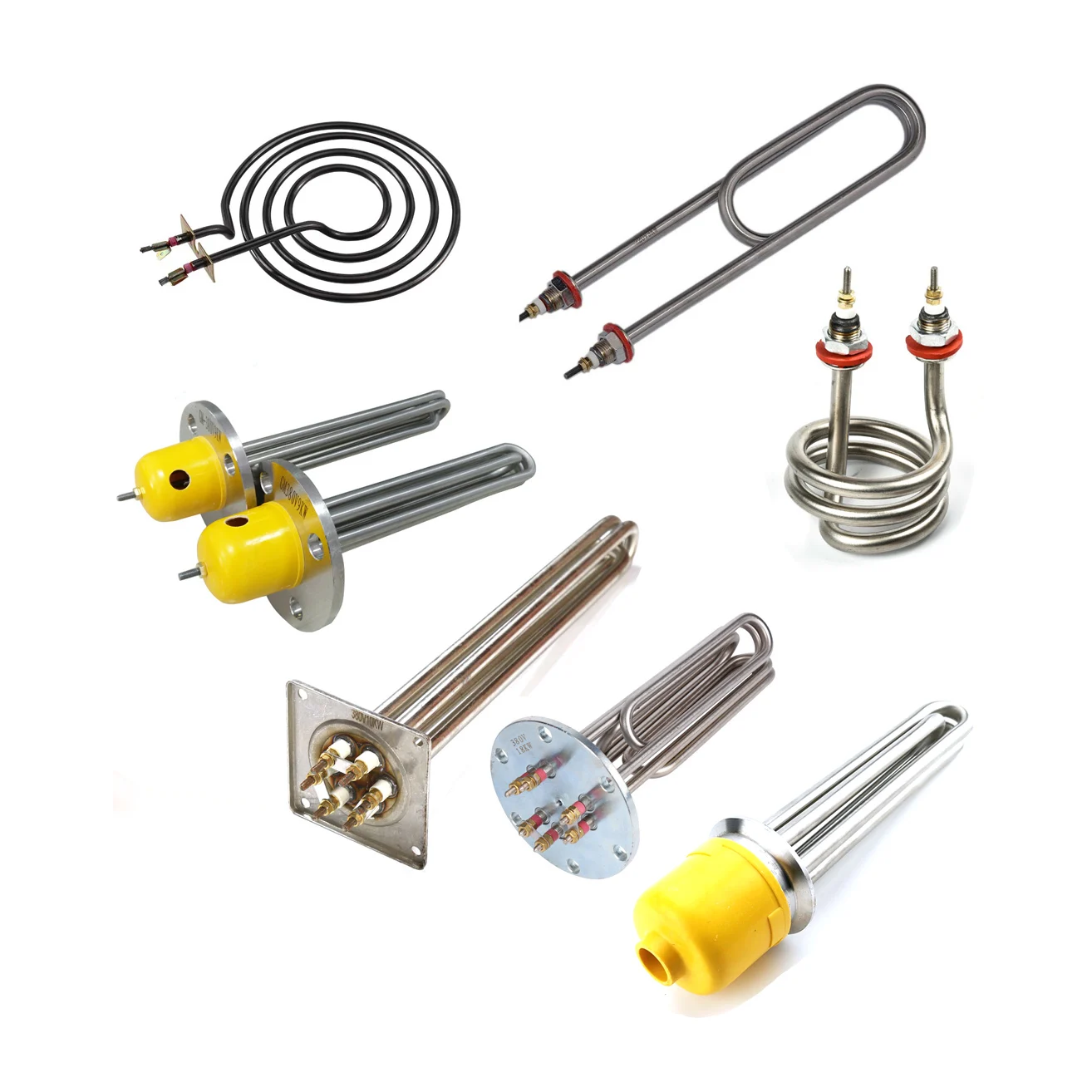

230 вольт под заказ промышленный электрический водонагреватель или масляный погружной фланец трубчатая трубка нагревательные элементы
2,36 $ - 13,56 $

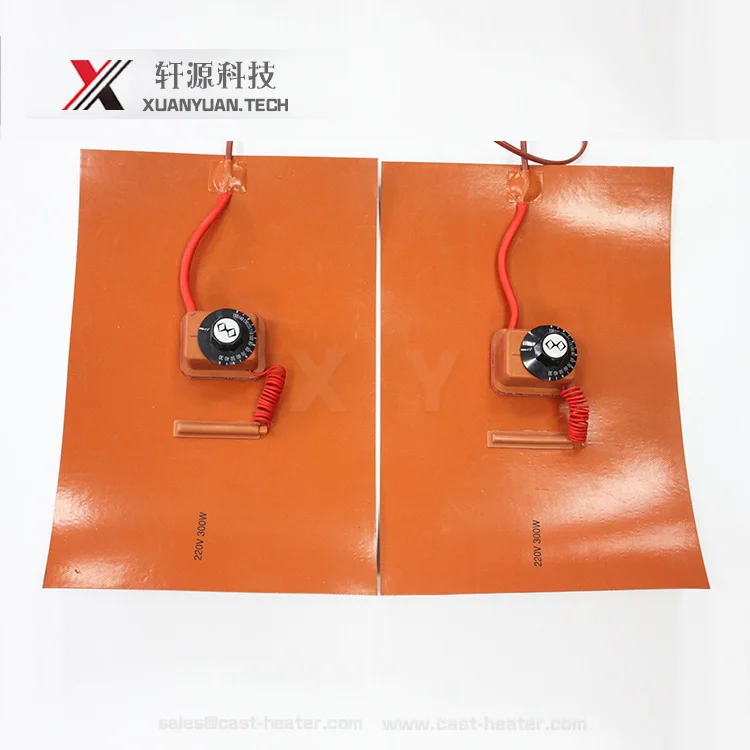

Гибкая силиконовая резиновая нагревательная Подушка 12 В
