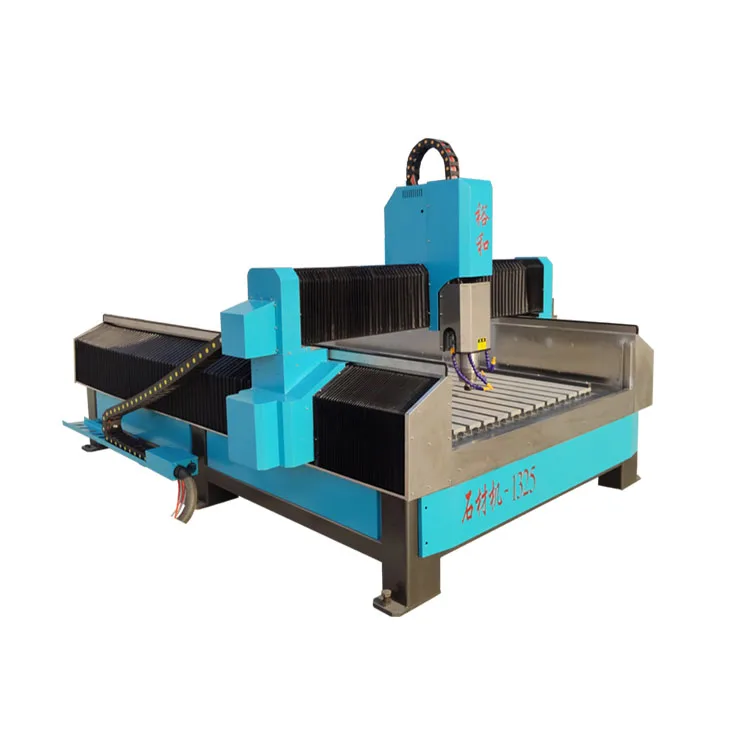

Гранитный фрезерный станок с ЧПУ/Мраморный гранитный гравировальный ЧПУ/1325 автоматический для
- Категория: >>>
- Поставщик: Hefei Yuhe CNC Equipment Manufacturing Co. Ltd.
Сохранить в закладки 1600179800629:
Описание и отзывы
Характеристики
1325 automatic 3d Stone engraving machine tombstone cnc router carving machine for sale
YH-1325SC 3 AXIS CNC system machining center for stone granite marble countertop deep processing
1325 cnc engrave marble/cnc marble router/stone carving cnc
Granite CNC stone router/marble granite engraving machine CNC router/1325 automatic stone engraving machine
Product Description
CNC ROUTER BRIEF INTRODUCTION
YUHE 1325 automatic 3d Stone engraving machine tombstone cnc router carving machine for sale is suitable for stone lettering, relief engraving, line engraving, cutting, hollowing out, etc. Various stones such as marble, granite, jade, bluestone, sandstone, and material like ceramics, glass, acrylic, organic glass, PVC board, aluminum sheet, bamboo, etc. are all suitable to work with.
Independent water recirculation cooling system and stainless steel sink and stainless steel sheet metal parts, protecting the entire frame from corrosion and rust.
The whole anti-dust and waterproof structure can better protect the linear rails and gear&rack.
(4 small jets of water are pointed at the router bit and this captures almost all fine stone dust in the water, which then flows to a collection reservoir where the stone particles settle on the bottom.), greatly decreasing the fault in engraving and extending the service life of the machine.
STANDARD CONFIGURATION
1. Independent water recirculation cooling system(4 small jets of water for one spindle)
2. Stainless steel sink and stainless steel sheet metal part
3. High speed three axis motion Ncstudio control system
4. High power servo driver system
5. High constant power water cooling spindle
6. Imported 25mm linear guide rails
7. Heavy,all-steel tube frame/thicken gantry/cast gantry supports
8. Aircraft-quality aluminum profile table with T slots+thicken PVC board
9. Drive system X and Y axis: Helical rack and pinon; Z-axis: ball screw
10. XYZ axis are fully covered which has much better protection for the guide rails.
11. Industrial Coolant system.
12. Double electric oil pumps for auto lubrication.
13. Independent Computer Cabinet,stronger power and weak power separate, maintenance easily
ROUTER OPTIONS
1. Full range of table size
2. Wide range of spindles options; Double/three/four independent Z-axis options
3. Different power of spindle(4.5Kw/5.5Kw/7.5Kw options)
4. Ncstudio 6B/Shanlong/Syntec control system
5. DSP hand controller
6. Digital AC servo as Japan Panasonic/Yaskawa for high-speed engraving
7. Stainless steel sheet metal parts for the whole machine
FUNCTIONAL FEATURES
Ø Servo drive system, high precision, high cutting force, and the bit is not easy to wear.Ø High Z axis feeding height(350mm/380mm/420mm/500mm/680mm options), suitable for any thick stone material.
Ø Adopting high power spindle motor(4.5Kw/5.5Kw/7.5Kw ) for powerful carving and cutting.
Ø Aircraft-quality aluminum profile table with T slots which adding thicken PVC board, Enhancing the loading capacity of the platform
Ø Constructed from heavy,all-steel tube frame along with thicken steel gantry that ensures durability, It also features cast steel gantry supports which greatly dampen vibrations and improves routing quality.
Ø Use Professional high-temperature artificial aging treatment to eliminate welding stress, high precision machining planer ensures strong, durable with no deformation.
Ø XY axis features high-precision helical racks and Z axis features a ball screw to provide smooth motion and tight control for precise and quality engraving.
Ø Y-axis adopt dual-motor drive, powerful and smooth operation
Ø The use of breakpoint memory ensures the continuing of processing in case of accidents. Such as cutter broke, power failure and stuck unforeseen.
Ø Just a touch of the automatic lubrication system, easy to complete regular maintenance.
Ø Compatible with any advanced CAM/CAD software, such as Type3, Artcam,CAXA,Pro-E,UG, Artcut, Mastercam.
Ø Adopt NCstudio CNC system, keyboard operation, large screen display, easier to operate and maintain, more humanized design
TECHNICAL DATA /SPECIFICATIONS | ||||||||
Model | YH-1325SC | YH-1318 | YH-1325 | YH-1330 | ||||
Machine size（mm） | 2580*3340*1850 | 1900*2400*1590 | 1900*3100*1590 | 1900*3600*1590 | ||||
XY Working area(mm) | 1300*2500 | 1470*1800 | 1470*2500 | 1470*3000 | ||||
Z Feeding height | Standard 350mm(380mm/420mm optional) | |||||||
Workspace table | Aircraft-quality aluminum profile table with T slots + thicken PVC board | |||||||
Max motion speed | 20m/min | |||||||
Moving style | XY axis helical racks, Z axis ball screw | |||||||
Max engraving speed | 15m/min | |||||||
Spindle power | 5.5Kw water cooling spindle(4.5Kw/7.5Kw/Kw optional) | |||||||
Rotating speed of the spindle | 6000-24000rpm/min | |||||||
Driving system | hybrid servo motors&drives | |||||||
Working voltage | AC220V/380V, 50HZ | |||||||
Tool | φ3.175,φ4,φ6,φ12.7mm | |||||||
Command language | G code/HPGL | |||||||
Repeatability | ± 0.01mm | |||||||
Control system | Shanlong CA100(NcStudio PM95A optional) | |||||||
PS: All the working areas and specifications can be customized according to your requests
Machine Details Show
Main Parts
Auto electric oil pump

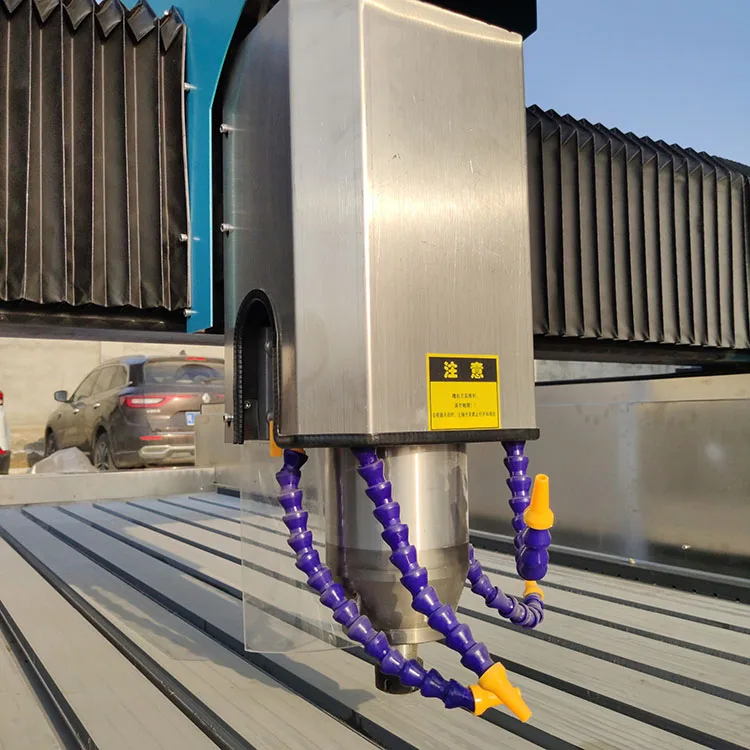

5.5Kw spindle with water jets for cooling the bit

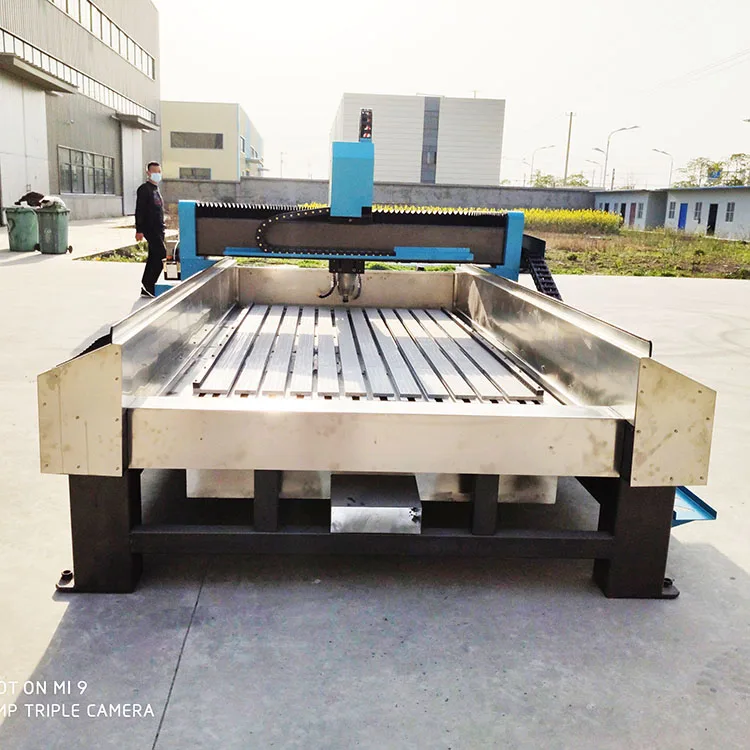

whole anti-dust and waterproof structure
Waste water collection
Stainless steel sheet door

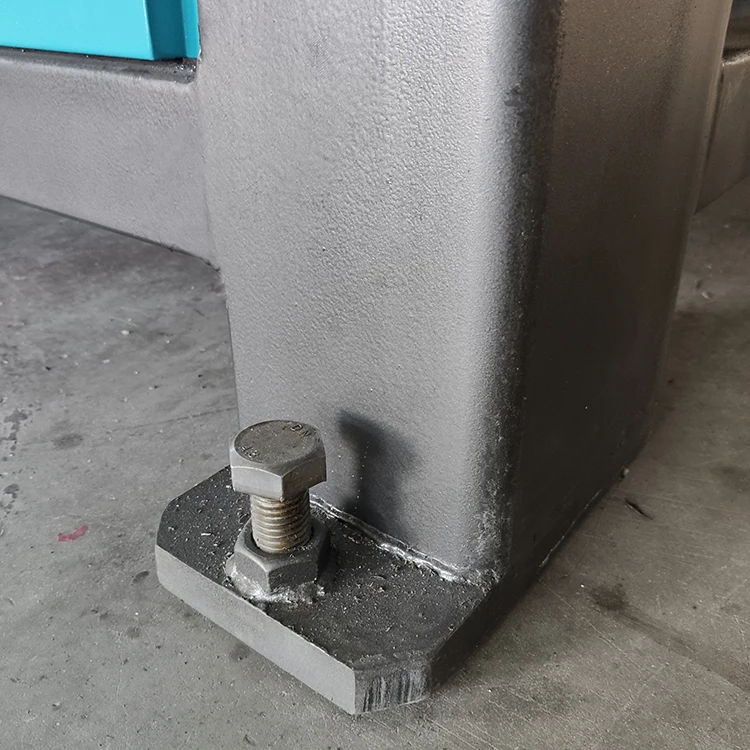

6pcs fixable nuts on each legs

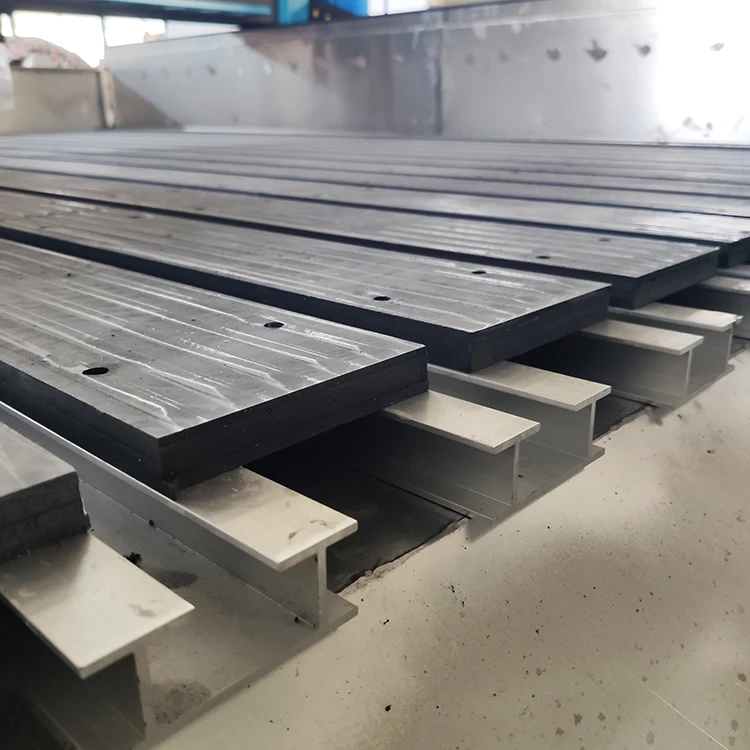

H aluminum profile+25mm PVC strips
Yuhai servo SG-30 drivers
Shanlong CA100-X1 control system
Cutting/Engraving Samples Show
FUNCTIONS
1. Stone lettering
2. Relief engraving
3. Line engraving
4. Cutting
5. Hollowing out
3. Line engraving
4. Cutting
5. Hollowing out
6. Carving
7. Granding
MATERIAL CUT
1. Marble
2. Granite
3. Jade
4. Bluestone
5. Sandstone
6. Ceramics, glass, acrylic, organic glass, PVC
board, aluminum sheet, bamboo, etc.
3. Jade
4. Bluestone
5. Sandstone
6. Ceramics, glass, acrylic, organic glass, PVC
board, aluminum sheet, bamboo, etc.
If this series sounds like exactly what you need, just contact us now.
Related Products
Packing&Shipping
Packing
* Water-proof plastic film package with foam protection in each corner
* Solid seaworthy wood case package with steel belt which fixed on the pallet
* Save space as much as possible for container loading
Shipping
* For standard machines, usually within 15 days
* For non-standard machines (the OEM or customized machines), according to clients' specific requirements, we promise won’t cost more than your expected days.
* Water-proof plastic film package with foam protection in each corner
* Solid seaworthy wood case package with steel belt which fixed on the pallet
* Save space as much as possible for container loading
Shipping
* For standard machines, usually within 15 days
* For non-standard machines (the OEM or customized machines), according to clients' specific requirements, we promise won’t cost more than your expected days.
For small machine, will be packed as follows
For large machine, will be packed as follows
For Vietnam Customers, machines will be packed with film inner and tarp outside, then transport by semi-trailer
Company Introduction
Hefei YUHE CNC Equipment Manufacturing Co., Ltd is an industry and trade integrated enterprise that is near to Shanghai port. YUHE has standardized production workshops, a professional technical team of innovation, and the international advanced production technology and processes, to provide customers with the best quality products and the most perfect after-sales service.
YUHE manufactures a variety of excellent CNC Equipment. Each series is available in various sizes to meet your specific application requirements. Our main products including Wood CNC Router, Stone CNC router, Advertising CNC Router, High Precision Ball Screw CNC Router, 4axis Rotary CNC Router, Mini CNC router, Multiprocessing Woodworking Machine, ATC CNC Machining Center, Laser Cutting Machine, Cutting Plotters, etc.
Our products have obtained CE/ISO9001/SGS/TUV certificates and obtained many patent certificates. Each machine is extensively tested prior to leaving the factory to ensure longevity and uncompromising quality.
Browse our selection of CNC Routers now or just contact us to find the perfect fit CNC router for your application.
1. Factory direct sale, OEM/ODM available, quality control
2. OUR MISSION:
Boost profits and produce accurate parts without accumulating waste, excess labor, and extended lead times
3. We are an industry and trade integrated enterprise that supplying CNC routers
4. Our factory owns two large standardized production workshops built on our own land
(more than 15000 square meters)
5. Our machine is famous for its great carving effects. Especially in the rosewood industry, YUHE CNC has a good reputation. The carved products are free of grinding and polishing and have been unanimously affirmed by customers. Save your production costs and improve production efficiency
6. You’re sure to find the perfect CNC router for your needs here
FAQ
Q1: I did not know much about the CNC router and engraving machine.
What kind of machine should I choose?
* It is not a problem to choose the right machine for your application. Just tell us what you plan to do by using the machine, and tell us your material working size, then we will offer you our perfect solutions and suggestions.
Q2: What are the machine displayed on the website that did not fit me best and I can change some part?
* We are manufacturer direct sale, has an R&D department and engineers to help design and OEM according to your need.
* It is ok to choose optional parts, like changing the spindle, choosing the control system, or adding the water tank and vacuum pump, etc.
Q3: What should I do if the machine fails during warranty period?
* Just contact us----our sales are online for 24-hours and ready to help.
Replacement of damaged parts for free(make sure it is not broken because of wrong operation).
The CD and operation manual----It shows the most common failures in working processing and how to solve the problems.
Q4: Are you a trading company or manufacturer?
Any certifications of the product, and the warranty period?
* We are a factory direct sale, can guarantee you got the best product at the best price.
All the products have CE, ISO certifications, all the machines are tested well before delivery.
There is a 12 months warranty.
Q5: How long is your delivery time?
* Generally it is a weekday if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to your quantity.
Q6: What if I want to be your agent in our country?
* Agents are wanted all the time, it is great that you choose to be our agent, it will be a win-win situation.
* We can discuss and negotiate the agent rights and duties completely by email and confirmed by both of our sides
Payment
* T/T in advance. We can accept a 40% deposit,
* Other payment terms,
and balance paid to us before delivery
(we are Alibaba Trade Assurance supplier)
* Other payment terms,
please inform and confirm with us first.
Tips
* FOB Shanghai or Ningbo
* Inform us first whether you need us to book shipping cargo or not
* You can arrange it by yourself, or your agent.
* International Express (HDL/TNT/FedEx/UPS/EMS) is ok for your Urgent Machine Accessories.
* Inform us first whether you need us to book shipping cargo or not
* You can arrange it by yourself, or your agent.
* International Express (HDL/TNT/FedEx/UPS/EMS) is ok for your Urgent Machine Accessories.
Похожие товары
Трусики, нижнее белье больших размеров, 5 xl Женский нижнее белье бюстгальтер setplus Размер сексуального женского белья
2,41 $ - 2,45 $
Изготовленные на заказ Роскошные упаковочные подарочные коробки для одежды, биоразлагаемые
0,15 $ - 0,35 $
Zero Hero розово-Золотая ручная быстрая Кофеварка DingYuan мини-холодная
53,20 $ - 76,00 $

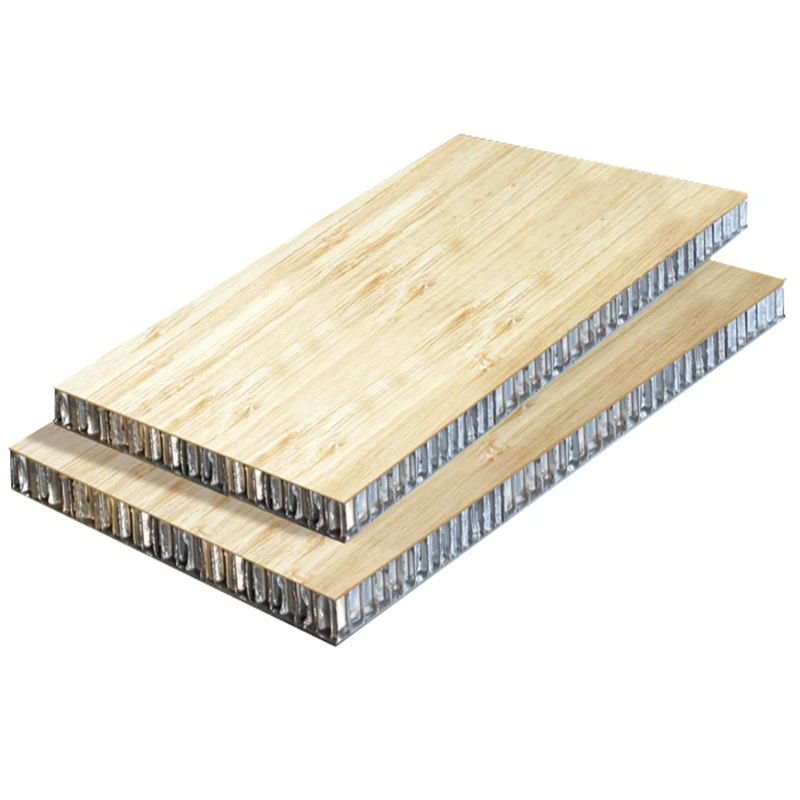

Металлическая сотовая панель nomex для ресторана
