T 215B двойной 15 дюймовый сабвуфер Профессиональный пассивная акустическая система для многофункционального зала

Сохранить в закладки 1600180577281:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Product Description

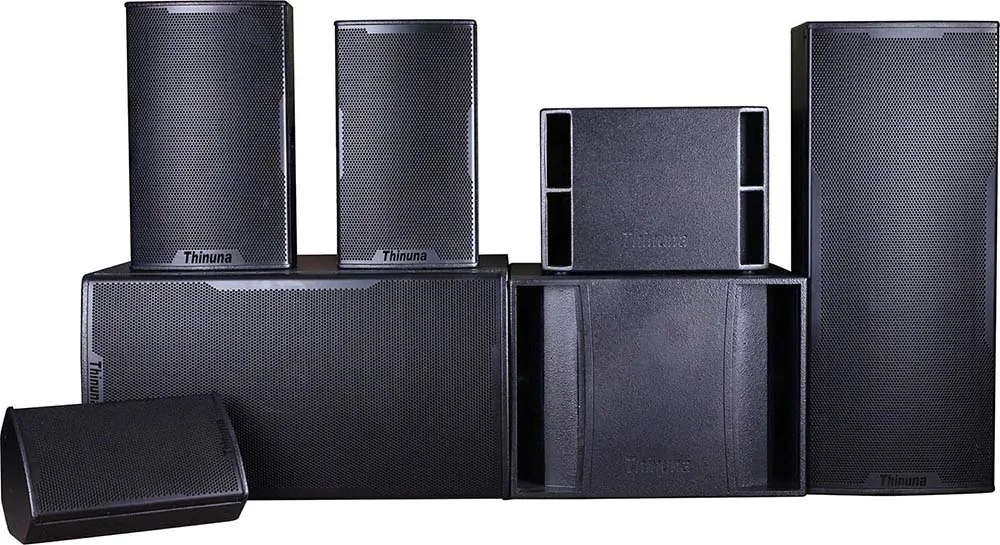

Thinuna T series speaker system is designed for the multi-function hall, multi-functional conference room to meet voice and music compatible amplification requirements. Combining with the characteristics of voice and music, the electroacoustic engineer designed the built-in power divider through a large number of debugging. Combining with the acoustic response of loudspeaker unit,
the response of loudspeaker sound power, impedance and phase characteristics are carefully compared, so as to achieve perfect listening effect and high reliability design. Using high purity OFC oxygen-free copper inductive wire, to minimize the influence of the wire itself, and greatly improve the carrying capacity of power. Using special MKP capacitor, low loss and internal resistance is very small, with passionate high-power aluminum shell resistance, cooling speed, accurate resistance value, parameter changes little, to ensure the sound replay with outstanding stability. Divider with passionate booths welding technology, high quality playback sound speaker system provides a powerful guarantee!
Cabinet adopted of approximate circular arc streamline modeling design, no edges and corners, sensory softer. From acoustic point of view, this design is to eliminate the standing wave produced by the conditions in the cabinet, has reliable rigidity, sound dye is extremely low, to minimize the adverse impacts on the sound playback, clear voice, exciting music, T series can easily do it!




Specification


Model No.
T-215B
System type
2-unit Six order bandpass
Power
1200W Maximum Power:2400W Peak Power:4800W
Nominal Impedance
Recommended Amplifier Output Power
1000W—1600W@8Ω
Sensitivity(1W@1m)
101dB
MAX SPL(Pmax@1m)
132dB@1200w(134dB@2400w)
Frequency Range
35Hz—250Hz
Nominal Directivity(-6dB)
360°H×360°
Rigging of transducer
LF Driver 15″(380mm Driver 100mmVoice coil )×2
Crossover Mode
Passive
Connector
SPEAKON NL SPEAKON NL4×1 PIN1+/2+POS. PIN1-/2-NEG)
Cabinet Material
18mm(0.7″)High quality plywood
Dimension
W 500mm*D680mm*H 916mm
Color
Default colors: Black, but it's customizable.
Net Weight
66kg
application
The ultra-low frequency part of the sound amplification system
