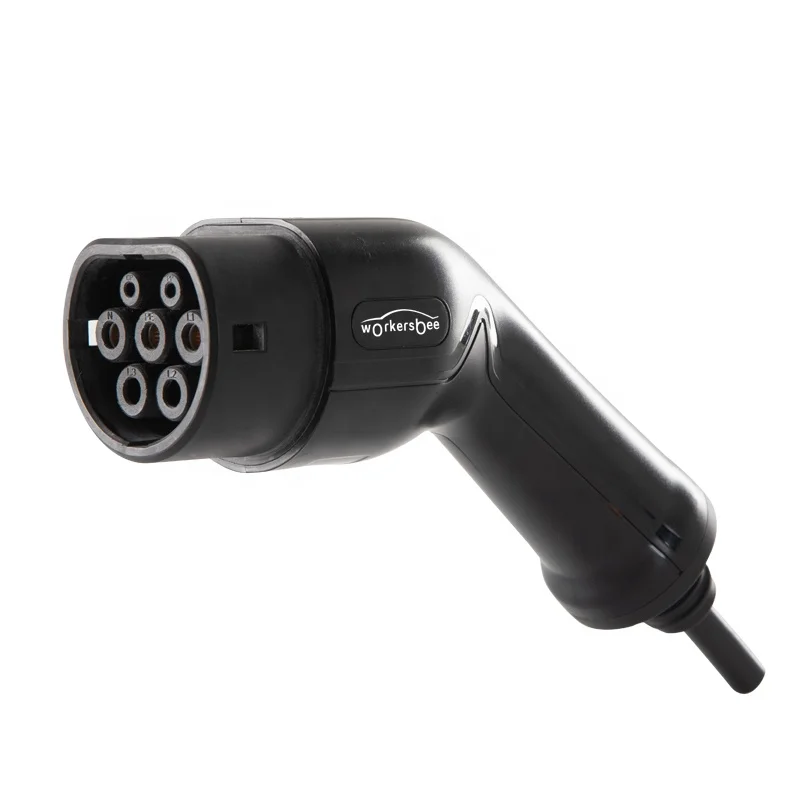

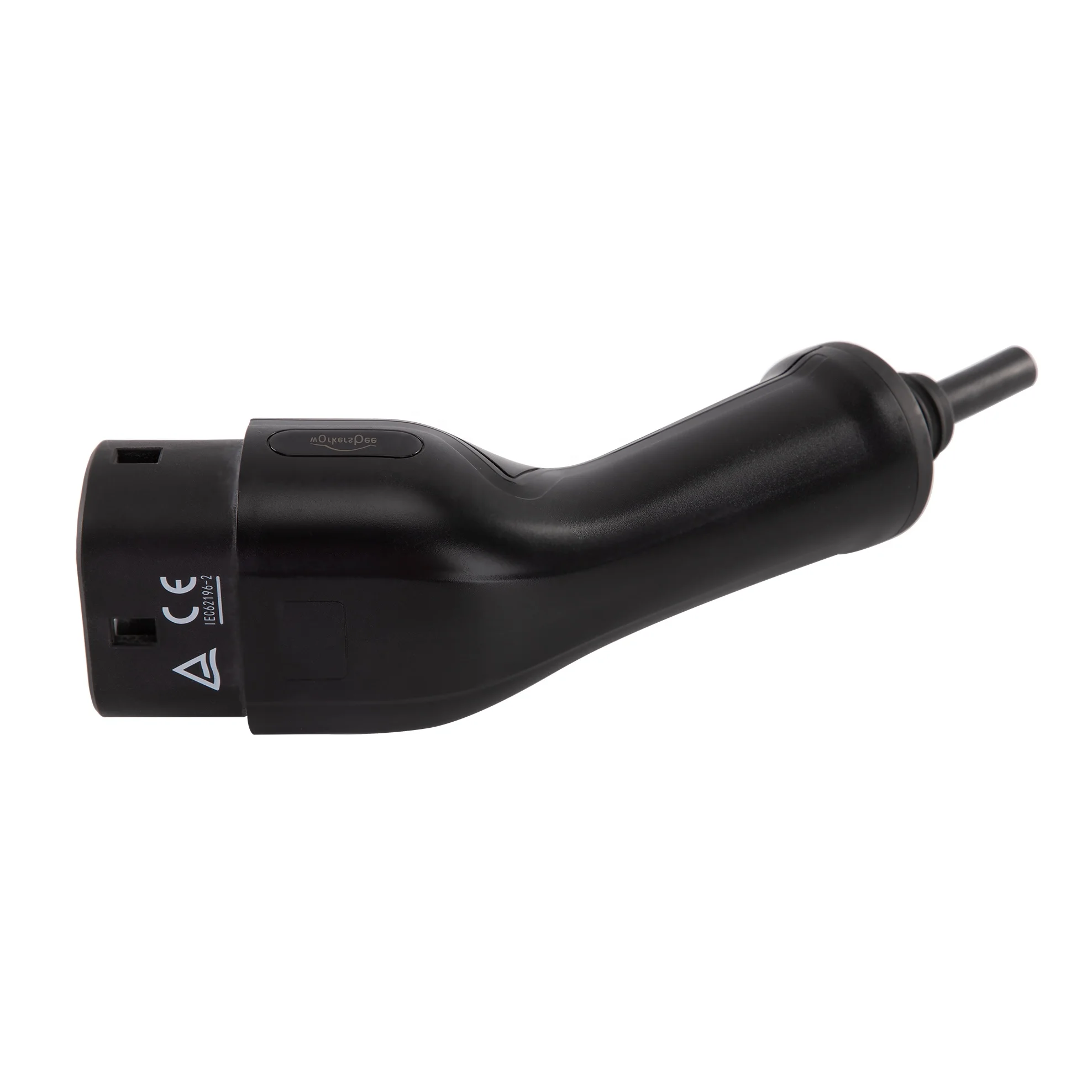

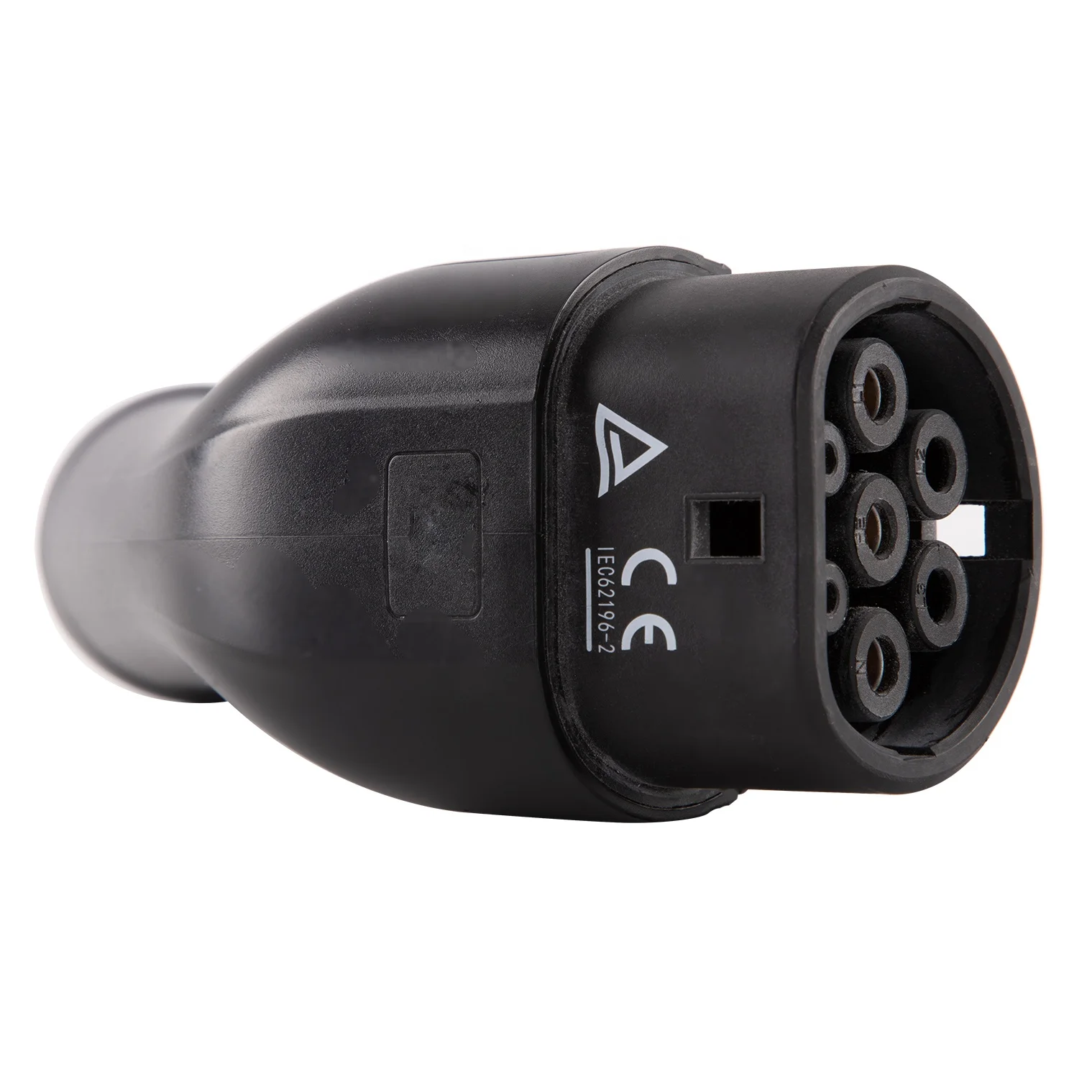

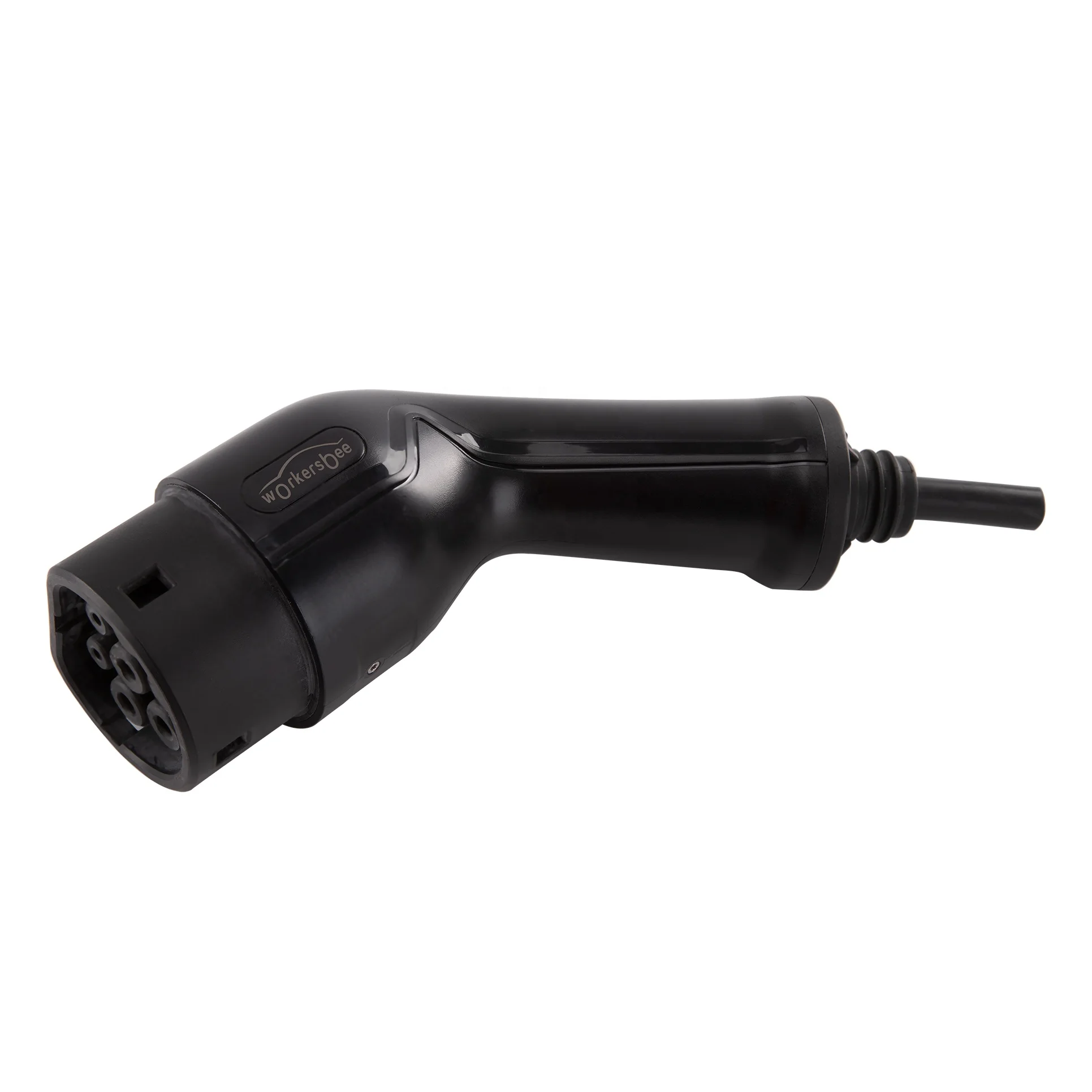

16A 3 фазы EV зарядное устройство 11 кВт зарядный кабель для с IEC 62196 Тип 2 Электрический разъем

Сохранить в закладки 1600180929076:


Цена:19,40 $ - 26,70 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Plug type
IEC 62196 Type2
Input power
3-phase, 480 V/AC, 16A
Application standard
IEC 62196 Type2
Plug shell material
Thermoplastic (flame retardant grade: UL94-0)
Operational temperature
-30 °C to +50 °C
Vandalism-proof
No
UV resistant
Yes
Certificate
CE, TUV
Additional features
Over-voltage, under-voltage, leakage current and lightning protection
Cable length
5m or customized
Terminal material
Copper alloy, silver plating
Terminal temperature rise
<50k
Withstand voltage
2000V
Contact resistance
≤0.5mΩ
Mechanical life
>10000 times of off-load plug in/out
Coupled insertion force
Between 45N and 100N
Withstandable impact
dropping from a 1m height and running-over by a 2-ton vehicle
Warranty
2 years
