Huawei MA5800 X2X7X15X17 OLT 16 портов 10G XG PON карта сервисного обслуживания интерфейсная плата сервис доска cghf

Описание и отзывы

Характеристики

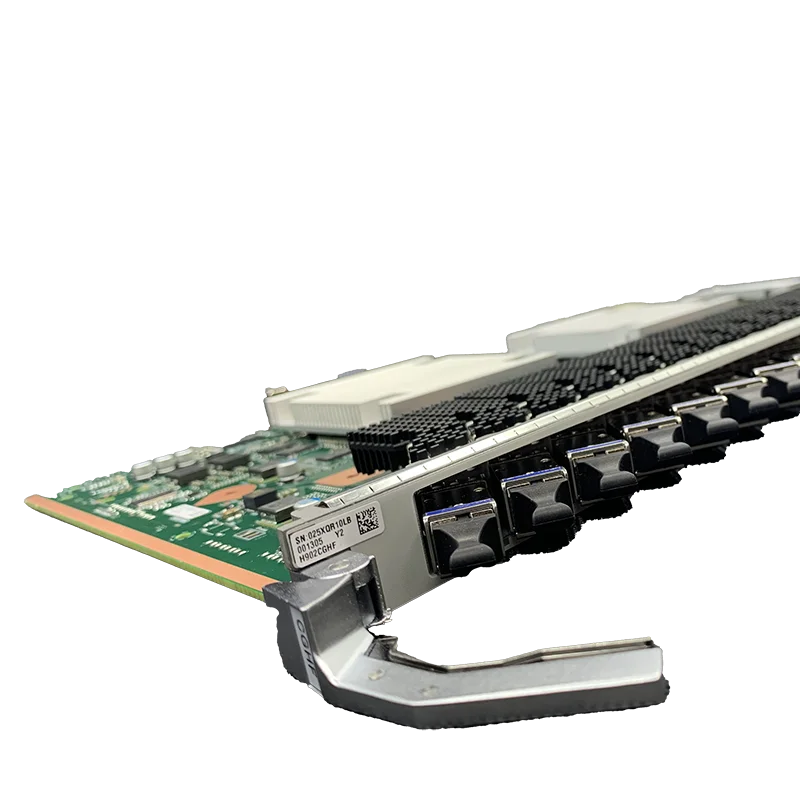

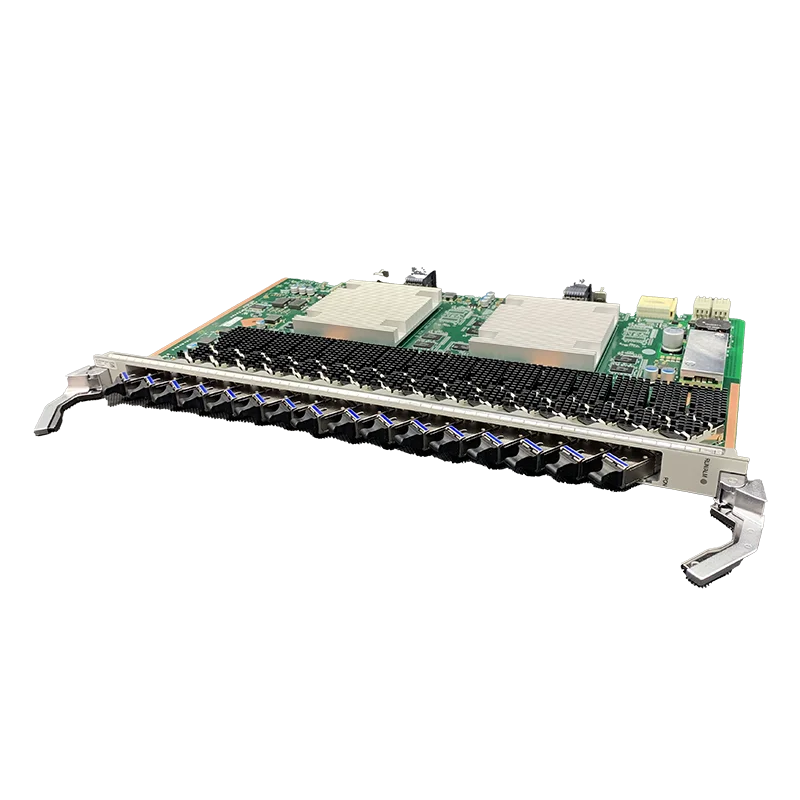

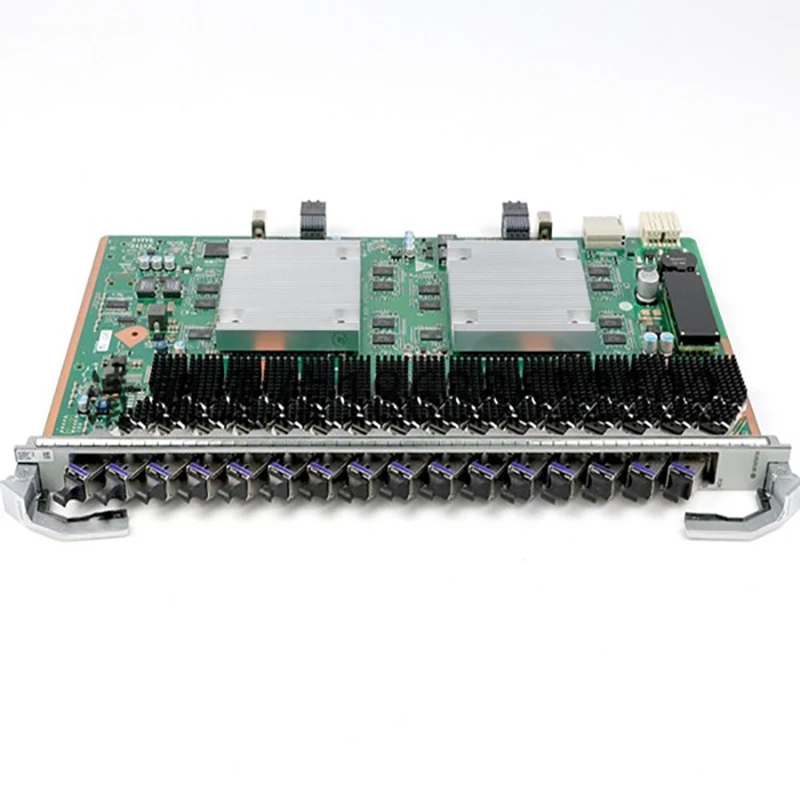

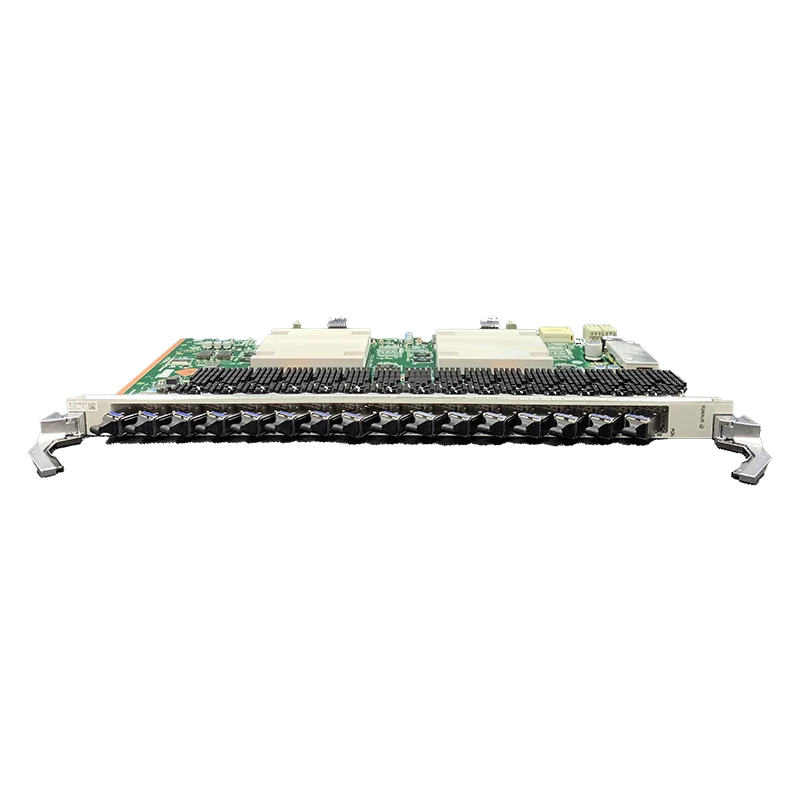

Huawei CGHF Service Board is a 16-port XG-PON and GPON Combo OLT interface board for MA5800 Series OLT Equipment . It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.

Huawei CGHF Service Board Overview

Huawei CGHF Service Board is 16-port 10G GPON and GPON combo OLT Interface Board with XGPON & GPON C+ Optical Module. This board is applied to MA5800 X2, X7, X15, X17 NG OLT system. The max split radio goes to 1:256
GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s
XG-PON channel: Tx: 9.95Gbit/s, Rx: 2.49Gbit/s
Interface Type: SC

Huawei SmartAX MA5800 series OLT products include the MA5800-X17, MA5800-X15, MA5800-X7, and MA5800-X2. It supports GPON, XG-PON, XGS-PON, XG-PON&GPON combo, XGS-PON&GPON combo, Flex-PONGE, 10GE, and other interfaces.

Huawei CGHF Service Board Specification

Huawei CGHF Service Board Feature

• Multi-media Gigabit Convergence

Through PON/P2P, the unified access and convergence of any medium of optical fiber, copper wire and Cable is realized, and the independent access network of multi-media is evolved into an access network with a unified architecture to achieve unified access, Converge and manage to simplify network architecture and operation and maintenance.

• The best 4K/8K/VR video experience

The single-frame MA5800 can satisfy 16,000 families to enjoy ultra-high-definition 4K/8K/VR video online at the same time; it adopts a distributed cache and has a larger cache and video burst absorption capacity, thereby Help 4K/8K/VR video start quickly or channel switching; VMOS/eMDI video surveillance can realize the intelligent perception and troubleshooting of 4K/8K/VR video experience, bringing the best network operation and maintenance experience and user business experience.

• Distributed architecture

MA5800 is the industry’s first distributed architecture OLT. A single slot can support 16-port 10GPON non-blocking access, and can smoothly evolve to support 50G PON. It can achieve forwarding capabilities such as MAC and IP addresses without replacing the main control board. The linear and smooth expansion of the company fully protects customers’ existing investments and makes step-by-step investments according to business development needs.

All the HUAWEI Service Board we are offering:

For HUAWEI MA5680T 5608T 5683T

(GPBD, GPBH, GPFD, XGBD, EPSD, EPBD, EPFD, XEBD)

For HUAWEI MA5800 X17 X15 X7 X2

(GPHF, GPSF, GPUF, GPLF, CSHF, CGHF, CGUF)

(CGID, XGHD, EPHF, XEHF,XELD, XEHD,XEUD)
