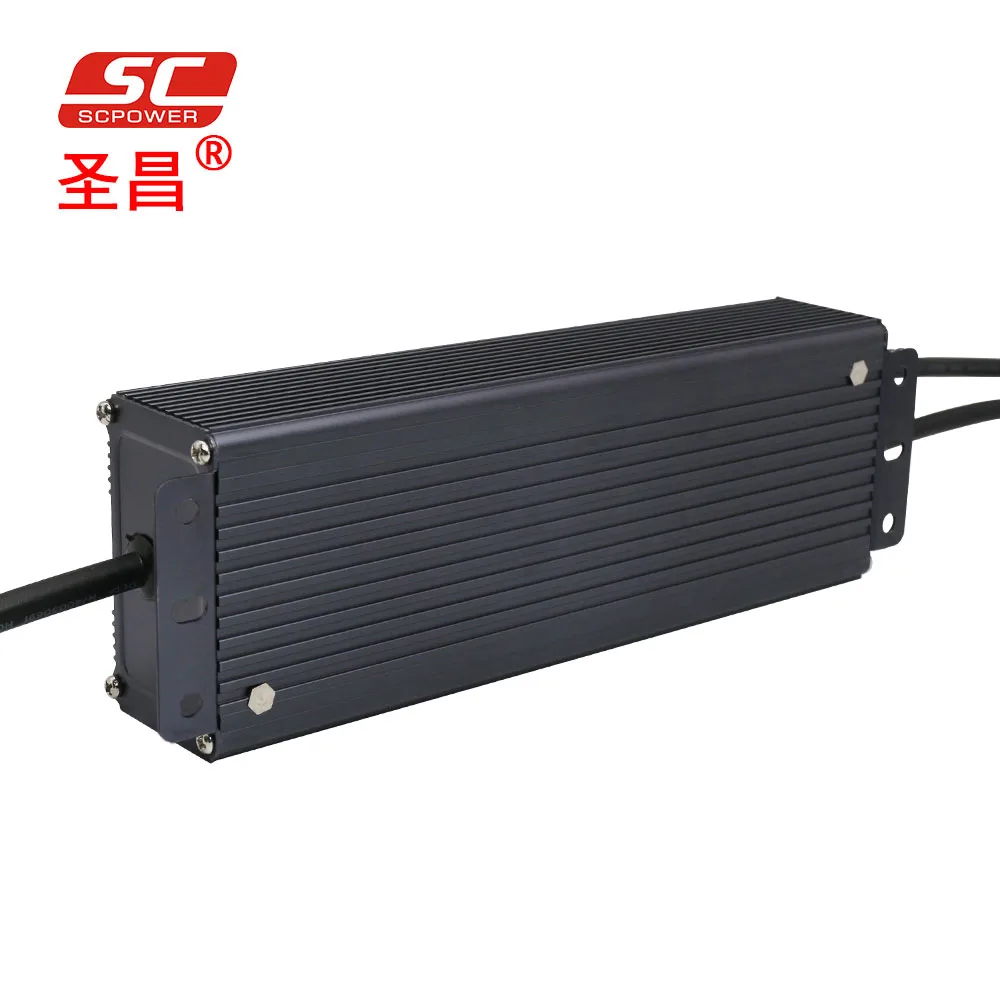

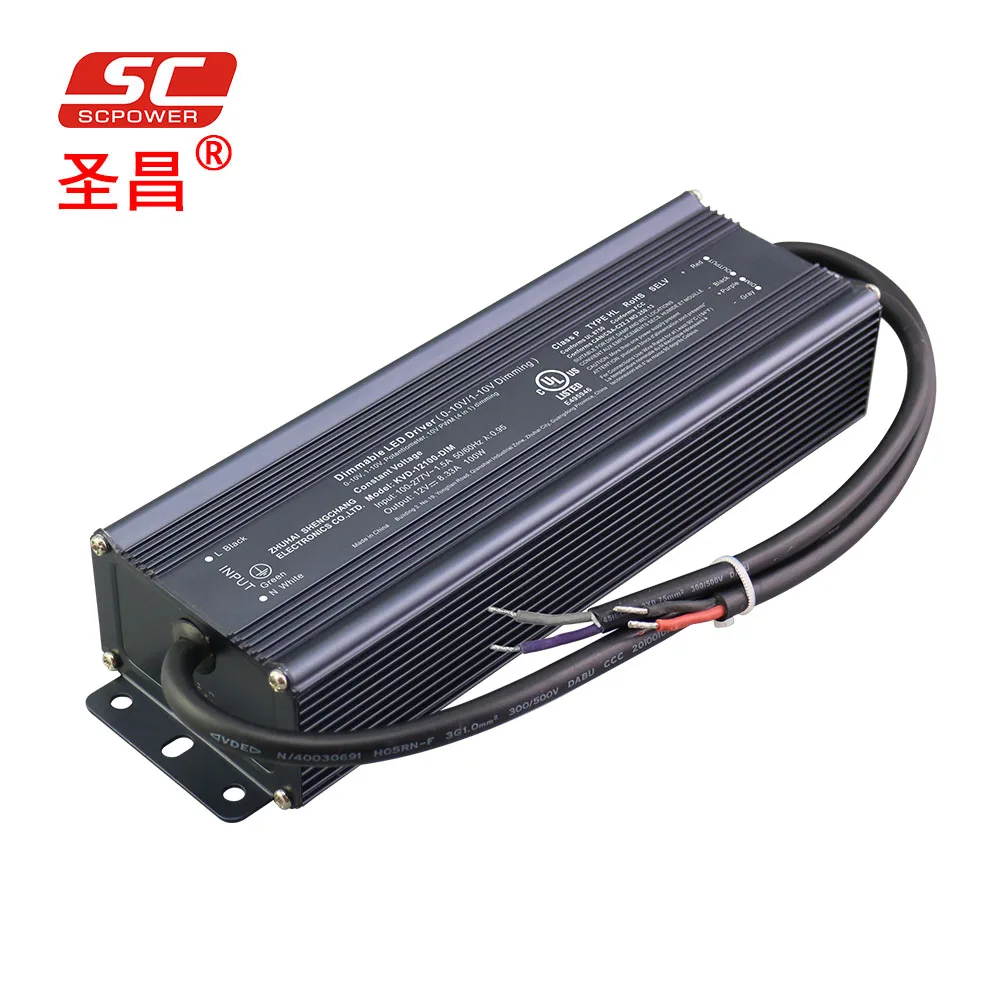

SC IP66 для внутреннего и наружного использования 0 10 в 24 Вольт 100 Вт со светодиодным драйвером указанным ul

Model

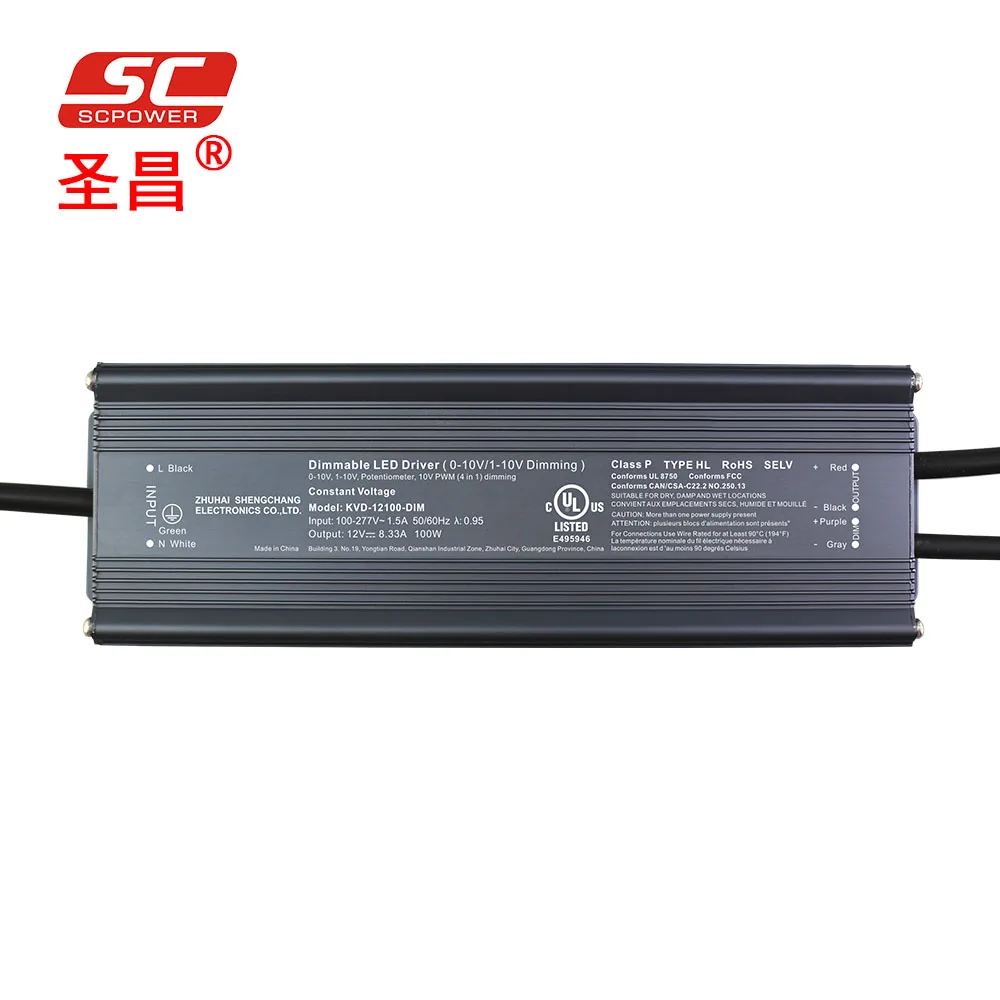

KVD-12100-DIM

KVD-24100-DIM

Certificates

FCC UL cUL

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Rated current

8.3A

4.17A

Rated power

100W

Load Regulation

±1 %

Input

Voltage Range

100-277VAC

Frequency Range

47 - 63Hz

Power Factor(Typ.)@ full load

0.98@120VAC   0.95@277VAC

0.99@120VAC   0.94@277VAC

THD(Typ. ) @ full load

<20%@120VAC &277VAC

Efficiency(Typ.)@ full load

83%@120VAC   86%@277VAC

83%@120VAC   87%@277VAC

AC Current(Max.)

1.3A

Inrush Current (Typ.)

20A, 50%, 1.6ms @120VAC;   25A, 50% 1.2ms @277VAC

Leakage current

<0.5mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Load

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20 - 95%RH,non-condensing

Storage TEM.,Humidity

-40 - +80℃,10 - 95%RH

TEMP.coefficient

±0.03%/℃(0 - 50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety & EMC

Safety standards

UL8750 , CAN/CSA-C22.2 No.250.13

Withstand voltage

I/P-O/P:1.88KVac

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC Emission

FCC 47 CFR Part 15 ,Subpart B

Others

Net Weight

1.1Kg

Dimension

Driver 230*70*43mm(L*W*H)

packing

  10pcs /CTN

Notes

1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
