Product Description

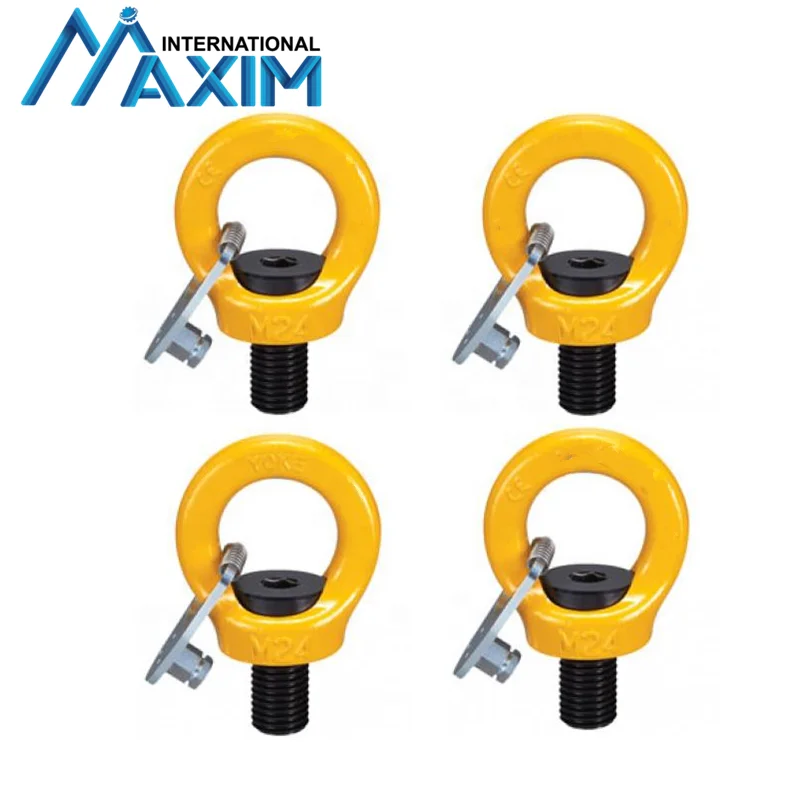

G80 Eye Type Rotating Ring with Key Wrench

Introduction:

G80 Eye Type Rotating Ring with Key Wrench is most commonly used for lifting and load restraint applications. There are different options with different sizes and capacities from M8-M100 (0.6-50TON). Adjustable in different direction of pull. A plane bolting surface guaranteed. The material to which the lifting point is attached should be adequate strength to withstand forces during lifting without deformation. With captive screw.

Not intended to rotate under load

Equipped with ball bearing,360°rotation.
Can be loaded in all directions with a safety factor of 4 times;
Oblong ring manufactured according to DIN1677-4 grade 80;

Specifications:

1. grade:G80
2.Material:alloy steel
3.Process:drop forged
4.Surface:powder coated
5.W.l.l:0.6-50t
6.Usage:lifting
7.Size:8mm-100mm

Features:

Fatigue Rated x 1.5 WLL for 20,000 cycles
Proof Tested - 2.5 times Working Load Limit
100% Magnaflux Crack Detected
Super Alloy Steel
Grade 80

Highly efficient operation
Excellent tensile strength
Good protection against breakage in all directions

This product has a rated WLL but is subject to the correct welding procedure being carried out by a suitably qualified welder.

This Lifting Point is ideally suitable for lifting and lashing applications such as excavators, low loaders, lifting beams etc.....

Widely used on farm machinery, trucks, steel hulled marine vessels nd material handling equipment.

SPECIFICATION FOR key eye bolt lifting point
CODE	SIZE	W.L.L.90°(t)	W.L.L.0°(t)	WEIGHT(kg)
MR010	M8*13	0.3	0.6	0.43
MR011	M10*19	0.45	0.9	0.45
MR012	M12*19	0.5	1	0.46
MR013	M12*31.8	0.5	1	0.47
MR014	M14*22	1.12	2	0.48
........	........	........	........	........
MR033	M56*84	15	20	8.1
MR034	M60*90	15	20	8.85
MR035	M64*95	15	20	9
MR036	M72*108	25	/	22.8
MR037	M80*120	30	/	23.9
MR038	M90*135	35	/	25

different color can be available for different snatch block pulleys

size and special function of snatch block pulleys can be met.

samples can be provided for test.

Lifting points are made to be welded on and are designed for a fixed anchor lifting point.

Because of its excellent welding quality, the weld-on lifting point is ideally used on trucks, steel, marine vessels and material handling equipment.

They has a dismountable D-ring to enable assembly of roundsling, master link or hook directly onto the lifting point. The disassembly is an easy turn of the D-ring, no tools are needed.

It is a very versatile lifting point and can safely be used for most applications. The ball-bearings allow the load to be rotated during the lift, which is especially good when maintenance is needed on heavy tools and other types of equipment. The design allows the link to be folded over the housing when idle, allowing the lifting point to be almost completely stowed away when not in use. The closed, oblong link is also equipped with a "stay-up"-function for easy on-hooking, especially when there is limited space.

high tensile alloy steel , forged, quenched&tempered. Durable working performance.

clear embossing,

SWL and Metric size in the body center.

with Key Wrench

Metric standard rolling thread

FAQ

Typical questions asked about products:

- - Is the item durable?

Dear customer, Yes, they are. The whole body were forged and quenched&tempered, and material is alloy steel. Each parts were also powder coated in a correct thickness to avoid the rust during working .

- - Is this item easy to use?

Dear customer, Yes, they are. The swrap parts can be moved in 360 degree after welding, and there is a lockable spring inside the wrap, to lifting and lashing more convenient and flexible and safe.

- Can I just buy 1 set? As I only need one set for now.

Sure, its no problem, just pls bear the air transportation cost.
