Product Description
PE Tilapia farm floating cage
Polyethylene cage fish farming in the sea, beaches, lakes, groundwater dams are placed.Based on our existing capacity and vast beaches north and south, fish cage project in coastal fisheries is of serious policy.
Benefits polyethylene cage fish farming:
Low cost relative to fish farming in earthen ponds or CCTV systemManagement easier and less costly
Ease of observation and study of fish nutrition and health
Easy and economical treatment against parasites and diseases
Compared to earthen ponds and CCTV system requires less investment.
In the case of environmental pollutants and suspended solids, which can be problematic for the cage, the cage can be moved.

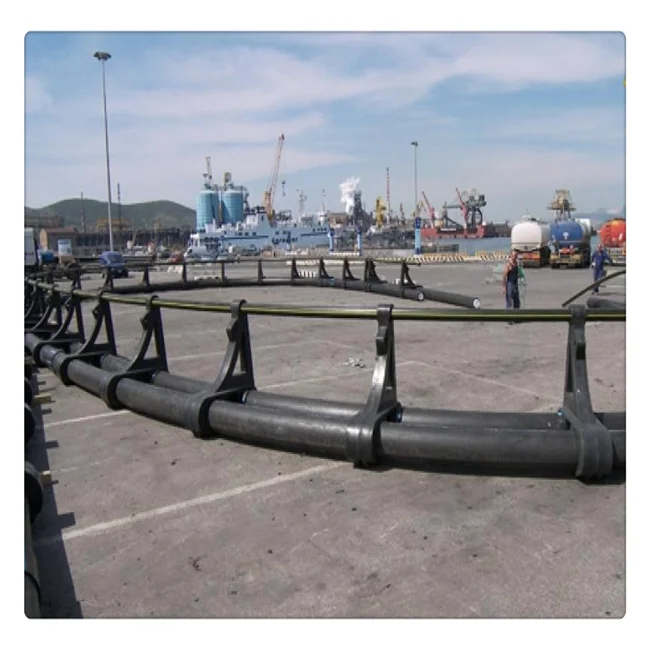

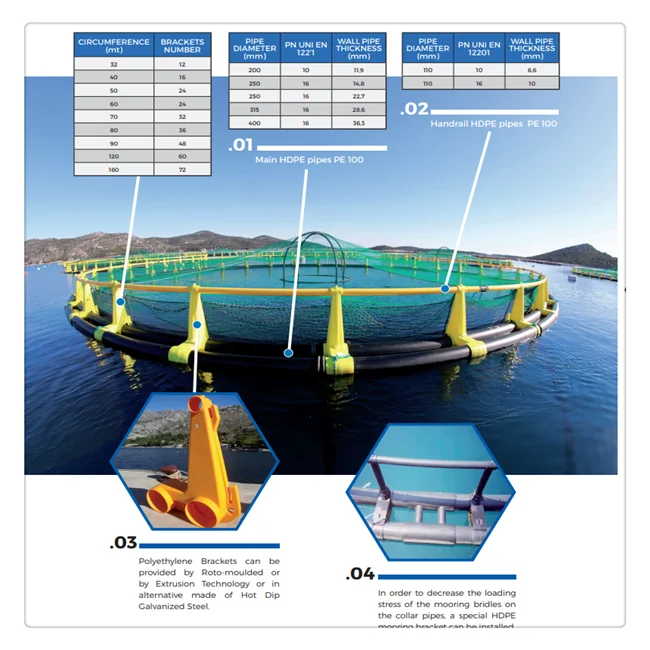

Construction of the cage frame： PE Tilapia farm floating cage
Specification
Square Floating Cage frame specifications
Length*Width(m) | Floating pipe Dia(mm) | Handrail pipe Dia(mm) | Stand pipe Dia(mm) | Bracket Dia(mm) | Distance of the brackets(m) |
2*2 | 200 | 90 | 110 | 200 | 2 |
3*3 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
4*4 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
5*5 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
6*6 | 200/250 | 90/110 | 110/125 | 200/250 | 2 |
7*7 | 200/250 | 110 | 125 | 200/250 | 2 |
8*8 | 315/350 | 110 | 125 | 315/350 | 2 |
9*9 | 315/350 | 110/125 | 125/Bracket | 315/350 | 2/2.5 |
10*10 | 315/350 | 110/125 | 125/Bracket | 315/350 | 2/2.5 |
12*12 | 315/350 | 110/125 | 125/Bracket | 315/350 | 2/2.5 |
15*15 | 350/400 | 125 | 125/Bracket | 350/400 | 2.5 |
20*20 | 450/500 | 140/160 | 125/Bracket | 450/500 | 2.5/3 |
30*30 | 500/600 | 160 | 125/Bracket | 500/600 | 3/3.5 |
Performance parameters of Square Cage:
1)Anti-Windstorm capacity:Maximum grade 82) Ability of anti-wave:Maximum wave high of 3 meter in the water
3) Anti-flow capability:Maximum flow rate of 1.0m/s
Round cage specification:
Cage Models | 200 | 250 | 315 | 350/400 | 450/500/600 | |||||
Cage Circumference | 30-60 | 40-80 | 60-120 | 120-160 | 160-260 | |||||
(m) | ||||||||||
Farming Area | 70-286 | 127-509 | 286-1146 | 1146-2037 | 2037-5379 | |||||
(m2) | ||||||||||
Be placed in Water Depth(m) | -5 to | -5 to | -5 to | -5 to | -5 to | |||||
-60 | -60 | -60 | -60 | -60 | ||||||
Floating Pipe Diameter(mm) | 200 | 250 | 315 | 350/400 | 450/500/600 | |||||
Handrail Pipe Dia (mm) | 90 | 110 | 125 | 125 | 140/160 | |||||
Handrail Upright Dia (mm) | 110 | 125 | 125/Bracket | Bracket | Bracket | |||||
Bracket Type | Split | Split | Split/ One-piece with Handrail Upright | One-piece with Handrail Upright | One-piece with Handrail Upright | |||||
Distance between Brackets(m) | 2 | 2 | 2 | 2.5 | 2.5 | |||||
Materials Used | PE100 | PE100 | PE100 | PE100 | PE100 | |||||
Foam Added | Only Floating Pipe | Only Floating Pipe | Only Floating Pipe | Only Floating Pipe | Only Floating Pipe | |||||
Available with Sinker Pipe | Yes | Yes | Yes | Yes | Yes | |||||
Available with Walkway Decking: | Yes | Yes | Yes | Yes | Yes | |||||
Available with Net | Nylon /PE/HDPE/ | Nylon /PE/HDPE/ | Nylon /PE/HDPE/ | Nylon /PE/HDPE/ | Nylon /PE/HDPE/ | |||||
Installing Accessories: Pin,Stopper, Pipe for the Walkway Decking | ||||||||||
Performance parameters of Circular Cage:
1)Anti-Windstorm capacity:Maximum grade 112) Ability of anti-wave:Maximum wave high of 5 meter in the water
3) Anti-flow capability:Maximum flow rate of 1.5m
Advantages
1. High intensity
2. Excellent flexibility
3. Corrosion resistant
4. Strongly resistant to the storm
5. Long service life
6. Sufficient aquaculture water volume with high efficiency and low comprehensive cost
7. Less pollution and high-grade aquaculture water resulted in the perfect quality of the fish products, the desirable benefits and returns.
2. Excellent flexibility
3. Corrosion resistant
4. Strongly resistant to the storm
5. Long service life
6. Sufficient aquaculture water volume with high efficiency and low comprehensive cost
7. Less pollution and high-grade aquaculture water resulted in the perfect quality of the fish products, the desirable benefits and returns.
Fittings
Bracket of PE Tilapia farm floating cage

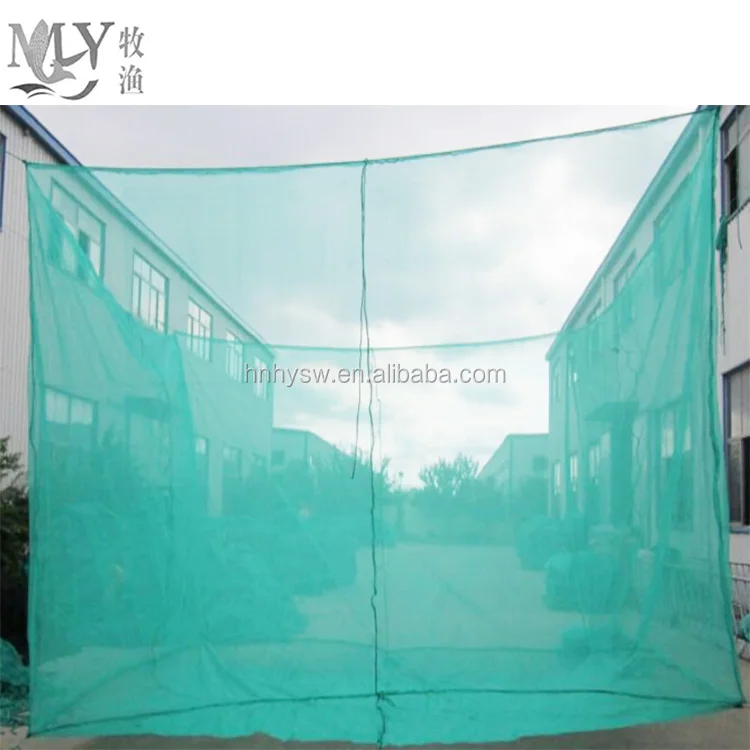

FISH CAGE NETS
PE Tilapia farm floating cage
Fish cage net is very import in the whole fish cage system, as fishes are growing inside the net cage. The fish net cage provides a environment that keep fishes from the risk of escape and predator attacks.
We make sure the fish net cages are pure material, we've been improving and using advanced sewing methods to make sure strong and clean connection points, as well as neat grid ropes to ensure that load is evenly distributed throughout the net system.
All hapa nets, fingerling nets, grow out nets, protection nets are available.
We make sure the fish net cages are pure material, we've been improving and using advanced sewing methods to make sure strong and clean connection points, as well as neat grid ropes to ensure that load is evenly distributed throughout the net system.
All hapa nets, fingerling nets, grow out nets, protection nets are available.
Company Profile
Hebei Zhuoshi Pipeline Technology CO., Ltd. is a high-tech enterprise integrating design, production, sales, construction power,municipal administration, communication and energy. We adhere to the principle of taking scientific and technological innovation as the core,promoting the development of productivity,taking innovative talents as the benchmark, improving the competitiveness of core science and technology,insisting on scientific and technological innovation to promote the integration of innovative resources, and forming a joint force of enterprise innovation!
key words fish cage floating ，net fish cage， cage floating fish，float cage fish，Float fish，cage for fish farming，net for fish cages，fish farm cage equipment，fish aquaculture farm equipment，cage fish farming，hdpe fish cage ，fish farm net cage，fish farming cage net，fish cage net，fish cage farming，tilapia fish farming equipment，aquaculture net cage，floating cage for fish，floating cage for fish，fish farm floating cages，aquaculture fish farming cages，fish cage design，hdpe fish cage，aquaculture fish farming cages，floating cage for tilapia，fish breeding cages，cage for fish，farming fish cage，circular fish cage，cage aquaculture，floating cage price，fish cage farming float，fish cage farming，fish farming cage aquaculture，aquaculture cage，cage fish farming floating，floating farm，aquaculture float，aquaculture float，Aquaculture net，cage floating，floating cage，aquaculture cag
key words fish cage floating ，net fish cage， cage floating fish，float cage fish，Float fish，cage for fish farming，net for fish cages，fish farm cage equipment，fish aquaculture farm equipment，cage fish farming，hdpe fish cage ，fish farm net cage，fish farming cage net，fish cage net，fish cage farming，tilapia fish farming equipment，aquaculture net cage，floating cage for fish，floating cage for fish，fish farm floating cages，aquaculture fish farming cages，fish cage design，hdpe fish cage，aquaculture fish farming cages，floating cage for tilapia，fish breeding cages，cage for fish，farming fish cage，circular fish cage，cage aquaculture，floating cage price，fish cage farming float，fish cage farming，fish farming cage aquaculture，aquaculture cage，cage fish farming floating，floating farm，aquaculture float，aquaculture float，Aquaculture net，cage floating，floating cage，aquaculture cag
Certifications
FAQ
Square aquaculture traps PE material
A: We are professional manufacture and welcome to visit us at any time.
Q2. How long is your delivery time?
A: Generally it takes 10-15 days if the goods are in stock, which depends on your quantity and can be negotiable.
Q3: Can you provide samples?
A: Yes, of course, samples is available for small quantity we can supply for free.
Q4: What is your terms of payment?
A: L/C, Western Union, T/T 30% in advanced, balance before shipment.
Q5: Can I have my own logo on the product?
A:Yes, sure, you just send us your drawing, we'll make logo for you, and before production we will confirm with you in advance.
Q6: Can I request to change the method of package and transportation?
A: Yes, the packing and trasportation can be as per your requirements.
