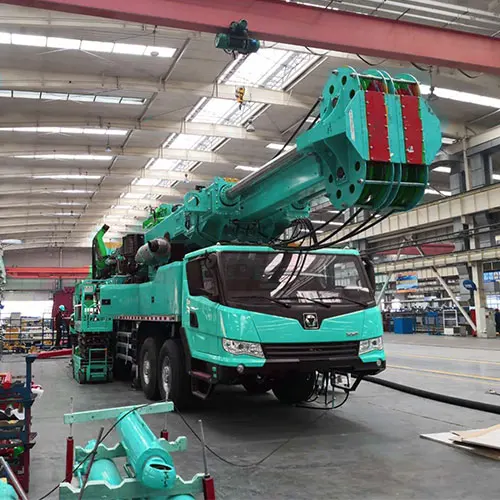

3000 м глубокая тележка установленная роторная буровая установка бурения скважин на воду
- Категория: >>>
- Поставщик: Zhengzhou Hanfa Imp & Exp Trading Co. Ltd.
Сохранить в закладки 1600185152358:
Описание и отзывы
Характеристики
Product Description
Introduction
* All-wheel drive vehicle chassis, satisfy the national emission standard, strong off-road performance.
* Multi-axle steering intelligent control and multi-steering mode provide flexible steering and small steering diameter.
* Hydro-pneumatic suspension with good travelling performance, which adapts to severe road conditions such as muddy road, sand, snowfield. upland etc.
Full Hydraulic Top-drive
Output port adopts floating device, which effectively reduces the wearing of the drill stem thread, and increases service life of the drill stem.
Spindle has a strong slag discharge capacity through its large drift diameter, which makes it especially adapt to the reverse circulation construction.
The Feeding System
It has a large stroke by extending completely when working.which adapts to long drill stem and long casing constructions. It retracts when travel to reduce transportation dimensions.
It adopts cylinder-wire rope speed multiple feeding system with slow feeding mode, which provides slow drilling and fast
lifting.With that it ensures good drilling performance and improves working efficiency.
The Convenient Stem Changing Mechanism
Optional independent stem auto-change system and top-drive can use cooperatively, which realizes full automation of stem loading and unloading, and reduces the number of workers and work intensity on the work site.
The Advanced and Efficient Hydraulic Control System
The independently developed load sensitivity control system can provide proper flow and pressure to the actuating mechanism according to the loading needs, which is energy-efficient.
It adopts the proportional control of the major movements, which makes the speed adjust conveniently. With no shock when start and stop, the control is highly accurate.
The Efficient Large Torque Fastening and Unfastening Device
It can fasten and unfasten the drill tools rapidly by using with power slip cooperatively, which realizes loading and unloading drill stem without assistance of workers and reduces work tensity.
The Comfortable Cab
Large lifting force drilling rig adopts closed cab, which insulates the noise and dust of the work site efficiently and improves operating environment greatly. With human engineering designed intensive operation platform, it is comfortable to operate and convenient to observe.
* Multi-axle steering intelligent control and multi-steering mode provide flexible steering and small steering diameter.
* Hydro-pneumatic suspension with good travelling performance, which adapts to severe road conditions such as muddy road, sand, snowfield. upland etc.
Full Hydraulic Top-drive
Output port adopts floating device, which effectively reduces the wearing of the drill stem thread, and increases service life of the drill stem.
Spindle has a strong slag discharge capacity through its large drift diameter, which makes it especially adapt to the reverse circulation construction.
The Feeding System
It has a large stroke by extending completely when working.which adapts to long drill stem and long casing constructions. It retracts when travel to reduce transportation dimensions.
It adopts cylinder-wire rope speed multiple feeding system with slow feeding mode, which provides slow drilling and fast
lifting.With that it ensures good drilling performance and improves working efficiency.
The Convenient Stem Changing Mechanism
Optional independent stem auto-change system and top-drive can use cooperatively, which realizes full automation of stem loading and unloading, and reduces the number of workers and work intensity on the work site.
The Advanced and Efficient Hydraulic Control System
The independently developed load sensitivity control system can provide proper flow and pressure to the actuating mechanism according to the loading needs, which is energy-efficient.
It adopts the proportional control of the major movements, which makes the speed adjust conveniently. With no shock when start and stop, the control is highly accurate.
The Efficient Large Torque Fastening and Unfastening Device
It can fasten and unfasten the drill tools rapidly by using with power slip cooperatively, which realizes loading and unloading drill stem without assistance of workers and reduces work tensity.
The Comfortable Cab
Large lifting force drilling rig adopts closed cab, which insulates the noise and dust of the work site efficiently and improves operating environment greatly. With human engineering designed intensive operation platform, it is comfortable to operate and convenient to observe.
Technical Data
Type | HFXC300 | HFXC500 | HFXC3000 | ||||
Driling depth | m | 300(∅89) | 500(∅89) | 3000(∅114) | |||
Max. diameter of working floor | mm | ∅330 | ∅500 | ∅820 | |||
Max. lifting capacity | KN | 160 | 280 | 1200 | |||
Max.feeding capacity | KN | 80 | 120 | 260 | |||
Max.lifting speed | m/min | 32 | 39 | 30 | |||
Max.feeding speed | m/min | XS3800 | 57 | 60 | |||
Stroke | mm | 7000 | 15240 | ||||
Max.torque | N.M | 6600/3300 | 11000 | 27500/18300 | |||
Max.Speed | r/min | 95/190 | 143 | 120/180 | |||
I.D | mm | ∅55 | ∅76 | ∅105 | |||
Floating distance | mm | / | 100 | 100 | |||
Max.tilting angle | ° | / | 85 | 85 | |||
Deck engine | Type | QSB5.9-C150 | QSB6.7-C220 | CAT C18 | |||
Rated power | kw | 113 | 164 | 571 | |||
Main winch | Hoisting capacity | / | 50 | / | |||
Tool winch | Hoisting capacity | KN | 15 | / | 50 | ||
Max.breakout torque | KN | / | 22000 | 95000 | |||
vise clamping range | N.M | / | 3.5" ~7.5" | 2-7/8"~ 10-6/8" | |||
Foam pump | Max. flow | mm | / | 35 | / | ||
Max. pressure | L/min | / | 4 | / | |||
I.D | Mpa | ∅55 | ∅76 | ∅76 | |||
Max. pressure | mm | 8 | 8 | 35 | |||
Drive mode | Mpa | 4x2 car chassis | Iveco 6x4 car chassis | 10x8 all-ground car chassis | |||
Rated power | kw | 121 | 220 | 327 | |||
High speed | km/h | 79 | 96 | 80 | |||
Max.climbing gradient | % | 41 | 54 | 45 | |||
Working dimension(L*W*H) | mm | 7960 x 2500 x 7370 | 10200 x 3600 x 11250 | 14680 x 5184 x (13800 ~ 21400) | |||
Transportation dimension(L*W*H) | mm | 8100 x 2500 x 3250 | 12000 x 2500 x 4200 | 14200 x 2550 x 4000 | |||
Weight | t | 13.3 | 23 | 55 | |||

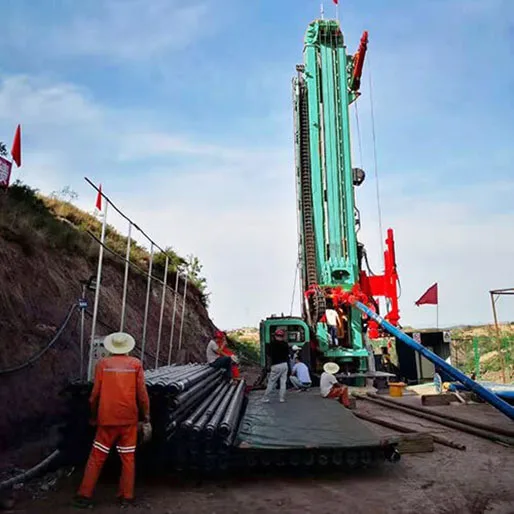

Construction Site
Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway andhighway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 20 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
Services provided during the sale
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our
clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients;
3)Detailed technical assessment;
4)Design of process and equipment layout.
clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients;
3)Detailed technical assessment;
4)Design of process and equipment layout.
After-sale services
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4)Supplying spare parts with cost.
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4)Supplying spare parts with cost.
FAQ
1, Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
Our Customers
Похожие товары
Светодиодные уличные прожекторы для сцены теплый белый со звуком или приложение телефона украшения
30,00 $ - 99,00 $
Медные фитинги для коннектора кондиционера HVAC 1/4 дюйма 3/8 1/2 5/8 7/8 медный соединительный элемент трубы запасные части
0,20 $ - 0,25 $
Легкая установка популярный дозирующий насос Ailipu JCMA электромагнитный химический дозирующий насос с инструкцией по эксплуатации
60,00 $ - 90,00 $
Портативная установка для закрепления почвы
4 980,00 $

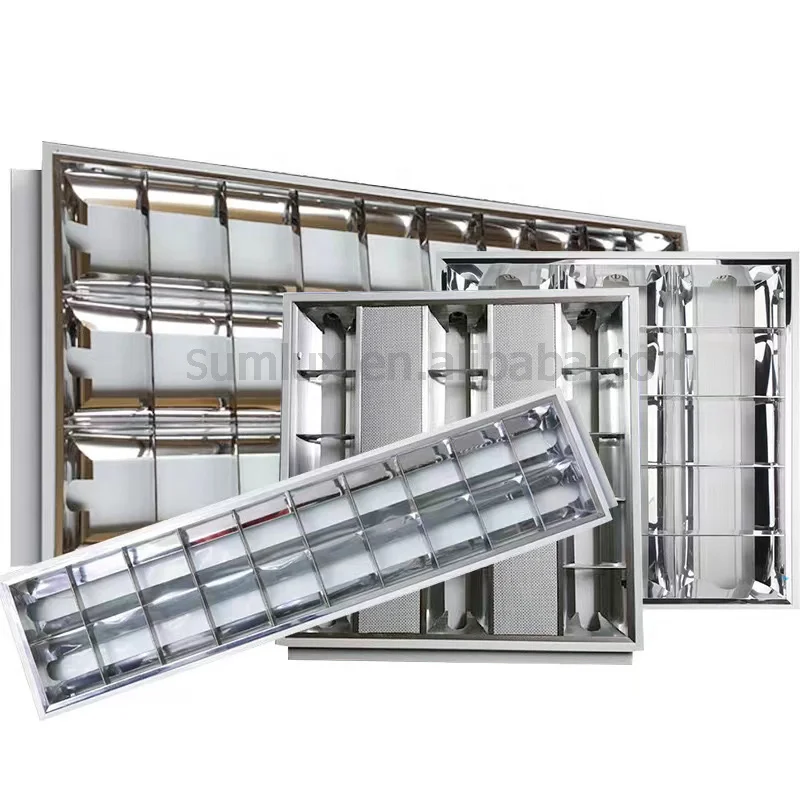

Световая панель T8 troffer 2x2 2x4 зеркальные отражатели 3xT8 люминесцентные жалюзи 60x120 30x120 600x600
