Белый цвет PP питьевой соломы делая машину

Белый цвет PP питьевой соломы делая машину

Категория: Straw Making Machines >>>
Поставщик: Hangzhou Fuyang Sunrise Machinery Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

1. Introduction

An ideal drinking straw machine for making straight straws.

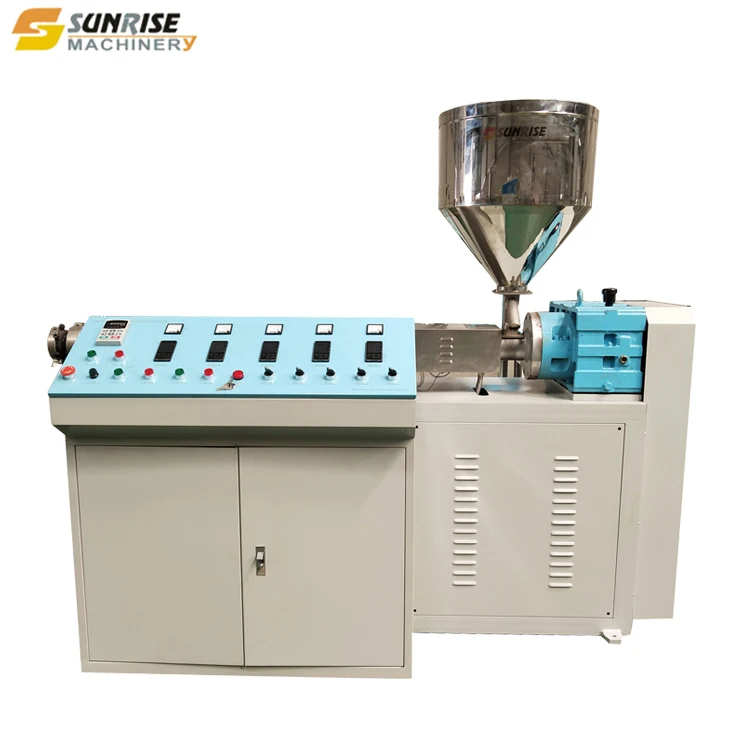

SDSI series straight straw making machine is our new design. It adopts the screw diameter 50mm instead of 45mm, and L: D is 28: 1. The new design makes it much easy to plasticize and increase output. It is an economical perfect machine for drinking straws.

2. Characteristics

Colors: Single, two, three or five, spiral stripes, straight stripes.
Cut end: 90° /90° , 90° /45° , 90° /60° , 45° /45° , 60° /60°
All the direct contact parts made from stainless steel.

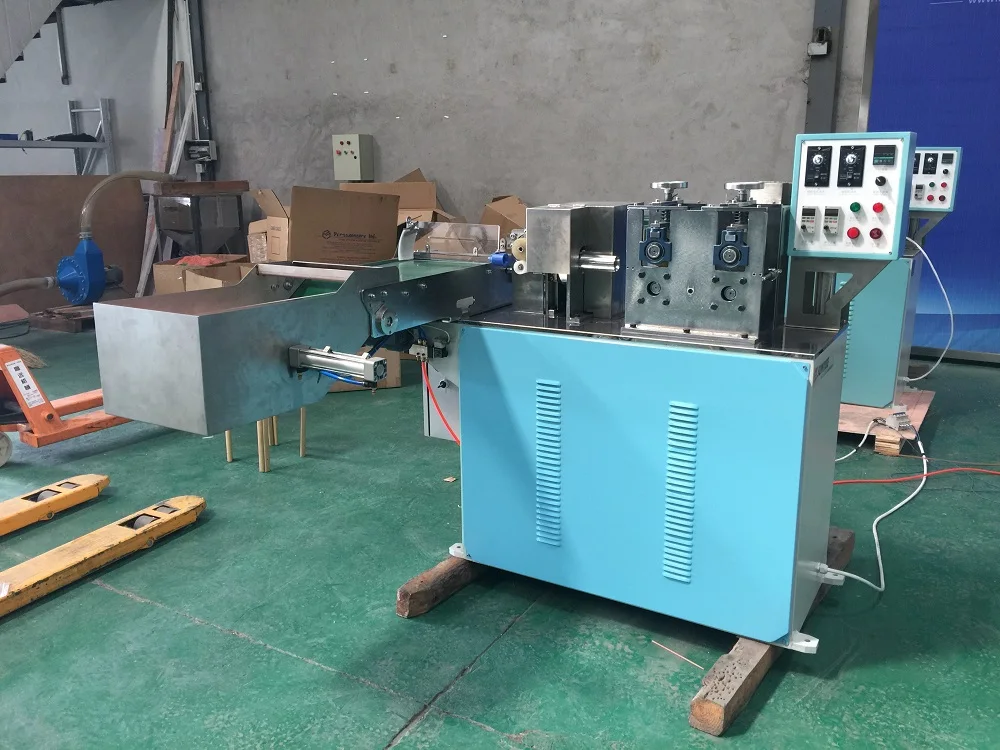

The cutting unit adopted the big plate cutter and with automatic gathering system.
The breaker, AC contactor and knob switch brand is CHINT
The inverter is DELTA

3.Technical data

Colour	Single	Two	Three
Diameter of screw:	50mm	50mm+1x25mm	50mm+2x25mm
L:D	28:01:00	28:1 / 20:1	28:1 / 20:1/20:1
Max. extrusion capacity	35kgs/h
Material	PE / PP
Specification of straw	Diameter.:φ2- φ 14mm
	Length tolerance:± 0.1 -1mm
	Thickness:0.05-1mm
Capacity	30000-60000pcs/h
Power of extruder	11kw,380v,50hz	11kw+0.75kw,380v,50hz	11kw+2x0.75kw,380v,50hz
Power of hauling machine	0.75kw,380v,50hz
Power of cutter	0.75kw,380v,50hz
Power of gathering system	0.18kw,380v,50hz
Temperature controlling	5 sections	8 sections	11 sections
