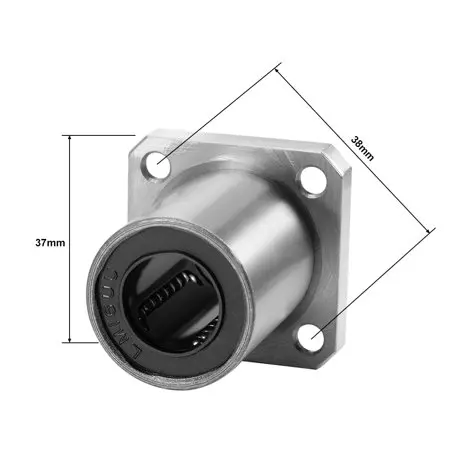

Фабричный подшипник шариковый размеры fmc16 линейный
- Категория: >>>
- Поставщик: Jinan Shunfang Bearing Co. Ltd.
Сохранить в закладки 1600185200641:
Описание и отзывы
Характеристики
Product Description
Feature of Linear Ball Bearing
Feature of Linear Ball Bearing

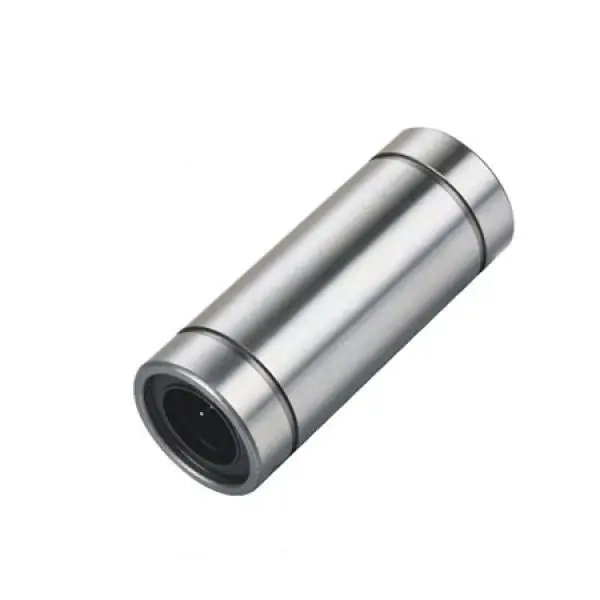

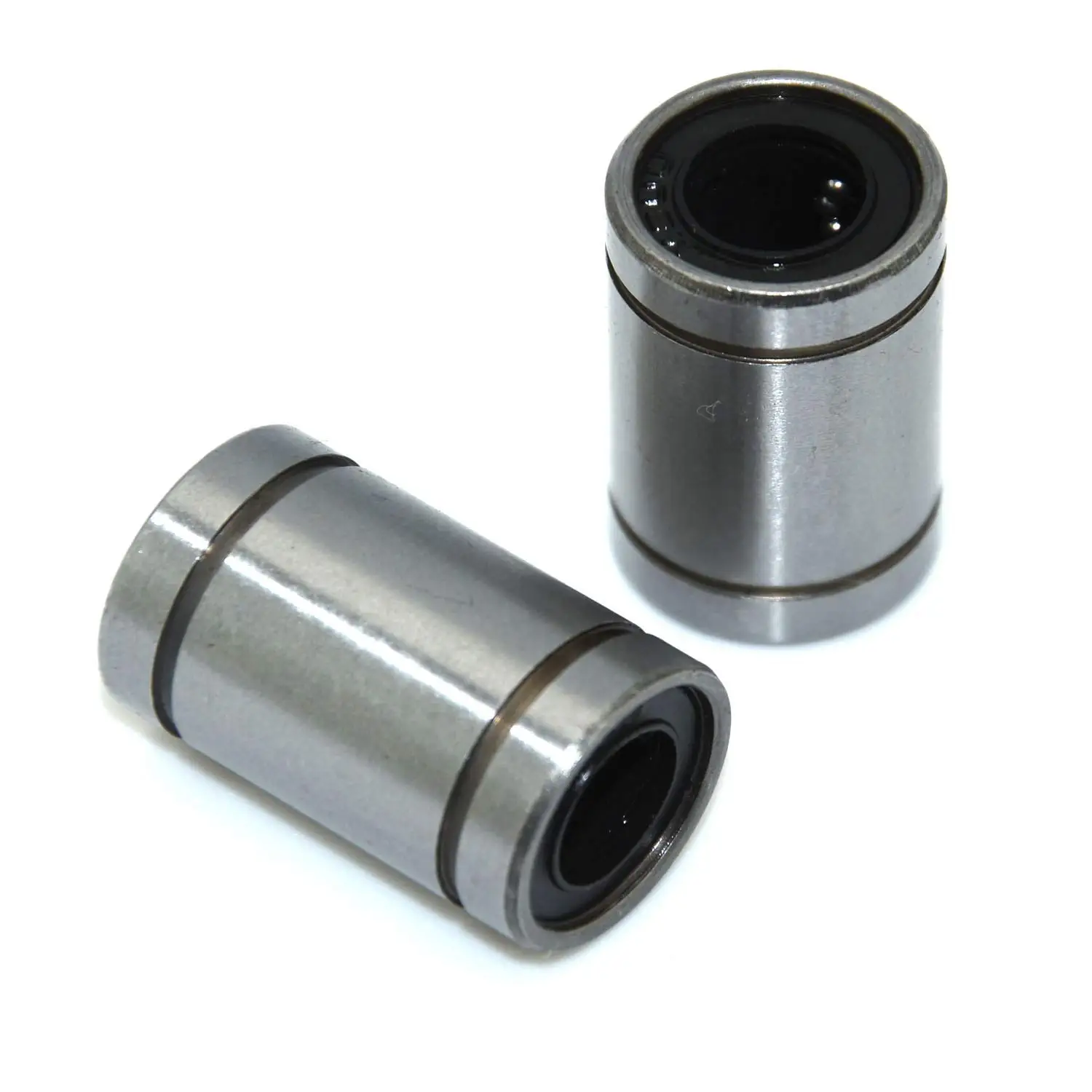

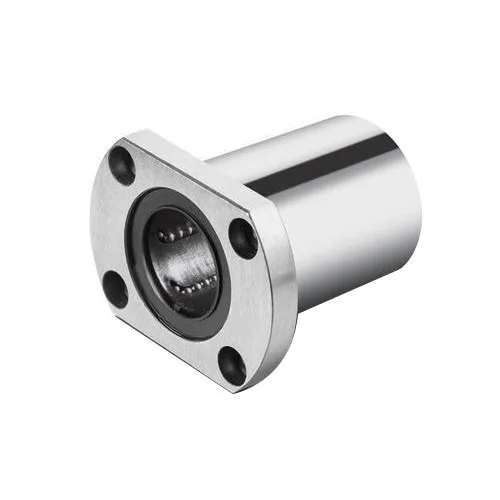

Linear ball bearing is a linear motion system, bearing and shaft contact through steel balls, therefore ball bearing has the advantage of low friction, stability, low noise, high rigidity and high accuracy even with heavy load.
Application: Automatic food production, Semi-conductor industry, Machine tool and etc.
Linear ball bearing is a linear motion system, bearing and shaft contact through steel balls, therefore ball bearing has the advantage of low friction, stability, low noise, high rigidity and high accuracy even with heavy load.
Application: Automatic food production, Semi-conductor industry, Machine tool and etc.
LM 20 Specification
TYPE | Straight | Motion | Linear Motion |
Style | Standard Form | Outer Cylinder Material | [Steel] Bearing Steel |
Outer Cylinder Surface Finish | [None] No Surface Treatment | For Shaft Diameter(mm) | 20 |
Overall Length L(mm) | 42 | Lubrication Type | Anti-Rust Only (customer needs to add own Grease) |
O.D. D(mm) | 32 | Type | Standard |
Length | Standard | Ball Recirculating Type | Single |
Basic Dynamic Load Rating (Details)(N) | 863 | Basic Static Load Rating(N) | 1370 |
Precision | High Grade | Inscribed Bore Diameter Tolerance(mm) | 0/-0.010 |
Eccentricity(µm) | 15 | The material of a ball | Steel |
Seal Option | No Seals | Retainer Material | Resin |
Operating Temperature Max(°C) | 80 | RoHS | 10 |
Packing&Shipping
Tube packing, cartons+pallets, singal box
TUBE PACK
CARTONS+PALLETS
SINGAL BOX+CARTONS+PALLETS
TUBE PACK
CARTONS+PALLETS
SINGAL BOX+CARTONS+PALLETS
