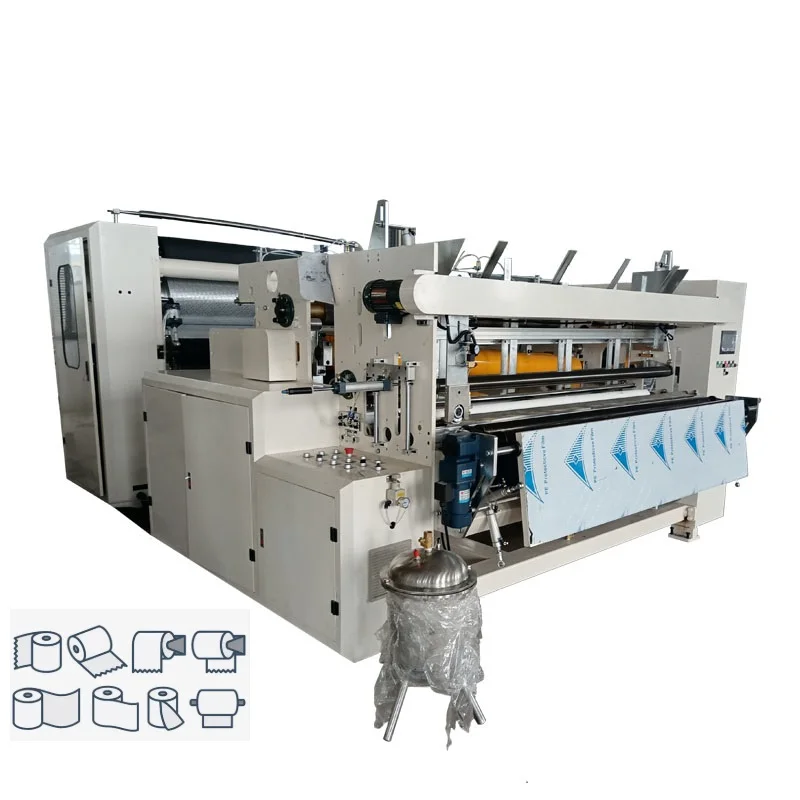

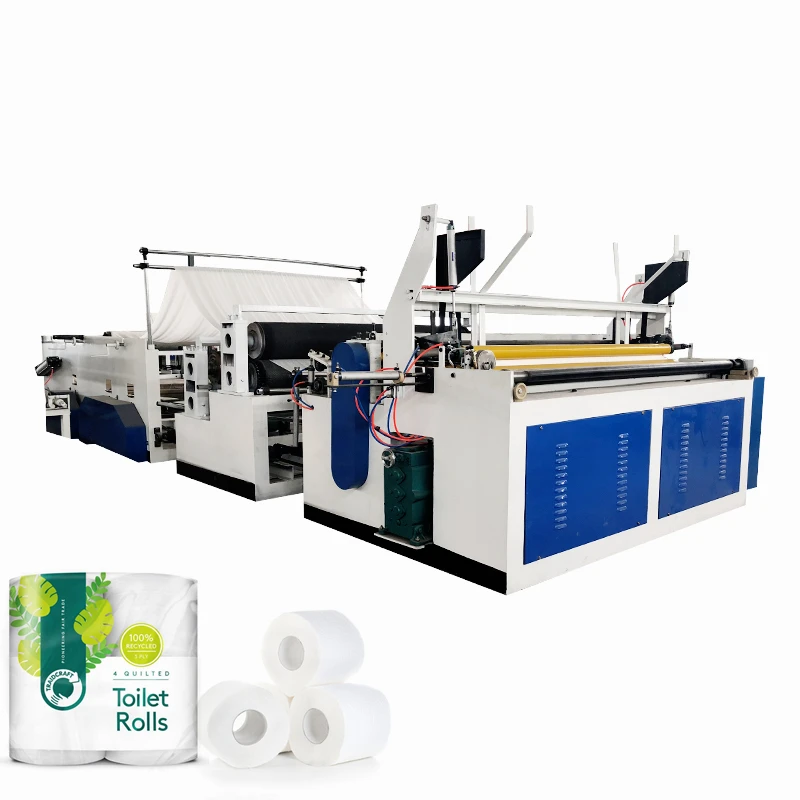

2100 mm Automatic Rolling Paper Rewinding Machine Toilet Tissue Paper Production Line
19 950,00 $ - 24 000,00 $
Профессиональный бумажный лоток для яиц делая машину цена/лоток машина производственная линия
- Категория: Paper Production Machinery >>>
- Поставщик: Yantai City Hede Machinery Equipment Co. Ltd.
Сохранить в закладки 1600185475032:
Описание и отзывы
Характеристики
Product Description

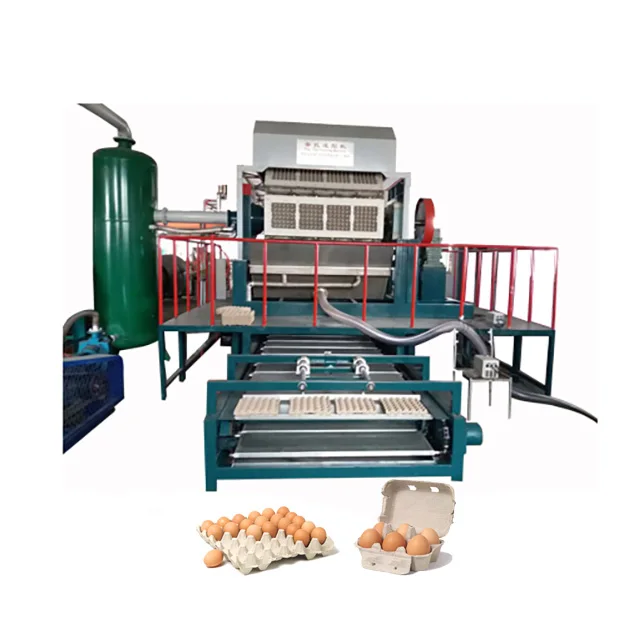

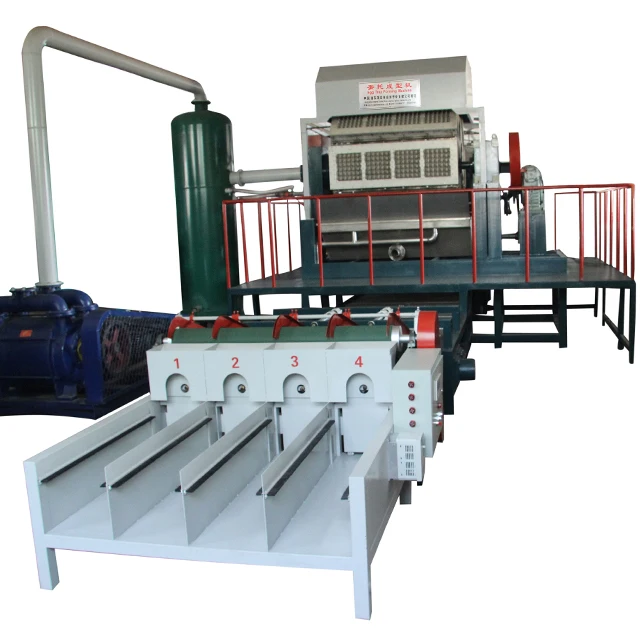

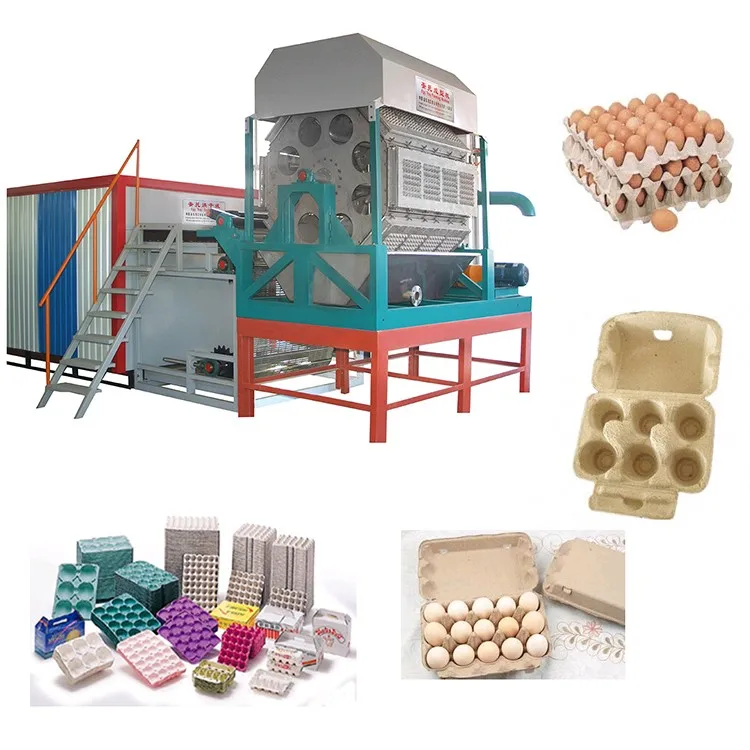

Professional manufacturing pulp egg tray production line making machine
Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production. Our forming machines adopt advanced PLC programmable controller; selecting of high quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.
The quality of our egg tray machines is superior to that of other suppliers, and our prices are lower than theirs.
Specification
Automatic egg tray production line
Processing Type: Pulp Molding Machine
Rotary: 8 Faces/4 Molds
Capacity: 4000pcs/hr (30-egg tray)
Drying method: Metal single layer or multi-layer drying oven
Fuel type: Natural gas, LPG, diesel oil, coal, wood, biomass, etc
Rotary: 8 Faces/4 Molds
Capacity: 4000pcs/hr (30-egg tray)
Drying method: Metal single layer or multi-layer drying oven
Fuel type: Natural gas, LPG, diesel oil, coal, wood, biomass, etc
Electricity consumption: 100KW
Manpower: 4-6 people
Approval: CE
Warranty: 12 Months
Approval: CE
Warranty: 12 Months
Various Model
Model | Capacity | Forming machine | Drying line | Workshop area | Installed power |
ZMG3-24 | 2000-3000pcs/h | 3 molds * 8 faces | 11.8*2.2*2.5m | 30*8*4.5m | 131.2kw |
ZMG4-32 | 3000-4000pcs/h | 4 molds * 8 faces | 11.8*2.5*2.5m | 30*8*4.5m | 187.65kw |
ZMG5-40 | 5000-6000pcs/h | 5 molds * 8 faces | 15*2.5*3.5m | 30*10*5m | 275kw |

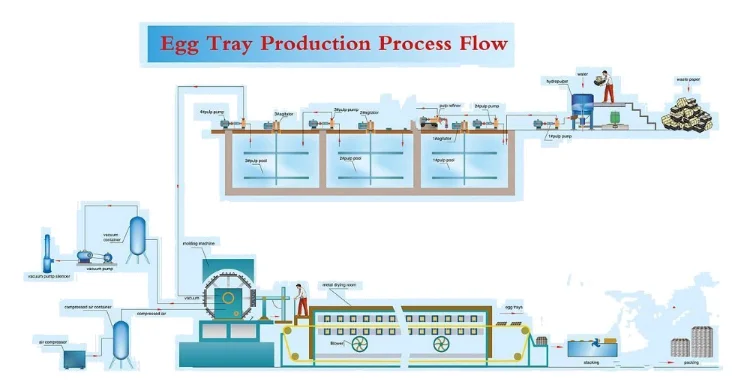

Equipment Process
1. Pulping system

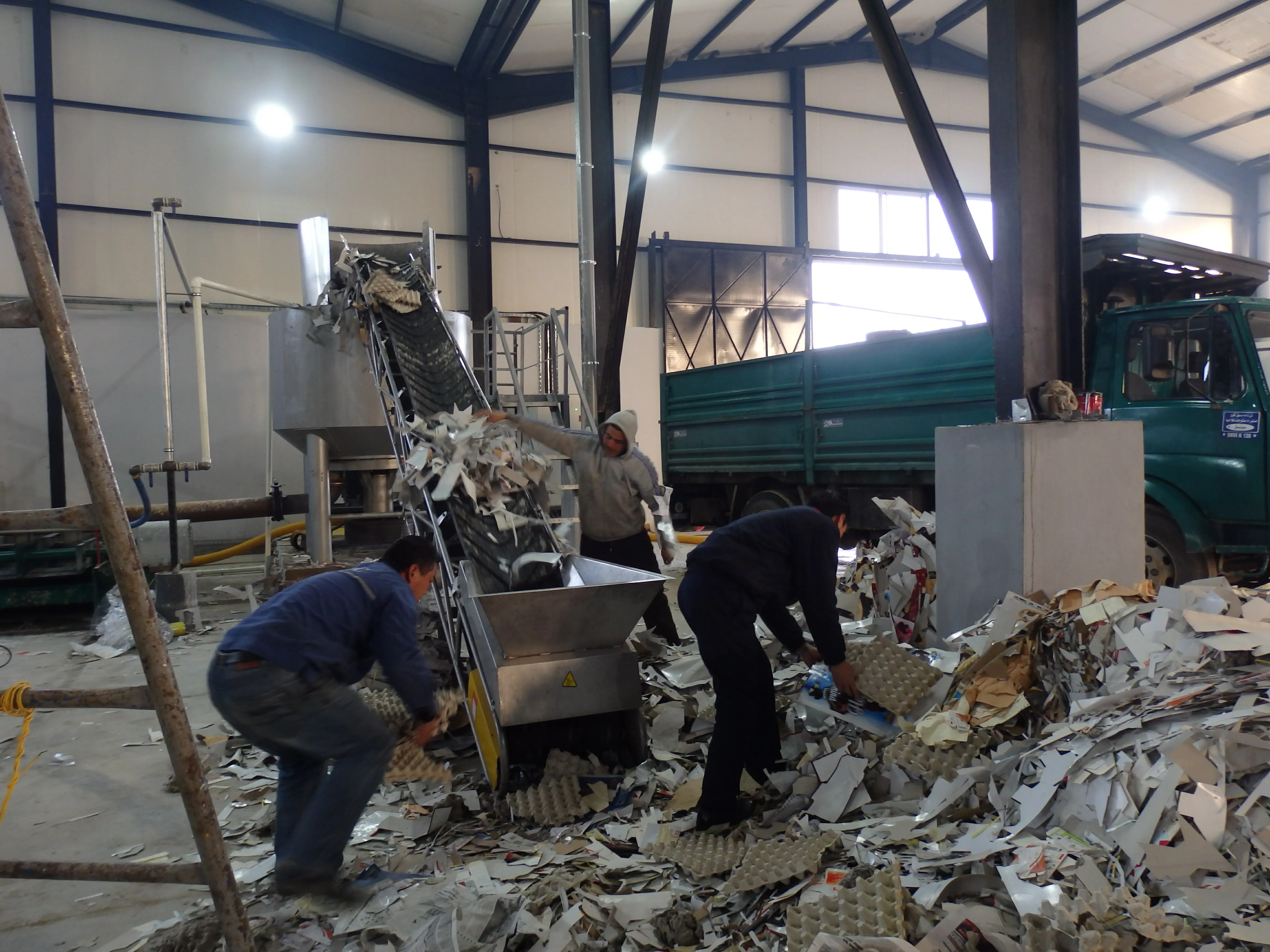

(1) Put the raw material into the pulper and add an appropriate amount of water for a long time to stir the waste paper into pulp and store it in the storage tank.
(2) Put the pulp in the slurry tank into the pulping tank, adjust the pulp concentration in the pulping tank, and further stir through the homogenizer through the white water of the return pool and the thick slurry of the storage tank. After adjusting to the applicable pulp, put it into the feeding pool to be used in the molding system. Equipment used: pulping machine, homogenizer, slurry pump, vibrating screen, pulp disintegrator
(2) Put the pulp in the slurry tank into the pulping tank, adjust the pulp concentration in the pulping tank, and further stir through the homogenizer through the white water of the return pool and the thick slurry of the storage tank. After adjusting to the applicable pulp, put it into the feeding pool to be used in the molding system. Equipment used: pulping machine, homogenizer, slurry pump, vibrating screen, pulp disintegrator

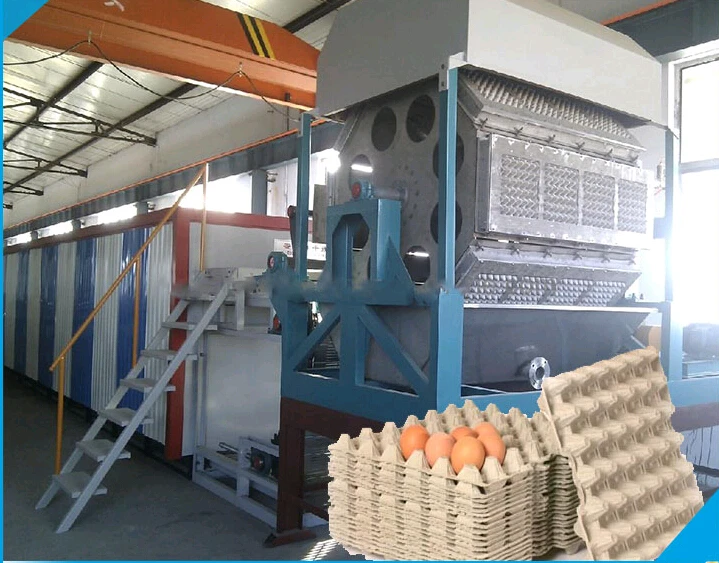

2. Forming system
(1) The pulp in the supply tank is supplied into the molding machine, and is adsorbed by the vacuum system, and the pulp is left on the mold by the mold on the equipment to be formed, and the white water is sucked and transported back into the pool through the vacuum pump.
(2) After the mold is adsorbed, the transfer mold is blown out by the positive pressure of the air compressor, and the molded product is blown from the molding die to the rotary mold, and is sent out by the transfer mold. Equipment used: molding machine, mold, vacuum pump, vacuum tank, pump, air compressor, mold cleaning machine
(2) After the mold is adsorbed, the transfer mold is blown out by the positive pressure of the air compressor, and the molded product is blown from the molding die to the rotary mold, and is sent out by the transfer mold. Equipment used: molding machine, mold, vacuum pump, vacuum tank, pump, air compressor, mold cleaning machine

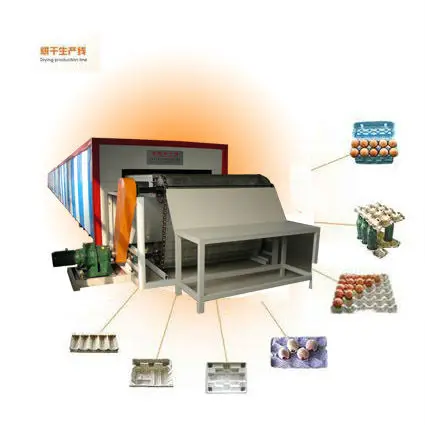

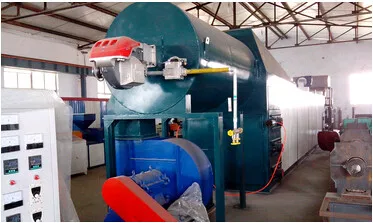

3. Drying system
(1) Natural drying method: The product is dried directly by weather and natural wind.
(2) Traditional drying: brick tunnel kiln, heat source can choose natural gas, diesel, coal, dry wood,A heat source such as liquefied petroleum gas.

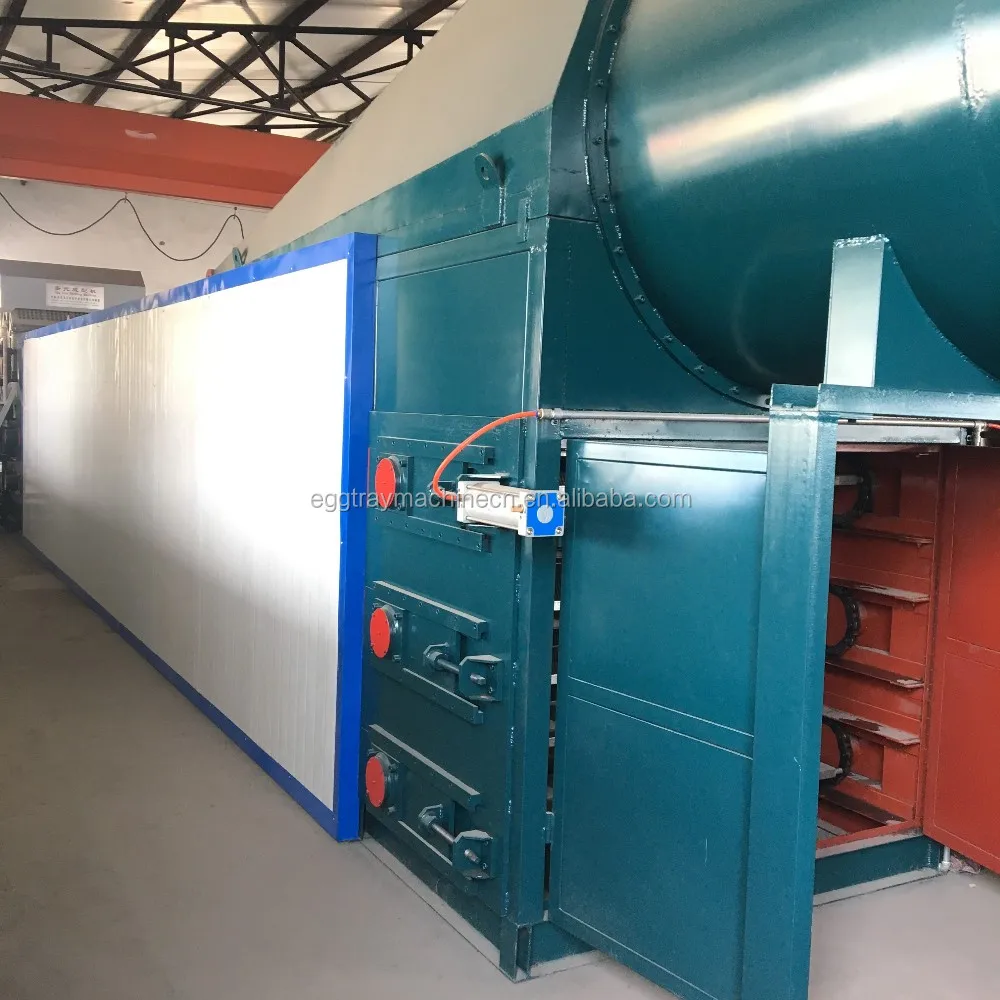

(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy compared to transmission drying. The main
heat source is clean energy such as natural gas, diesel oil, liquefied petroleum gas and methanol.
(2) Traditional drying: brick tunnel kiln, heat source can choose natural gas, diesel, coal, dry wood,A heat source such as liquefied petroleum gas.
(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy compared to transmission drying. The main
heat source is clean energy such as natural gas, diesel oil, liquefied petroleum gas and methanol.
4. Finished product auxiliary packaging
This is the last step of equipment process, when we get the finished tray from the drying oven, we will pack the egg tray. It includes as below:
(1) Automatic stacking and counting machine:Collect the egg trays and put them in order automatically, counting with induction.(2) Baler: for pressing the egg trays.
Product Application

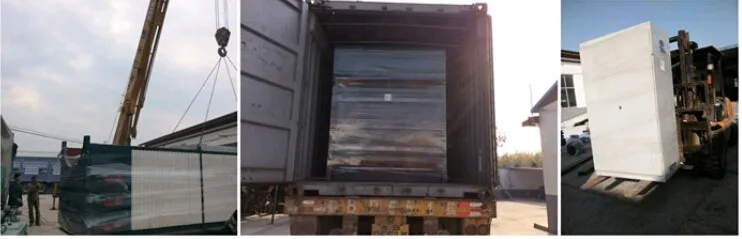

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Delievery time : small capacity line needs 50-60 working days after the deposit ,big capacity line needs 60-90 working days after the deposit
Shipping : FOB QINGDAO usually need 30-40 days to your port .(by sea )
Shipping : FOB QINGDAO usually need 30-40 days to your port .(by sea )
FAQ
1.What kinds of machines do you produce?
(1)Pulp moulding machines, egg tray machine,egg box/carton machines,fruit tray machines,industrial tray machine, seeding tray machines, and the whole production line etc

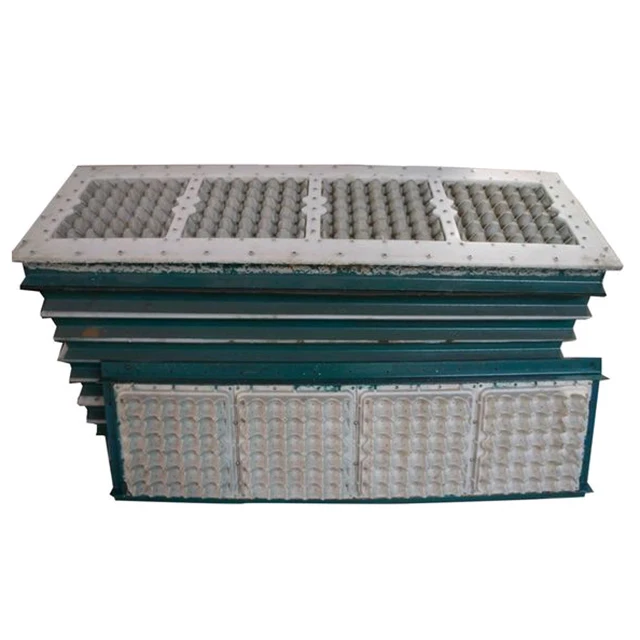

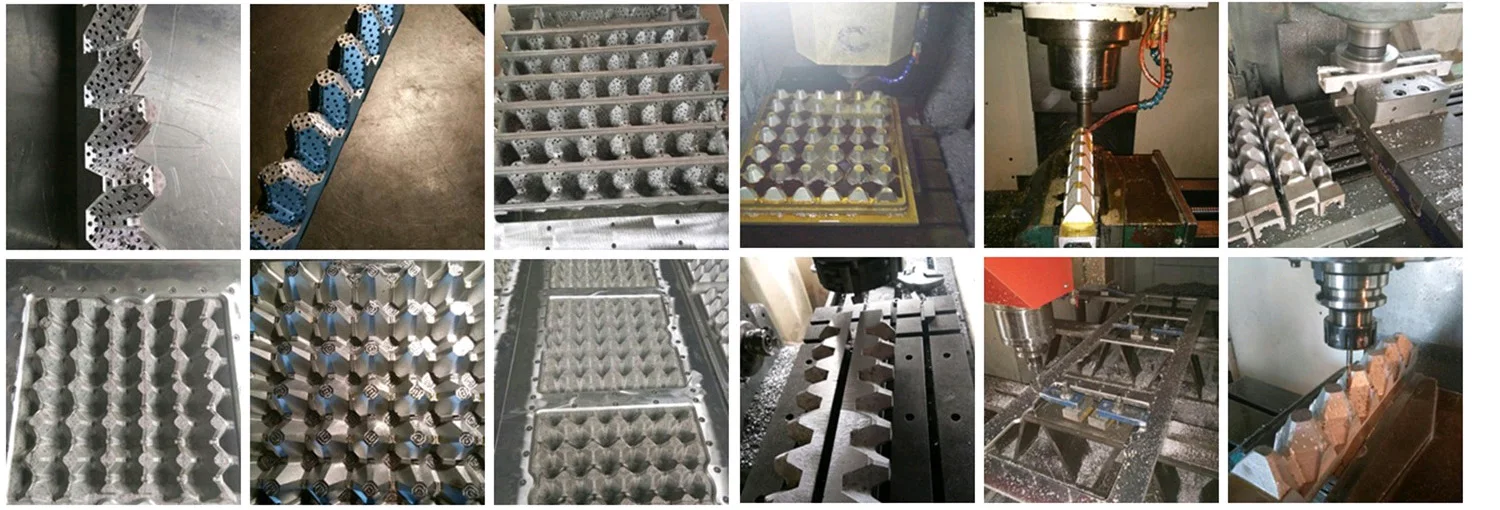

(2)All kinds of moulds ,such as egg tray moulds,egg box/carton moulds, fruit tray moulds,seeding tray moulds,industrial moulds etc.
(3)Drying line and packing machine
2.What capacity per hour do you offer ?
Our machines’ capacity is from 1000pcs/hr to 12000pcs/hr.
3.Do your products come with a warranty ?
Yes , we have one year warranty according the international practice.
4.Can I customize this kind of product from your factory?
Yes ,we offer custom-made service to our customers, you need to provide us some samples,such as photos,dimensions etc.
(1)Pulp moulding machines, egg tray machine,egg box/carton machines,fruit tray machines,industrial tray machine, seeding tray machines, and the whole production line etc
(2)All kinds of moulds ,such as egg tray moulds,egg box/carton moulds, fruit tray moulds,seeding tray moulds,industrial moulds etc.
(3)Drying line and packing machine
2.What capacity per hour do you offer ?
Our machines’ capacity is from 1000pcs/hr to 12000pcs/hr.
3.Do your products come with a warranty ?
Yes , we have one year warranty according the international practice.
4.Can I customize this kind of product from your factory?
Yes ,we offer custom-made service to our customers, you need to provide us some samples,such as photos,dimensions etc.
Похожие товары
Недорогая машина для производства бумажных тарелок, одноразовая машина для производства бумажных тарелок
Изготовление под заказ, гигиенические прокладки, многоразмерная автоматическая машина для изготовления гигиенических прокладок
17 750,00 $ - 19 750,00 $
Автоматическая абразивная машина для резки бумаги
6 500,00 $ - 6 700,00 $
Машина для производства картонных коробок для яиц, машина для производства бумажных коробок для яиц, цена
Автоматическая небольшая машина для дома, машина для перемотки туалетной бумаги, небольшая машина для перемотки туалетной бумаги, цена
5 420,00 $ - 8 600,00 $

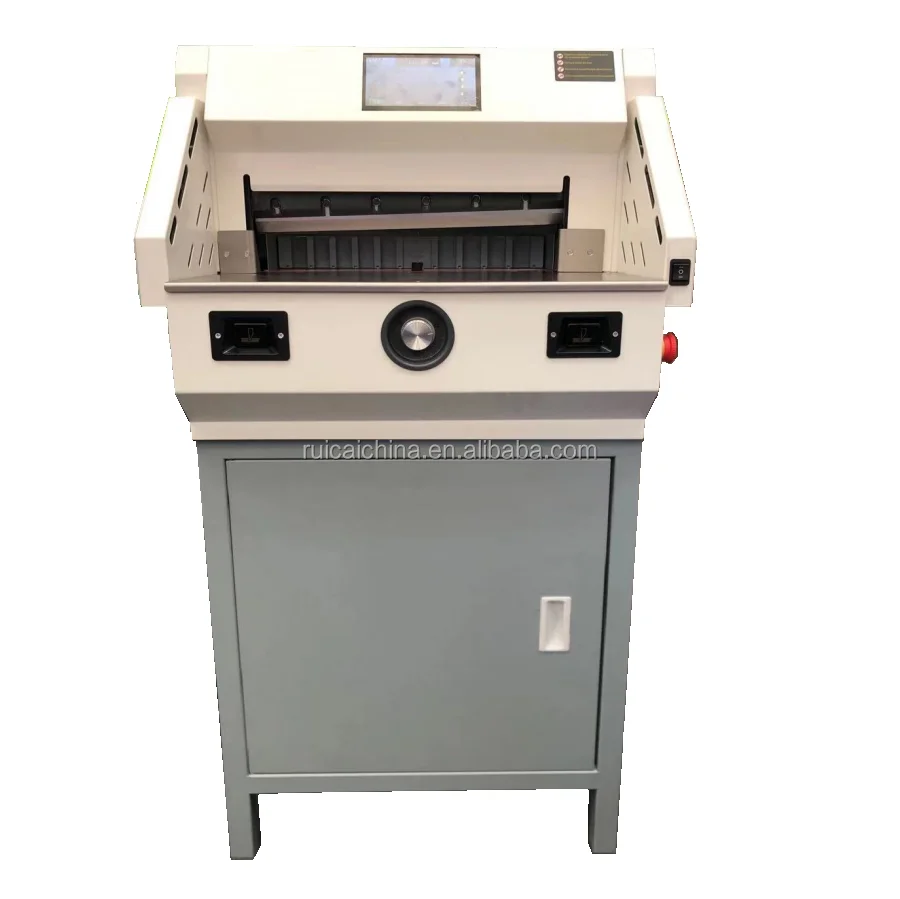

HV-490PT бумажная гильотинная Массажная машина с толщиной резки 80 мм
