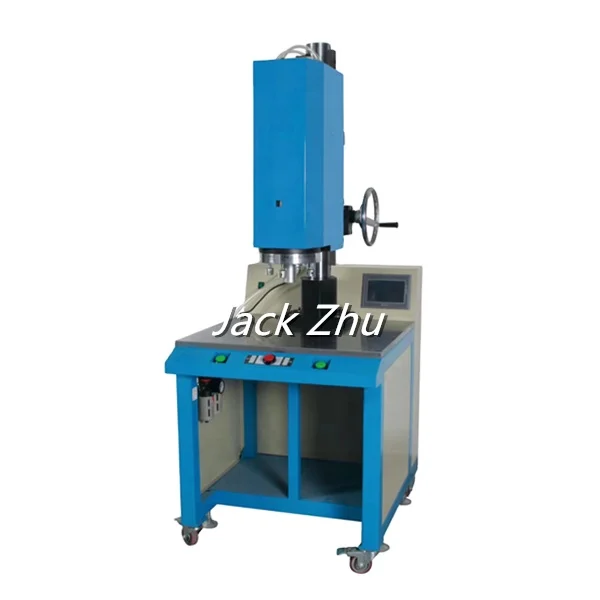

20 кГц 2000 Вт заводская цена ультразвуковой пластиковый сварщик
- Категория: >>>
- Поставщик: Guangdong Xiaowei Intelligent Technology Co. Ltd.
Сохранить в закладки 1600185492885:
Описание и отзывы
Характеристики

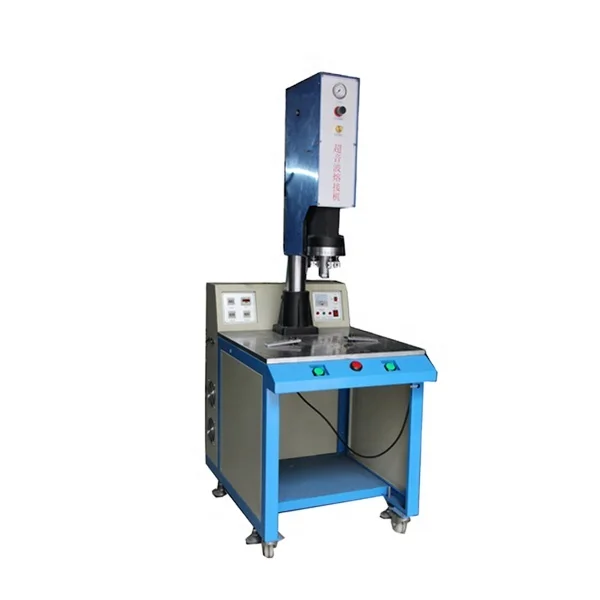

Ultrasonic Plastic Welding Machine
As a joining process for industrial thermoplastics, the ultrasonic method is very well proven in practice. Particularly in the production of mass- produced parts, the process offers definite advantage over previous methods such as for instance high strength,clean weld seams, fast processing time, extremely low rejection rates and low energy consumption. In addition, this technique can be used successfully for riveting, forming, stacking as well as embedding of metal parts into thermoplastic materials.
This Desktop High Power Ultrasonic Welding Machine adopts new generation of ultrasonic welding technology, which greatly shortens the processing time; a few milliseconds can complete the welding.
This Desktop High Power Ultrasonic Welding Machine adopts new generation of ultrasonic welding technology, which greatly shortens the processing time; a few milliseconds can complete the welding.
There are different power of ultrasonic plastic welding machines :
Please contact us for the difference power.
Please contact us for the difference power.
No | Item | XW-PW2020 | XW-PW1526 | XW-PW1532 | XW-PW1542 | |||
1 | Ultrasonic Frequency | 20KHz | 15KHz | 15KHz | 15KHz | |||
2 | Output Power | 2000W | 2600W | 3200W | 4200W | |||
3 | Voltage | AC220V/110V,50/60Hz | ||||||
4 | Air Pressure | 0.3-0.6MPa | ||||||
5 | Operation Interface | 4.3 / 7 inch touch screen | ||||||
6 | Welding Size | 250*250mm, can be customized | ||||||
7 | Welding Head Stroke | 75mm | ||||||
8 | Generator Type | Digital automatic frequency tracking.generator can be adjusted the output amplitude from 0% to 100% | ||||||
9 | Machine Size | 700*400*900mm | 800*600*1500mm | 800*600*1500mm | 800*600*1500mm | |||
10 | Weight | 120kg | 130kg | 280kg | 320kg | |||

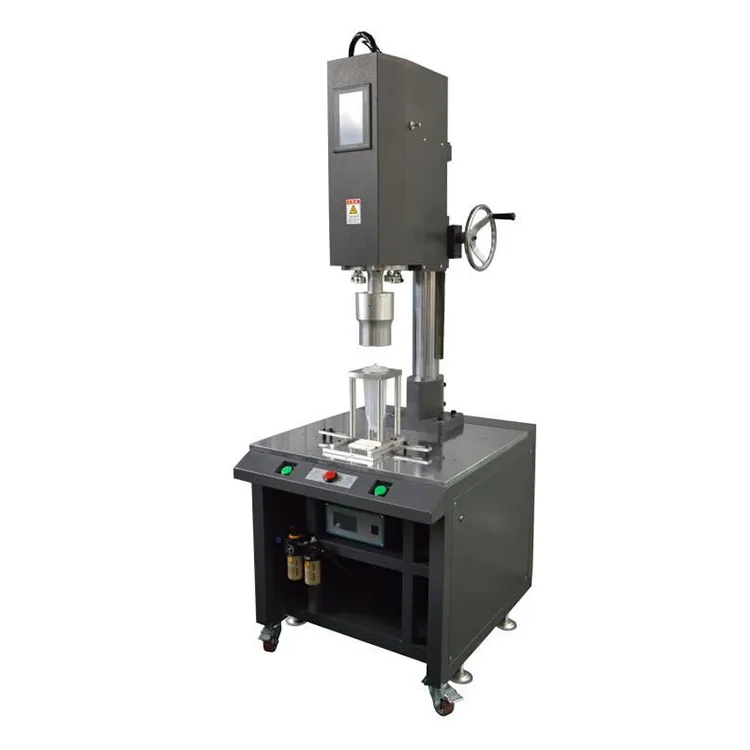

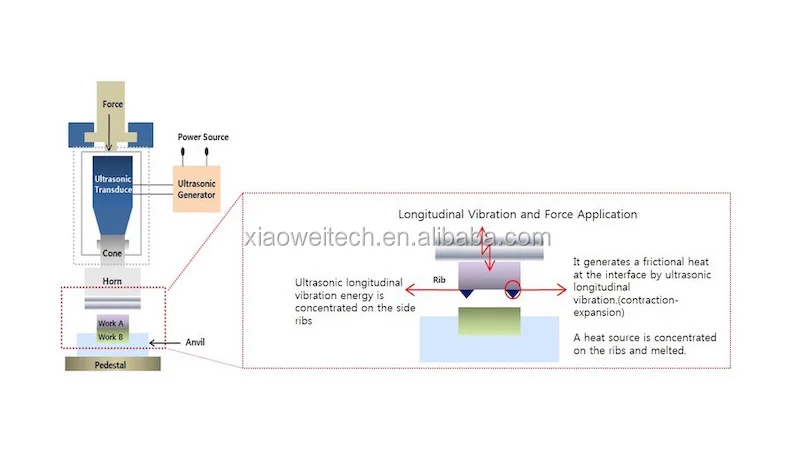

Machine Structure
Features
1.Rugged construction using the highest quality components provides superior performance precision and reliability.
2.Digi-Trac tuning automatically tracks the resonant frequency digitally.
3.Ultrasonic overload protection, with status indicator for ease of troubleshooting. The overload power limit is based on true RMS power output level.
4.Remote pneumatics availability offers increased flexibility in system integration
5.Line Voltage Regulation compensates for line fluctuations assuring consistent amplitude.
6.LED readouts display parameter settings - during setup and operation for easy reference and monitoring. LEDs are large and easy to read in most light conditions.
7.Hydraulic Speed Control offers precision hydraulic control of the melt velocity. This is critical to achieve maximum weld strength in staking, inserting and shear joint applications.
2.Digi-Trac tuning automatically tracks the resonant frequency digitally.
3.Ultrasonic overload protection, with status indicator for ease of troubleshooting. The overload power limit is based on true RMS power output level.
4.Remote pneumatics availability offers increased flexibility in system integration
5.Line Voltage Regulation compensates for line fluctuations assuring consistent amplitude.
6.LED readouts display parameter settings - during setup and operation for easy reference and monitoring. LEDs are large and easy to read in most light conditions.
7.Hydraulic Speed Control offers precision hydraulic control of the melt velocity. This is critical to achieve maximum weld strength in staking, inserting and shear joint applications.

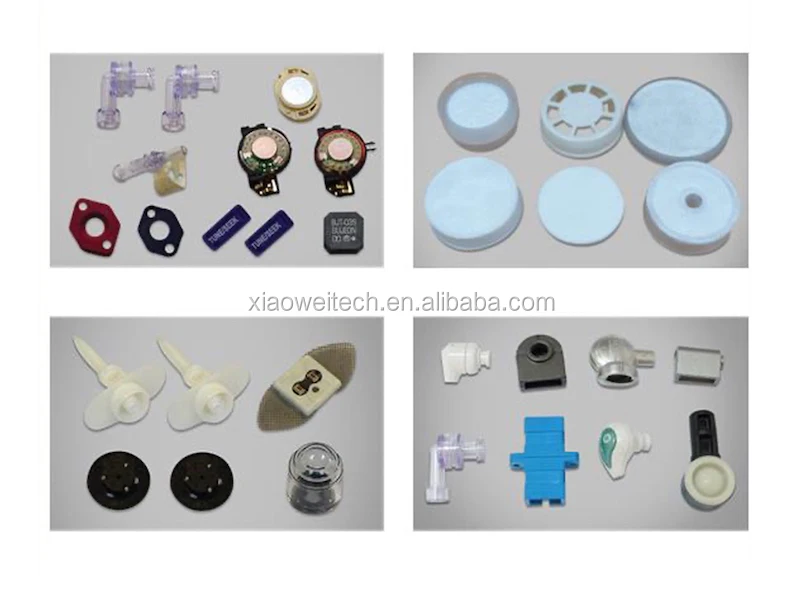

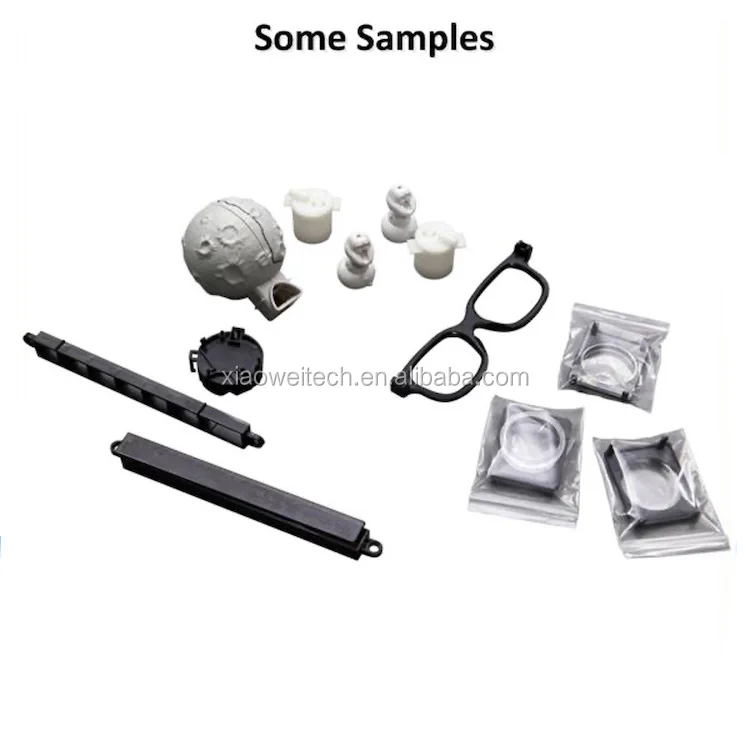

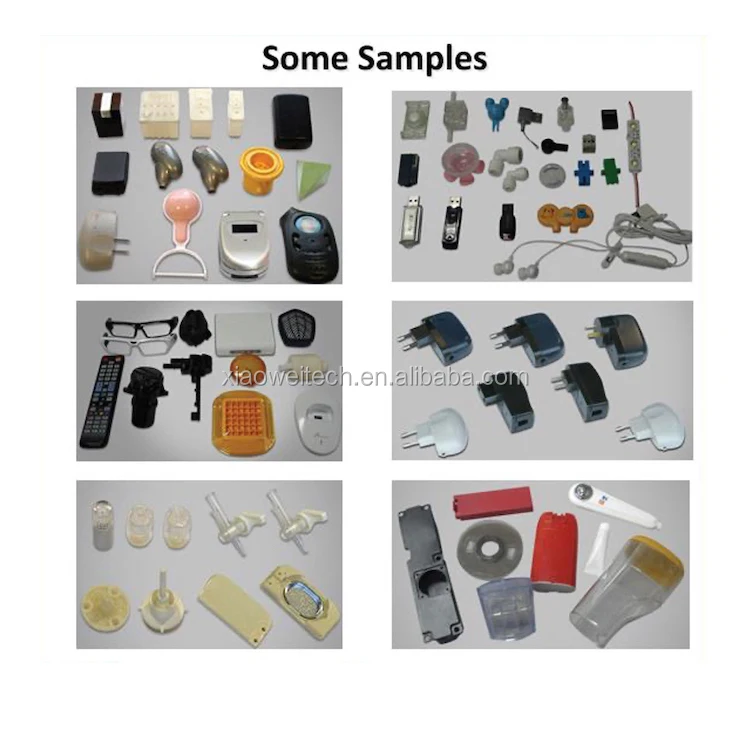

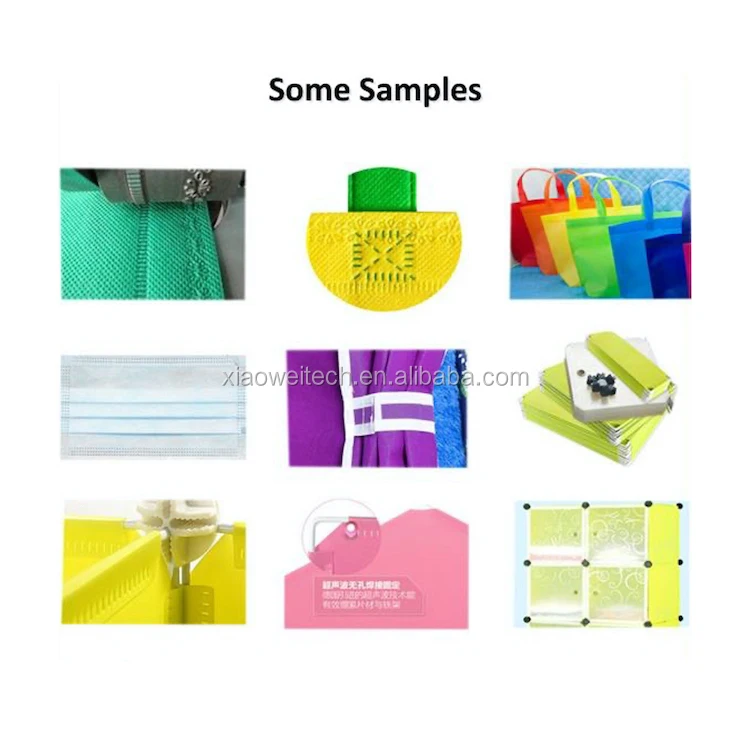

Welding Samples
Suitable for welding a variety of materials, Multiple items can also be welded at the same time.
Various sizes of welding head horn can be customized and free test samples can be provided for you.
XIAOWEI after-sales service policy
1. One year guarantee, one Year spare parts free if the machine parts damage, whole life technician support.
2. With professional engineers, you can go to the world for on-site mechanical maintenance
3. Operation Manual, Operation or repair Video,
4. 24-hours Email technical support, we will do our best to help the clients solve any question or problems.
5. Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
3. Operation Manual, Operation or repair Video,
4. 24-hours Email technical support, we will do our best to help the clients solve any question or problems.
5. Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
Похожие товары
Цифровой ультразвуковой сварочный аппарат с ЖК-дисплеем 15 кГц 2600 Вт
93 679,61 ₽
28 кГц ультразвуковая ручная пластиковая сварочная машина портативный ультразвуковой сварочный аппарат
137 764,13 ₽
20K Многофункциональный Ультразвуковой пластиковый сварщик новый 220V ABS ультразвуковой сварочный аппарат ПВХ розничная продажа другое оборудование пластиковая оболочка
188 902,17 ₽ - 244 007,82 ₽
Горячая продажа ультразвуковой сварочный аппарат для USB провода CE утвержден
308 591,64 ₽ - 330 633,90 ₽
3200 Вт Автоматическая Ультразвуковая Пластиковая сварочная машина ABS Высокая мощность завод производитель наименее дорогой
253 485,99 ₽ - 275 528,25 ₽
Ультразвуковой пластиковый сварочный аппарат для термометра
154 295,82 ₽ - 165 316,95 ₽

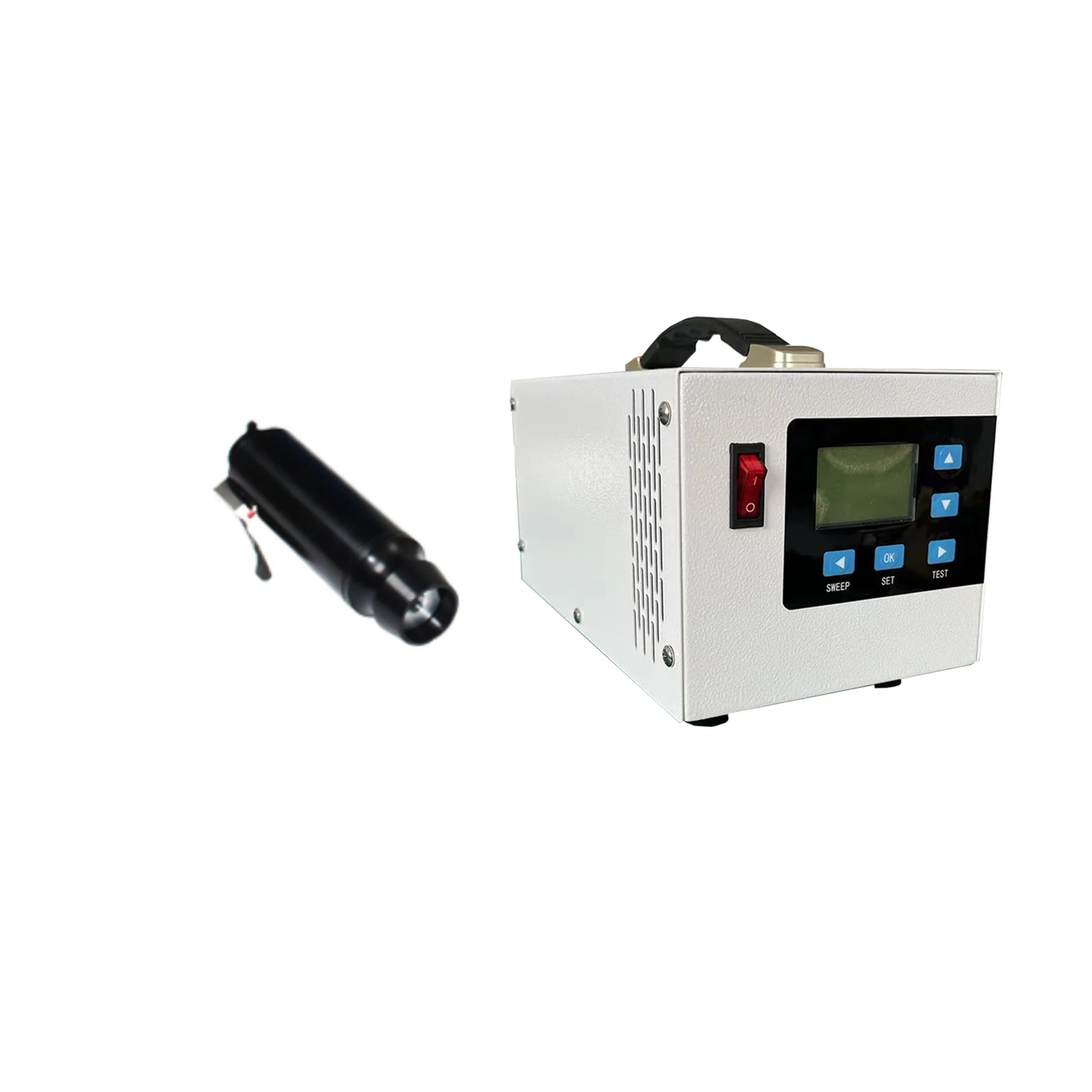

20 кГц 2000 Вт преобразователь сварочный аппарат звуковой ультразвуковой генератор интеллектуальный
