Product Description

Specification

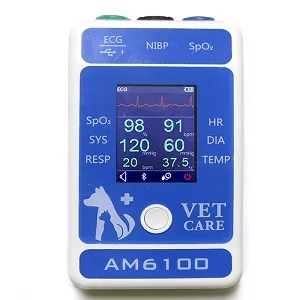

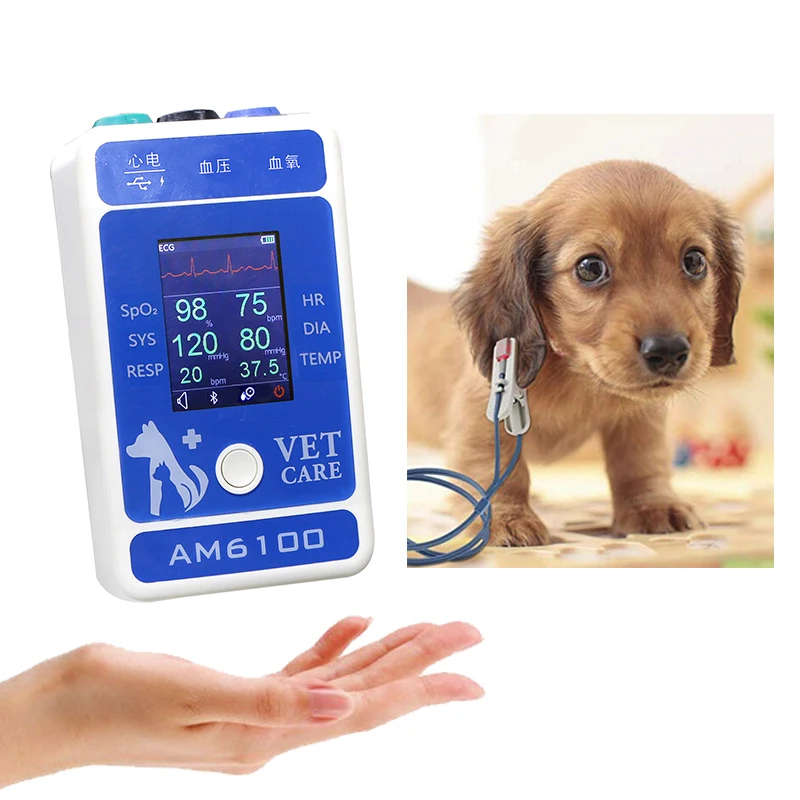

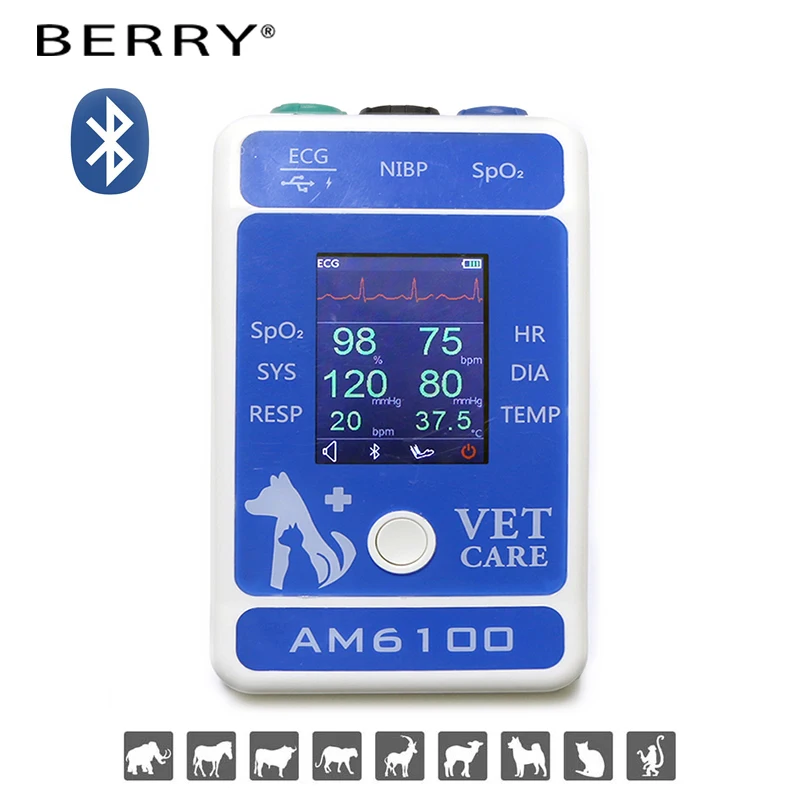

Monitor Description

This monitor integrates the functions of parameter measurement, waveform monitoring, etc. Its color TFT liquid crystal display is able to show animal parameters and waveform clearly. The monitor also features compact size, lightweight, easy-to-carry handle and built-in battery, which make it portable in clinic, ward, even at home.

This monitor is capable of monitoring parameters: ECG (Electrocardiograph), HR (heart rate), NIBP (non-invasive blood
pressure), SpO2, PR(pulse rate), TEMP(body temperature).

The One-Button-Design make the monitor to be a easy-to-use system,so you can perform the operations conveniently.Besides, this monitor can be connected with the other smart terminals such as PC, iphone and Android
phones.

Features

 Compact size, lightweight, easy-to-carry handle.
 Result and Waveform are shown on the TFT in real time.
 Low-power dissipation.
 Built-in battery.
 Support both Bluetooth 3.0 and BLE 4.0 communication.

Basic Specification

Size: 145mm*85mm*37mm
Weight: 240g
LCD: 2.4 inch color TFT LCD

Environmental Specifications

Temperature:
Operating: -10℃ - +40℃
Storage: -25℃ - +85℃
Relative humidity:
Operating: 30% to 85% (non condensing)
Storage: 30% to 95% (non condensing)
Atmosphere pressure:
Operating: 86kPa – 106kPa
Storage: 50kPa – 106kPa

NIBP:

Cuff gasing time: less than 15 seconds
First-time gasing pressure: dynamic state 24kPa （180 mmHg）
Detection scope:
Systolic blood pressure: 4kPa -34kPa(30mmHg -255mmHg)
Diastolic pressure:
2kPa -29.3kPa(15mmHg -220mmHg)
Mean pressure:
2.7kPa～31.3kPa （20mmHg～235mmHg）
Detection accuracy: Static pressure: ±4mmHg

Heart rate:

Scope:
15 bpm to 300 bpm
Accuracy:
±1 bpm

SpO2:

Detection scope: 35%-100%
Accuracy: ±1% 90%-100%
±2% 70%- 89%

ECG:

Waveform: Lead I
Band width
0.05Hz-100Hz(3dB) diagnose mode
1-40Hz monitor mode
0.1-25Hz operation mode

Resp:

Chest impedance method
Scope : 0 bpm to 100 bpm
Accuracy:
±1bmp

Temp:

Type: Vascular/surface temperature
Scope:
20℃～50℃
Accuracy:
±0.2℃

Battery and AC adapter

Built-in Battery:
3.7V, 1800mAh lithium battery.
AC adapter:
Input: AC 100-240v ~200mA
Output: DC 5V 1A

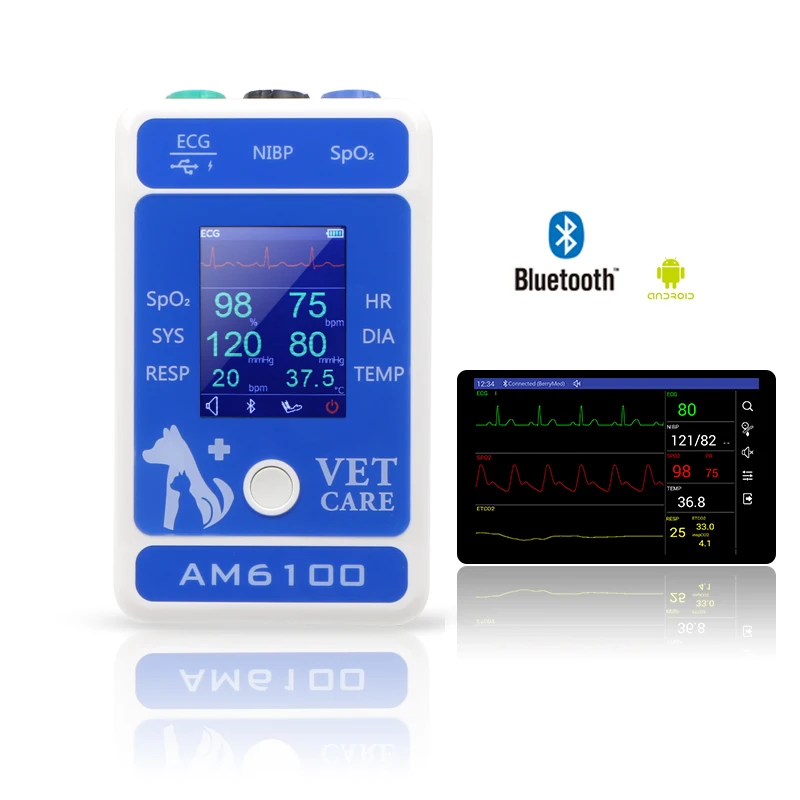

Bluetooth

The build-in Bluetooth support dual mode, include Bluetooth 3.0 and BLE 4.0. So the monitor can be connected with most of the other smart terminal, such as PC, Android phone and Apple phone.
