Заводской умный робот для обхода препятствий 4WD V2.0 DIY Набор роботов IDE C Программирование робототехники стартовый комплект
- Категория: Роботизированная наборы >>>
- Поставщик: Shenzhen Zhiyi Technology Co. Ltd.
Сохранить в закладки 1600186243556:
Описание и отзывы
Характеристики
4WD Tracing Obstacle Avoidance Smart Robot Car Toy Kit DIY Remote Control Robot Car V2.0
Products Description
Description:

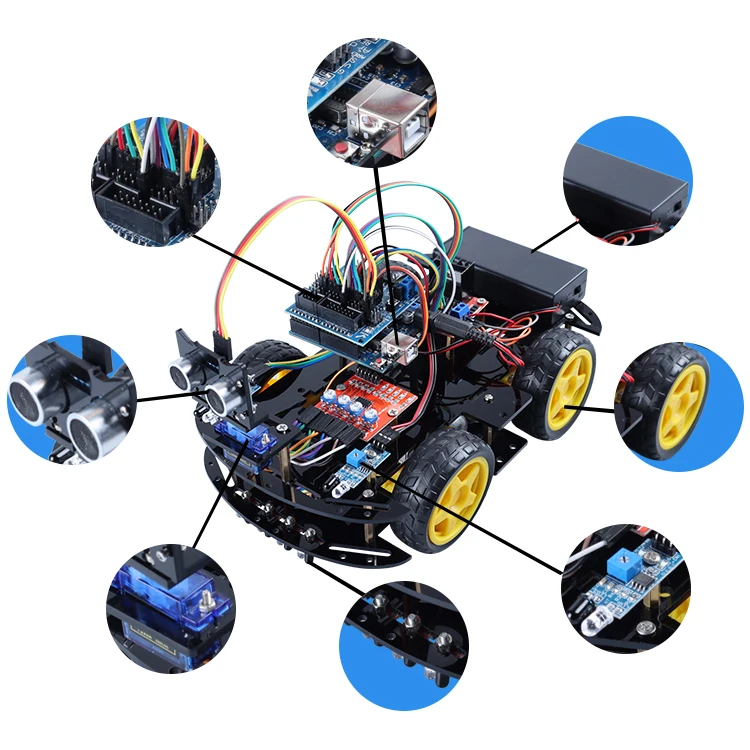

1. This product is a smart car developed based on the Atmega328p development board.

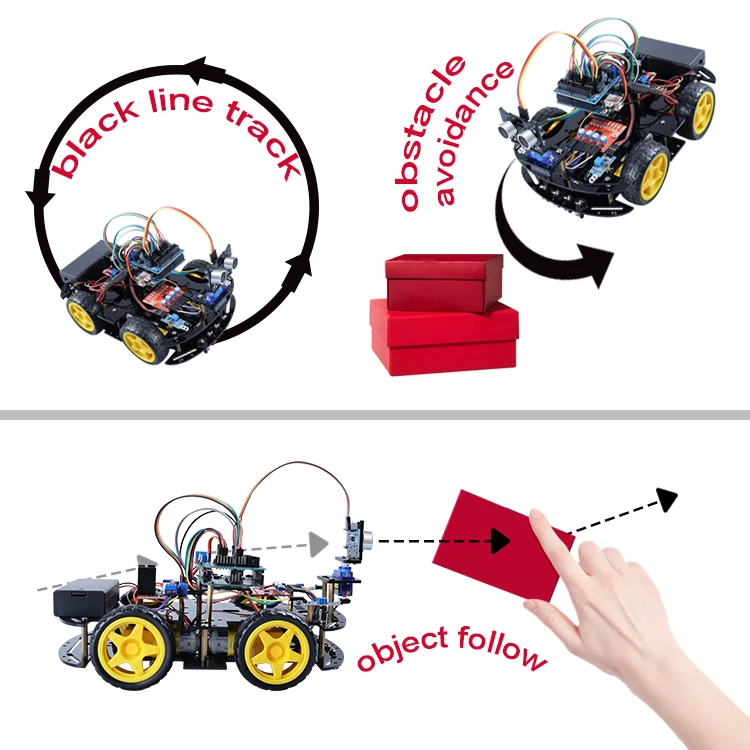

2. It can realize four-way tracking function, ultrasonic obstacle avoidance function, and car following function.
3. There are mainly four modules:
* LM339 four-channel infrared signal detection module
* main control module
* motor drive module
* ultrasonic sensor module
4. The smart car adopts a welding-free installation design.
5. The components are fixed by copper pillars and screws.
6. The circuit connection between each module is connected by DuPont wire, which is simple and convenient.
Features：
Features：
1. The main control board adopts development board.
2. The motor drive module uses a typical L298N module to drive a DC motor.
3. The infrared signal detection module uses four infrared light pairs to detect the black line and realize the tracking function.
4. The ultrasonic sensor module uses the HC-SR04 module, through which the distance is measured, so as to realize the ultrasonic obstacle avoidance function.
5. The combination of ultrasonic and two infrared detection modules realizes the car following function.
Paramenters： | ||||||||
* Power supply: 2 removable 3.7v lithium batteries | ||||||||
* Input: LM339 infrared sensor, HC-SR04 ultrasonic module, LM393 infrared sensor | ||||||||
* Motor: DC gear motor | ||||||||
* Motor drive: L298N module | ||||||||

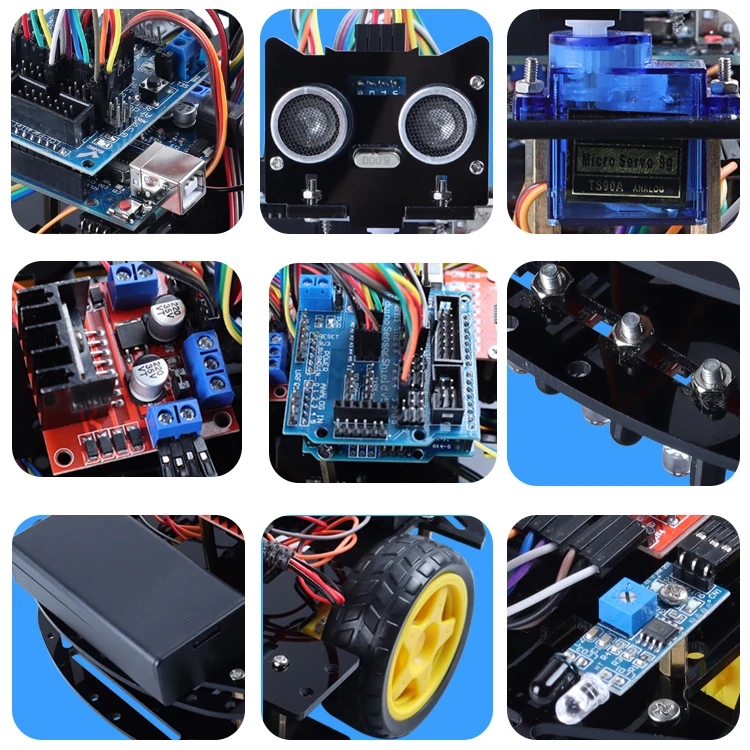

Details Images

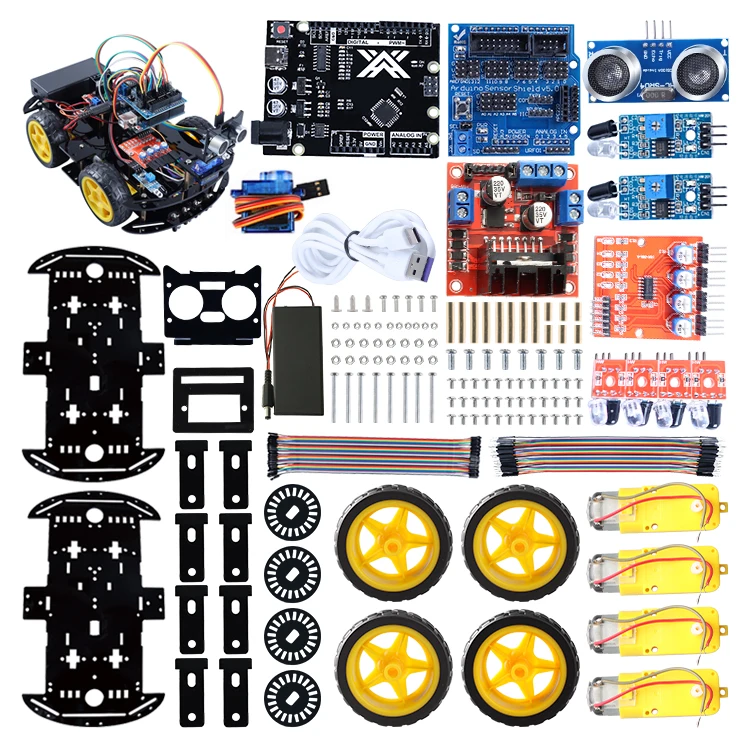

Package list
1 × CH340G development board | ||||
1 × Expansion board | ||||
1 × L298N driver board | ||||
1 × HC-SR04 ultrasonic module | ||||
1 × Four-way tracking module | ||||
2 × infrared detection module | ||||
4 × DC motor | ||||
1 × Ultrasonic bracket | ||||

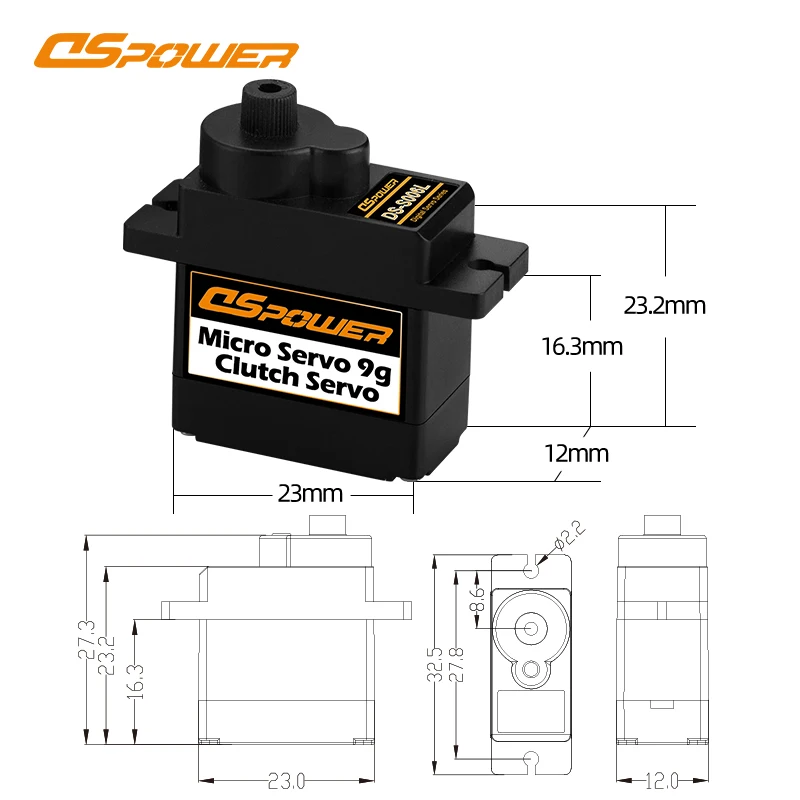

1 × Servo | ||||
1 × Servo bracket | ||||
4 × rubber wheels | ||||
4 × Speed Code Disk | ||||
8 × T-shaped geared motor fixing bracket | ||||
1 × 18650 battery box | ||||
10 × M3*30 double pass copper post | ||||
6 × M3*15 double pass copper pillar | ||||
16 × M3 nut | ||||
36 × M3*8 flat head screw | ||||
8 × M3*30 round head screw | ||||
5 × M2*12 round head screw | ||||
5 × M2 nut | ||||
6 × M1.6*8 round head screw | ||||
6 × M1.6 nut | ||||
3 × M2*8 self-tapping screws | ||||
38 × 20cm female to female Dupont wire | ||||
12 × 20cm male to male Dupont wire | ||||
2 × Acrylic 4-wheel car bottom plate |
