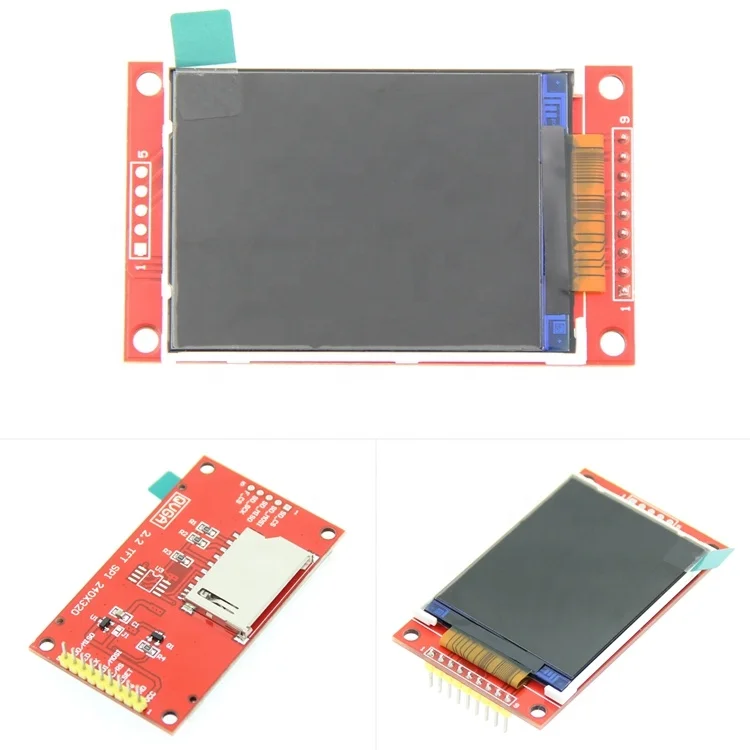

240x320 разрешение цветной ЖК дисплей на основе тонкоплёночной технологии ili9341 Драйвер 2 дюймов Spi модуля
- Категория: >>>
- Поставщик: Shenzhen Wu He Tian Cheng Technology Co. Ltd.
Сохранить в закладки 1600186391237:
Описание и отзывы
Характеристики

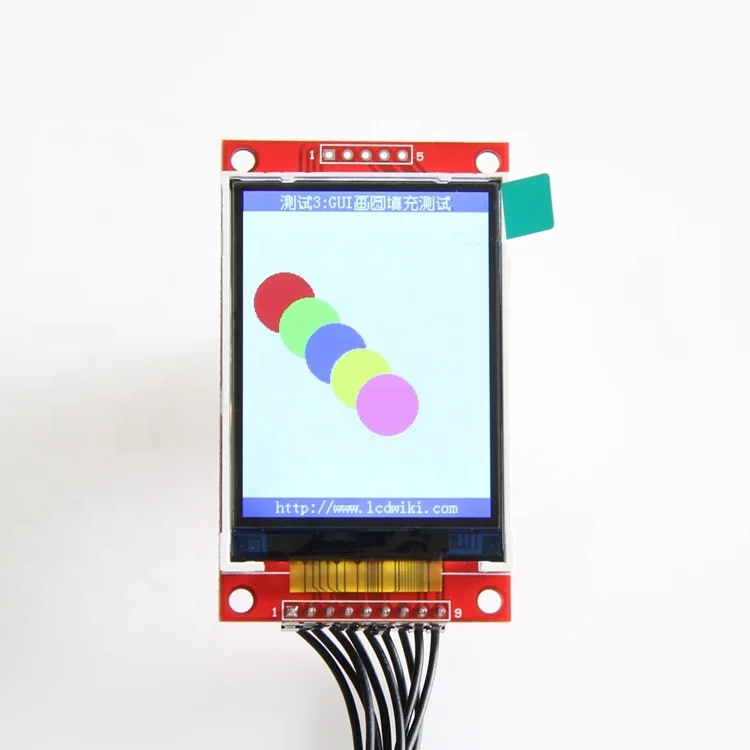

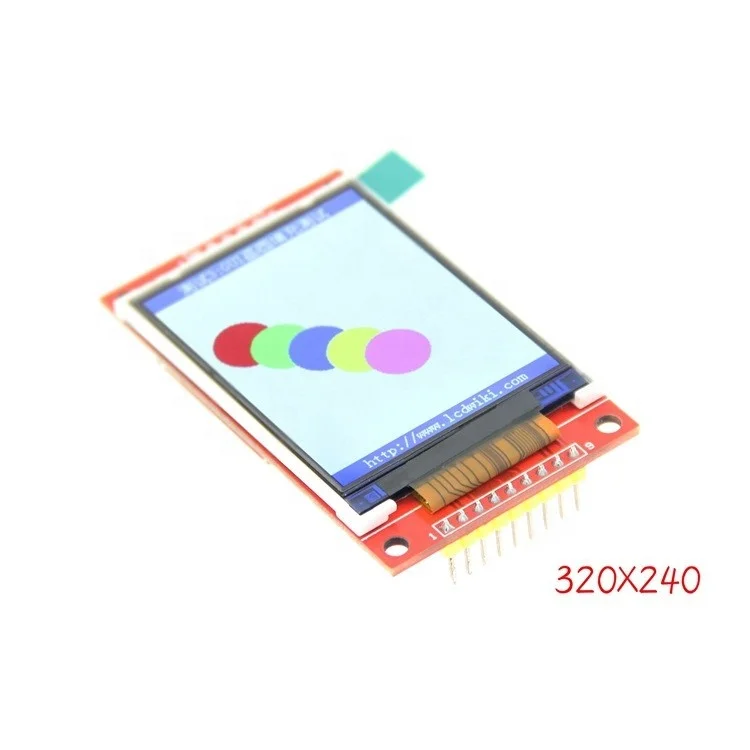

240x320 Resolution Color Tft Lcd Display ili9341 Driver 2.2 Inch Spi Module
DESCRIPTIONS:
* 2.2-inch color screen,support 65K color display,display rich colors
* 320X240 resolution, clear display
* Using the SPI serial bus, it only takes a few IOs to illuminate the display
* Easy to expand the experiment with SD card slot
* Provide a rich sample program
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
* 2.2-inch color screen,support 65K color display,display rich colors
* 320X240 resolution, clear display
* Using the SPI serial bus, it only takes a few IOs to illuminate the display
* Easy to expand the experiment with SD card slot
* Provide a rich sample program
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
Product Paramenters
Name | Parameter |
Display Color | RGB 65K color |
SKU | MSP2202 |
Screen Size | 2.2(inch) |
Type | TFT |
Driver IC | ILI9341 |
Resolution | 320*240 (Pixel) |
Module Interface | 4-wire SPI interface |
Active Area (AA area) | 33.84x45.12(mm) |
Module PCB Size | 40.10x67.20(mm) |
Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ |
VCC power voltage | 3.3V~5V |
Logic IO port voltage | 3.3V(TTL) |
Power Consumption | TBD |
Rough Weight(Package containing) | 22(g) |
Details Images
240x320 Resolution Color Tft Lcd Display ili9341 Driver 2.2 Inch Spi Module
240x320 Resolution Color Tft Lcd Display ili9341 Driver 2.2 Inch Spi Module
Hardware Description
————————————————————————————————————————————————————
How to use as PC monitor
—————————————————————————————————————————————————————————————————————
* Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable
* Connect the LCD's USB Touch interface (Either of the two MicroUSB) to the USB port of the device
* If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.
* Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable
* Connect the LCD's USB Touch interface (Either of the two MicroUSB) to the USB port of the device
* If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.
For more technical resources please contact us please ！
5 inch 800x480 Raspberry Pi 3B 4B Capacitive Touch Screen HDMI LCD Display with MPI5001 driver

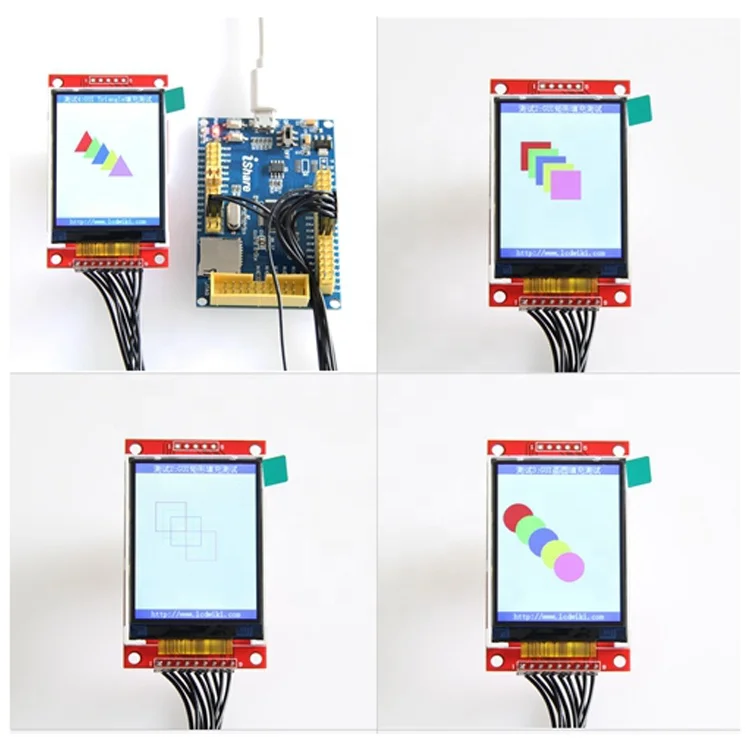

Application case
Product packaging
Packing Details for volume production order:
(1) Packed the Monitor into air bubble bag/film
(2)Put the above together into color box
(3) Packed the color box into a carton box to protect the Monitor during transportation.
(4) Seal the carton by tape
Packing List
1x 4 inch HDMI Display
1x 4 inch HDMI Display
Recommend Products
Our Advantages
Provide professional OEM / ODM
FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for
your second confirmation. if sample is ok, finally we will go to mass production.
For more detailed information about our TFT LCD module, please feel free to contact us:
Ms. Brittany Zhang
Tel: + 86-755-25695467
Mob: +8617818325201 (whatsapp and wechat)
Skype: betty8492
Web: //www.cntftlcd.com
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for
your second confirmation. if sample is ok, finally we will go to mass production.
For more detailed information about our TFT LCD module, please feel free to contact us:
Ms. Brittany Zhang
Tel: + 86-755-25695467
Mob: +8617818325201 (whatsapp and wechat)
Skype: betty8492
Web: //www.cntftlcd.com
Похожие товары

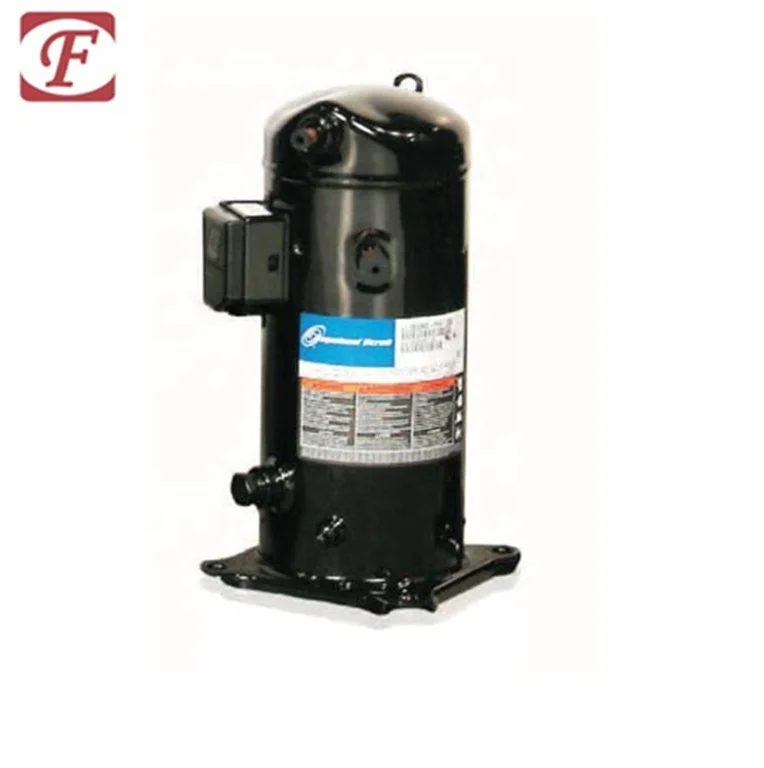

20hp ZR серии Copeland свиток компрессор Модель
1 111,00 $

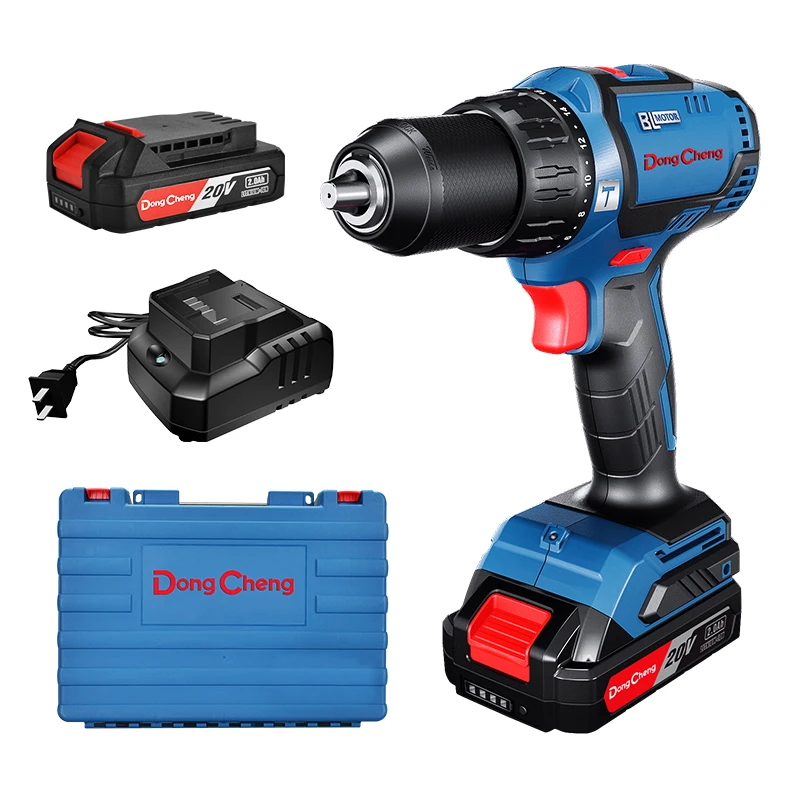

Дунчэн 20V 2.0Ah 60N.m 3 функции беспроводной бесщеточная Ударная дрель
63,82 $ - 67,18 $

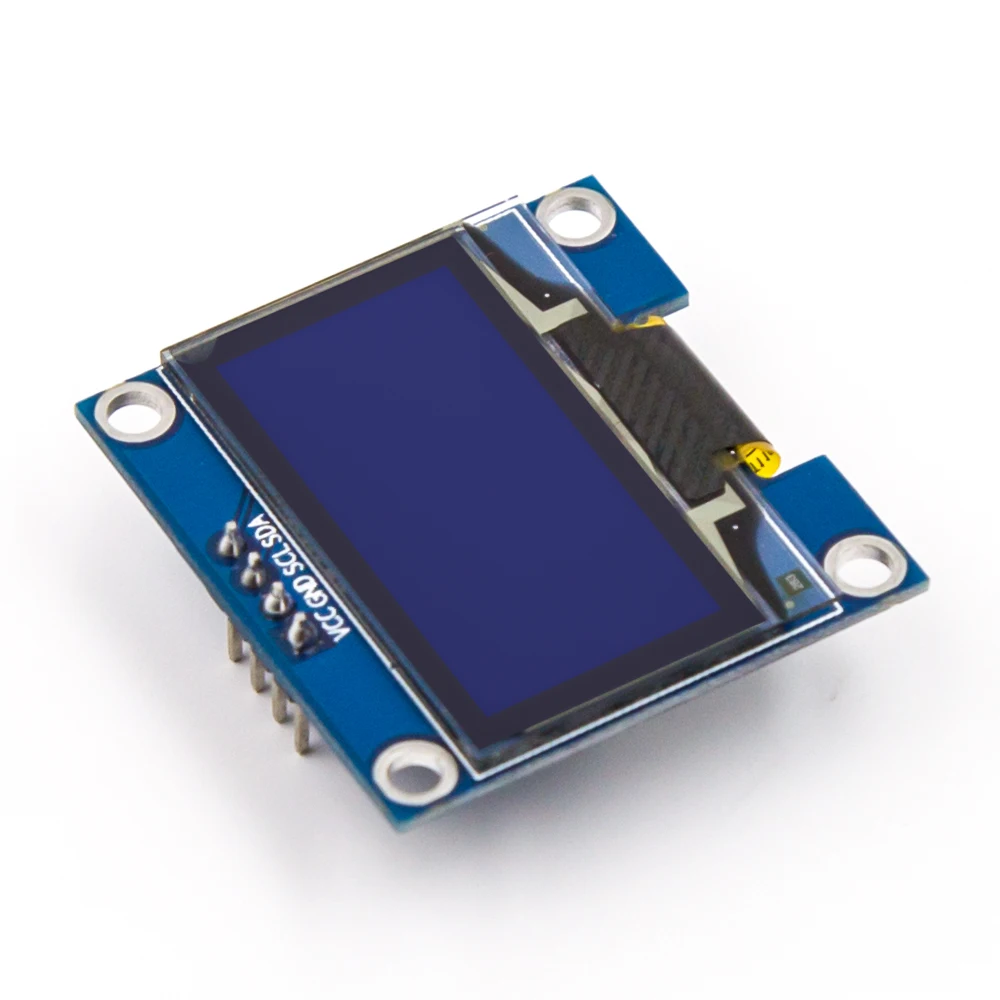

Дешевый Синий ЖК-дисплей OLED 1,3 дюймовый модуль 128X64 для IIC I2C общаться DC LCD SPI серийный модуль 3V-5V R3 2560

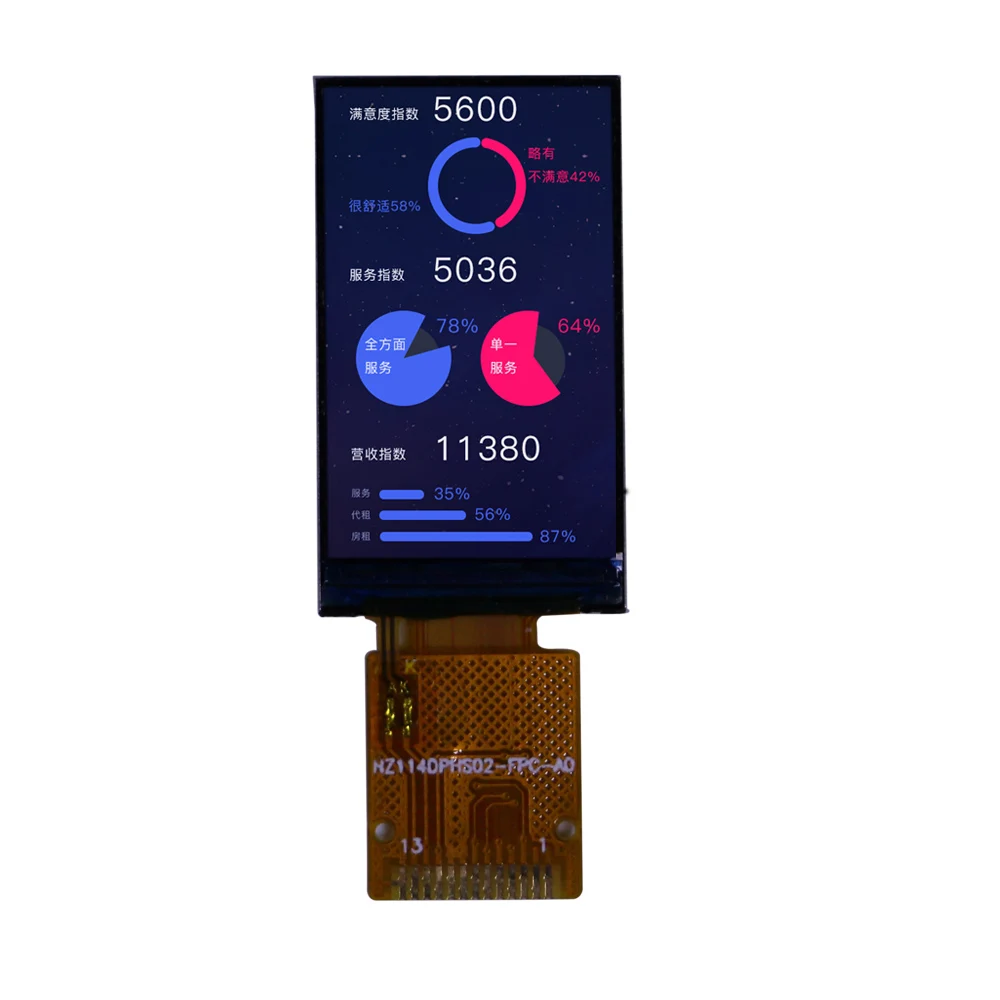

Заводская поставка, интерфейс SPI, 135*240 точек, RGB 1,14 дюймовый TFT-экран, ЖК-дисплей
1,60 $ - 1,80 $

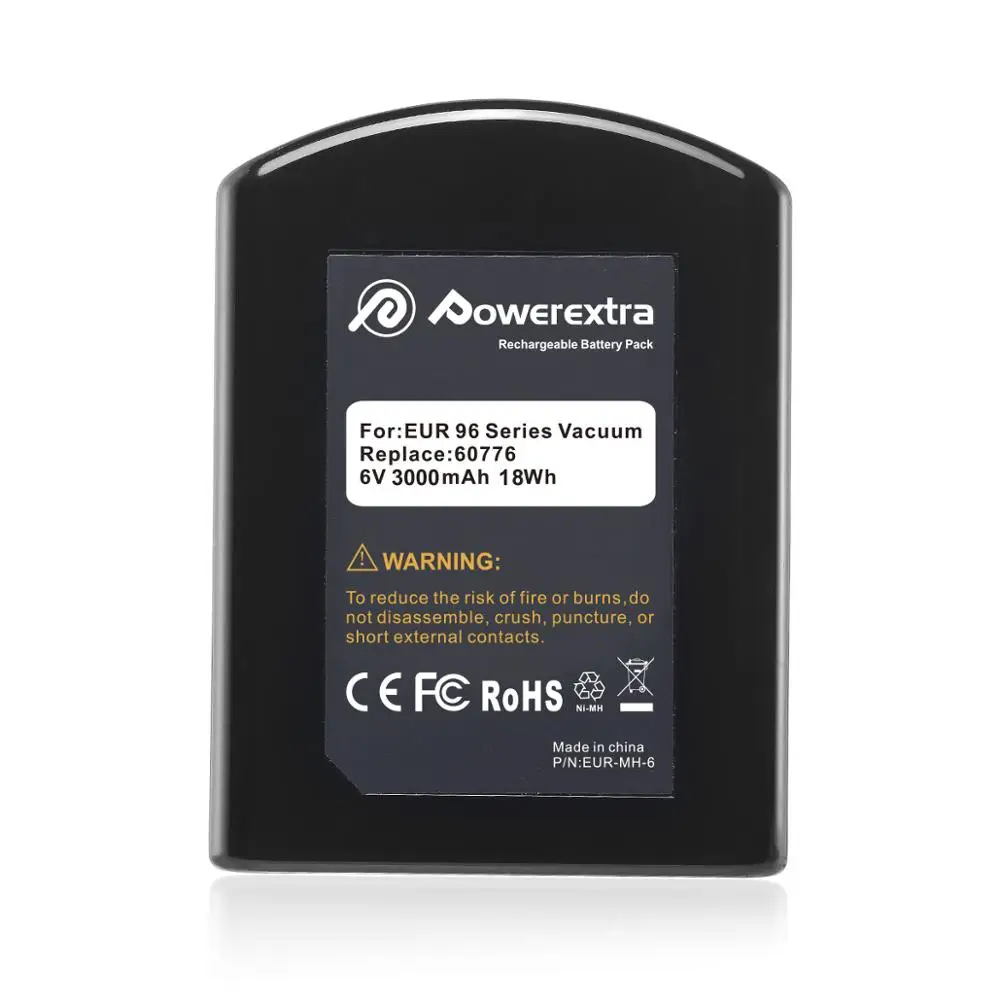

Запасная батарея Powerextra 6 в 3000 мА для пылесосов серии Eureka 96 (2 упаковки)
16,91 $ - 19,25 $

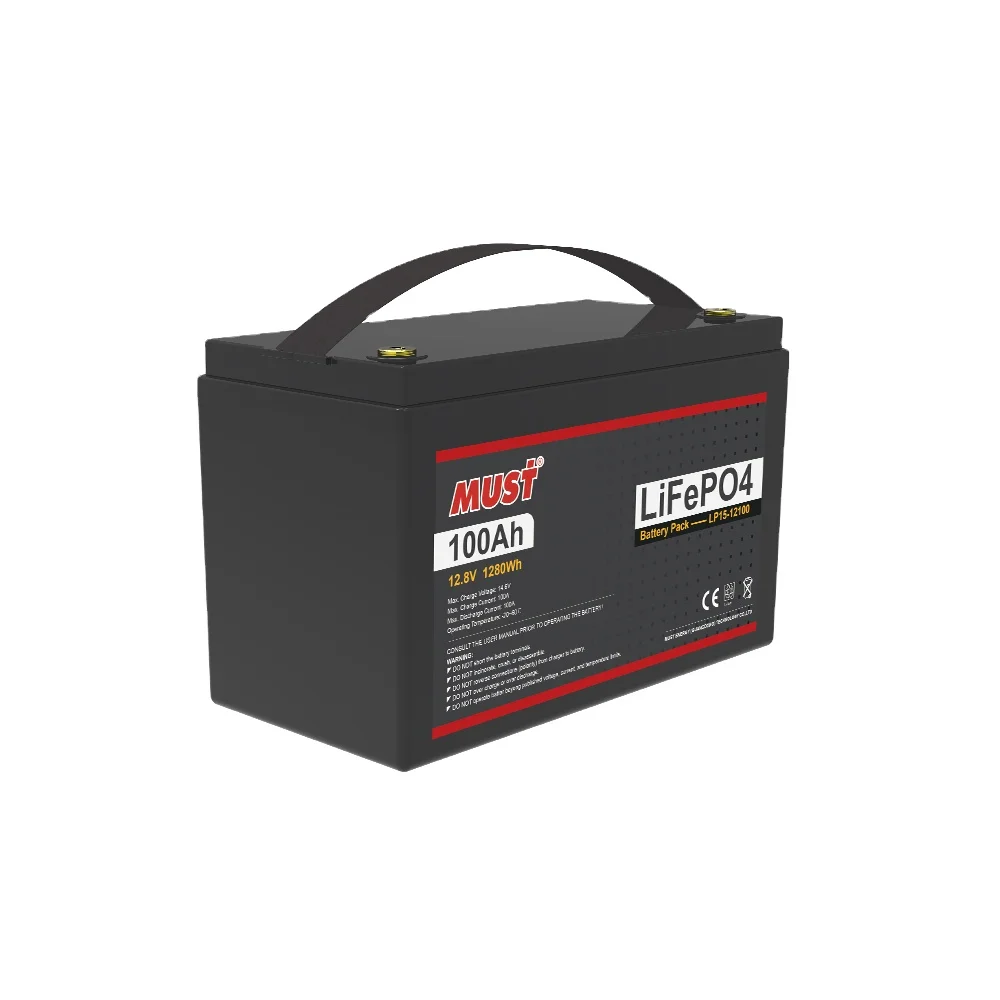

Недорогая аккумуляторная литиевая батарея 12 В 24 в 36 в 48 в MUST OEM
