Products Description

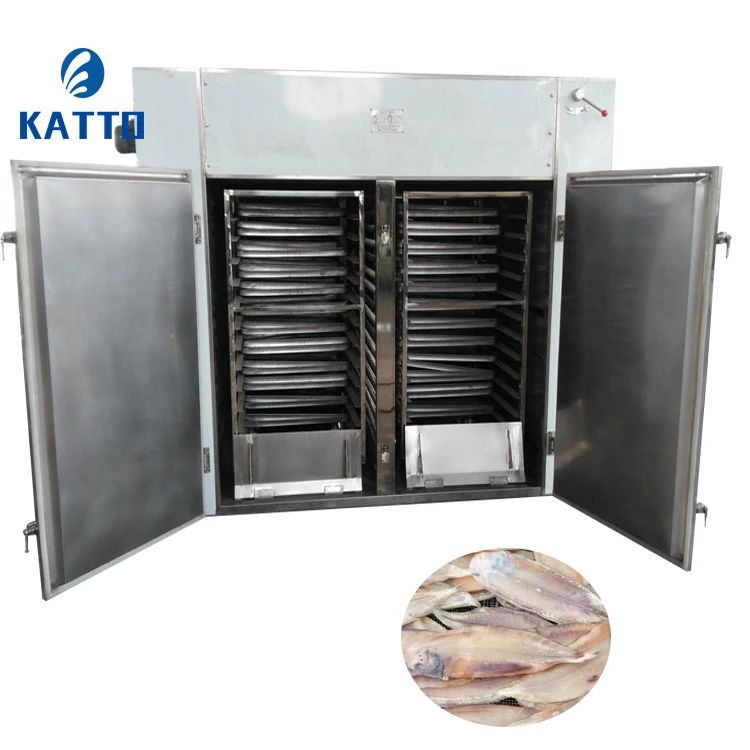

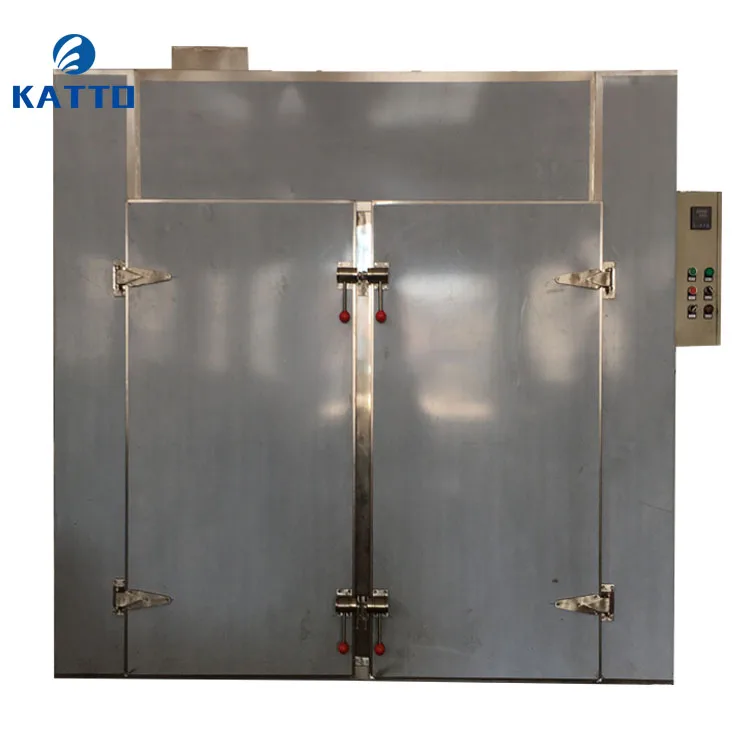

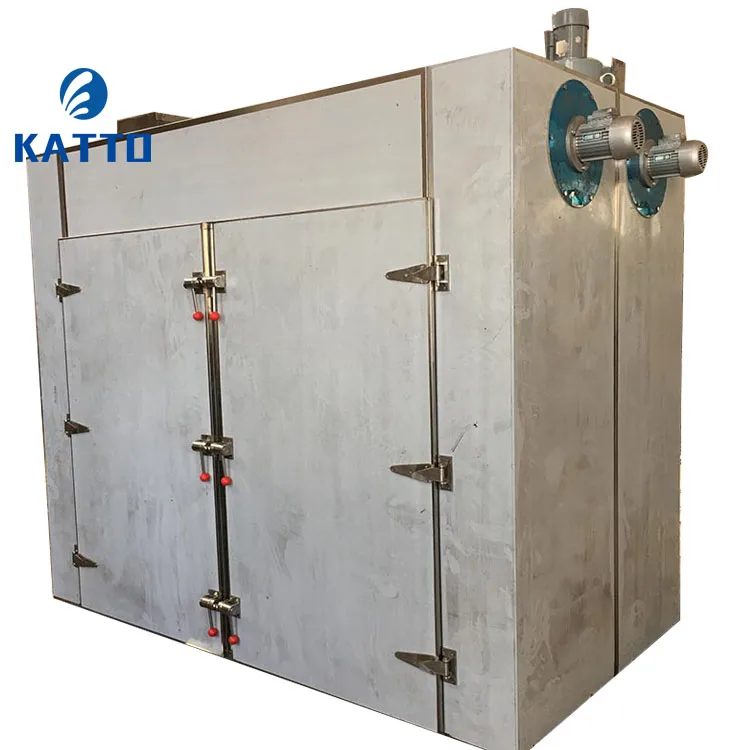

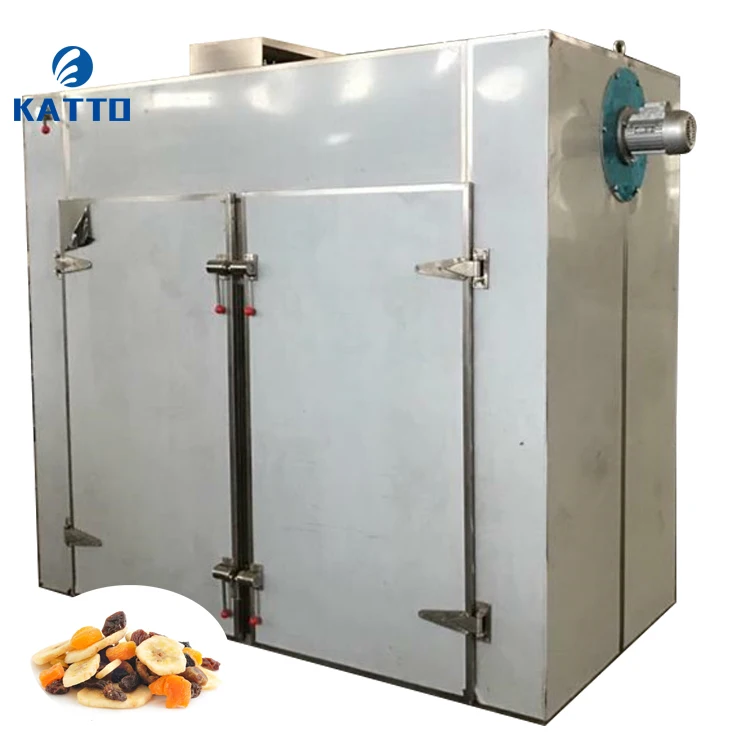

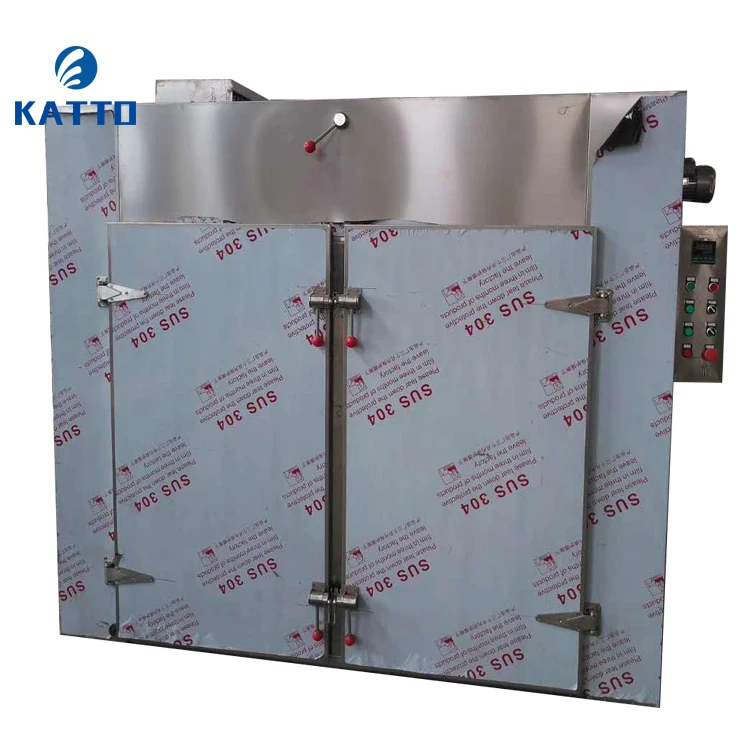

Hot air circulation drying machine
1.General application:
This kind hot air oven(drying machine) is suitable for heat solidifying, drying dehydration of raw material in pharmaceutical, chemical, foodstuff, industry. Such as Chinese traditional medicine, herbal extract, tablet of drink, granules, powder, pigment, dehydrated vegetable, dried fruit ,sea food, flakes, chips so on. Widely used in apple chips, garlic, onion, carrot, ginger, chili,etc.
This kind hot air oven(drying machine) is suitable for heat solidifying, drying dehydration of raw material in pharmaceutical, chemical, foodstuff, industry. Such as Chinese traditional medicine, herbal extract, tablet of drink, granules, powder, pigment, dehydrated vegetable, dried fruit ,sea food, flakes, chips so on. Widely used in apple chips, garlic, onion, carrot, ginger, chili,etc.
2. Working principle:
The drying room is heated by cycle hot air. Meantime the wet moisture of raw material will be take away by fans.There are different heating type for different cuatomer, such as electric heating type, steam heating type,etc.
The drying room is heated by cycle hot air. Meantime the wet moisture of raw material will be take away by fans.There are different heating type for different cuatomer, such as electric heating type, steam heating type,etc.
3. Characteristic function:
1) Hot air is circled inside the oven, so ensure a high drying efficiency and energy-saving.
2) It used enhanced ventilation, and euipped with adjustable air distributor, lead to a uniform drying.
3) It’s batch operation, so can adjust process condition anytime. Thus can change product from time to time, so very suitable for
drying high-value product or small-batch product.
4) Feed and dry material in tray, easy for load and unload, without any damage for the raw material, clean conveniently.
5) With low noise and steady operation, and the temperature can be controlled automatically. Total conform with GMP requirement.
6) With a widely applied field, can be suitable for all kinds of raw material.It’s a comprehensive dryer.
1) Hot air is circled inside the oven, so ensure a high drying efficiency and energy-saving.
2) It used enhanced ventilation, and euipped with adjustable air distributor, lead to a uniform drying.
3) It’s batch operation, so can adjust process condition anytime. Thus can change product from time to time, so very suitable for
drying high-value product or small-batch product.
4) Feed and dry material in tray, easy for load and unload, without any damage for the raw material, clean conveniently.
5) With low noise and steady operation, and the temperature can be controlled automatically. Total conform with GMP requirement.
6) With a widely applied field, can be suitable for all kinds of raw material.It’s a comprehensive dryer.
Model | Drying capacity | Power | Trolley | Tray | Dimension | |||||
CT-C-O | 60kg | 9kw | 1 set | 24 pieces | 1400*1200*2000mm | |||||
CT-C-I | 120kg | 15kw | 2 sets | 48 pieces | 2300*1200*2000mm | |||||
CT-C-II | 240kg | 30kw | 4 sets | 96 pieces | 2300*2200*2000mm | |||||
CT-C-III | 360kg | 45kw | 6 sets | 144 pieces | 2300*3220*2000mm | |||||
CT-C-IV | 480kg | 60kw | 8sets | 192 pieces | 4450*2200*2000mm | |||||
Heating type, machine size, control type, trays quantity and material, trolley quantity and size, etc. All these can be customized. Any query, please contact us freely. | ||||||||||
Details Images
Stainless steel tray
Material: SUS304 Stainless Steel
Size: 640*460*45mm
Holes: 3-10mm
Size: 640*460*45mm
Holes: 3-10mm
Trolley
Material: Food Grade Stainless Steel
Size: 930*710*1440mm or customized
Layers: 12 or customized
Size: 930*710*1440mm or customized
Layers: 12 or customized
Features
1) Most of the hot air is circulated in the herbs dehydration machine. By using
the forced ventilationfuntion, there are adjustable air distribution inside the oven. The materials can be dried uniformly.
2) Heating source: electricity, steam, far infrared of steam and electricity.
3) Temperature allowed with this fruit vegetable dryer heat 50°C-140°C,the maximum is 150°C.
Electricity heat 50-350°C.
4) automatic control system and computer control system for your choice.
the forced ventilationfuntion, there are adjustable air distribution inside the oven. The materials can be dried uniformly.
2) Heating source: electricity, steam, far infrared of steam and electricity.
3) Temperature allowed with this fruit vegetable dryer heat 50°C-140°C,the maximum is 150°C.
Electricity heat 50-350°C.
4) automatic control system and computer control system for your choice.
Dried products
Certifications
Product packaging
Company Profile
