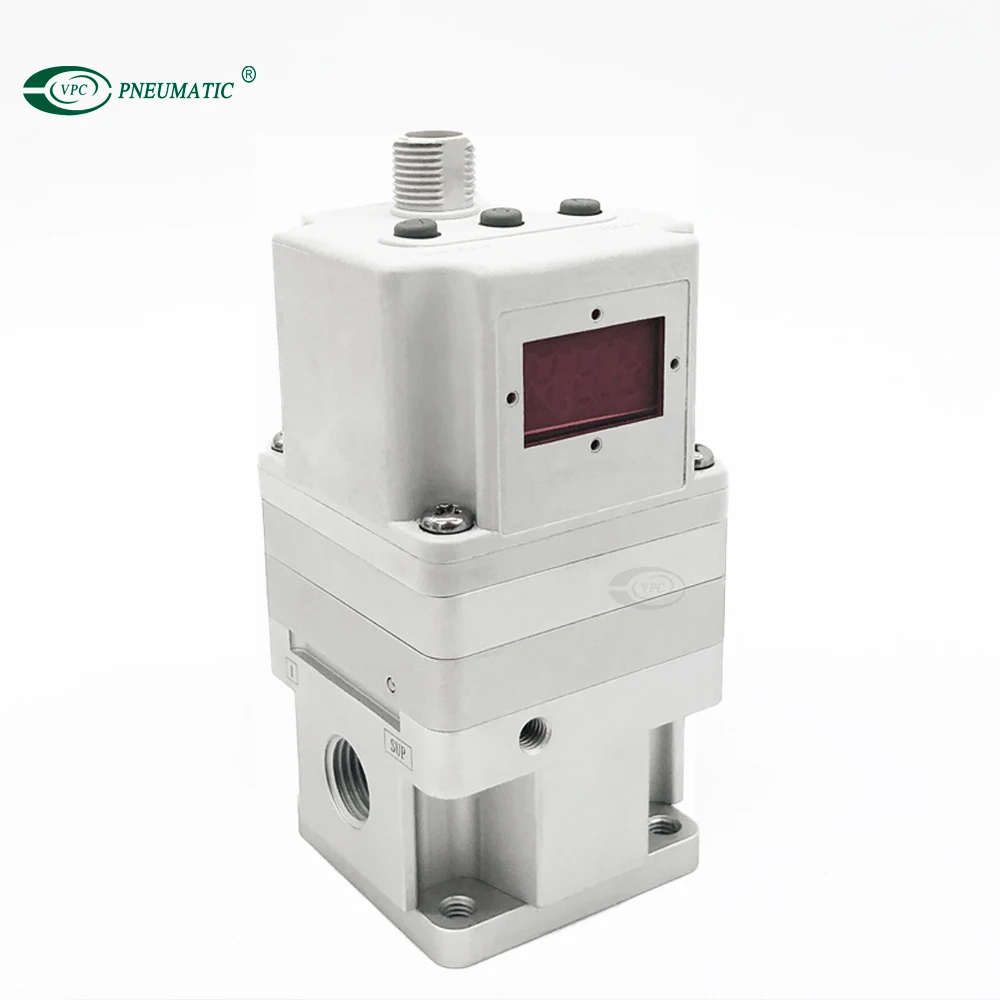

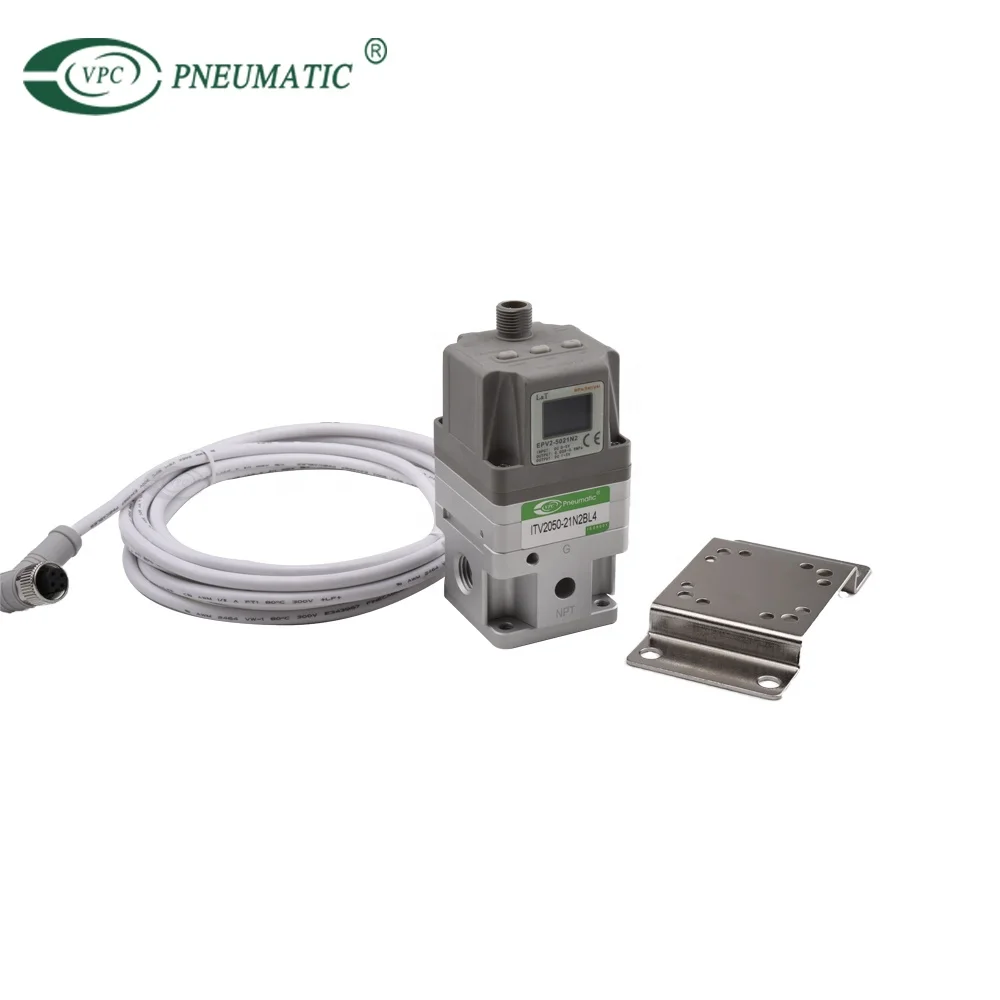

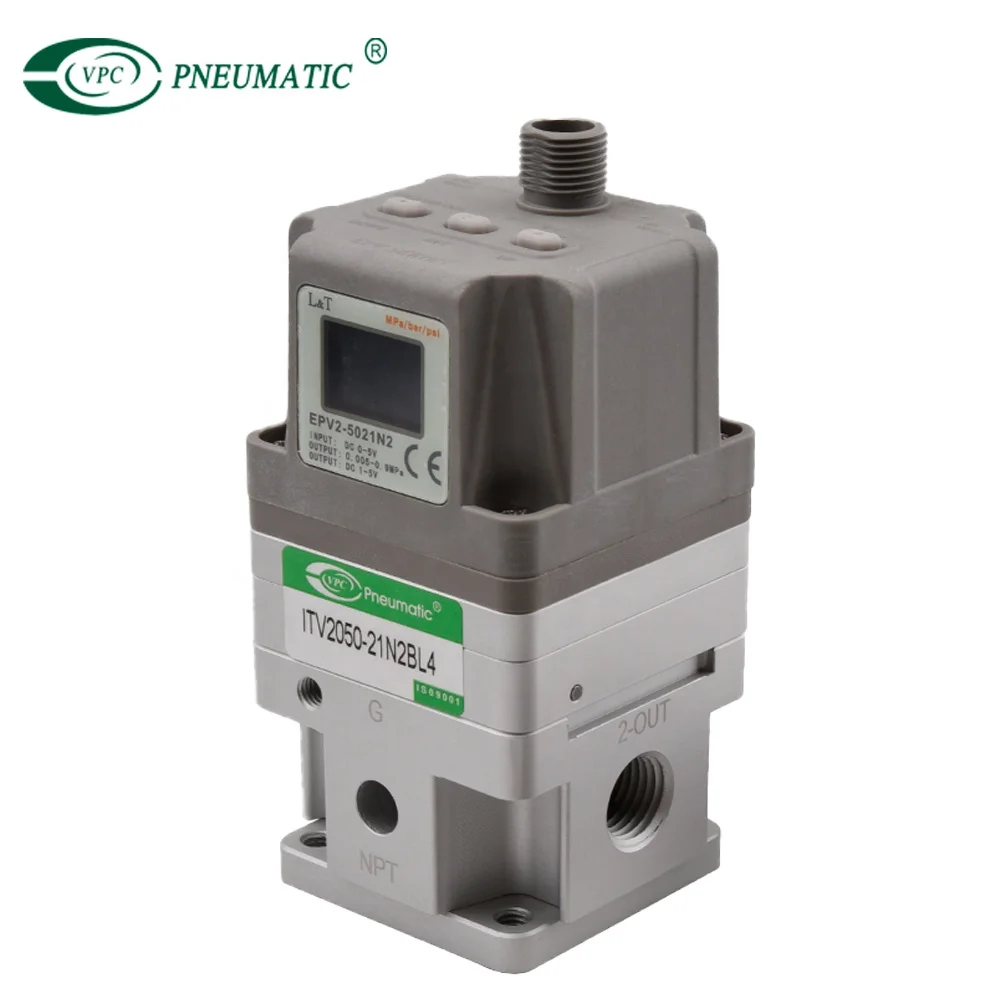

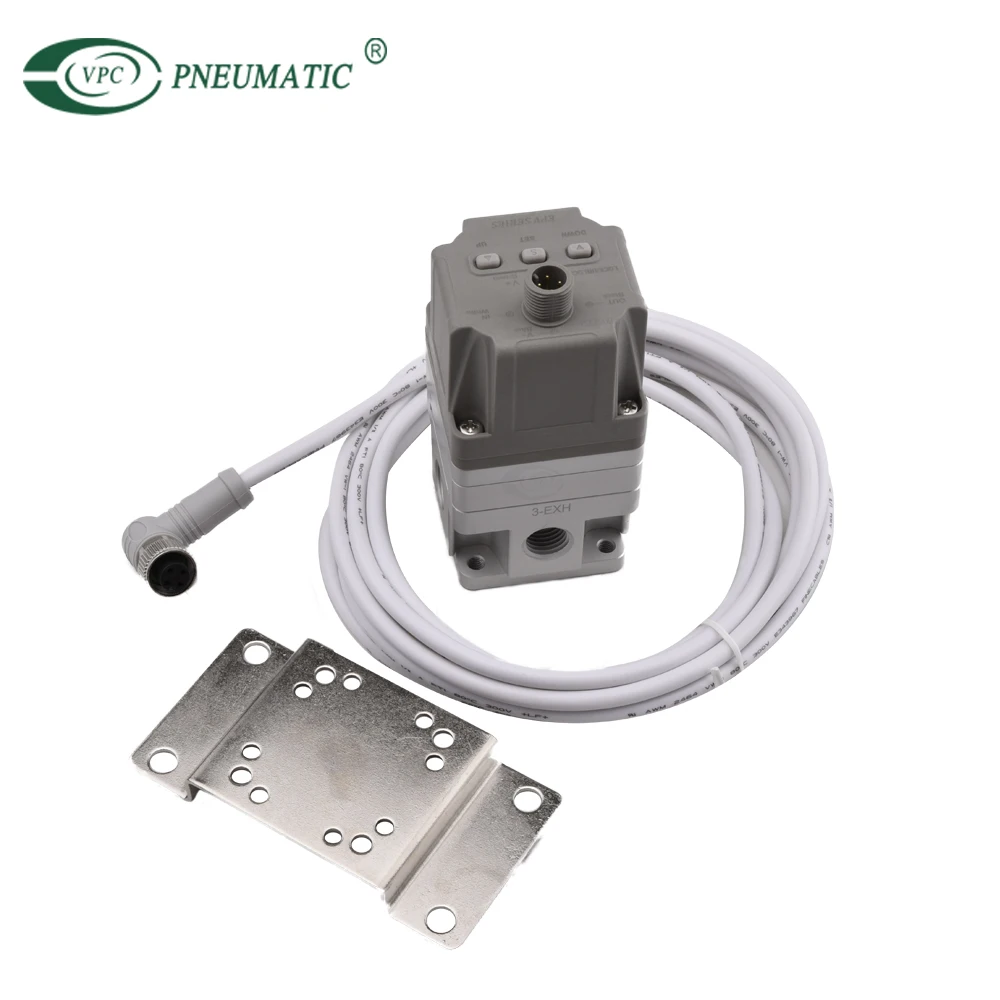

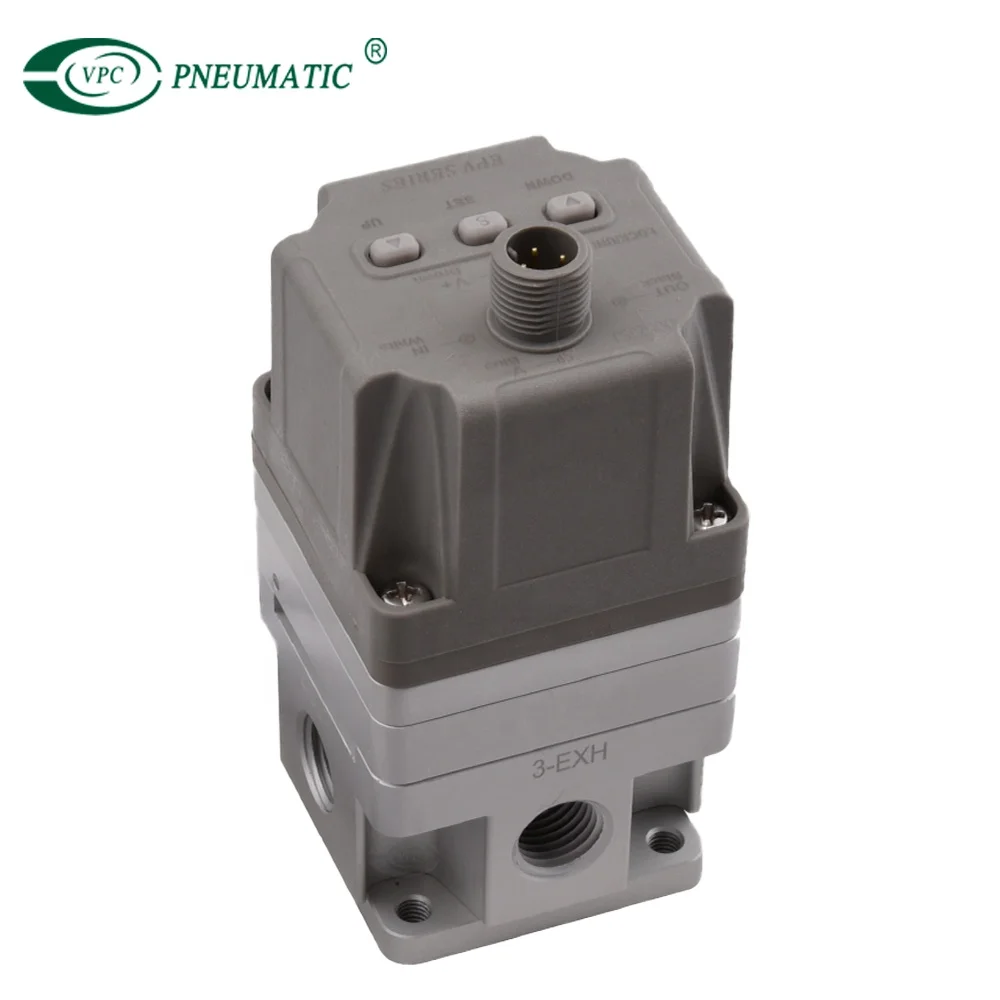

SMC электронный пневматический Регулятор ITV 3050 вакуумный регулятор давления Электромагнитный пропорциональный
- Категория: Pneumatic Parts >>>
- Поставщик: Ningbo Vpc Pneumatic Co. Ltd.
Сохранить в закладки 1600187171605:
Описание и отзывы
Характеристики
Electronic pneumatic regulator SMC ITV 2050 Vacuum pressure regulator proportional valve regulator
The electric proportional valve controls the gas pressure through the electric signal, which can realize the continuous and stepless adjustment of the gas pressure, and can realize the remote control and program control.
Feature
1) electric proportional mode, realizing non-pole control of outlet pressure.
2) it can realize remote control and program control.
3) compared with intermittent control, the system is simplified and the components are greatly reduced.
4) compared with hydraulic proportional valve, small volume, light weight, compact structure, lightweight, low cost, but the response speed is much slower than the hydraulic system, more sensitive to load changes.
5) low power consumption: less than 4W (communication form).
6) no fire, no pollution.It is less affected by temperature change.
2) it can realize remote control and program control.
3) compared with intermittent control, the system is simplified and the components are greatly reduced.
4) compared with hydraulic proportional valve, small volume, light weight, compact structure, lightweight, low cost, but the response speed is much slower than the hydraulic system, more sensitive to load changes.
5) low power consumption: less than 4W (communication form).
6) no fire, no pollution.It is less affected by temperature change.
Item | Electric proportional Regulator Valve | Power Consumption | 1.1 W |
Connection Size | Air Treatment1/4" NPT | Temp. Range (F) | 32 to 122 Degrees F |
Max. Incoming Pressure | Air Treatment45 psi | Accuracy (%) | '+/-0.3% |
Max. Flow | Air Treatment35 cfm | Enclosure | IP65 |
Adjustment Range | Air Treatment0 to 30 psi | Indicator | Integral LED |
Input Voltage | Air Treatment24VDC | Height (In.) | 5.55 |
Input Signal | 0-10V or 4-20 mA | Width (In.) | 2.25 |
Ordering Code 4V Series Solenoid Valve
ITV 3 0 10 - 01 □ 2 □ S □ - Q
ITV→Type Code
3→Model
1:1000 2:2000 3:3000 1→Pressure range
1:0.1MPa 3:0.5MPa 5:0.9MPa
0→Power supply voltage
0:24VDC 1:12 to 15VDC
0→Input signal
0:Current 4 to 20 mA (Sink type)
1:Current 0 to 20 mA (Sink type) 2:Voltage 0 to 5 VDC
3:Voltage 0 to 10 VDC
4*:Voltage 0 to 10 VDC *Option
1:Current 0 to 20 mA (Sink type) 2:Voltage 0 to 5 VDC
3:Voltage 0 to 10 VDC
4*:Voltage 0 to 10 VDC *Option
1→Monitor output
0*:None(for preset input)
1:Analog output 1 to 5V DC
2*:Switch output/NPN output
3*:Switch output/PNP output
4*:Analog output 4 to mA (Sink type)
*Option
□→Thread type
-:Rc N*:NPT
T*:NPTF F*:G
Q→ CE compliance
2→Port size
1:1/8(1000 type)
2:1/4(1000,2000,3000 type)
3:3/8(2000,3000 type)
4:1/2(3000 type)
1:1/8(1000 type)
2:1/4(1000,2000,3000 type)
3:3/8(2000,3000 type)
4:1/2(3000 type)
s→Cable connector type
S:Straight type 3 m
L:Right angle type 3m
N:Without cable connector
□→Pressure display unit
-:MPa 2:kgf/cm2
3:bar 4:PSI
5:kPa
PRODUCTING
OUR CERTIFICATE
FAQ
Q1:What is your quality assurance？
A:We will inspect one by one before delivery.If the product is damaged in transit or has quality problems, you can choose to refund or resend the product, and the freight will be borne by us.
Q2:What is your terms of payment?
A: TT ,We'll show you the photos of the products and packages before you pay the balance.
B: Paypal payment, Western Union,Bank transfer,Alibaba Trade Assurance order also available.
Q3: How about the lead time?
A: Normally it will take 3-7 days for our routine products.
Q4:What is your sample policy?
A: Some free samples can be offered if you contact us.
Q5:How about the warranty?
A: All of our products will be guaranteed 1 year warranty.
A:We will inspect one by one before delivery.If the product is damaged in transit or has quality problems, you can choose to refund or resend the product, and the freight will be borne by us.
Q2:What is your terms of payment?
A: TT ,We'll show you the photos of the products and packages before you pay the balance.
B: Paypal payment, Western Union,Bank transfer,Alibaba Trade Assurance order also available.
Q3: How about the lead time?
A: Normally it will take 3-7 days for our routine products.
Q4:What is your sample policy?
A: Some free samples can be offered if you contact us.
Q5:How about the warranty?
A: All of our products will be guaranteed 1 year warranty.
