Product Overview
High Accurate Diesel Petroleum Fuel Anti Explosion Digital Turbine Flowmeter Converter

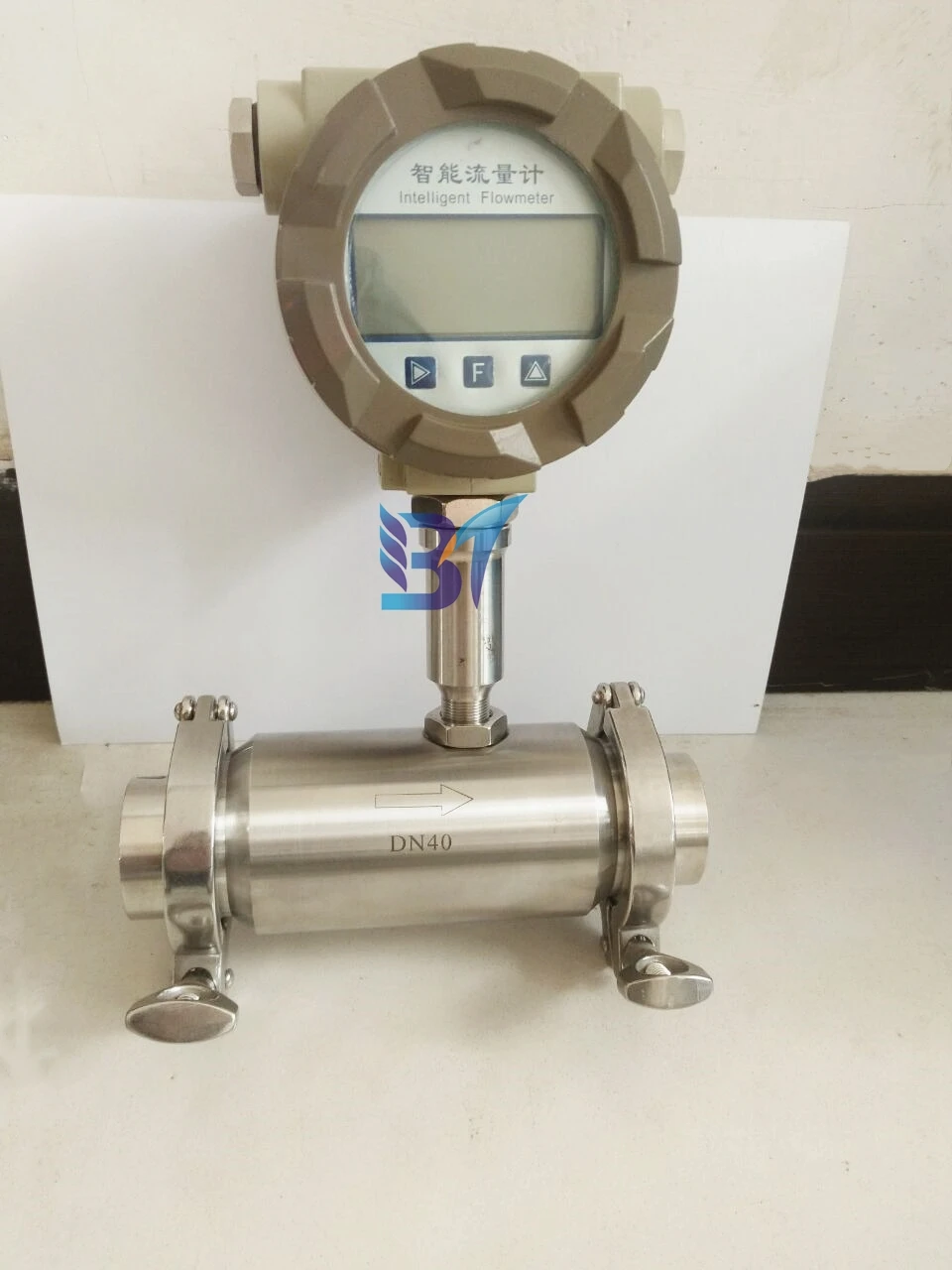

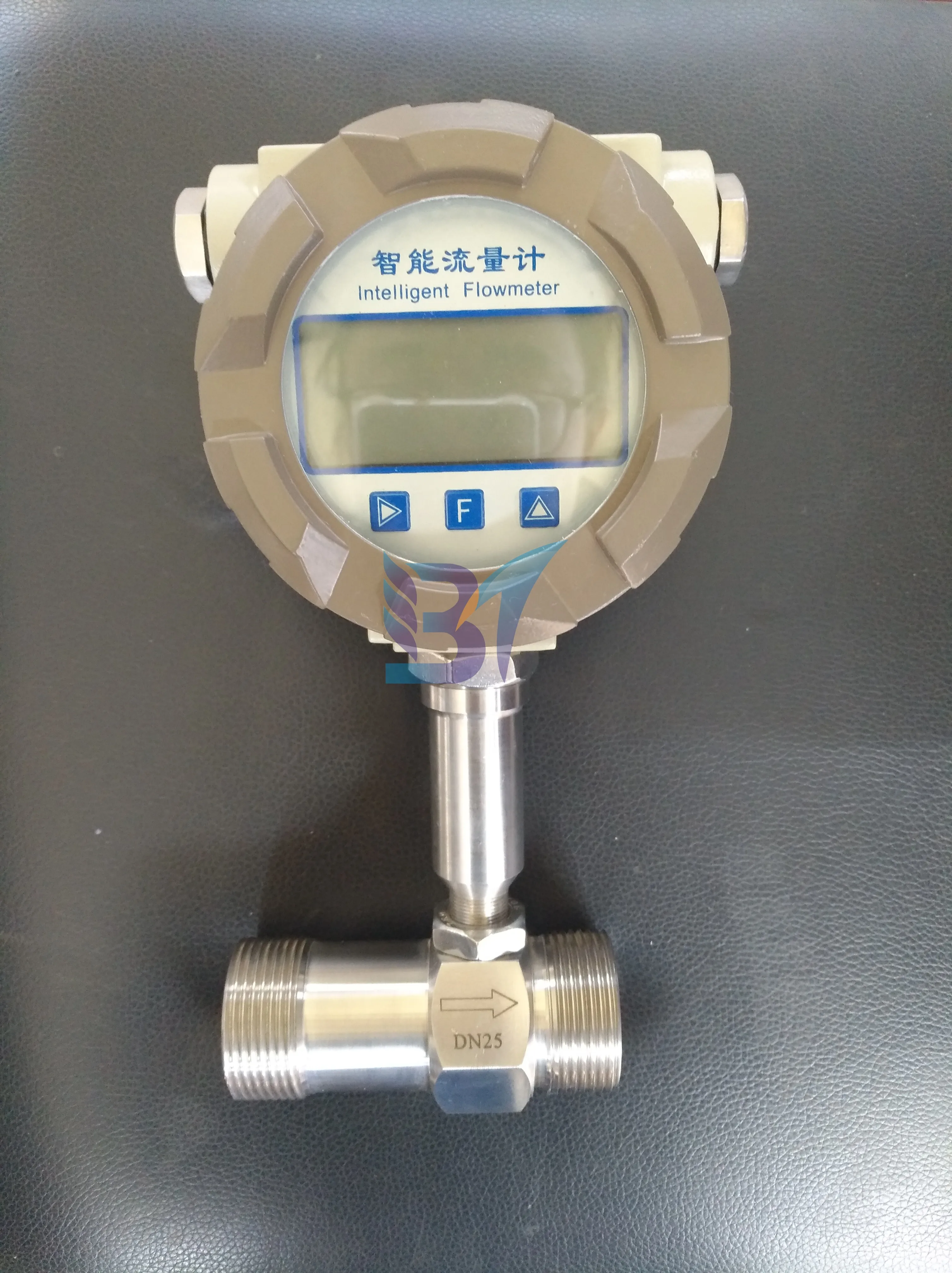

1. Brief introduction of high accurate fuel digital flowmeter
* Output mode: pulse output
DN6 mm DN25 mm
DN15 mm
* Output mode: 4-20mA output

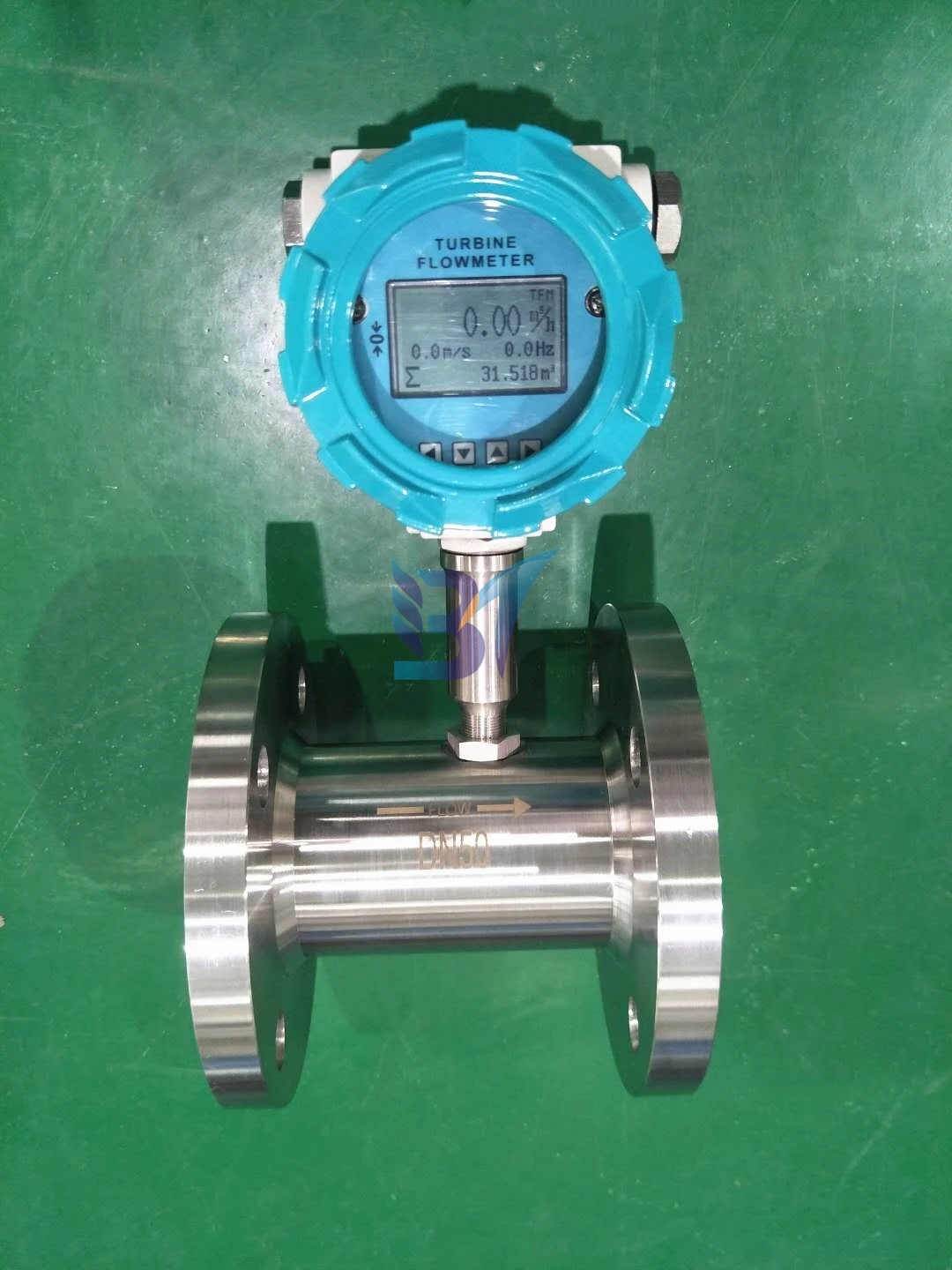

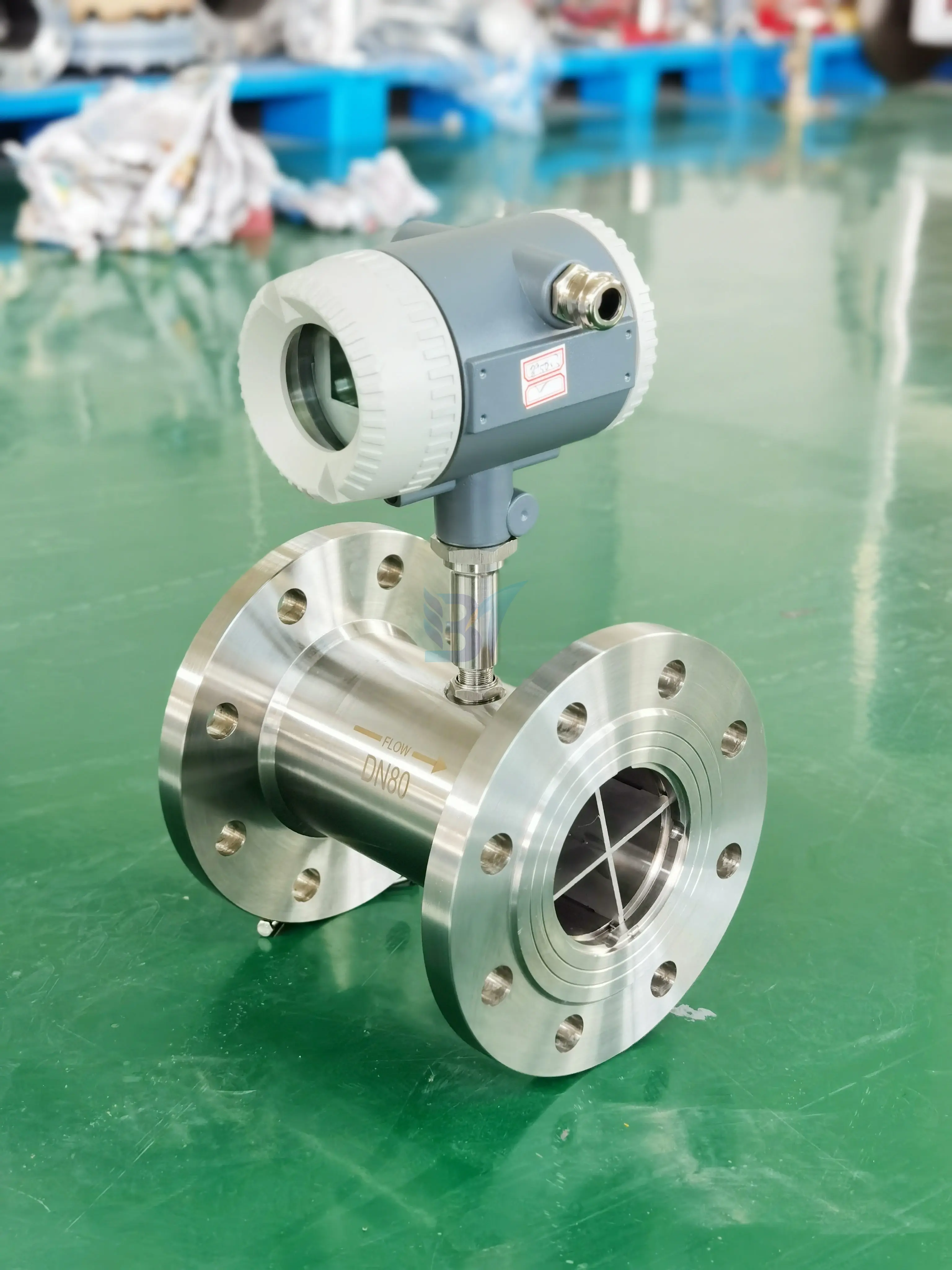

DETAILED DESIGN
2. Advantages of high accurate fuel digital flowmeter
2. Power supply can use external power 24v or 3.6v lithium battery.
3. The impeller life is durable and has strong impact resistance.
4. The flange material is made of all 304 stainless steel, which has good processing performance, high temperature resistance and is not easy to rust after long-term use.
PRODUCT SPECIFICATIONS
3. Parameter list of high accurate fuel digital flowmeter
Sensor Diameter | DN 4-300mm | ||||
Accuracy | 1.0%, 0.5% | ||||
Measured medium temperature | -20℃~120℃ | ||||
Power supply | 24VDC 3.6v | ||||
Range ratio | 1:10 1:15 1:20 | ||||
Nominal Pressure | 1.6MPa, 2.5MPa, 4.0MPa, 6.3MPa and pressure over these | ||||
Signal output | Pulse/4-20mA/RS485/Hart | ||||
Flow range: of petrol flow meter
Diameter (mm) | Standard flow range (m³/h) | Extended flow range (m³/h) | Conventional connection mode | Conventional pressure (Mpa) |
DN4 | 0.04-0.25 | 0.04-0.4 | Thread | 6.3 |
DN6 | 0.1-0.6 | 0.06-0.6 | Thread | 6.3 |
DN10 | 0.2-1.2 | 0.15-1.5 | Thread | 6.3 |
DN15 | 0.6-6 | 0.4-8 | Thread/Flange | 2.5/6.3 |
DN20 | 0.8-8 | 0.45-9 | Thread/Flange | 2.5/6.3 |
DN25 | 1-10 | 0.5-10 | Thread/Flange | 2.5/6.3 |
DN32 | 1.5-15 | 0.8-15 | Thread/Flange | 2.5/6.3 |
DN40 | 2-20 | 1-20 | Thread/Flange | 2.5/6.3 |
DN50 | 4-40 | 2-40 | Flange | 2.5 |
DN65 | 7-70 | 4-70 | Flange | 2.5 |
DN80 | 10-100 | 5-100 | Flange | 2.5 |
DN100 | 20-200 | 10-200 | Flange | 1.6 |
DN125 | 25-250 | 13-250 | Flange | 1.6 |
DN150 | 30-300 | 15-300 | Flange | 1.6 |
DN200 | 80-800 | 40-800 | Flange | 1.6 |
Successful Project
4. Customer working site of high accurate fuel digital flowmeter
5. Measurable medium of high accurate fuel digital flowmeter
High accurate fuel digital flowmeter is suitable for petroleum, chemical, metallurgical and other sectors, and are used for measurement of low-viscosity liquids such as water, gasoline, and diesel.
Long service life, high accuracy and strong reliability. The pressure loss is extremely small.
SIMILAR PRODUCTS
Please click these pictures if you want to know more details for them.
Liquid Electromagnetic Flowmeter
Connection: Thread, Flange, Tri-clamp
Lining material: PTEF/PU/FPM/F46/CR
Electrode material: 316L/HB/HC/Ti/Ta/Pt
Signal output: pulse, 4-20mA, RS485, Hart etc.
Accuracy: ±0.5%
Pressure: 1.0-4.0MPA
Protect grade: IP65/IP68
Wall-mounted Ultrasonic Flowmeter
Nominal diametar: DN15~DN6000mm
Accuracy: better than ±1%, linearity: 0.5%, repeatability: 0.2%
Power supply: 220V/24V
Sensor: External clamp sensor, plug-in sensor, pipeline sensor
LCD display: display accumulated flow/heat, instantaneous flow/heat, time etc.
Velocity: ±64 m/s
Output signal: 4-20mA, Ralay output, RS485, Modbus
Memory: Automatic memory of the first 512 days/ 128 months/ 10 years of positive/negative/net cumulative flow, the first 30 outage time and flow.
Accuracy: better than ±1%, linearity: 0.5%, repeatability: 0.2%
Power supply: 220V/24V
Sensor: External clamp sensor, plug-in sensor, pipeline sensor
LCD display: display accumulated flow/heat, instantaneous flow/heat, time etc.
Velocity: ±64 m/s
Output signal: 4-20mA, Ralay output, RS485, Modbus
Memory: Automatic memory of the first 512 days/ 128 months/ 10 years of positive/negative/net cumulative flow, the first 30 outage time and flow.
Packaging:
Each of our flow meter after factory calibration, according to different size do packaging, usually, below 100 mm flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of wooden case packaging. We will ensure that each flow meter, safe to reach your hands.
Shipping:
International express (DHL UPS TNT FedEx etc.), air express or sea or others
Company Profile
Kaifeng Baite Flow Instrument Co., Ltd.
We are mainly specialized in Electromagnetic flow meter, Electromagnetic calorimeter, Insert type electromagnetism flow meter, Vortex flow meter, Turbine flow meter, Thermal gas mass flow meter, Ultrasonic flow meter etc. With a wide range, good quality, reasonable prices and stylish designs.
Our products are extensively used in petroleum, chemical, environmental protection, metallurgy, food , water conservancy construction and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
FAQ
Q1: What's your business range?
A: We manufacture Electromagnetic flow meter, Vortex flow meter, Gas/Liquid turbine flow meter, Thermal gas mass flow meter etc.
Q2: May I visit your factory?
A: Of course, our factory is located in Kaifeng city, welcome your arrival.
Q3: Why should I use Alibaba Trade Assurance orders?
A: We manufacture Electromagnetic flow meter, Vortex flow meter, Gas/Liquid turbine flow meter, Thermal gas mass flow meter etc.
Q2: May I visit your factory?
A: Of course, our factory is located in Kaifeng city, welcome your arrival.
Q3: Why should I use Alibaba Trade Assurance orders?
A: Trade Assurance order is a guarantee to buyer by Alibaba for after-sales, returns, claims etc.
Q4: Why choose us?
1. We have more than 10 years of industry experience in flow meter.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.
Q4: Why choose us?
1. We have more than 10 years of industry experience in flow meter.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.
