ftth fiber optic cable gyxtw 7mm diameters  12 cores price










Description:

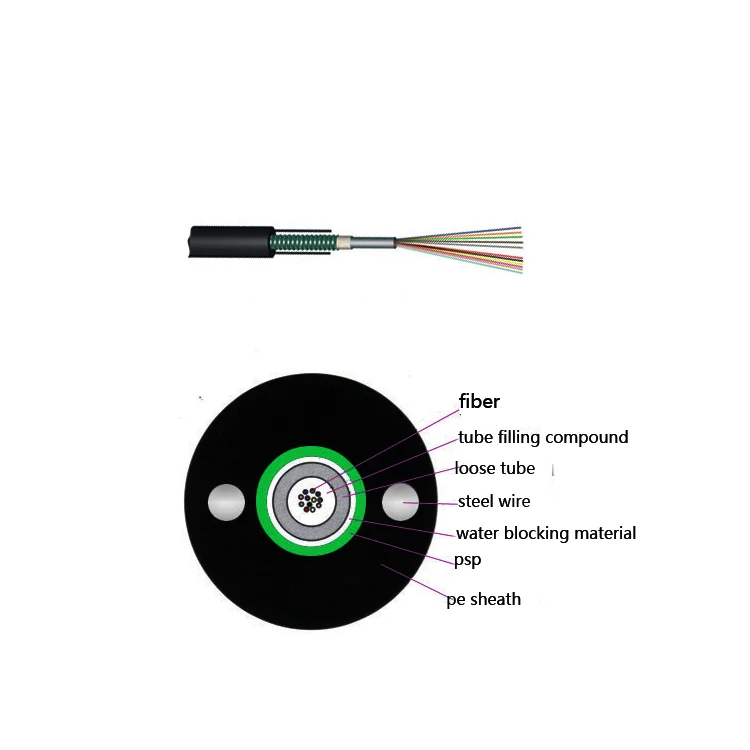

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.


Characteristics:


 1.Good mechanical and temperature performance


 2.High strength loose tube that is hydrolysis resistant


 3.Special tube filling compound ensure a critical protection of fiber


 4.Crush resistance and flexibility


 5.PSP enhancing moisture-proof


 6.Two parallel steel wires ensure tensile strength


 7.Small diameter, light weight and friendly installation





Loose tube filling compound


100% cable core filling


APL moisture barrier


Standards:


GYTA  YD/T 901-2001 /IEC 60794-1


GYTA cable complies with Standard YD/T 901-2001as well as IEC 60794-1.


 Optical Characteristics:


















































































G.652



G.655



50/125μm



62.5/125μm



Attenuation


(+20)



@850nm











≤3.0 dB/km



≤3.0 dB/km



@1300nm











≤1.0 dB/km



≤1.0 dB/km



@1310nm



≤0.36 dB/km



≤0.40 dB/km











@1550nm



≤0.22 dB/km



≤0.23dB/km














Bandwidth (Class A)



@850nm











≥500 MHz·km



≥200 MHz·km



@1300nm











≥1000 MHz·km



≥600 MHz·km



Numerical Aperture











0.200±0.015NA



0.275±0.015NA



Cable Cut-off Wavelength λcc



≤1260nm



≤1480nm















 Technical Parameters:



































































Cable Type



Fiber Count



Cable Diameter


mm



Cable Weight kg/km



Tensile StrengthLong/Short Term N



Crush Resistance Long/Short Term N/100mm



Bending Radius/Static
/Dynamic mm



GYXS/GYXTW-2~12



2~12



10.0



105



600/1500



300/1000



10D/20D



GYXS/GY XTW-2~12



2~12



10.6



124



1000/3000



1000/3000



10D/20D



GYXS/GY XTW-14~24



14~24



12.5



149



1000/3000



1000/3000



10D/20D



GYXS/GY XTW-26~36



26~36



14.0



190



1000/3000



1000/3000



10D/20D



GYXS/GY XTW-38~48



38~48



15.0



216



1000/3000



1000/3000



10D/20D







  Storage/Operating Temperature : -40 to + 70

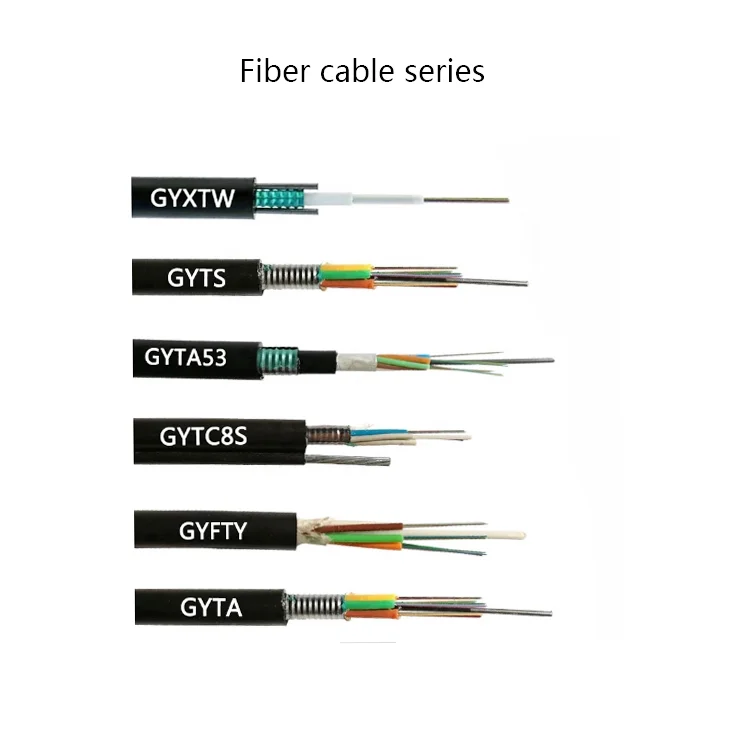

Gyta76  (1)_01
