Product Description

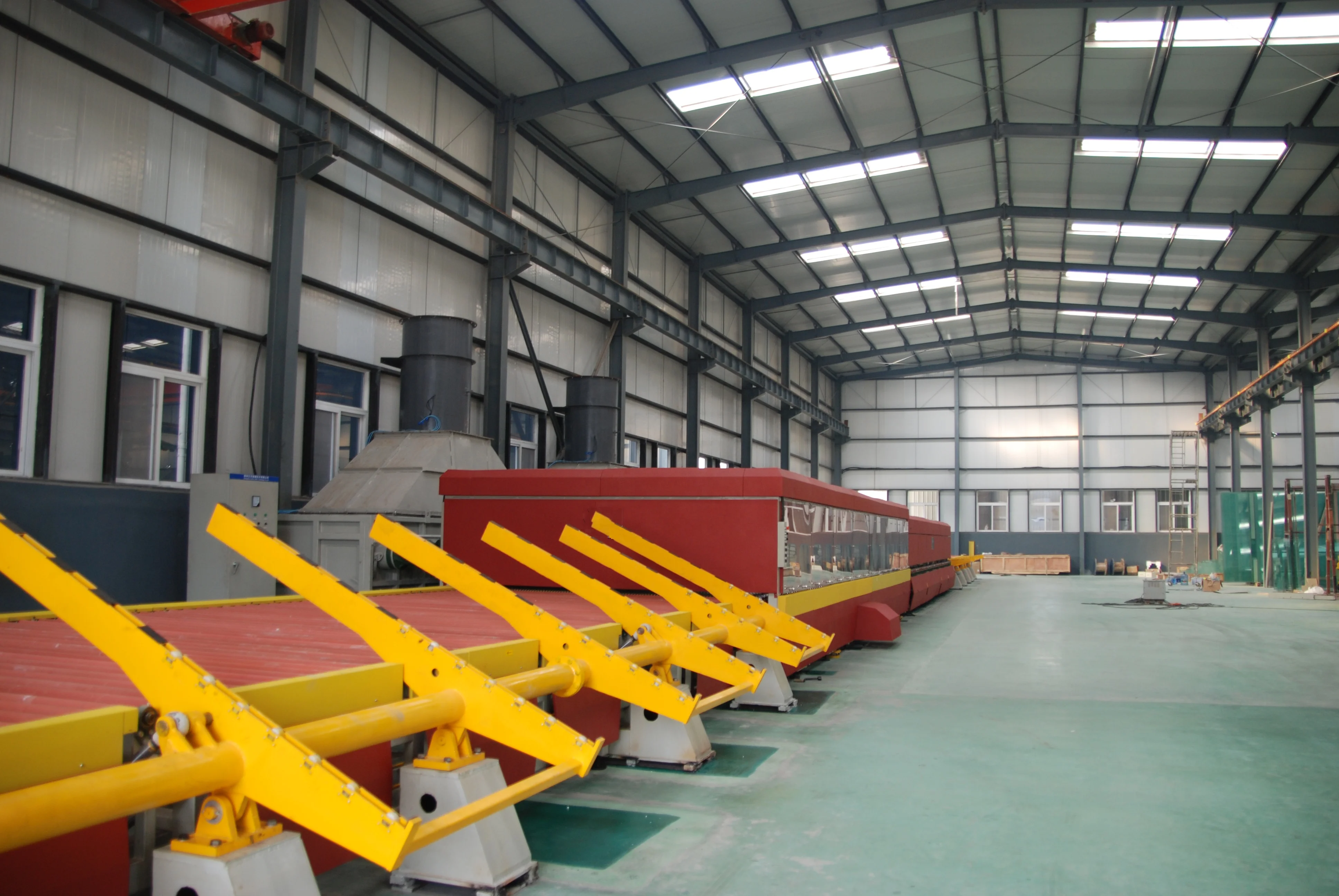

Working Factory

More than 30,000 Square meter working factory. Capacity: more than 50set per year

Specification

Model	Max Glass Size mm	Min Glass Size mm	Glass Thickness mm	Productivity (Batch/hour)	Installation Power KW
HNT-A1225	1250×2500	100×250	3-19	22	150
HNT-A1236	1250×3660	100×250	3-19	22	230
HNT-A1625	1600×2500	100×250	3-19	22	220
HNT-A1636	1600×3660	100×250	3-19	22	300
HNT-A2030	2000×3000	100×250	4-19	18	315
HNT-A2036	2000×3600	100×250	4-19	18	400
HNT-A2042	2000×4200	100×250	4-19	18	450
HNT-A2436	2440×3660	200×300	4-19	18	500
HNT-A2442	2440×4200	200×300	4-19	18	550
HNT-A2450	2440×5000	200×300	4-19	18	650
HNT-A2460	2440×6000	200×300	4-19	18	800
HNT-A2480	2440×8000	200×300	4-19	18	1000
HNT-A2860	2800×6000	200×350	5-19	15	900
HNT-A2880	2800×8000	200×350	5-19	15	1200
HNT-A28150	2800×15000	200×350	5-19	15	2200
HNT-A3380	3300×8000	200×500	6-19	14	1500
HNT-A33160	3300×16000	200×350	6-19	14	2800
HNT-A3580	3500×8000	200×500	6-19	14	1600

Company Profile

Glass Can Be Tempered:
Building glass, home applicant glass, decoration glass, Low-E glass, furniture glass, etc

Two designs top blower can be designed to save customer's space

Features of the glass tempering furnace.

1.Stainless Steel Ceramic plates installed at the top of heating elements, which could ensure more even heating, avoid dust falling
2. Ceramic rollers driven by double belts, which can ensure better simultaneous and stable running.
3. Top quality insulating materials for whole heating oven
4. Heating elements use the gapless design (parallelogram shape), which could make the heating more even. This could improve the finished product rate and better product quality.
5. Using ceramic support for heating elements, which could avoid earth to avoid heater trouble

Supply Scope:

1. Loading table
2. Heating section

Force convection system as option ( Compressed air or Turbo Blower )

Vesuvius ceramic roller as option
3. Flat tempering & cooling section
4. Bent tempering & cooling section
5. Unloading table
6. Blower system with Frequency converter
7. Electrical & control system (Siemens PLC, Computer, etc)
8. Technical documents
